# imseggeodesic

Segment image into two or three regions using geodesic distance-based color segmentation

## Syntax

``L = imseggeodesic(RGB,BW1,BW2)``
``L = imseggeodesic(RGB,BW1,BW2,BW3)``
``````[L,P] = imseggeodesic(___)``````
``````[L,P] = imseggeodesic(___,Name,Value)``````

## Description

example

````L = imseggeodesic(RGB,BW1,BW2)` segments the color image `RGB`, returning a segmented binary image with labels `L`. `BW1` and `BW2` are binary images that specify the location of the initial seed regions, called scribbles, for the two regions (foreground and background).`imseggeodesic` uses the scribbles specified in `BW1` and `BW2` as representative samples for computing the statistics for their respective regions, which it then uses in segmentation. The scribbles specified by `BW1` and `BW2` (regions that are logical true) should not overlap. The underlying algorithm uses the statistics estimated over the regions marked by the scribbles for segmentation. The greater the number of pixels marked by scribbles, the more accurate the estimation of the region statistics, which typically leads to more accurate segmentation. Therefore, it is a good practice to provide as many scribbles as possible. Typically, provide at least a few hundred pixels as scribbles for each region.```

example

````L = imseggeodesic(RGB,BW1,BW2,BW3)` segments the color image `RGB`, returning a segmented image with three segments (trinary segmentation) with the region labels specified by label matrix `L`. `BW1`, `BW2`, and `BW3` are binary images that specify the location of the initial seed regions or scribbles for the three regions. The scribbles specified by `BW1`, `BW2`, and `BW3` (regions that are logical true) should not overlap.```

example

``````[L,P] = imseggeodesic(___)``` also returns the probability for each pixel belonging to each of the labels in matrix `P`.```

example

``````[L,P] = imseggeodesic(___,Name,Value)``` uses name-value pairs to control aspects of segmentation.```

## Examples

collapse all

Read image into workspace and display it.

```RGB = imread('yellowlily.jpg'); imshow(RGB,'InitialMagnification',50) hold on```

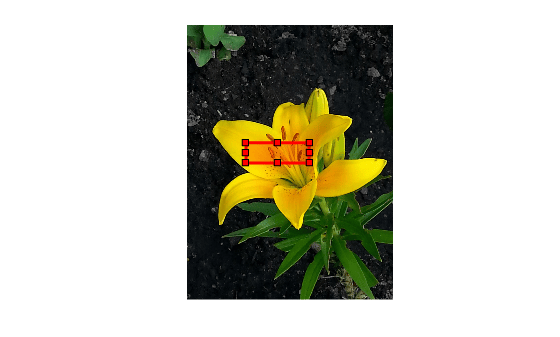

Specify the initial seed regions or "scribbles" for the foreground object, in the form `[left_topR left_topC bottom_rightR bottom_rightC]`.

```bbox1 = [700 350 820 775]; BW1 = false(size(RGB,1),size(RGB,2)); BW1(bbox1(1):bbox1(3),bbox1(2):bbox1(4)) = true;```

Specify the initial seed regions or "scribbles" for the background.

```bbox2 = [1230 90 1420 1000]; BW2 = false(size(RGB,1),size(RGB,2)); BW2(bbox2(1):bbox2(3),bbox2(2):bbox2(4)) = true;```

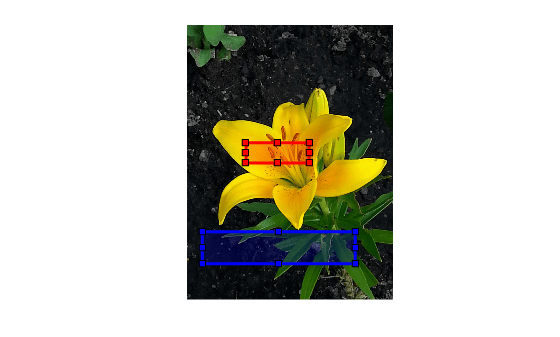

Display seed regions. The foreground is in red and the background is blue.

```visboundaries(BW1,'Color','r'); visboundaries(BW2,'Color','b');```

Segment the image.

`[L,P] = imseggeodesic(RGB,BW1,BW2);`

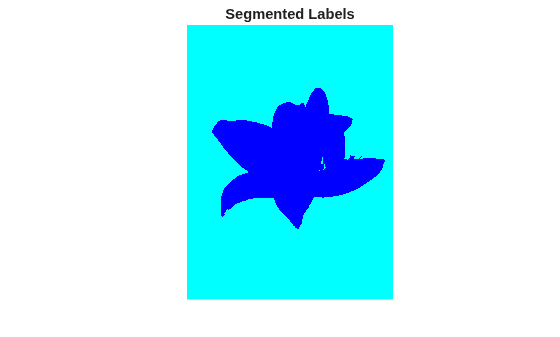

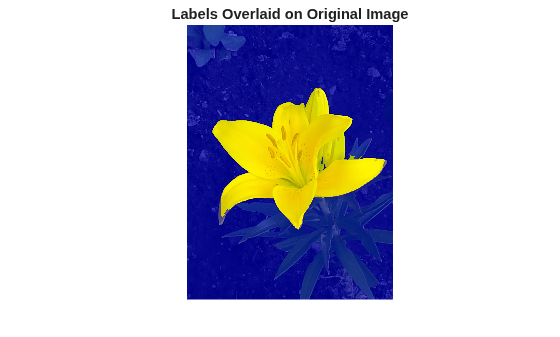

Display results.

```figure imshow(label2rgb(L),'InitialMagnification', 50) title('Segmented image')```

``` figure imshow(P(:,:,1),'InitialMagnification', 50) title('Probability that a pixel belongs to the foreground')```

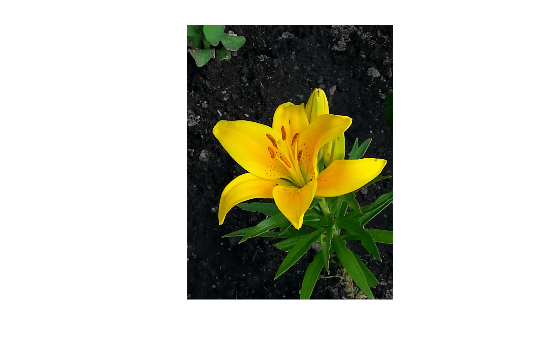

Read image into the workspace and display it.

```RGB = imread('yellowlily.jpg'); imshow(RGB,'InitialMagnification', 50) hold on```

Creates scribbles for three regions. Note that you can specify the scribbles interactively using tools such as `roipoly`, `imfreehand`, `imrect`, `impoly`, and `imellipse`. Region 1 is the yellow flower. Region 2 is the green leaves. Region 3 is the background.

```region1 = [350 700 425 120]; % [x y w h] format BW1 = false(size(RGB,1),size(RGB,2)); BW1(region1(2):region1(2)+region1(4),region1(1):region1(1)+region1(3)) = true; region2 = [800 1124 120 230]; BW2 = false(size(RGB,1),size(RGB,2)); BW2(region2(2):region2(2)+region2(4),region2(1):region2(1)+region2(3)) = true; region3 = [20 1320 480 200; 1010 290 180 240]; BW3 = false(size(RGB,1),size(RGB,2)); BW3(region3(1,2):region3(1,2)+region3(1,4),region3(1,1):region3(1,1)+region3(1,3)) = true; BW3(region3(2,2):region3(2,2)+region3(2,4),region3(2,1):region3(2,1)+region3(2,3)) = true;```

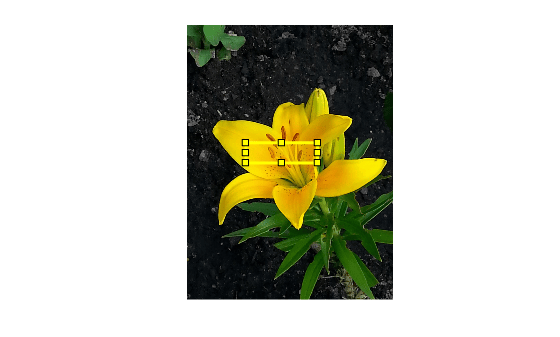

Display the seed regions.

```visboundaries(BW1,'Color','r'); visboundaries(BW2,'Color','g'); visboundaries(BW3,'Color','b');```

Segment the image.

`[L,P] = imseggeodesic(RGB,BW1,BW2,BW3, 'AdaptiveChannelWeighting', true);`

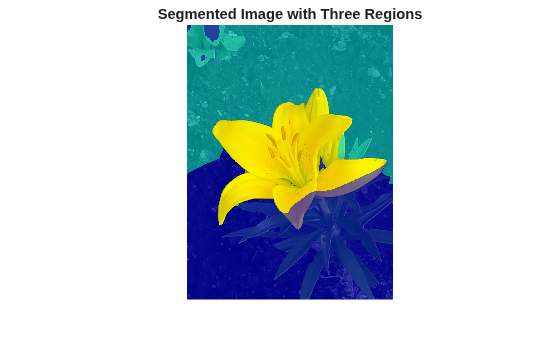

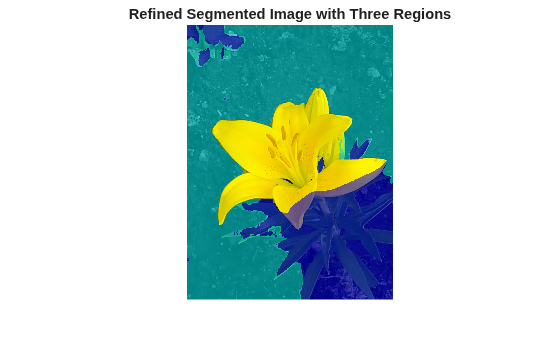

Display results.

```figure imshow(label2rgb(L),'InitialMagnification', 50) title('Segmented image with three regions')```

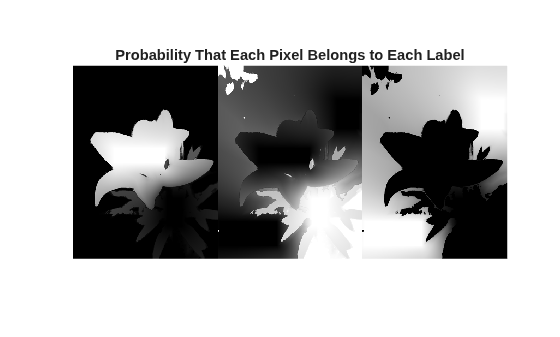

``` figure imshow(P(:,:,2),'InitialMagnification', 50) title('Probability that a pixel belongs to region/label 2')```

## Input Arguments

collapse all

Image to be segmented, specified as an RGB image. `imseggeodesic` converts the input RGB image to the YCbCr color space before performing the segmentation.

Example: `RGB = imread('peppers.png');`

Data Types: `double` | `uint8` | `uint16`

Scribble image, specified as a logical matrix. `BW1` must have the same number of rows and columns as the input image `RGB`. To specify the scribbles interactively, use `roipoly`, `imfreehand`, `imrect`, `impoly`, or `imellipse`.

Example: ```bbox1 = [700 350 820 775]; BW1 = false(size(RGB,1),size(RGB,2)); BW1(bbox1(1):bbox1(3),bbox1(2):bbox1(4)) = true;```

Data Types: `logical`

Scribble image, specified as a logical matrix. `BW2` must have the same number of rows and columns as the input image `RGB`. To specify the scribbles interactively, use `roipoly`, `imfreehand`, `imrect`, `impoly`, or `imellipse`.

Example: ```bbox2 = [1230 90 1420 1000]; BW2 = false(size(RGB,1),size(RGB,2)); BW2(bbox2(1):bbox2(3),bbox2(2):bbox2(4)) = true;```

Data Types: `logical`

Scribble image, specified as a logical matrix. `BW3` must have the same number of rows and columns as the input image `RGB`. To specify the scribbles interactively, use `roipoly`, `imfreehand`, `imrect`, `impoly`, or `imellipse`.

Example: ```bbox3 = [20 1320 480 200; 1010 290 180 240]; BW3 = false(size(RGB,1),size(RGB,2)); BW3(bbox3(1,2):bbox3(1,2)+bbox3(1,4),bbox3(1,1):bbox3(1,1)+bbox3(1,3)) = true;```

Data Types: `logical`

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: ```[L,P] = imseggeodesic(RGB,BW1,BW2,BW3,'AdaptiveChannelWeighting',true);```

Use adaptive channel weighting, specified as a logical scalar. When `true`, `imseggeodesic` weights the channels proportional to the amount of discriminatory information they have that is useful for segmentation (based on the scribbles provided as input). When `false` (the default), `imseggeodesic` weights all the channels equally.

Example: ```[L,P] = imseggeodesic(RGB,BW1,BW2,BW3, 'AdaptiveChannelWeighting', true);```

Data Types: `logical`

## Output Arguments

collapse all

Label matrix, returned as a matrix of nonnegative integers. Pixels labeled `0` are the background and pixels labeled `1` identify a segmented region. Pixels labeled `2` identify another segmented region in trinary segmentation.

Data Types: `double`

Probability a pixel belongs to a labeled region, specified as an M-by-N-by-2 matrix for binary segmentation or an M-by-N-by-3 matrix for trinary segmentation. M and N are the number of rows and columns in the input image. `P(i,j,k)` specifies the probability of pixel at location `(i,j)` belonging to label `k`.

Data Types: `double`

## Tips

• The scribbles for the two (or three) regions should not overlap each other. Each scribble matrix (`BW1`, `BW2`, and `BW3`) should be nonempty, that is, there should be at least one pixel (although the more the better) marked as logical true in each of the scribbles.

## Algorithms

`imseggeodesic` uses a geodesic distance-based color segmentation algorithm (similar to [1]).

## References

[1] A. Protiere and G. Sapiro, Interactive Image Segmentation via Adaptive Weighted Distances, IEEE Transactions on Image Processing. Volume 16, Issue 4, 2007.
