# removeFaces

Remove faces from surface mesh

Since R2022b

## Syntax

``removeFaces(mesh,faceIDs)``
``removeFaces(mesh,faceMask)``

## Description

example

````removeFaces(mesh,faceIDs)` removes the faces specified by the face IDs `faceIDs` from the `surfaceMesh` object `mesh`. The function also removes the corresponding normal vectors and colors from the mesh.```

example

````removeFaces(mesh,faceMask)` remove the faces specified by the binary face mask `faceMask` from the `surfaceMesh` object `mesh`.```

## Examples

collapse all

Define mesh vertices for a surface mesh.

```vertices = [1 -1 1; 1 1 1; -1 1 1; -1 -1 1; ... 1 -1 -1; 1 1 -1; -1 1 -1; -1 -1 -1; ... 0 0 2; 0 0 -2];```

Define the mesh faces using the vertices.

```faces = [6 2 1; 1 5 6; 8 4 3; 3 7 8; 6 7 3; 3 2 6; ... 5 1 4; 4 8 5; 4 1 2; 2 3 4; 7 6 5; 5 8 7; ... 1 4 9; 2 3 9; 5 8 10; 6 7 10];```

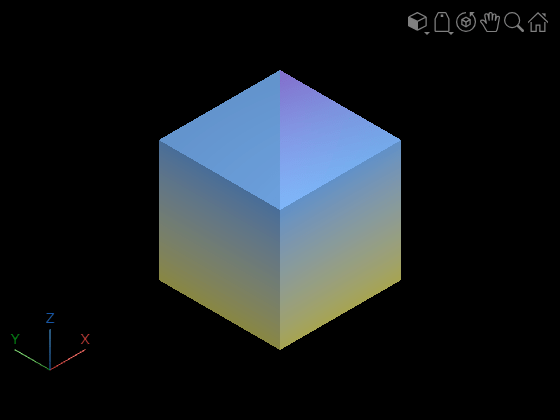

Create and display the surface mesh.

```mesh = surfaceMesh(vertices,faces); surfaceMeshShow(mesh,Title="Original Mesh")```

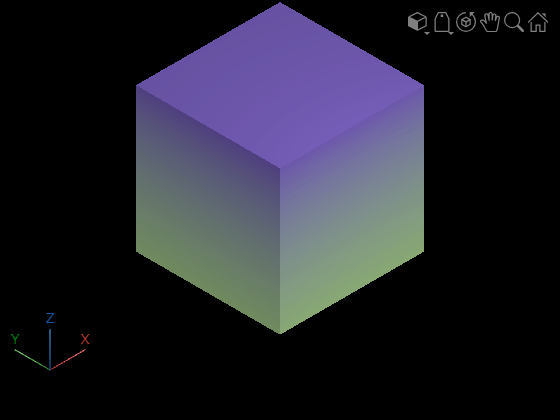

Remove the faces 13th and 14th from the mesh by specifying their face IDs, remove the resulting unreferenced vertices from the mesh. Visualize the output.

```faceIDs = [13 14]; removeFaces(mesh,faceIDs) removeDefects(mesh,"unreferenced-vertices") surfaceMeshShow(mesh,Title="Mesh After Removing Faces")```

Define mesh vertices for a surface mesh.

```vertices = [1 -1 1; 1 1 1; -1 1 1; -1 -1 1; ... 1 -1 -1; 1 1 -1; -1 1 -1; -1 -1 -1; ... 0 0 2; 0 0 -2];```

Define the mesh faces using the vertices.

```faces = [6 2 1; 1 5 6; 8 4 3; 3 7 8; 6 7 3; 3 2 6; ... 5 1 4; 4 8 5; 4 1 2; 2 3 4; 7 6 5; 5 8 7; ... 1 4 9; 2 3 9; 5 8 10; 6 7 10];```

Create and display the surface mesh.

```mesh = surfaceMesh(vertices,faces); surfaceMeshShow(mesh,Title="Original Mesh")```

Mark 13,14 vertices as `true` and remaining vertices as `false` to generate a binary mask.

```faceMask = false(1,mesh.NumFaces); faceMask([13 14]) = true;```

Remove faces 13 and 14 face from the mesh by using the `removeFaces` function, and remove the resulting unreferenced vertices. Visualize the output.

```removeFaces(mesh,faceMask); removeDefects(mesh,"unreferenced-vertices") surfaceMeshShow(mesh,Title="Mesh After Removing Faces")```

## Input Arguments

collapse all

Surface mesh, specified as a `surfaceMesh` object.

Face IDs, specified as an n-element vector. Each face ID is a unique identifier for a face in the mesh and is equal to the row number of the face in the `Faces` property of the `surfaceMesh` object. n is the number of faces to remove from the mesh.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Binary mask with mesh faces, specified as an N-element logical vector. N is the total number of mesh faces. If the value of an element is `true`, the function removes the corresponding face from the mesh. If an element is `false`, the function does not remove the corresponding face from the mesh.

## Version History

Introduced in R2022b
