contour3m
Project 3-D contour plot of map data
Syntax
Description
contour3m(___,
specifies
the contour lines to display, in addition to any combination of arguments from the previous
syntaxes.levels
)
contour3m(___,
specifies additional options for the contour plot using one or more name-value
arguments.Name,Value
)
returns the
contour matrix C
= contour3m(___)C
, which contains the latitude and longitude coordinates
of the vertices at each level.
Examples

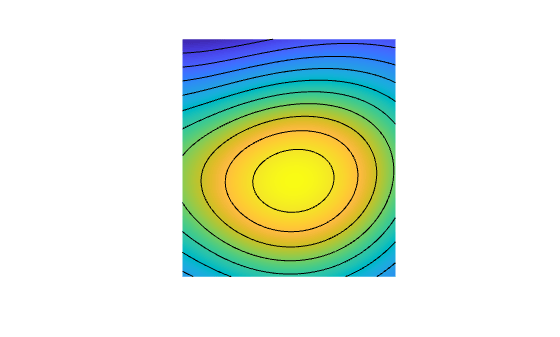

Create 3-D Contour Plot
Display sample map data as a surface on a map. Then, display 3-D contours of the sample data on the same map.
R = georefpostings([10 50],[60 100],[100 100]); Z = geopeaks(R); figure axesm miller axis off geoshow(Z,R,"DisplayType","surface") contour3m(Z,R,"k")

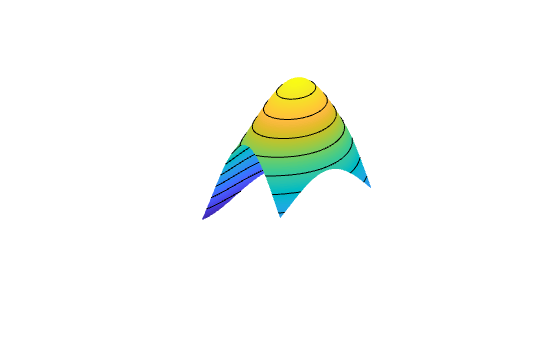

Exaggerate the z-axis of the axes. Then, view the map in 3-D.
daspect([1 1 5]) view(3)

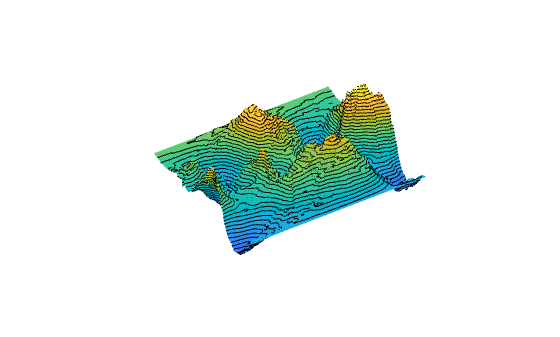

Specify Number of Contour Levels
Read geoid heights from the Earth Gravitational Model of 1996 (EGM96) into the workspace. Display the data as a surface on a map. Then, display contours at 40
levels of Z
.
[Z,R] = egm96geoid; figure axesm miller axis off geoshow(Z,R,"DisplayType","surface") contour3m(Z,R,40,"k")
Exaggerate the z-axis of the axes. Then, view the map in 3-D.
daspect([1 1 50]) view(3)

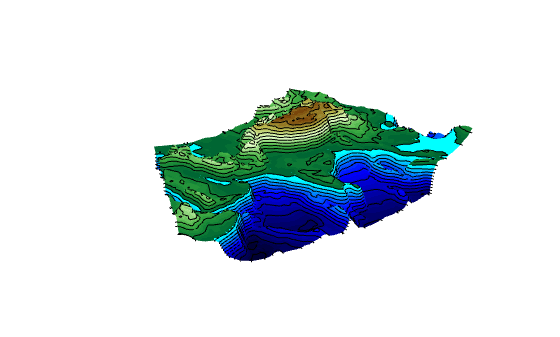

Specify Spacing Between Contour Lines
Load global elevation and bathymetry data. Crop the data to include an area around South Asia.
load topo60c
latlim = [0 50];
lonlim = [35 115];
[Z,R] = geocrop(topo60c,topo60cR,latlim,lonlim);
Display the data as a surface, using a colormap appropriate for elevation data. Then, create a 3-D contour plot on top of the surface. Display contour lines at increments of 500
meters.
figure axesm("lambertstd","MapLatLimit",latlim,"MapLonLimit",lonlim) axis off tightmap geoshow(Z,R,"DisplayType","surface") demcmap(Z) contour3m(Z,R,"k","LevelStep",500)
Exaggerate the z-axis of the axes. Then, view the map in 3-D.
daspect([1 1 40000]) view(3)
Input Arguments
Z
— Regular or geolocated data grid
M-by-N matrix
Regular or geolocated data grid, specified as an M-by-N matrix.
The contour3m
function does not display contour lines for
elements of Z
that have values of NaN
.
R
— Spatial reference
GeographicCellsReference
object | GeographicPostingsReference
object
Spatial reference for Z
, specified as a GeographicCellsReference
or GeographicPostingsReference
object. The RasterSize
property of R
must be consistent with
size(Z)
.
lat
— Latitude coordinates
M-by-N matrix | M-element vector
Latitude coordinates, specified as an M-by-N matrix or an M-element vector.
This argument does not support NaN
values. To indicate missing
data, set the corresponding element of Z
to a value of
NaN
, instead.
lon
— Longitude coordinates
M-by-N matrix | M-element vector
Longitude coordinates, specified as an M-by-N matrix or an M-element vector.
This argument does not support NaN
values. To indicate missing
data, set the corresponding element of Z
to a value of
NaN
, instead.
levels
— Contour levels
positive integer | numeric vector
Contour levels, specified as a positive integer or a numeric vector.
To display contour lines at
n
automatically chosen levels, specify this argument asn
. The function chooses levels based on the values inZ
.To display contour lines at specific levels, specify this argument as a vector of increasing values.
To display contour lines at a single level,
k
, specify this argument as a two-element row vector[k k]
.
LineSpec
— Line style and color
character vector | string scalar
Line style and color, specified as a character vector or string scalar containing characters
and symbols. The characters and symbols can appear in any order. You can specify the
line style, line color, or both. Marker symbols such as 'o'
are
ignored.
Example: '--g'
is a green dashed line.
Line Style | Description | Resulting Line |
---|---|---|
"-" | Solid line |
|
"--" | Dashed line |
|
":" | Dotted line |
|
"-." | Dash-dotted line |
|
Color Name | Short Name | Appearance |
---|---|---|
'red' | 'r' |
|
'green' | 'g' |
|
'blue' | 'b' |
|
'cyan'
| 'c' |
|
'magenta' | 'm' |
|
'yellow' | 'y' |
|
'black' | 'k' |
|
'white' | 'w' |
|
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: contour3m(Z,R,ShowText="on")
displays the contour line
labels.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: contour3m(Z,R,"ShowText","on")
displays the contour line
labels.
Note
In addition to the name-value arguments in this section, you can use name-value
arguments to specify values for the HandleVisibility
,
Parent
, Tag
, UserData
,
and Visible
properties of the Group
object returned
by this function. For more information about these group object properties, see Group Properties.
Fill
— Fill between contour lines
"off"
(default) | "on"
Fill between the contour lines, specified as one of these values:
"off"
— Do not fill the spaces between contour lines with a color."on"
— Fill the spaces between contour lines with color.
LabelSpacing
— Label spacing
144
(default) | scalar
Label spacing along the contour lines, specified as a scalar value in points, where one point is 1/72 inch. Use this property to control the number of contour labels along the contour lines. Smaller values produce more labels.
You must specify ShowText
as "on"
for
LabelSpacing
to have an effect.
If the length of a contour line is less than LabelSpacing
,
then the function displays one label on the line.
LevelList
— Contour levels
row vector of increasing values in Z
Contour levels, specified as a row vector of increasing values in
Z
. By default, the contour3m
function
chooses values that span the range of values in Z
.
LevelStep
— Spacing between contour lines
positive scalar
Spacing between the contour lines, specified as a positive scalar. For example,
specify a value of 2
to display contour lines at increments of
2
. By default, the contour3m
function
determines the spacing based on the values in Z
. If you specify
both levels
and LevelStep
, then the function
ignores LevelStep
.
LineColor
— Color of contour lines
"flat"
(default) | RGB triplet | "r"
| "g"
| "b"
| "none"
| ...
Color of the contour lines, specified as "flat"
, a color name,
a short name, an RGB triplet, or "none"
. The default value of
"flat"
selects a distinct color for lines at each contour level
from the colormap of the figure in which the contours are drawn. The value
"none"
applies no color to the lines.
For a custom color, specify an RGB triplet. An RGB triplet is a three-element row
vector whose elements specify the intensities of the red, green, and blue components
of the color. The intensities must be in the range [0,1]
; for
example, [0.4 0.6 0.7]
.
Alternatively, you can specify some common colors by name. This table lists the named color options and equivalent RGB triplets.
Color Name | Short Name | RGB Triplet | Appearance |
---|---|---|---|
"red" | "r" | [1 0 0] |
|
"green" | "g" | [0 1 0] |
|
"blue" | "b" | [0 0 1] |
|
"cyan"
| "c" | [0 1 1] |
|
"magenta" | "m" | [1 0 1] |
|
"yellow" | "y" | [1 1 0] |
|
"black" | "k" | [0 0 0] |
|
"white" | "w" | [1 1 1] |
|
LineStyle
— Line style
"-"
(default) | "--"
| ":"
| "-."
| "none"
Line style, specified as one of the options listed in this table.
Line Style | Description | Resulting Line |
---|---|---|
"-" | Solid line |
|
"--" | Dashed line |
|
":" | Dotted line |
|
"-." | Dash-dotted line |
|
"none" | No line | No line |
LineWidth
— Line width
0.5
(default) | positive scalar
Contour line width, specified as a positive scalar in points. One point equals 1/72 inch.
ShowText
— Contour line labels
"off"
(default) | "on"
Contour line labels, specified as one of these values:
"on"
— Display the contour level along the contour lines."off"
— Do not label the contour lines.
Output Arguments
C
— Contour matrix
matrix with two rows
Contour matrix, returned as a matrix with two rows. This argument contains the data that defines the contour lines. The first row of the matrix contains longitude data and the second row of the matrix contains latitude data.
h
— Contour patches
Group
object
Contour patches, returned as a Group
object.
Tips
When you use the
contour3m
function with anaxesm
-based map that contains aglobe
map frame, thecontour3m
function issues a warning.The
contour3m
function behaves the same as thecontourm
function, except thecontour3m
function displays the lines for each contour level at the z-coordinate equal to the value of the level.
Version History
Introduced before R2006aR2024b: contour3m
does not accept referencing vectors or referencing matrices as input
The contour3m
function does not accept referencing vectors or
referencing matrices as input. Use a geographic raster reference object, specified as a
GeographicCellsReference
or GeographicPostingsReference
object, as input instead. Reference objects have
several advantages over referencing vectors and referencing matrices.
Unlike referencing vectors and referencing matrices, reference objects have properties that document the size of the associated raster, its geographic limits, and the direction of its rows and columns.
You can manipulate the limits of geographic rasters associated with reference objects using the
geocrop
function.You can manipulate the size and resolution of geographic rasters associated with reference objects using the
georesize
function.
To update your code, create a geographic reference object.
Create a geographic reference object for a raster of cells by using the
georefcells
function.Create a geographic reference object for a raster of regularly posted samples by using the
georefpostings
function.Convert from a referencing vector to a geographic reference object by using the
refvecToGeoRasterReference
function.Convert from a referencing matrix to a geographic reference object by using the
refmatToGeoRasterReference
function.
Once you have created a reference object, replace uses of the referencing vector or referencing matrix in your code with the reference object.
R2023b: contour3m
will not accept referencing vectors or referencing matrices as input
When you specify a referencing vector or referencing matrix as input, the
contour3m
function issues a warning that it will not accept
referencing vectors or referencing matrices as input in a future release.
