mapclip

Clip planar shape to xy-limits or polygon

Since R2022a

Syntax

clipped = mapclip(shape,xlimits,ylimits)

clipped = mapclip(shape,clipperPolygon)

Description

clipped = mapclip(shape,xlimits,ylimits) clips the specified planar point, line, or polygon shapes to the specified xy-limits. Specify the shapes using shape, the x-limits using xlimits, and the y-limits using ylimits.

To crop raster data that is represented by an array and a map raster reference object, use the mapcrop function instead.

clipped = mapclip(shape,clipperPolygon) clips the shapes to the specified clipper polygon. (since R2024b)

Examples

Clip Planar Shapes to xy-Limits

Read hydrography data as a geospatial table. Extract the polygon shape for a pond.

hydro = readgeotable("concord_hydro_area.shp");
shape = hydro.Shape(14)

shape =
  mappolyshape with properties:

              NumRegions: 1
                NumHoles: 3
                Geometry: "polygon"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1×1 projcrs]

Specify the xy-limits and clip the shape.

xlimits = [207736  208212];
ylimits = [912283  912636];
clipped = mapclip(shape,xlimits,ylimits);

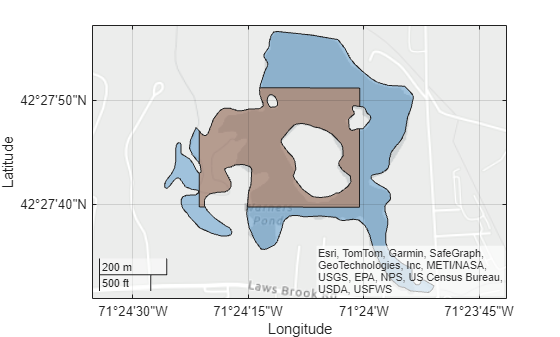

Display the shape and the clipped shape on a map.

figure
geoplot(shape)
hold on
geoplot(clipped)

Clip Planar Shape to Polygon

Since R2024b

Read road data for an area in Boston as a geospatial table. The table represents the roads using line shapes in planar coordinates. Extract the line shapes.

roads = readgeotable("boston_roads.shp");
shape = roads.Shape

shape=2795×1 maplineshape array with properties:
                NumParts: [2795×1 double]
                Geometry: "line"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1×1 projcrs]
      ⋮

Specify the clipper polygon. Create a geospatial table that contains a point shape object for a named location in Boston. Then, define an area of interest (AOI) by creating a circle with a radius of 1000 meters that is centered on the point shape.

places = readgeotable("boston_placenames.shp");
flagstaff = geocode("FLAGSTAFF HILL",places);

clipperPolygon = aoicircle(flagstaff,1000)

clipperPolygon =
  mappolyshape with properties:

              NumRegions: 1
                NumHoles: 0
                Geometry: "polygon"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1×1 projcrs]

Verify that the road data and the AOI use the same projected coordinate reference system (CRS).

isequal(shape.ProjectedCRS,clipperPolygon.ProjectedCRS)

ans = logical
   1

Clip the road data to the AOI.

clipped = mapclip(shape,clipperPolygon);

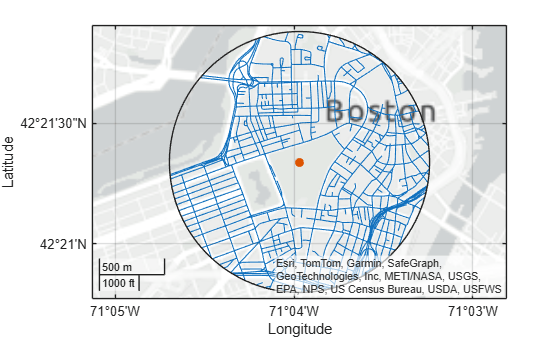

Create a map that displays the clipped road data, the named location, and the AOI.

figure
geoplot(clipped,LineWidth=0.8)
hold on
geoplot(flagstaff,MarkerSize=20)
geoplot(clipperPolygon,FaceColor="none")

Remove Shapes with No Coordinate Data from Output

Read the names and locations of places in Boston as a geospatial table. Extract the point shapes.

places = readgeotable("boston_placenames.shp");
shape = places.Shape

shape =
  13x1 mappointshape array with properties:

               NumPoints: [13x1 double]
                       X: [13x1 double]
                       Y: [13x1 double]
                Geometry: "point"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1x1 projcrs]

Specify the xy-limits and clip the shapes.

xlimits = [235226 237174];
ylimits = [900179 901059];
clipped = mapclip(shape,xlimits,ylimits);

When a point shape lies outside the specified limits, the clipped shape has no coordinate data and the NumPoints property is 0. Remove shapes with no coordinate data from the clipped shapes.

idx = clipped.NumPoints ~= 0;
clipped = clipped(idx)

clipped =
  5x1 mappointshape array with properties:

               NumPoints: [5x1 double]
                       X: [5x1 double]
                       Y: [5x1 double]
                Geometry: "point"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1x1 projcrs]

When a line or polygon shape has no coordinate data, its respective the NumParts or NumRegions property is 0.

Clip Projected Shape Using Geographic Limits

If your shape is in projected coordinates and your limits are in geographic coordinates, then you must project the geographic coordinates before clipping the shape. To use this approach:

• You must know the projected coordinate reference system (CRS) for the shape. You can determine whether a shape object is associated with a projected CRS by querying the ProjectedCRS property.

• The projection method for the CRS must result in x-coordinates and y-coordinates that run approximately west-to-east and south-to-north, respectively, such as transverse Mercator or Lambert Conic Conformal. This approach is not valid for projection methods such as polar stereographic. You can find the projection method for a projected CRS object by querying the ProjectionMethod property.

Read road data for an area in Concord, MA as a geospatial table. Extract the line shapes.

roads = readgeotable("concord_roads.shp");
shape = roads.Shape

shape=609×1 object
  16×1 maplineshape array with properties:

                NumParts: [16×1 double]
                Geometry: "line"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1×1 projcrs]
      ⋮

Verify that the shape has a projected CRS with an appropriate projection method.

crs = shape.ProjectedCRS

crs =
  projcrs with properties:

                    Name: "NAD83 / Massachusetts Mainland"
           GeographicCRS: [1×1 geocrs]
        ProjectionMethod: "Lambert Conic Conformal (2SP)"
              LengthUnit: "meter"
    ProjectionParameters: [1×1 map.crs.ProjectionParameters]

Specify the latitude and longitude limits using geographic coordinates. Project the latitude and longitude limits to xy-limits by using the projected CRS and the projfwd function.

latlim = [42.4657 42.4687];
lonlim = [-71.3996 -71.3946];
[xlimits,ylimits] = projfwd(crs,latlim,lonlim);

Clip the shapes.

clipped = mapclip(shape,xlimits,ylimits);

Display the clipped shapes on a map. Compare the limits you specified with the limits of the plot by setting the tick format to decimal degrees.

figure
geoplot(clipped)
geotickformat("dd")

Input Arguments

shape — Shape

mappointshape, maplineshape, or mappolyshape object | array of mappointshape, maplineshape, or mappolyshape objects

Shape, specified as a mappointshape, maplineshape, or mappolyshape object or as an array of mappointshape, maplineshape, or mappolyshape objects. When you specify an array, you can include a combination of point, line, and polygon shape objects.

xlimits — x-limits

two-element vector

x-limits, specified as a two-element vector of the form [xmin xmax], where xmax is greater than xmin.

The units of xlimits must match the units of shape. If the ProjectedCRS property of shape contains a projcrs object, you can find the units by querying the LengthUnit property of the projcrs object, for example shape.ProjectedCRS.LengthUnit.

ylimits — y-limits

two-element vector

y-limits, specified as a two-element vector of the form [ymin ymax], where ymax is greater than ymin.

The units of ylimits must match the units of shape. If the ProjectedCRS property of shape contains a projcrs object, you can find the units by querying the LengthUnit property of the projcrs object, for example shape.ProjectedCRS.LengthUnit.

clipperPolygon — Clipper polygon

mappolyshape object

Since R2024b

Clipper polygon, specified as a mappolyshape object.

The ProjectedCRS properties of clipperPolygon and shape must be equal, unless one of the ProjectedCRS properties is empty.

Output Arguments

clipped — Clipped shape

mappointshape, maplineshape, or mappolyshape object | array of mappointshape, maplineshape, or mappolyshape objects

Clipped shape, returned as a mappointshape, maplineshape, or mappolyshape object or as an array of mappointshape, maplineshape, or mappolyshape objects.

clipped has the same type and size as shape.

If an element of shape lies completely outside the specified limits, then the corresponding element of clipped does not contain coordinate data. When a point, line, or polygon shape does not contain coordinate data, its respective NumPoints, NumParts, or NumRegions property is 0.

Tips

• If you clip a shape within a geospatial table, the function does not modify any attributes of the table.

Version History

Introduced in R2022a

R2024b: Clip shape objects to polygon

Clip point, line, and polygon shape objects to a polygon shape.
