Create Custom Button with Hover Effect Using HTML
This example shows how to create a custom button component with a hover effect in App Designer by using an HTML UI component.
App creators can add this button to their apps and customize its appearance and behavior. The component interface consists of:
Textto customize the button appearance
ButtonPushedFcnthat executes when an app user pushes the button in an app
HoverButton component appearance and hover effect are defined using HTML in the
Button.html source file. The component interface and behavior, including its public properties and callback, are defined in the
HoverButton.mlapp file in App Designer.
The underlying component in the
HoverButton.mlapp file is an HTML UI component with its
HTMLSource property specified as the
Button.html file. The two files communicate with each other using the
Data property and
DataChanged event, which are synchronized between the HTML UI component in MATLAB® and the
To verify the custom component behavior, create a
HoverButton object programmatically in the MATLAB Command Window. Modify the default button text by specifying the
Text property as a name-value argument. Hover over the button to see the hover effect.
comp = HoverButton(Text="Click me");

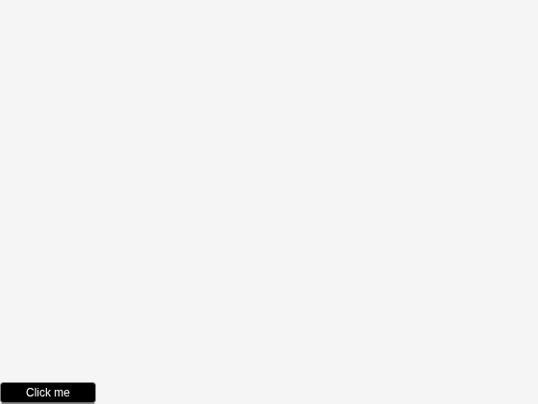

Update the button color to black and the font color to white.
comp.BackgroundColor = "black"; comp.FontColor = "white";
Create a callback function that displays text in the Command Window when a user pushes the button.
comp.ButtonPushedFcn = @(src,event)disp("Button pushed");
Click the button. The text "Button pushed" displays.
