plot

Plot graph nodes and edges

Syntax

plot(G)

plot(G,LineSpec)

plot(___,Name,Value)

plot(ax,___)

h = plot(___)

Description

plot(G) plots the nodes and edges in graph G.

plot(G,LineSpec) sets the line style, marker symbol, and color. For example, plot(G,'-or') uses red circles for the nodes and red lines for the edges.

plot(___,Name,Value) uses additional options specified by one or more Name-Value pair arguments using any of the input argument combinations in previous syntaxes. For example, plot(G,'Layout','circle') plots a circular ring layout of the graph, and plot(G,'XData',X,'YData',Y,'ZData',Z) specifies the (X,Y,Z) coordinates of the graph nodes.

plot(ax,___) plots into the axes specified by ax instead of into the current axes (gca). The option, ax, can precede any of the input argument combinations in previous syntaxes.

h = plot(___) returns a GraphPlot object. Use this object to inspect and adjust the properties of the plotted graph.

Examples

Plot Graph

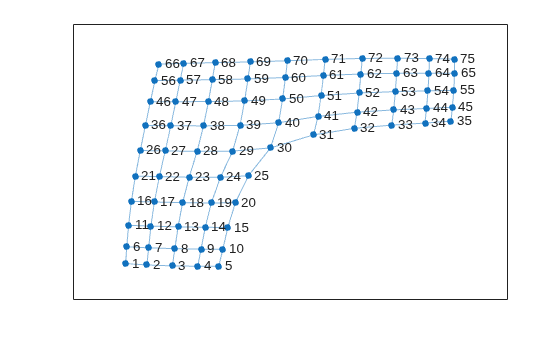

Create a graph using a sparse adjacency matrix, and then plot the graph.

n = 10;
A = delsq(numgrid('L',n+2));
G = graph(A,'omitselfloops')

G =
  graph with properties:

    Edges: [130×2 table]
    Nodes: [75×0 table]

plot(G)

Plot Graph Using Line Specifier

Create and plot a graph. Specify the LineSpec input to change the Marker, NodeColor, and/or LineStyle of the graph plot.

G = graph(bucky);
plot(G,'-.dr','NodeLabel',{})

Plot Graph with Specified Layout

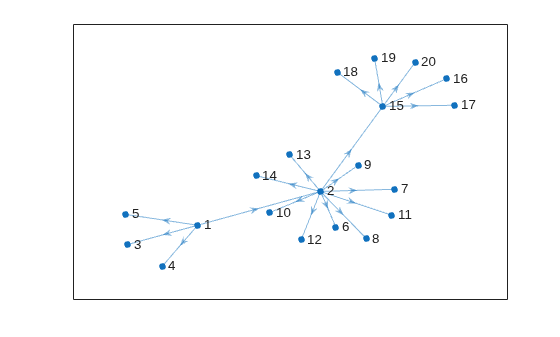

Create a directed graph, and then plot the graph using the 'force' layout.

G = digraph(1,2:5);
G = addedge(G,2,6:15);
G = addedge(G,15,16:20)

G =
  digraph with properties:

    Edges: [19×1 table]
    Nodes: [20×0 table]

plot(G,'Layout','force')

Custom Graph Node Coordinates

Create a weighted graph.

s = [1 1 1 1 1 2 2 7 7 9 3 3 1 4 10 8 4 5 6 8];
t = [2 3 4 5 7 6 7 5 9 6 6 10 10 10 11 11 8 8 11 9];
weights = [1 1 1 1 3 3 2 4 1 6 2 8 8 9 3 2 10 12 15 16];
G = graph(s,t,weights)

G =
  graph with properties:

    Edges: [20×2 table]
    Nodes: [11×0 table]

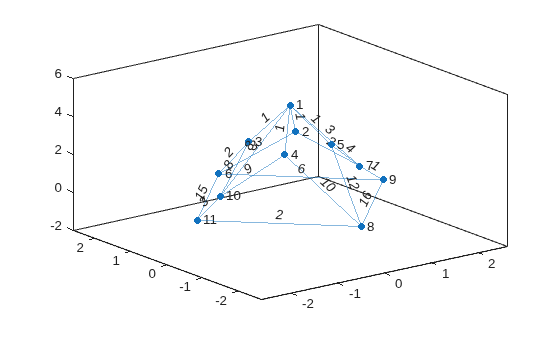

Plot the graph using custom coordinates for the nodes. The x-coordinates are specified using XData, the y-coordinates are specified using YData, and the z-coordinates are specified using ZData. Use EdgeLabel to label the edges using the edge weights.

x = [0 0.5 -0.5 -0.5 0.5 0 1.5 0 2 -1.5 -2];
y = [0 0.5 0.5 -0.5 -0.5 2 0 -2 0 0 0];
z = [5 3 3 3 3 0 1 0 0 1 0];
plot(G,'XData',x,'YData',y,'ZData',z,'EdgeLabel',G.Edges.Weight)

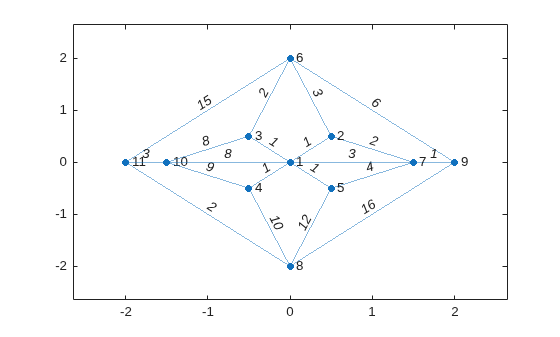

View the graph from above.

view(2)

Edge Line Width Proportional to Edge Weight

Create a weighted graph.

s = [1 1 1 1 2 2 3 4 4 5 6];
t = [2 3 4 5 3 6 6 5 7 7 7];
weights = [50 10 20 80 90 90 30 20 100 40 60];
G = graph(s,t,weights)

G =
  graph with properties:

    Edges: [11×2 table]
    Nodes: [7×0 table]

Plot the graph, labeling the edges with their weights, and making the width of the edges proportional to their weights. Use a rescaled version of the edge weights to determine the width of each edge, such that the widest line has a width of 5.

LWidths = 5*G.Edges.Weight/max(G.Edges.Weight);
plot(G,'EdgeLabel',G.Edges.Weight,'LineWidth',LWidths)

Label Graph Nodes and Edges

Create a directed graph. Plot the graph with custom labels for the nodes and edges.

s = [1 1 1 2 2 3 3 4 4 5 6 7];
t = [2 3 4 5 6 5 7 6 7 8 8 8];
G = digraph(s,t)

G =
  digraph with properties:

    Edges: [12×1 table]
    Nodes: [8×0 table]

eLabels = {'x' 'y' 'z' 'y' 'z' 'x' 'z' 'x' 'y' 'z' 'y' 'x'};
nLabels = {'{0}','{x}','{y}','{z}','{x,y}','{x,z}','{y,z}','{x,y,z}'};
plot(G,'Layout','force','EdgeLabel',eLabels,'NodeLabel',nLabels)

Adjust GraphPlot Properties

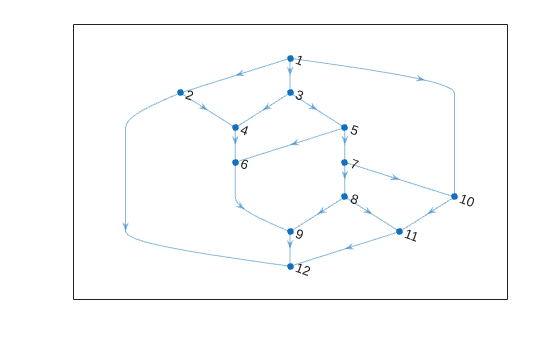

Create and plot a directed graph. Specify an output argument to plot to return a handle to the GraphPlot object.

s = [1 1 1 2 2 3 3 4 5 5 6 7 7 8 8 9 10 11];
t = [2 3 10 4 12 4 5 6 6 7 9 8 10 9 11 12 11 12];
G = digraph(s,t)

G =
  digraph with properties:

    Edges: [18×1 table]
    Nodes: [12×0 table]

p = plot(G)

p =
  GraphPlot with properties:

     NodeColor: [0.0660 0.4430 0.7450]
    MarkerSize: 4
        Marker: 'o'
     EdgeColor: [0.0660 0.4430 0.7450]
     LineWidth: 0.5000
     LineStyle: '-'
     NodeLabel: {'1'  '2'  '3'  '4'  '5'  '6'  '7'  '8'  '9'  '10'  '11'  '12'}
     EdgeLabel: {}
         XData: [2.5000 1.5000 2.5000 2 3 2 3 3 2.5000 4 3.5000 2.5000]
         YData: [7 6 6 5 5 4 4 3 2 3 2 1]
         ZData: [0 0 0 0 0 0 0 0 0 0 0 0]

  Show all properties

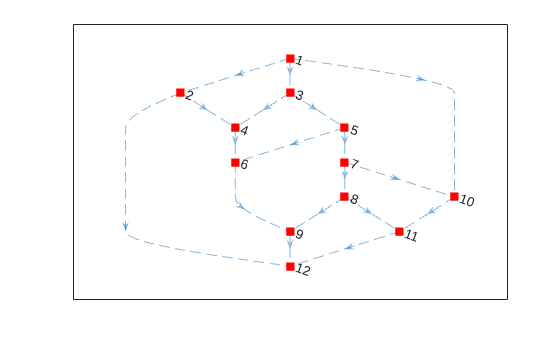

Change the color and marker of the nodes.

p.Marker = 's';
p.NodeColor = 'r';

Increase the size of the nodes.

p.MarkerSize = 7;

Change the line style of the edges.

p.LineStyle = '--';

Change the x and y coordinates of the nodes.

p.XData = [2 4 1.5 3.5 1 3 1 2.1 3 2 3.1 4];
p.YData = [3 3 3.5 3.5 4 4 2 2 2 1 1 1];

Input Arguments

G — Input graph

graph object | digraph object

Input graph, specified as either a graph or digraph object. Use graph to create an undirected graph or digraph to create a directed graph.

Example: G = graph(1,2)

Example: G = digraph([1 2],[2 3])

LineSpec — Line style, marker symbol, and color

character vector | string vector

Line style, marker symbol, and color, specified as a character vector or string vector of symbols. The symbols can appear in any order, and you can omit one or more of the characteristics. If you omit the line style, then the plot shows solid lines for the graph edges.

Example: '--or' uses red circle node markers and red dashed lines as edges.

Example: 'r*' uses red asterisk node markers and solid red lines as edges.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

ax — Axes object

object

Axes object. If you do not specify an axes object, then plot uses the current axes (gca).

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: p = plot(G,'EdgeColor','r','NodeColor','k','LineStyle','--')

The graph properties listed here are only a subset. For a complete list, see GraphPlot Properties.

ArrowSize — Arrow size

positive value

Note

ArrowSize only affects the display of directed graphs created using digraph.

Arrow size, specified as the comma-separated pair consisting of 'ArrowSize' and a positive value in point units. The default value of ArrowSize is 7 for graphs with 100 or fewer nodes, and 4 for graphs with more than 100 nodes.

Example: 15

EdgeCData — Color data of edge lines

vector

Color data of edge lines, specified as the comma-separated pair consisting of 'EdgeCData' and a vector with length equal to the number of edges in the graph. The values in EdgeCData map linearly to the colors in the current colormap, resulting in different colors for each edge in the plotted graph.

EdgeColor — Edge color

[0 0.4470 0.7410] (default) | RGB triplet | hexadecimal color code | color name | matrix | 'flat' | 'none'

Edge color, specified as the comma-separated pair consisting of 'EdgeColor' and one of these values:

• 'none' — Edges are not drawn.

• 'flat' — Color of each edge depends on the value of EdgeCData.

• matrix — Each row is an RGB triplet representing the color of one edge. The size of the matrix is numedges(G)-by-3.

• RGB triplet, hexadecimal color code, or color name — Edges use the specified color.

  RGB triplets and hexadecimal color codes are useful for specifying custom colors.

  • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

  • A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

  Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

  Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
  "red"	"r"	[1 0 0]	"#FF0000"
  "green"	"g"	[0 1 0]	"#00FF00"
  "blue"	"b"	[0 0 1]	"#0000FF"
  "cyan"	"c"	[0 1 1]	"#00FFFF"
  "magenta"	"m"	[1 0 1]	"#FF00FF"
  "yellow"	"y"	[1 1 0]	"#FFFF00"
  "black"	"k"	[0 0 0]	"#000000"
  "white"	"w"	[1 1 1]	"#FFFFFF"

  This table lists the default color palettes for plots in the light and dark themes.

  Palette	Palette Colors
  "gem" — Light theme default Before R2025a: Most plots use these colors by default.
  "glow" — Dark theme default

  You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

  RGB = orderedcolors("gem");
  H = rgb2hex(RGB);

  Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

  Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Example: plot(G,'EdgeColor','r') creates a graph plot with red edges.

EdgeLabel — Edge labels

{} (default) | vector | cell array of character vectors | string array

Edge labels, specified as the comma-separated pair consisting of 'EdgeLabel' and a numeric vector, cell array of character vectors, or string array. The length of EdgeLabel must be equal to the number of edges in the graph. By default EdgeLabel is an empty cell array (no edge labels are displayed).

Example: {'A', 'B', 'C'}

Example: [1 2 3]

Example: plot(G,'EdgeLabel',G.Edges.Weight) labels the graph edges with their weights.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | cell | string

Layout — Graph layout method

'auto' (default) | 'circle' | 'force' | 'layered' | 'subspace' | 'force3' | 'subspace3'

Graph layout method, specified as the comma-separated pair consisting of 'Layout' and one of the options in the table. The table also lists compatible name-value pairs to further refine each layout method. See the layout reference page for more information on these layout-specific name-value pairs.

Option	Description	Layout-Specific Name-Value Pairs
'auto' (default)	Automatic choice of layout method based on the size and structure of the graph.	—
'circle'	Circular layout. Places the graph nodes on a circle centered at the origin with radius 1.	'Center' — Center node in circular layout
'force'	Force-directed layout [1]. Uses attractive forces between adjacent nodes and repulsive forces between distant nodes.	'Iterations' — Number of force-directed layout iterations 'WeightEffect' — Effect of edge weights on layout 'UseGravity' — Gravity toggle for layouts with multiple components 'XStart' — Starting x-coordinates for nodes 'YStart' — Starting y-coordinates for nodes
'layered'	Layered node layout [2], [3], [4]. Places the graph nodes into a set of layers, revealing hierarchical structure. By default the layers progress downwards (the arrows of a directed acyclic graph point down).	'Direction' — Direction of layers 'Sources' — Nodes to include in the first layer 'Sinks' — Nodes to include in the last layer 'AssignLayers' — Layer assignment method
'subspace'	Subspace embedding node layout [5]. Plots the graph nodes in a high-dimensional embedded subspace, and then projects the positions back into 2-D. By default the subspace dimension is either 100 or the total number of nodes, whichever is smaller.	'Dimension' — Dimension of embedded subspace
'force3'	3-D force-directed layout.	'Iterations' — Number of force-directed layout iterations 'WeightEffect' — Effect of edge weights on layout 'UseGravity' — Gravity toggle for layouts with multiple components 'XStart' — Starting x-coordinates for nodes 'YStart' — Starting y-coordinates for nodes 'ZStart' — Starting z-coordinates for nodes
'subspace3'	3-D subspace embedding layout.	'Dimension' — Dimension of embedded subspace

Example: plot(G,'Layout','force3','Iterations',10)

Example: plot(G,'Layout','subspace','Dimension',50)

Example: plot(G,'Layout','layered')

LineStyle — Line style

'-' (default) | '--' | ':' | '-.' | 'none' | cell array | string vector

Line style, specified as the comma-separated pair consisting of 'LineStyle' and one of the line styles listed in this table, or as a cell array or string vector of such values. Specify a cell array of character vectors or string vector to use different line styles for each edge.

Character(s)	Line Style	Resulting Line
'-'	Solid line
'--'	Dashed line
':'	Dotted line
'-.'	Dash-dotted line
'none'	No line	No line

LineWidth — Edge line width

0.5 (default) | positive value | vector

Edge line width, specified as the comma-separated pair consisting of 'LineWidth' and a positive value in point units or a vector of such values. Specify a vector to use a different line width for each edge in the graph.

Example: 0.75

Marker — Node marker symbol

'o' (default) | character vector | cell array | string vector

Node marker symbol, specified as the comma-separated pair consisting of 'Marker' and one of the character vectors listed in this table, or as a cell array or string vector of such values. The default is to use circular markers for the graph nodes. Specify a cell array of character vectors or string vector to use different markers for each node.

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram
"none"	No markers	Not applicable

Example: '+'

Example: 'diamond'

MarkerSize — Node marker size

positive value | vector

Node marker size, specified as the comma-separated pair consisting of 'MarkerSize' and a positive value in point units or as a vector of such values. Specify a vector to use different marker sizes for each node in the graph. The default value of MarkerSize is 4 for graphs with 100 or fewer nodes, and 2 for graphs with more than 100 nodes.

Example: 10

NodeCData — Color data of node markers

vector

Color data of node markers, specified as the comma-separated pair consisting of 'NodeCData' and a vector with length equal to the number of nodes in the graph. The values in NodeCData map linearly to the colors in the current colormap, resulting in different colors for each node in the plotted graph.

NodeColor — Node color

[0 0.4470 0.7410] (default) | RGB triplet | hexadecimal color code | color name | matrix | 'flat' | 'none'

Node color, specified as the comma-separated pair consisting of 'NodeColor' and one of these values:

• 'none' — Nodes are not drawn.

• 'flat' — Color of each node depends on the value of NodeCData.

• matrix — Each row is an RGB triplet representing the color of one node. The size of the matrix is numnodes(G)-by-3.

• RGB triplet, hexadecimal color code, or color name — Nodes use the specified color.

  RGB triplets and hexadecimal color codes are useful for specifying custom colors.

  • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

  • A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

  Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

  Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
  "red"	"r"	[1 0 0]	"#FF0000"
  "green"	"g"	[0 1 0]	"#00FF00"
  "blue"	"b"	[0 0 1]	"#0000FF"
  "cyan"	"c"	[0 1 1]	"#00FFFF"
  "magenta"	"m"	[1 0 1]	"#FF00FF"
  "yellow"	"y"	[1 1 0]	"#FFFF00"
  "black"	"k"	[0 0 0]	"#000000"
  "white"	"w"	[1 1 1]	"#FFFFFF"

  This table lists the default color palettes for plots in the light and dark themes.

  Palette	Palette Colors
  "gem" — Light theme default Before R2025a: Most plots use these colors by default.
  "glow" — Dark theme default

  You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

  RGB = orderedcolors("gem");
  H = rgb2hex(RGB);

  Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

  Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Example: plot(G,'NodeColor','k') creates a graph plot with black nodes.

NodeLabel — Node labels

node IDs (default) | vector | cell array of character vectors | string array

Node labels, specified as the comma-separated pair consisting of 'NodeLabel' and a numeric vector, cell array of character vectors, or string array. The length of NodeLabel must be equal to the number of nodes in the graph. By default NodeLabel is a cell array containing the node IDs for the graph nodes:

• For nodes without names (that is, G.Nodes does not contain a Name variable), the node labels are the values unique(G.Edges.EndNodes) contained in a cell array.

• For named nodes, the node labels are G.Nodes.Name'.

Example: {'A', 'B', 'C'}

Example: [1 2 3]

Example: plot(G,'NodeLabel',G.Nodes.Name) labels the nodes with their names.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | cell | string

XData — x-coordinate of nodes

vector

Note

XData and YData must be specified together so that each node has a valid (x,y) coordinate. Optionally, you can also specify ZData for 3-D coordinates.

x-coordinate of nodes, specified as the comma-separated pair consisting of 'XData' and a vector with length equal to the number of nodes in the graph.

YData — y-coordinate of nodes

vector

Note

XData and YData must be specified together so that each node has a valid (x,y) coordinate. Optionally, you can also specify ZData for 3-D coordinates.

y-coordinate of nodes, specified as the comma-separated pair consisting of 'YData' and a vector with length equal to the number of nodes in the graph.

ZData — z-coordinate of nodes

vector

Note

XData and YData must be specified together so that each node has a valid (x,y) coordinate. Optionally, you can also specify ZData for 3-D coordinates.

z-coordinate of nodes, specified as the comma-separated pair consisting of 'ZData' and a vector with length equal to the number of nodes in the graph.

Output Arguments

h — Graph plot

GraphPlot object

Graph plot, returned as an object. For more information, see GraphPlot.

References

[1] Fruchterman, T., and E. Reingold. “Graph Drawing by Force-directed Placement.” Software — Practice & Experience. Vol. 21 (11), 1991, pp. 1129–1164.

[2] Gansner, E., E. Koutsofios, S. North, and K.-P Vo. “A Technique for Drawing Directed Graphs.” IEEE Transactions on Software Engineering. Vol.19, 1993, pp. 214–230.

[3] Barth, W., M. Juenger, and P. Mutzel. “Simple and Efficient Bilayer Cross Counting.” Journal of Graph Algorithms and Applications. Vol.8 (2), 2004, pp. 179–194.

[4] Brandes, U., and B. Koepf. “Fast and Simple Horizontal Coordinate Assignment.” LNCS. Vol. 2265, 2002, pp. 31–44.

[5] Y. Koren. “Drawing Graphs by Eigenvectors: Theory and Practice.” Computers and Mathematics with Applications. Vol. 49, 2005, pp. 1867–1888.

Version History

Introduced in R2015b

R2018a: Self-loop display change

Self-loops in the plot of a simple graph are now shaped like a leaf or teardrop. In previous releases, self-loops were displayed as circles.
