Approximate indexed image by reducing number of colors


[Y,newmap] = imapprox(X,map,n)
[Y,newmap] = imapprox(X,map,tol)
Y = imapprox(X,map,newmap)
Y = imapprox(...,dither_option)


[Y,newmap] = imapprox(X,map,n) approximates the colors in the indexed image X and associated colormap map by using minimum variance quantization. imapprox returns the indexed image Y with colormap newmap, which has at most n colors.

[Y,newmap] = imapprox(X,map,tol) approximates the colors in X and map through uniform quantization. newmap contains at most (floor(1/tol)+1)^3 colors. tol must be between 0 and 1.0.

Y = imapprox(X,map,newmap) approximates the colors in map by using colormap mapping to find the colors in newmap that best match the colors in map.

Y = imapprox(...,dither_option) enables or disables dithering. dither_option can have one of these values.




Dithers, if necessary, to achieve better color resolution at the expense of spatial resolution.


Maps each color in the original image to the closest color in the new map. No dithering is performed.

Class Support

The input image X can be of class uint8, uint16, or double. The output image Y is of class uint8 if the length of newmap is less than or equal to 256. If the length of newmap is greater than 256, Y is of class double.


collapse all

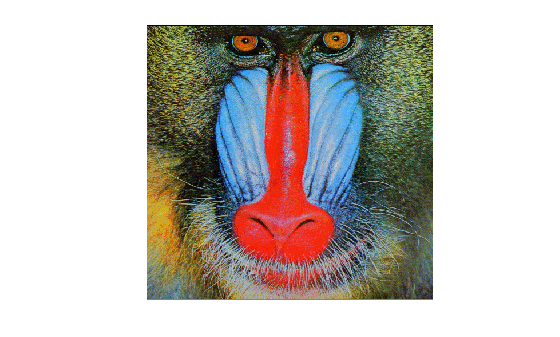

Load an indexed image of a mandrill's face. Display image X using its associated colormap, map, which has 220 colors.

load mandrill
axis off
axis image

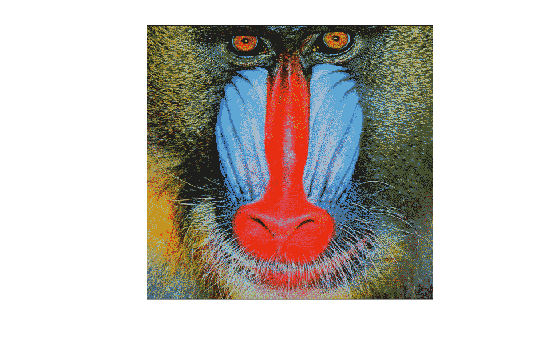

Reduce the number of colors in the indexed image from 220 to only 16 colors by producing a new image, Y, and its associated colormap, newmap.

[Y,newmap] = imapprox(X,map,16);
axis off
axis image


imapprox uses rgb2ind to create a new colormap that uses fewer colors.
