plot

Plot timeseries

Syntax

plot(ts)

plot(ts,LineSpec)

Description

plot(ts) plots the timeseries data in ts against time, interpolating values between samples.

plot(ts,LineSpec) plots the timeseries data using a line graph and applies the specified specs to lines, markers, or both.

You can also specify name-value arguments to define Line Properties.

Examples

Plot Time Series Object with Specified Start Date

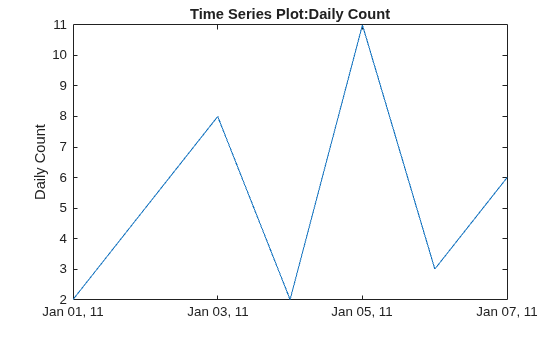

Create a time series object, set the start date, and then plot the time vector relative to the start date.

x = [2 5 8 2 11 3 6];
ts1 = timeseries(x,1:7);

ts1.Name = 'Daily Count';
ts1.TimeInfo.Units = 'days';
ts1.TimeInfo.StartDate = '01-Jan-2011';     % Set start date.
ts1.TimeInfo.Format = 'mmm dd, yy';       % Set format for display on x-axis.

ts1.Time = ts1.Time - ts1.Time(1);        % Express time relative to the start date.

plot(ts1)

Plot Two Time Series Objects on the Same Axes

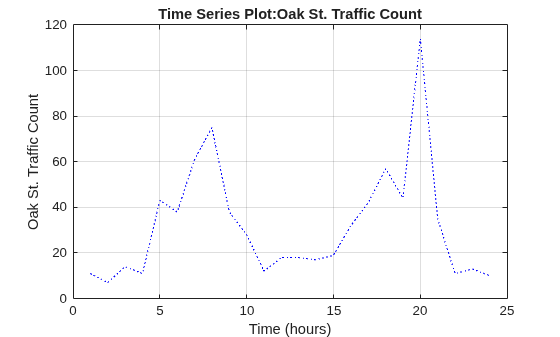

Create two time series objects from traffic count data, and then plot them in sequence on the same axes. Add an event to one series, which is automatically displayed with a red marker.

load count.dat;
count1 = timeseries(count(:,1),1:24);
count1.Name = 'Oak St. Traffic Count';
count1.TimeInfo.Units = 'hours';
plot(count1,':b')
grid on

Obtain time of maximum value and add it as an event:

[~,index] = max(count1.Data);
max_event = tsdata.event('peak',count1.Time(index));
max_event.Units = 'hours';

Add the event to the time series:

count1 = addevent(count1,max_event);

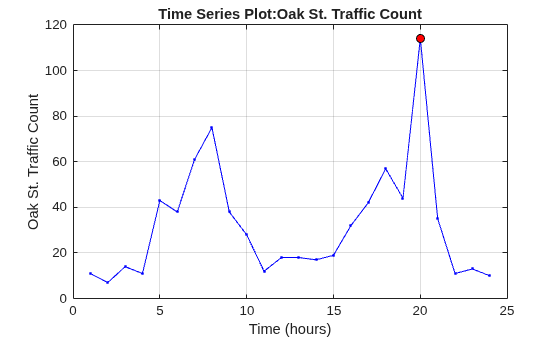

Replace plot with new one showing the event:

plot(count1,'.-b')
grid on

Make a new time series object from column 2 of the same data source:

count2 = timeseries(count(:,2),1:24);
count2.Name = 'Maple St. Traffic Count';
count2.TimeInfo.Units = 'hours';

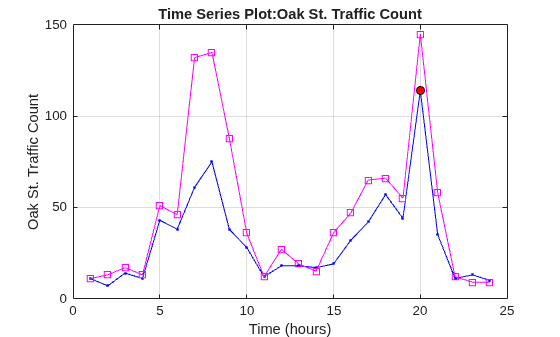

Turn hold on to add the new data to the plot:

hold on

The plot method does not add labels to a held plot. Use property/value pairs to customize markers:

plot(count2,'s-m','MarkerSize',6),

Labels are erased, so generate them manually:

title('Time Series: Oak Street and Maple Street')
xlabel('Hour of day')
ylabel('Vehicle count')

Add a legend in the upper left:

legend('Oak St.','Maple St.','Location','northwest')

Input Arguments

ts — Input timeseries

scalar

Input timeseries, specified as a scalar.

LineSpec — Line style, marker, and color

string scalar | character vector

Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "--or" is a red dashed line with circle markers.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Tips

• The plot function generates titles and axis labels automatically. These labels are:

  • Plot Title — 'Time Series Plot: <name>'

    where <name> is the string assigned to ts.Name, or by default, 'unnamed'

  • X-Axis Label — 'Time (<units>)'

    where <units> is the value of the ts.TimeInfo.Units field, which defaults to 'seconds'

  • Y-Axis Label — '<name>'

    where <name> is the string assigned to ts.Name, or by default, 'unnamed'

• You can place new time series data on a time series plot (by setting hold on, for example, and issuing another timeseries/plot command). When you add data to a plot, the title and axis labels become blank strings to avoid labeling confusion. You can add your own labels after plotting using the title, xlabel, and ylabel commands.

• Time series events, when defined, are marked in the plot with a circular marker with red fill. You can also specify markers for all data points using a linespec or name/value syntax in addition to any event markers your data defines. The event markers plot on top of the markers you define.

• The value assigned to ts.DataInfo.Interpolation.Name controls the type of interpolation the plot method uses when plotting and resampling time series data. Invoke the timeseries method setinterpmethod to change default linear interpolation to zero-order hold interpolation (staircase). This method creates a new timeseries object, with which you can overwrite the original one if you want. For example, to cause time series ts to use zero-order hold interpolation, type the following:

  ts = ts.setinterpmethod('zoh');

Version History

Introduced before R2006a
