# TriRep

(Not recommended) Triangulation representation

`TriRep` is not recommended. Use `triangulation` instead.

## Description

`TriRep` provides topological and geometric queries for triangulations in 2-D and 3-D space. For example, for triangular meshes you can query triangles attached to a vertex, triangles that share an edge, neighbor information, circumcenters, or other features. You can create a `TriRep` directly using existing triangulation data. Alternatively, you can create a Delaunay triangulation, via `DelaunayTri`, which also provides access to the `TriRep` functionality.

## Creation

### Syntax

``TR = TriRep(tri,x,y)``
``TR = TriRep(tri,x,y,z)``
``TR = TriRep(tri,P)``

### Description

example

````TR = TriRep(tri,x,y)` creates a 2-D triangulation representation from the triangulation matrix `tri` and the vertex coordinates `(x,y)`.```
````TR = TriRep(tri,x,y,z)` creates a 3-D triangulation representation from the triangulation matrix `tri` and the vertex coordinates `(x,y,z)`.```
````TR = TriRep(tri,P)` creates a triangulation representation from the triangulation matrix `tri` and the vertex coordinates matrix `P`.```

### Input Arguments

expand all

Triangulation representation, specified as a matrix that defines the triangulation:

• For 2-D triangulations, `tri` is an `m`-by-3 matrix that defines the triangulation in face-vertex format, where `m` is the number of triangles. Each row in `tri` defines a triangle by indices into the column vectors of vertex coordinates `(x,y)`.

• For 3-D triangulations, `tri` is an `m`-by-3 or `m`-by-4 matrix that defines the triangulation in simplex-vertex format, where `m` is the number of simplices; triangles or tetrahedra in this case. Each row of `tri` is a simplex defined by indices into the column vectors of vertex coordinates `(x,y,z)`.

Vertex coordinates, specified as column vectors.

Vertex coordinates, specified as a matrix. `P` is a `mpts`-by-`ndim` matrix, where `mpts` is the number of points and `ndim` is the dimension of the space where the points reside (2-D or 3-D).

## Properties

expand all

Coordinates of the points in the triangulation, returned as a matrix. `X` is a `mpts`-by-`ndim` matrix, where `mpts` is the number of points and `ndim` is the dimension of the space where the points reside (2-D or 3-D).

Triangulation data structure, returned as a matrix. Each row of `Triangulation` is a simplex (triangle or tetrahedra) defined by indices into the rows of vertex coordinates in `X`.

## Object Functions

In addition to the below object functions, `TriRep` objects support indexing into the triangulation using parentheses `()`. The syntax is the same as for arrays.

 `baryToCart` (Not recommended) Convert point coordinates from barycentric to Cartesian `cartToBary` (Not recommended) Convert point coordinates from Cartesian to barycentric `circumcenters` (Not recommended) Circumcenters of specified simplices `edgeAttachments` (Not recommended) Triangles or tetrahedra attached to specified edge `edges` (Not recommended) Triangulation edges `faceNormals` (Not recommended) Unit normals to specified triangles `featureEdges` (Not recommended) Sharp edges of surface triangulation `freeBoundary` (Not recommended) Free boundary facets `incenters` (Not recommended) Incenters of specified simplices `isEdge` (Not recommended) Test if vertices are joined by edge `neighbors` (Not recommended) Triangle or tetrahedron neighbors `size` (Not recommended) Size of triangulation matrix `vertexAttachments` (Not recommended) Triangles or tetrahedra attached to vertex

## Examples

collapse all

Create a 2-D triangulation and plot the free boundary edges.

Load a 2-D triangulation `tri` and vertex coordinates `x`, `y`.

`load trimesh2d`

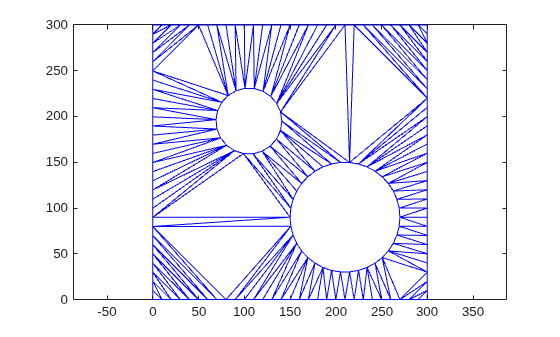

Use the `TriRep` constructor and `freeBoundary` method to build an array of the free boundary edges. Plot the triangulation.

```trep = TriRep(tri,x,y); fe = freeBoundary(trep)'; triplot(trep) axis equal```

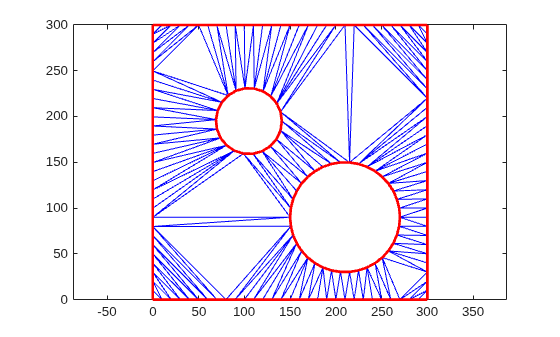

Add the free edges `fe` to the plot.

```hold on plot(x(fe), y(fe), 'r','LineWidth',2) hold off```

## Version History

Introduced in R2009a
