turbo

Turbo colormap array

    Description

    example

    c = turbo returns the turbo colormap as a three-column array with the same number of rows as the colormap for the current figure. If no figure exists, then the number of rows is equal to the default length of 256. Each row in the array contains the red, green, and blue intensities for a specific color. The intensities are in the range [0,1], and the color scheme is similar to that of the jet colormap, but the transitions between colors are more perceptually uniform than in jet. The color scheme looks like this image.

    example

    c = turbo(m) returns the colormap with m colors.

    Examples

    collapse all

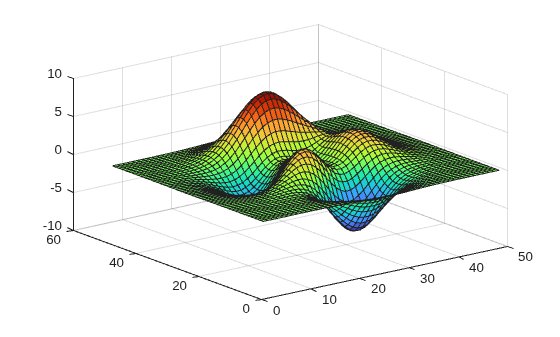

    Plot a surface and assign the turbo colormap.

    surf(peaks);
    colormap('turbo');

    Figure contains an axes. The axes contains an object of type surface.

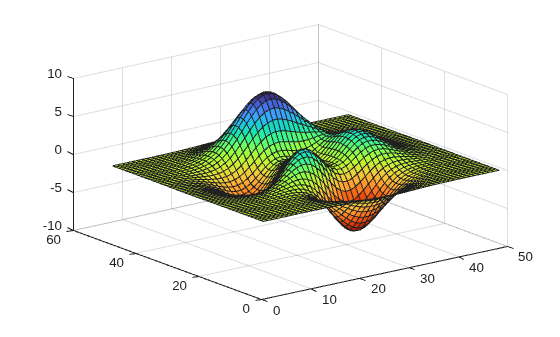

    Get the turbo colormap array and reverse the order. Then apply the modified colormap to the surface.

    c = turbo;
    c = flipud(c);
    colormap(c);

    Figure contains an axes. The axes contains an object of type surface.

    Get a downsampled version of the turbo colormap containing only ten colors. Then display the contours of the peaks function by applying the colormap and interpolated shading.

    c = turbo(10);
    surf(peaks);
    colormap(c);
    shading interp;

    Figure contains an axes. The axes contains an object of type surface.

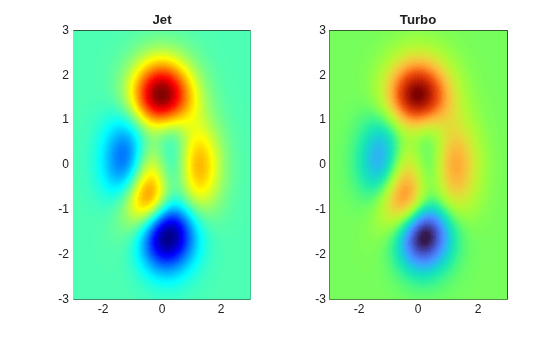

    Create a tiled chart layout containing two pseudocolor plots of the peaks data set. The left plot uses the jet colormap, and the right plot uses the turbo colormap. Notice that the transitions between colors in the turbo plot are less severe than they are in the jet plot.

    t = tiledlayout(1,2);
    [X,Y,Z] = peaks;

    % Left image
    ax1 = nexttile;
    s1 = pcolor(ax1,X,Y,Z);
    s1.EdgeColor = 'none';
    s1.FaceColor = 'interp';
    ax1.Colormap = jet;
    title(ax1,'Jet');

    % Right image
    ax2 = nexttile;
    s2 = pcolor(ax2,X,Y,Z);
    s2.EdgeColor = 'none';
    s2.FaceColor = 'interp';
    ax2.Colormap = turbo;
    title(ax2,'Turbo');

    Figure contains 2 axes. Axes 1 with title Jet contains an object of type surface. Axes 2 with title Turbo contains an object of type surface.

    Input Arguments

    collapse all

    Number of colors, specified as a scalar integer value. The default value of m is equal to the length of the colormap for the current figure. If no figure exists, the default value is 256.

    Data Types: single | double

    See Also

    Introduced in R2020b
