pathLength
Length of path
Syntax
Description
Examples
Create a navPath
object based on multiple waypoints in a Dubins space.
dubinsSpace = stateSpaceDubins([0 25; 0 25; -pi pi])
dubinsSpace = stateSpaceDubins with properties: SE2 Properties Name: 'SE2 Dubins' StateBounds: [3×2 double] NumStateVariables: 3 Dubins Vehicle Properties MinTurningRadius: 1
pathobj = navPath(dubinsSpace)
pathobj = navPath with properties: StateSpace: [1×1 stateSpaceDubins] States: [0×3 double] NumStates: 0 MaxNumStates: Inf
waypoints = [8 10 pi/2; 7 14 pi/4; 10 17 pi/2; 10 10 -pi]; append(pathobj,waypoints)
Interpolate that path so that it contains exactly 250 points.
interpolate(pathobj,250)
Visualize the interpolated path and the original waypoints.

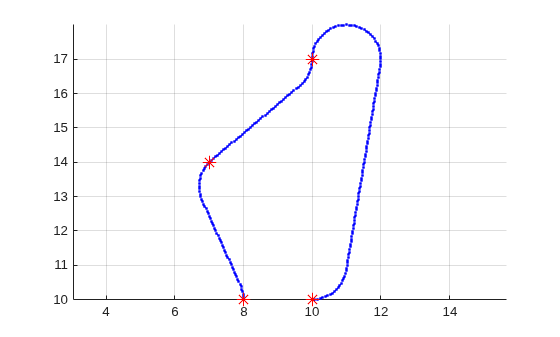

figure grid on axis equal hold on plot(pathobj.States(:,1),pathobj.States(:,2),".b") plot(waypoints(:,1),waypoints(:,2),"*r","MarkerSize",10)
Calculate length of path.
len = pathLength(pathobj);
disp("Path length = " + num2str(len))
Path length = 19.4722
Load a 3-D occupancy map of a city block into the workspace. Specify the threshold to consider cells as obstacle-free.
mapData = load("dMapCityBlock.mat");
omap = mapData.omap;
omap.FreeThreshold = 0.5;
Inflate the occupancy map to add a buffer zone for safe operation around the obstacles.
inflate(omap,1)
Create an SE(3) state space object with bounds for state variables.
ss = stateSpaceSE3([0 220;0 220;0 100;inf inf;inf inf;inf inf;inf inf]);
Create a navPath
object based on multiple waypoints in an SE(3) state space.
path = navPath(ss); waypoints = [40 180 15 0.7 0.2 0 0.1; 55 120 20 0.6 0.2 0 0.1; 100 100 25 0.5 0.2 0 0.1; 130 90 30 0.4 0 0.1 0.6; 150 33 35 0.3 0 0.1 0.6]; append(path,waypoints)
Interpolate that path so that it contains exactly 250 points.
interpolate(path,250)
Visualize the interpolated path and the original waypoints.

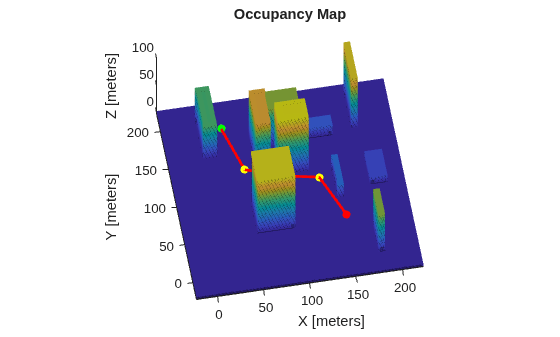

show(omap) axis equal view([-10 55]) hold on % Start state scatter3(waypoints(1,1),waypoints(1,2),waypoints(1,3),"g","filled") % Goal state scatter3(waypoints(end,1),waypoints(end,2),waypoints(end,3),"r","filled") % Intermediate waypoints scatter3(waypoints(2:end-1,1),waypoints(2:end-1,2), ... waypoints(2:end-1,3),"y","filled") % Path plot3(path.States(:,1),path.States(:,2),path.States(:,3), ... "r-",LineWidth=2)
Calculate length of path.
len = pathLength(path);
disp("Path length = " + num2str(len))
Path length = 204.1797
Input Arguments
Path object, specified as a navPath
object.
Output Arguments
Length of the path, returned as a nonnegative scalar in meters.
Data Types: double
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2019b
