## Minimization with Bound Constraints and Banded Preconditioner

The goal in this problem is to minimize the nonlinear function

`$f\left(x\right)=1+\sum _{i=1}^{n}{|\left(3-2{x}_{i}\right){x}_{i}-{x}_{i-1}-{x}_{i+1}+1|}^{p}+\sum _{i=1}^{n/2}{|{x}_{i}+{x}_{i+n/2}|}^{p},$`

such that -10.0 ≤ xi ≤ 10.0, where n is 800 (n should be a multiple of 4), p = 7/3, and x0 = xn + 1 = 0.

### Step 1: Write a file tbroyfg.m that computes the objective function and the gradient of the objective

The `tbroyfg.m` file computes the function value and gradient. This file is long and is not included here. You can see the code for this function using the command

`type tbroyfg`

The sparsity pattern of the Hessian matrix has been predetermined and stored in the file `tbroyhstr.mat`. The sparsity structure for the Hessian of this problem is banded, as you can see in the following `spy` plot.

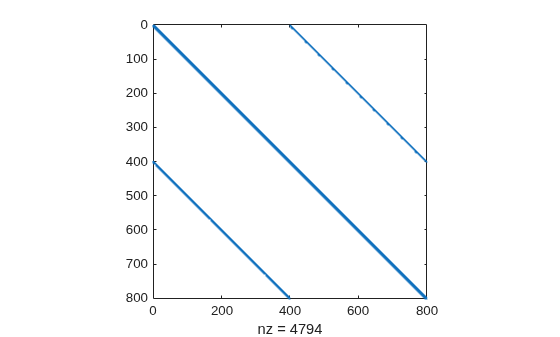

```load tbroyhstr spy(Hstr)``` In this plot, the center stripe is itself a five-banded matrix. The following plot shows the matrix more clearly:

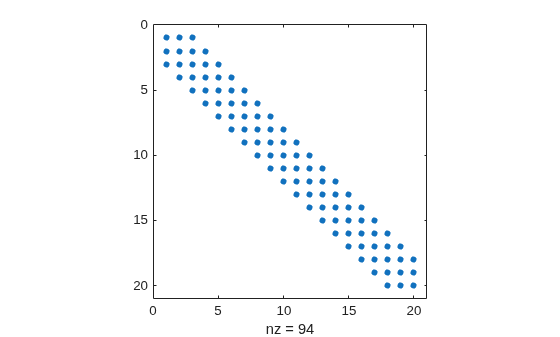

`spy(Hstr(1:20,1:20))` Use `optimoptions` to set the `HessPattern` parameter to `Hstr`. When a problem as large as this has obvious sparsity structure, not setting the `HessPattern` parameter requires a huge amount of unnecessary memory and computation. This is because `fmincon` attempts to use finite differencing on a full Hessian matrix of 640,000 nonzero entries.

You must also set the `SpecifyObjectiveGradient` parameter to `true` using `optimoptions`, since the gradient is computed in `tbroyfg.m`. Then execute `fmincon` as shown in Step 2.

### Step 2: Call a nonlinear minimization routine with a starting point xstart.

```fun = @tbroyfg; load tbroyhstr % Get Hstr, structure of the Hessian n = 800; xstart = -ones(n,1); xstart(2:2:n) = 1; lb = -10*ones(n,1); ub = -lb; options = optimoptions('fmincon','SpecifyObjectiveGradient',true,'HessPattern',Hstr,... 'Algorithm','trust-region-reflective'); [x,fval,exitflag,output] = ... fmincon(fun,xstart,[],[],[],[],lb,ub,[],options);```

The `exitflag`, `fval`, first-order optimality measure (`output.firstorderopt`), and number of iterations (`output.iterations`) are:

```exitflag,fval,output.firstorderopt,output.iterations exitflag = 3 fval = 270.4790 ans = 0.0163 ans = 7```

For bound constrained problems, the first-order optimality is the infinity norm of `v.*g`, where `v` is defined as in Box Constraints, and `g` is the gradient.

Because of the five-banded center stripe, you can improve the solution by using a five-banded preconditioner instead of the default diagonal preconditioner. Using the `optimoptions` function, reset the `PrecondBandWidth` parameter to `2` and solve the problem again. (The bandwidth is the number of upper (or lower) diagonals, not counting the main diagonal.)

```fun = @tbroyfg; load tbroyhstr % Get Hstr, structure of the Hessian n = 800; xstart = -ones(n,1); xstart(2:2:n,1) = 1; lb = -10*ones(n,1); ub = -lb; options = optimoptions('fmincon','SpecifyObjectiveGradient',true,'HessPattern',Hstr, ... 'Algorithm','trust-region-reflective','PrecondBandWidth',2); [x,fval,exitflag,output] = ... fmincon(fun,xstart,[],[],[],[],lb,ub,[],options); ```

The number of iterations increases by two. But the first-order optimality measure is reduced by a factor of `1e-3`:

```exitflag,fval,output.firstorderopt,output.iterations exitflag = 3 fval = 270.4790 ans = 7.5340e-05 ans = 9```
