Pool Dashboard

Monitor and visualize activity on parallel pools

Since R2025a

expand all in page

Description

The Pool Dashboard enables you to collect and visualize monitoring data for interactive parallel pools.

Using the Pool Dashboard tool, you can:

  • Collect monitoring data on how pool workers execute parallel constructs like parfor, parfeval, and spmd.

  • Track the amount of data (in bytes) the client and workers send and receive.

  • Understand the time each worker spends processing their portion of the parallel code.

  • Examine communication patterns and identify bottlenecks and load-balancing issues.

The Pool Dashboard shows the execution timeline, list of constructs and their parent functions, and a summary of worker activity.

Open the Pool Dashboard

  • MATLAB® Toolstrip: On the Home tab, in the Environment section, select Parallel > Open Pool Dashboard.

  • Parallel status indicator: Click the indicator icon and select Open Pool Dashboard.

  • MATLAB command prompt: Enter parpoolDashboard.

Examples

expand all

This example shows how to use the Pool Dashboard to diagnose performance bottlenecks in parallel computations with parfor.

You have a computational task that calculates the maximum absolute eigenvalue of a 2-by-2 submatrix extracted from a large matrix. Initially, you implement this task using a for-loop. To accelerate the computation, you convert the for-loop into a parfor-loop, and run the parfor-loop on a pool with six process workers. When you compare the execution times, the parfor-loop takes significantly longer than the serial for-loop. You can use the Pool Dashboard to investigate why the execution time for the parfor-loop is much larger than the serial for-loop.

Serial ExecutionParallel Execution
n = 10000;
data = magic(n);
out = zeros(n,1);
tic
for idx = 2:n
    thisData = idx*data(idx-1:idx,idx-1:idx);
    out(idx) = max(abs(eig(thisData)));
end
toc
Elapsed time is 0.049732 seconds.

parpool("Processes",6)

n = 10000;
data = magic(n);
out = zeros(n,1);
tic
parfor idx = 2:n
    thisData = idx*data(idx-1:idx,idx-1:idx);
    out(idx) = max(abs(eig(thisData)));
end
toc
Elapsed time is 3.777290 seconds.

Open the Pool Dashboard and start a pool of process workers.

parpoolDashboard
pool = parpool("Processes");

Save the parfor-loop code as a script named parforPoolDashboard.m. In the MATLAB Command Window, enter edit parforPoolDashboard. Then copy this code into the new file and save it.

n = 10000;
data = magic(n);
out = zeros(n,1);
parfor idx = 2:n
    thisData = idx*data(idx-1:idx,idx-1:idx);
    out(idx) = max(abs(eig(thisData)));
end

To start collecting monitoring data, in the Monitor section of the Pool Dashboard, type parforPoolDashboard in the Enter code to run and monitor box box and click Run and Monitor. When the code completes, the Pool Dashboard displays the monitoring results.

Before R2026a: To start collecting monitoring data, in the Monitoring section of the Pool Dashboard, select Start Monitoring. Switch to the MATLAB Command Window and enter parforPoolDashboard. To visualize the monitoring data when the code completes, return to the Pool Dashboard, and in the Monitoring section, select Stop. The Pool Dashboard displays the monitoring results.

Review the monitoring data.

The Pool Dashboard shows the execution timeline, list of constructs and their parent functions, and a summary of worker activity from the executed code.

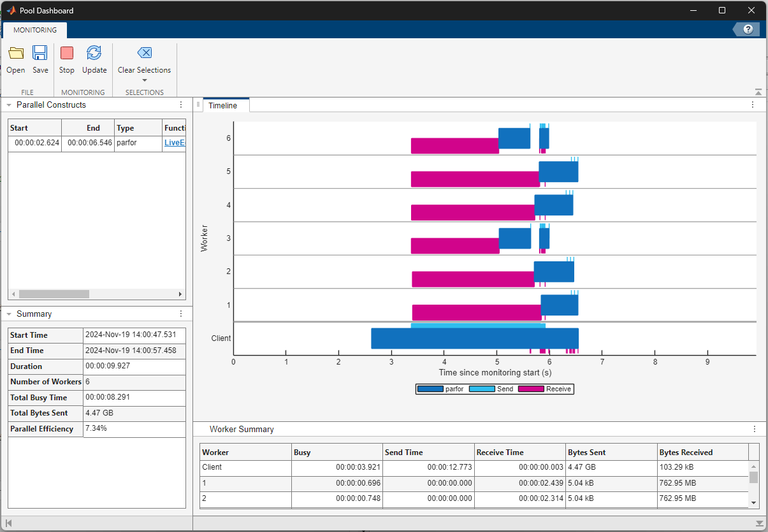

The Timeline graph shows a visual representation of the time the workers and client spend running the parfor-loop and transferring data. Dark blue indicates time spent running the parfor-loop, light blue represents time spent sending data, and magenta represents time spent receiving data. You can observe that the workers spend the first two to three seconds of the computation receiving data from the client. Some workers also spend a considerable amount of time waiting to receive data from the client.

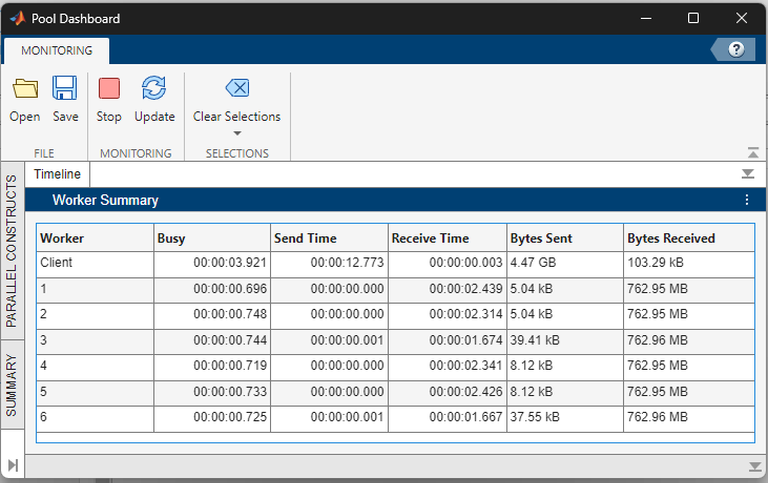

The Worker Summary table below the Timeline graph summarizes the information in the Timeline graph. To view the whole table, click the three dots on the right of the Worker Summary table and select Maximize.

Worker Summary table title and head row shows the Maximize option on the right.

The workers spend a short time running the computations compared to transferring data. You can observe that the client sends a total of 4.47 GB of data to the workers and the workers each receive 762.95 MB of data while executing the parfor-loop. The parfor-loop requires all the workers to receive a copy of the input data, which introduces data transfer overheads to the computation that the for-loop does not have. The high parallel overhead dominates the computing time and this indicates the for-loop does not benefit from conversion into a parfor-loop.

The Worker Summary panel of the Pool Dashboard displays a summary for the client and workers, including the busy time, the data send and receive time, and the amounts of data (in bytes) sent and received.

However, if you need to run a parfor-loop multiple times using the same set of data, you can optimize the parfor-loop by transferring the input data to the workers only once using a Constant object. This is a one off cost, and the workers have access to the data until you clear the Constant object.

To see how using a Constant object optimizes the parfor-loop, modify the parforPoolDashboard script and rerun it with the Pool Dashboard. In the MATLAB Command Window, enter edit parforPoolDashboard. Delete the existing code, then copy and paste this code into the script and save the file.

n = 10000;
data = magic(n);
out = zeros(n,1);

C = parallel.pool.Constant(data);

parfor idx = 1:10
    c = C.Value;
end;

parfor idx = 2:n
    thisData = idx.*C.Value(idx-1:idx,idx-1:idx);
    out(idx) = max(abs(eig(thisData)));
end

Type parforPoolDashboard into the Enter code to run and monitor box box and click Run and Monitor. When the code completes, the Pool Dashboard updates the displayed monitoring results.

Before R2026a: To start collecting monitoring data, in the Monitoring section of the Pool Dashboard, select Start Monitoring. Switch to the MATLAB Command Window and enter parforPoolDashboard. To visualize the monitoring data when the code completes, return to the Pool Dashboard, and in the Monitoring section, select Stop. The Pool Dashboard displays the monitoring results.

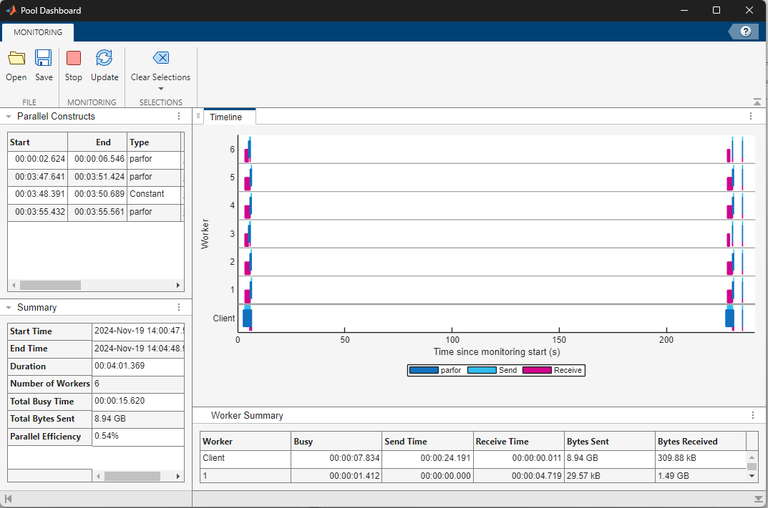

The Pool Dashboard shows the execution timeline, list of constructs and their parent functions, and a summary of worker activity for all the previously executed code.

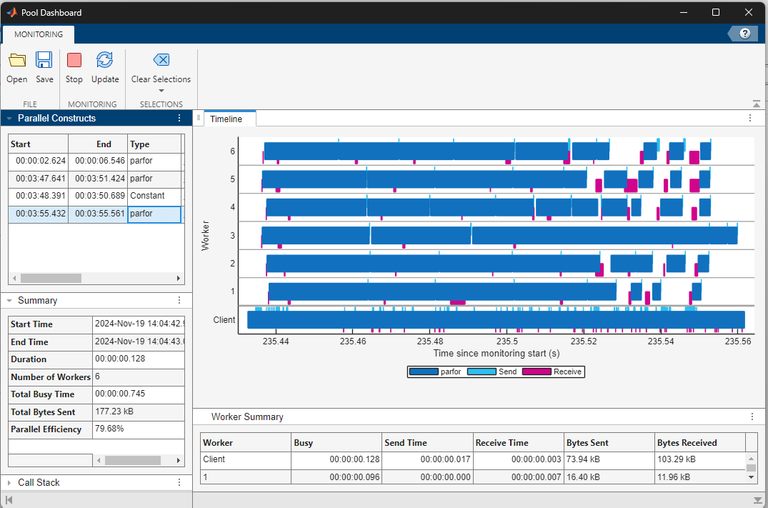

To view the monitoring data for only the parfor-loop that uses the Constant object, in the Parallel Constructs panel, select the last row in the table. When you use the Constant object to transfer data to the workers before you run the parfor-loop, the workers only spend time running the computations.

The Pool Dashboard shows the execution timeline, list of constructs and their parent functions, and a summary of worker activity from the parfor-loop that uses the Constant object value.

Related Examples

Parameters

expand all

Monitor

Since R2026a

Type or paste the parallel code you want to run on the workers in the Enter code to run and monitor box. To start monitoring, click Run and Monitor.

You can also select from a list of code you previously run from the Pool Dashboard.

Timeline Options

Since R2026a

Select or type to specify the number of workers the Pool Dashboard displays in the Timeline graph. When you press Enter or click out of the Maximum Workers box, the software updates the Timeline graph to display the specified number of workers.

Programmatic Use

parpoolDashboard opens the Pool Dashboard.

parpoolDashboard(monitoringResults) opens the Pool Dashboard and displays the monitoring results in the ActivityMonitorResults object, monitoringResults.

Limitations

  • Before R2026a: Pool Dashboard is not supported on parallel pools of thread workers.

  • Pool Dashboard does not track data transfers when monitoring activity on a pool of thread workers.

  • Pool Dashboard is not supported on batch parallel pools. To monitor batch parallel pools, use a programmatic workflow with an ActivityMonitor object. For details, see Programmatically Collect Pool Monitoring Data.

  • The Timeline graph only displays information for a maximum of 32 workers.

  • ThreadPools created using parpool("Threads") and the BackgroundPool are both thread-based pools that use the same resources. It is possible that activity on one pool may block activity on the other. If you use both pools at the same time and monitor activity on a ThreadPool, the Pool Dashboard collects data only for the workers the ThreadPool uses. The Timeline graph indicates when workers perform work for the other pool in grey and labels the other pool type in the legend.

Version History

Introduced in R2025a
