Density-based algorithm for clustering data

`clusterDBSCAN`

clusters data points belonging to a
*P*-dimensional feature space using the density-based spatial clustering of
applications with noise (DBSCAN) algorithm. The clustering algorithm assigns points that are
close to each other in feature space to a single cluster. For example, a radar system can
return multiple detections of an extended target that are closely spaced in range, angle, and
Doppler. `clusterDBSCAN`

assigns these detections to a single detection.

The DBSCAN algorithm assumes that clusters are dense regions in data space separated by regions of lower density and that all dense regions have similar densities.

To measure density at a point, the algorithm counts the number of data points in a neighborhood of the point. A neighborhood is a

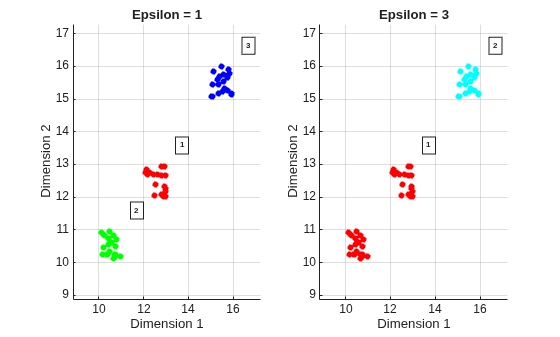

*P*-dimensional ellipse (hyperellipse) in the feature space. The radii of the ellipse are defined by the*P*-vector ε. ε can be a scalar, in which case, the hyperellipse becomes a hypersphere. Distances between points in feature space are calculated using the Euclidean distance metric. The neighborhood is called an ε-neighborhood. The value of ε is defined by the`Epsilon`

property.`Epsilon`

can either be a scalar or*P*-vector:A vector is used when different dimensions in feature space have different units.

A scalar applies the same value to all dimensions.

Clustering starts by finding all

*core*points. If a point has a sufficient number of points in its ε-neighborhood, the point is called a core point. The minimum number of points required for a point to become a core point is set by the`MinNumPoints`

property.The remaining points in the ε-neighborhood of a core point can be core points themselves. If not, they are

*border*points. All points in the ε-neighborhood are called*directly density reachable*from the core point.If the ε-neighborhood of a core point contains other core points, the points in the ε-neighborhoods of all the core points merge together to form a union of ε-neighborhoods. This process continues until no more core points can be added.

All points in the union of ε-neighborhoods are

*density reachable*from the first core point. In fact, all points in the union are density reachable from all core points in the union.All points in the union of ε-neighborhoods are also termed

*density connected*even though border points are not necessarily*reachable*from each other. A*cluster*is a maximal set of density-connected points and can have an arbitrary shape.

Points that are not core or border points are

*noise*points. They do not belong to any cluster.The

`clusterDBSCAN`

object can estimate ε using a*k*-nearest neighbor search, or you can specify values. To let the object estimate ε, set the`EpsilonSource`

property to`'Auto'`

.The

`clusterDBSCAN`

object can disambiguate data containing ambiguities. Range and Doppler are examples of possibly ambiguous data. Set`EnableDisambiguation`

property to`true`

to disambiguate data.

To cluster detections:

Create the

`clusterDBSCAN`

object and set its properties.Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

creates a
`clusterer`

= clusterDBSCAN`clusterDBSCAN`

object, `clusterer`

, object with
default property values.

creates a `clusterer`

= clusterDBSCAN(Name,Value)`clusterDBSCAN`

object, `clusterer`

, with each
specified property `Name`

set to the specified
`Value`

. You can specify additional name-value pair arguments in any
order as
(`Name1`

,`Value1`

,...,`NameN`

,`ValueN`

).
Any unspecified properties take default values. For example,

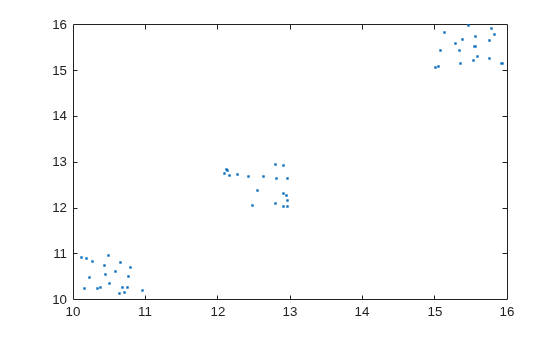

clusterer = clusterDBSCAN('MinNumPoints',3,'Epsilon',2, ... 'EnableDisambiguation',true,'AmbiguousDimension',[1 2]);

`EnableDisambiguation`

property set to
true and the `AmbiguousDimension`

set to
`[1,2]`

.`[`

also returns an alternate set of cluster IDs, `idx`

,`clusterids`

] = clusterer(`X`

)`clusterids`

, for use in
the `phased.RangeEstimator`

and `phased.DopplerEstimator`

objects. `clusterids`

assigns a
unique ID to each noise point.

`[___] = clusterer(`

automatically estimates epsilon from the input data matrix, `X`

,`update`

)`X`

, when
`update`

is set to `true`

. The estimation uses a
*k*-NN search to create a set of search curves. For more information,
see Estimate Epsilon. The estimate is an
average of the *L* most recent Epsilon values where *L*
is specified in `EpsilonHistoryLength`

To enable this syntax, set the `EpsilonSource`

property to
`'Auto'`

, optionally set the `MaxNumPoints`

property, and also optionally set the `EpsilonHistoryLength`

property.

To use an object function, specify the
System object™ as the first input argument. For
example, to release system resources of a System object named `obj`

, use
this syntax:

release(obj)

[1] Ester M., Kriegel H.-P., Sander
J., and Xu X. "A Density-Based Algorithm for Discovering Clusters in Large Spatial Databases
with Noise". *Proc. 2nd Int. Conf. on Knowledge Discovery and Data
Mining*, Portland, OR, AAAI Press, 1996, pp. 226-231.

[2] Erich Schubert, Jörg Sander,
Martin Ester, Hans-Peter Kriegel, and Xiaowei Xu. 2017. "DBSCAN Revisited, Revisited: Why and
How You Should (Still) Use DBSCAN". *ACM Trans. Database Syst.* 42, 3,
Article 19 (July 2017), 21 pages.

[3] Dominik Kellner, Jens Klappstein
and Klaus Dietmayer, "Grid-Based DBSCAN for Clustering Extended Objects in Radar Data",
*2012 IEEE Intelligent Vehicles Symposium*.

[4] Thomas Wagner, Reinhard Feger, and
Andreas Stelzer, "A Fast Grid-Based Clustering Algorithm for Range/Doppler/DoA Measurements",
*Proceedings of the 13th European Radar Conference*.

[5] Mihael Ankerst, Markus M. Breunig,
Hans-Peter Kriegel, Jörg Sander, "OPTICS: Ordering Points To Identify the Clustering
Structure", *Proc. ACM SIGMOD’99 Int. Conf. on Management of Data*,
Philadelphia PA, 1999.
