detectability

Radar detectability factor

Since R2021a

collapse all in page

    Syntax

    D = detectability(PD,PFA)
    D = detectability(PD,PFA,N)
    D = detectability(PD,PFA,N,SW)

    Description

    D = detectability(PD,PFA) returns the detectability factor of a single radar pulse given the probability of detection PD and probability of false alarm PFA.The function assumes that you are using a square-law detector and a nonfluctuating target.

    D = detectability(PD,PFA,N) returns the detectability factor using the number of pulses for noncoherent integration N. .The function assumes that you are using a nonfluctuating target.

    D = detectability(PD,PFA,N,SW) returns detectability factor using the Swerling case number SW. The function assumes you are using a chi-squared distributed target.

    example

    Examples

    collapse all

    Open Live Script

    Calculate the detectability factor for a Swerling 1 case target. Assume a probability of detection from 0.01–0.99, probability of false alarm of 1e-6, and 24 received pulses.

    PFA = 1e-6;
PD = 0.01:0.01:0.99;
N = 24;
D = detectability(PD,PFA,N,'Swerling1');

    Plot the detectability factor.

    plot(PD,D)
xlabel('Probability of Detection');
ylabel('Detectability (dB)');
grid on

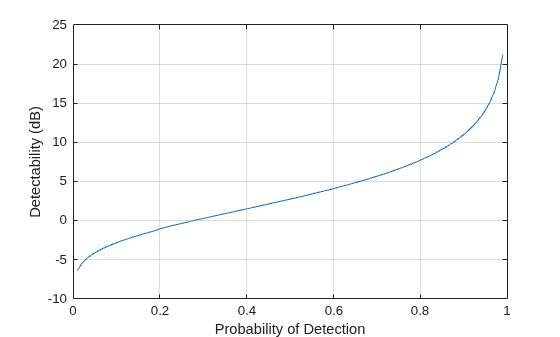

    Figure contains an axes object. The axes object with xlabel Probability of Detection, ylabel Detectability (dB) contains an object of type line.

    Input Arguments

    collapse all

    Probability of detection, specified as a positive scalar in the range (0,1) or as a length-J vector with each element in the range (0,1).

    Probability of false alarm, specified as a positive scalar in the range (0,1) or as a length-K vector with each element in the range (0,1).

    Number of pulses for noncoherent integration, specified as a positive scalar.

    Swerling case number, specified as one of these

    • 'Swerling0'

    • 'Swerling1'

    • 'Swerling2'

    • 'Swerling3'

    • 'Swerling4'

    • 'Swerling5'

    Output Arguments

    collapse all

    Detectability factor, returned as a J-by-K matrix in dB with rows corresponding to the number of elements in PD and columns corresponding to the number of elements in PFA.

    Algorithms

    collapse all

    Computation methods used in detectability function

    The function computes detectability using the computation methods summarized in this table.

    Swerling Case NumberPD is in the range [0.2, 1-1e-6] and PFA < 1e-4PD outside the range [0.2, 1-1e-6] or PFA ≥ 1e-4
    0 or 5Shnidman's approximationExact computation
    1, 2, 3, 4Barton's universal equation Exact computation

    For Swerling1 and N = 1 and Swerling2 and N set to any positive scalar, the function computes the radar detectability factor with no approximation errors using Barton's universal equation. For other Swerling cases, there are small approximation errors when PD is in the range [0.2, 1-1e-6] and PFA < 1e-4.
