clearPlotterData

Clear plotter data from theater plot

Since R2021a

Description

example

clearPlotterData(tp) clears data shown in the plot from all the plotters used in the theater plot, tp. Legend entries and coverage areas are not cleared from the plot.

Examples

collapse all

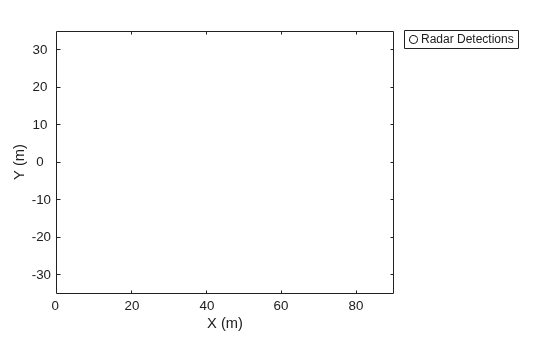

Create a theater plot and a detection plotter.

tp = theaterPlot('XLim',[0, 90],'YLim',[-35, 35],'ZLim',[0, 10]);
detectionPlotter(tp,'DisplayName','Radar Detections');

Use findPlotter to locate the plotter by its display name.

radarPlotter = findPlotter(tp,'DisplayName','Radar Detections');

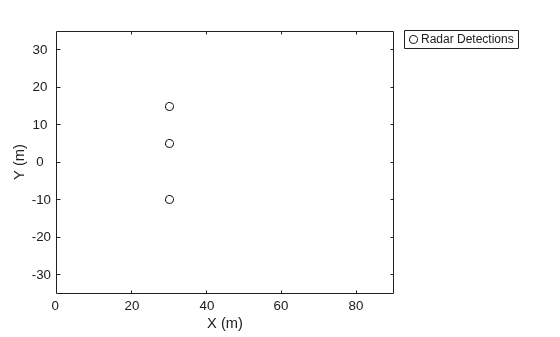

Plot three detections.

plotDetection(radarPlotter, [30, 5, 1; 30, -10, 2; 30, 15, 1]);

Clear data from the plot.

clearPlotterData(tp);

Input Arguments

collapse all

Theater plot, specified as a theaterPlot object.

Version History

Introduced in R2021a
