trainWithEvolutionStrategy

Train DDPG, TD3 or SAC agent using an evolutionary strategy within a specified environment

Since R2023b

Syntax

trainStats = trainWithEvolutionStrategy(agent,env,estOpts)

Description

trainStats = trainWithEvolutionStrategy(agent,env,estOpts) trains agent within the environment env, using the evolution strategy training options object trainOpts. Note that agent is an handle object and it is updated during training, despite being an input argument. For more information on the training algorithm, see Train agent with evolution strategy.

Examples

Train Agent Using Evolutionary Strategy

This example shows how to train a DDPG agent using an evolutionary strategy.

Load the predefined environment object representing a cart-pole system with a continuous action space. For more information on this environment, see Load Predefined Control System Environments.

env = rlPredefinedEnv("CartPole-Continuous");

The agent networks are initialized randomly. Ensure reproducibility by fixing the seed of the random generator.

rng(0)

Create a DDPG agent with default networks.

agent = rlDDPGAgent(getObservationInfo(env),getActionInfo(env));

To create an evolution strategy options object, use rlEvolutionStrategyTrainingOptions.

estOpts = rlEvolutionStrategyTrainingOptions(...
    PopulationSize=10 , ...
    ReturnedPolicy="BestPolicy" , ...
    StopTrainingCriteria="AverageReward" , ...
    StopTrainingValue=496);

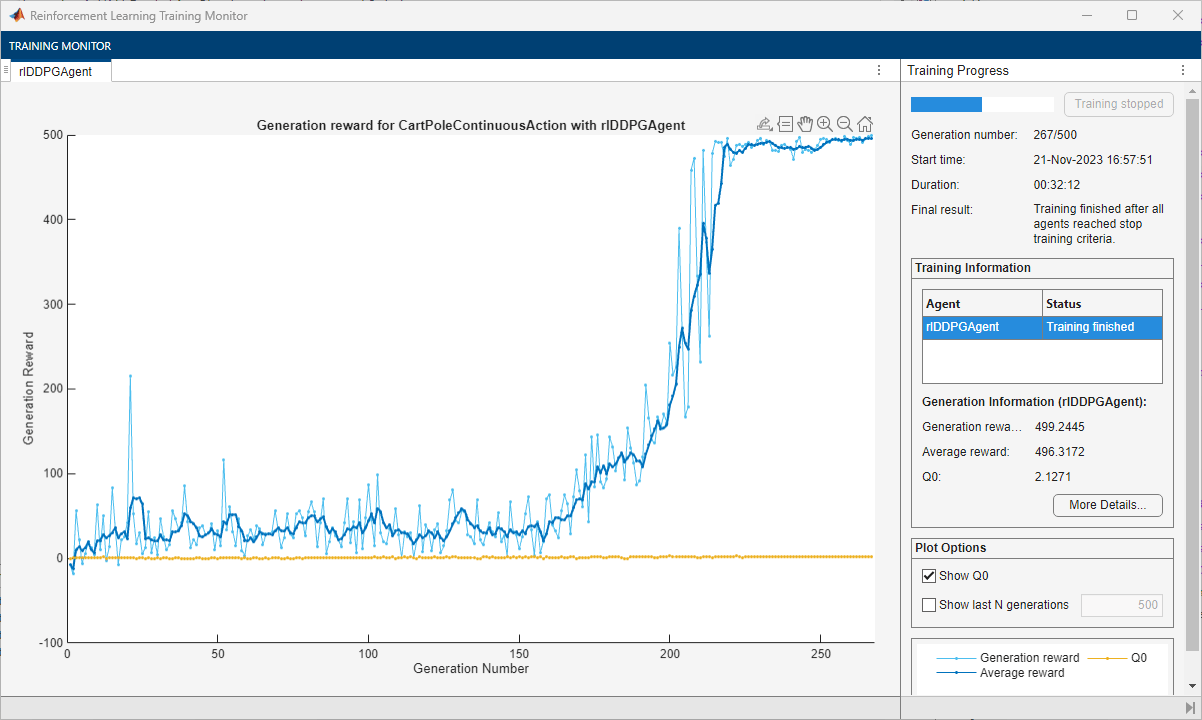

To train the agent, use trainWithEvolutionStrategy.

doTraining = false;
if doTraining
    trainStats = trainWithEvolutionStrategy(agent,env,estOpts);
else
    load("rlTrainUsingESAgent.mat","agent");
end

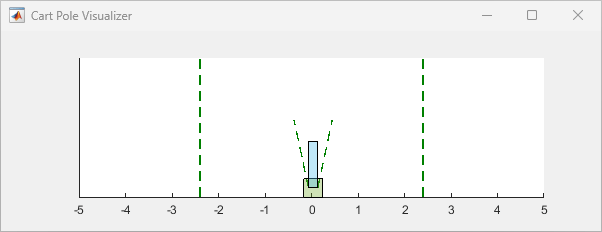

Simulate the agent and display the episode reward.

simOptions = rlSimulationOptions(MaxSteps=500);
experience = sim(env,agent,simOptions);

totalReward = sum(experience.Reward)

totalReward = 497.8374

The agent is able to balance the cart-pole system for the whole episode.

Input Arguments

agent — DDPG, TD3 or SAC agent

rlDDPGAgent object | rlTD3Agent object | rlSACAgent object

Agent to train, specified as an rlDDPGAgent, rlTD3Agent, or rlSACAgent object.

Note

trainWithEvolutionStrategy updates the agent as training progresses. For more information on how to preserve the original agent, how to save an agent during training, and on the state of agent after training, see the notes and the tips section in train. For more information about handle objects, see Handle Object Behavior.

For more information about how to create and configure agents for reinforcement learning, see Reinforcement Learning Agents.

env — Environment

reinforcement learning environment object

Environment in which the agent acts, specified as one of the following kinds of reinforcement learning environment object:

• A predefined MATLAB^® or Simulink^® environment created using rlPredefinedEnv.

• A custom MATLAB environment you create with functions such as rlFunctionEnv or rlCreateEnvTemplate.

• A custom Simulink environment you create using rlSimulinkEnv.

Note

Multiagent environments do not support training agents with an evolution strategy.

For more information about creating and configuring environments, see:

• Reinforcement Learning Environments

• Create Custom Simulink Environments

When env is a Simulink environment, calling trainWithEvolutionStrategy compiles and simulates the model associated with the environment.

estOpts — Parameters and options for training using an evolution strategy

rlEvolutionStrategyTrainingOptions object

Parameters and options for training using an evolution strategy, specified as an rlEvolutionStrategyTrainingOptions object. Use this argument to specify parameters and options such as:

• Population size

• Population update method

• Number training epochs

• Criteria for saving candidate agents

• How to display training progress

For details, see rlEvolutionStrategyTrainingOptions.

Output Arguments

trainStats — Evolution strategy training results

rlEvolutionStrategyTrainingResult object

Evolution strategy training results, returned as an rlEvolutionStrategyTrainingResult object. The following properties pertain to the rlEvolutionStrategyTrainingResult object:

GenerationIndex — Generation number

[1;2;…;N]

Generation number, returned as the column vector [1;2;…;N], where N is the number of generations in the training run. This vector is useful if you want to plot the evolution of other quantities from generation to generation.

GenerationReward — Reward for each generation

column vector

Reward for each generation, returned in a column vector of length N. Each entry contains the reward for the corresponding generation.

AverageReward — Average reward over the averaging window

column vector

Average reward over the averaging window specified in trainOpts, returned as a column vector of length N. Each entry contains the average award computed at the end of the corresponding generation.

Q0 — Critic estimate of expected discounted cumulative long-term reward at the beginning of each generation

column vector

Critic estimate of expected discounted cumulative long-term reward using the current agent and the environment initial conditions, returned as a column vector of length N. Each entry is the critic estimate (Q₀) for the agent at the beginning of the corresponding episode.

SimulationInfo — Environment simulation information

EvolutionStrategySimulationStorage object | []

Environment simulation information, returned as:

• An EvolutionStrategySimulationStorage object, if SimulationStorageType is set to "memory" or "file".

• An empty array, if SimulationStorageType is set to "none".

An EvolutionStrategySimulationStorage object contains information collected during simulation, which you can access by indexing into the object using the specific number of generation, citizen, and episode for the individual.

For example, if res is an rlEvolutionStrategyTrainingResult object returned by trainWithEvolutionStrategy, you can access the environment simulation information related to the fourth run (episode), of the third citizen, in the second generation as:

mySimInfo234 = res.SimulationInfo(2,3,4)

• For MATLAB environments, mySimInfo234 is a structure containing the field SimulationError. This structure contains any errors that occurred during simulation for the fourth episode, of the third citizen, in the second generation.

• For Simulink environments, mySimInfo234 is a Simulink.SimulationOutput object containing simulation data. Recorded data includes any signals and states that the model is configured to log, simulation metadata, and any errors that occurred for the second generation, third citizen, and fourth run.

In both cases, mySimInfo234 also contains a StatusMessage field or property indicating that the corresponding run (episode) has terminated successfully.

An EvolutionStrategySimulationStorage object also has the following read-only properties:

NumSimulations — Total number of simulation

positive integer

Total number of simulations ran in the entire training, returned as a positive integer. It is equal to the number of generations multiplied by the population size, multiplied by the number of simulation episodes per individual. These three numbers correspond to the MaxGenerations, PopulationSize, and EvaluationsPerIndividual properties of rlEvolutionStrategyTrainingOptions, respectively.

Example: 3000

StorageType — Type of storage for the environment data

"memory" (default) | "file"

Type of storage for the environment data, returned as either "memory" (indicating that data is stored in memory) or "file" (indicating that data is stored on disk). For more information, see the SimulationStorageType property of rlEvolutionStrategyTrainingOptions and Address Memory Issues During Training.

Example: "file"

TrainingOptions — Training options set

rlEvolutionStrategyTrainingOptions object

Training options set, returned as an rlEvolutionStrategyTrainingOptions object.

Version History

Introduced in R2023b

R2024a: trainWithEvolutionStrategy now returns an rlEvolutionStrategyTrainingResult object instead of an rlTrainingResult object

Starting in R2024a, trainWithEvolutionStrategy returns an rlEvolutionStrategyTrainingResult object instead of an rlTrainingResult object.

The properties of the training result object that have Episode as a part of their name have been replaced by respective properties having Generation as part of their name instead of Episode.

The SimulationInfo property of an rlEvolutionStrategyTrainingResult objects (returned by trainWithEvolutionStrategy) is now a EvolutionStrategySimulationStorage object (unless SimulationStorageType is set to "none").

Consider a Simulink environment that logs its states as xout over 10 episodes.

Previously, if res was an rlTrainingResult object returned by trainWithEvolutionStrategy you could pack the environment simulation information for all generations in a single array as:

[res.SimulationInfo.xout]

Now, you can only address one specific element:

res.SimulationInfo(5).xout

Similarly, previously you could access the simulation information related to the first generation as:

res.SimulationInfo.xout

Now, you must explicitly address the first element:

res.SimulationInfo(1).xout
