and
Syntax
Description
Examples
Intersect Two RF PCB Shapes
Create and display an annular ring.
shape1 = ringAnnular(InnerRadius=1e-3); show(shape1)

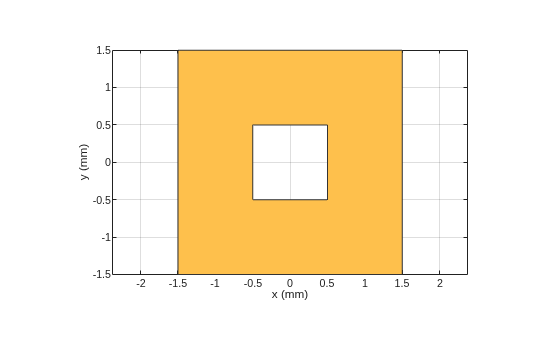

Create and display a square ring.
shape2 = ringSquare(InnerSide=1e-3); show(shape2)
Find and display the intersection of the shapes.
shapeIntersection = and(shape1,shape2); show(shapeIntersection)
Intersect Two RF PCB Shapes Using & Operator
Create and display an annular ring.
shape1 = ringAnnular;
Create and display a square ring.
shape2 = ringSquare('InnerSide',8e-3);
Find and display the intersection of the shapes.
shapeIntersection = shape1&shape2; show(shapeIntersection)
Input Arguments
shape1
— First shape
object
First shape created using custom elements and shape objects of RF PCB Toolbox™, specified as an object.
Example: shape1 = bendCurved;
specifies the first shape as a bendCurved
object.
shape2
— Second shape
object
Second shape created using custom elements and shape objects of RF PCB Toolbox, specified as an object.
Example: shape2 = ringAnnular;
specifies the second shape as a
ringAnnular
object.
Version History
Introduced in R2021b
