plus
Syntax
Description
Examples
Boolean Unite of Two RF PCB Shapes
Create a curved bend shape with a length of 5 m
bend = bendCurved(Length=[5 5]);
Create an annular ring shape with the default inner radius of 5 m.
ring = ringAnnular;
Add the two shapes and display the result.
shapeSum = plus(bend,ring)
shapeSum = Polygon with properties: Name: 'mypolygon' Vertices: [111x3 double]

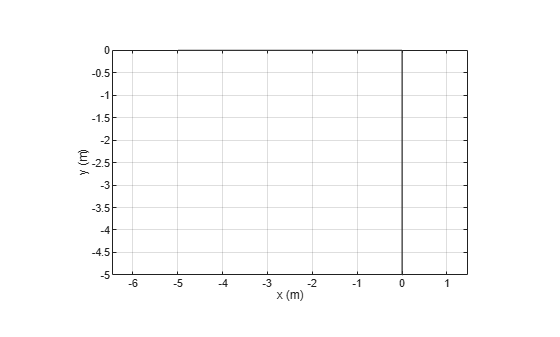

show(shapeSum)
Add Two RF PCB Shapes Using + Operator
Create the default curve shape.
shape1 = curve;
Create a right angle U-bend shape with an adjusted size and position to complement the curve shape.
shape2 = ubendRightAngle;
Add the two shapes using the + operator, and display the resulting Polygon
object.
shapeSum = shape1+shape2
shapeSum = Polygon with properties: Name: 'mypolygon' Vertices: [43x3 double]
show(shapeSum)
Input Arguments
shape1
— First shape
object
First shape created using custom elements and shape objects of RF PCB Toolbox™, specified as an object.
Example: shape1 = bendCurved;
specifies the first shape as a bendCurved
object.
shape2
— Second shape
object
Second shape created using custom elements and shape objects of RF PCB Toolbox, specified as an object.
Example: shape2 = ringAnnular;
specifies the second shape as a
ringAnnular
object.
Version History
Introduced in R2021b
