Inverse Dynamics
Required joint torques for given motion
Libraries:
Robotics System Toolbox /
Manipulator Algorithms
Description
The Inverse Dynamics block returns the joint torques required for the robot to maintain the specified robot state. To get the required joint torques, specify the robot configuration (joint positions), joint velocities, joint accelerations, and external forces.
Examples

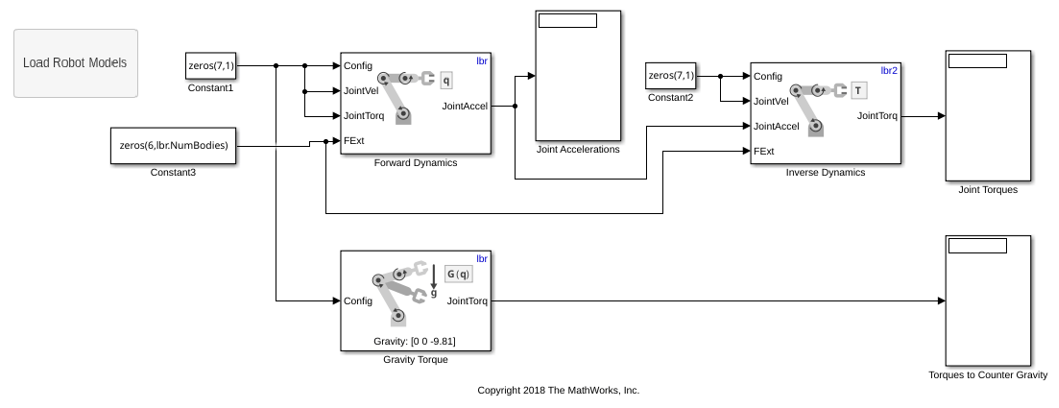

Calculate Manipulator Gravity Dynamics in Simulink
Use the manipulator algorithm blocks to compute and compare dynamics due to gravity for a manipulator robot.

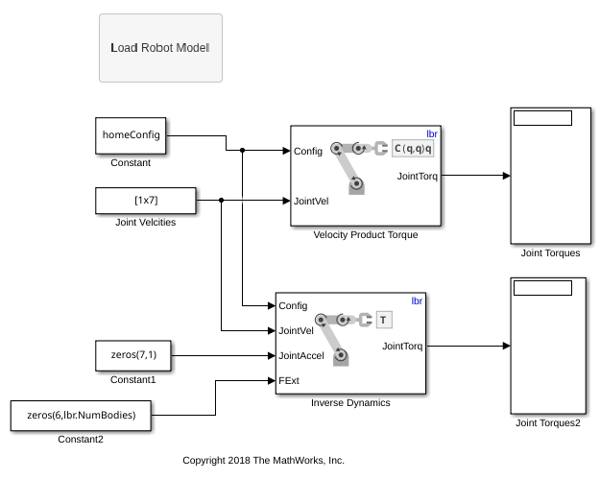

Compute Velocity Product for Manipulators in Simulink
Calculate velocity-induced torques in manipulators using Simulink® manipulator algorithm blocks.
Ports
Input
Config — Robot configuration
vector
Robot configuration, specified as a vector of positions for all
nonfixed joints in the robot model, as set by the Rigid body
tree parameter. You can also generate this vector for a
complex robot using the homeConfiguration
or
randomConfiguration
functions inside a Constant or MATLAB
Function block.
JointVel — Joint velocities
vector
Joint velocities, specified as a vector. The number of joint velocities is equal to the degrees of freedom (number of nonfixed joints) of the robot.
JointAccel — Joint accelerations
vector
Joint accelerations, specified as a vector. The number of joint accelerations is equal to the degrees of freedom of the robot.
FExt — External force matrix
6-by-n matrix
External force matrix, specified as a 6-by-n
matrix, where n is the number of bodies in the robot
model. The matrix contains nonzero values in the rows corresponding to
specific bodies. Each row is a vector of applied forces and torques that
act as a wrench for that specific body. Generate this matrix using
externalForce
with a
MATLAB Function block
Output
JointTorq — Joint torques
vector
Joint torques, returned as a vector. Each element corresponds to a torque applied to a specific joint. The number of joint torques is equal to the degrees of freedom (number of nonfixed joints) of the robot.
Parameters
Rigid body tree — Robot model
twoJointRigidBodyTree
(default) | RigidBodyTree
object
Robot model, specified as a rigidBodyTree
object. You
can also import a robot model from an URDF (Unified Robot Description
Format) file using importrobot
.
The default robot model, twoJointRigidBodyTree
, is a
robot with revolute joints and two degrees of freedom.
Simulate using — Type of simulation to run
Interpreted execution
(default) | Code generation
Interpreted execution
— Simulate model using the MATLAB® interpreter. This option shortens startup time but has a slower simulation speed thanCode generation
. In this mode, you can debug the source code of the block.Code generation
— Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time, but the speed of the subsequent simulations is comparable toInterpreted execution
.
Tunable: No
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2018a
See Also
Blocks
- Forward Dynamics | Get Jacobian | Gravity Torque | Joint Space Mass Matrix | Velocity Product Torque
