lncf

Left normalized coprime factorization

collapse all in page

Syntax

fact = lncf(sys)
[fact,Ml,Nl] = lncf(sys)

Description

fact = lncf(sys) computes the left normalized coprime factorization of the dynamic system model sys. The factorization is given by:

sys=Ml−1Nl, MlMl*+NlNl*=I.

Here, Ml* denotes the conjugate of Ml (see ctranspose). The returned model fact is a minimal state-space realization of the stable system [Ml,Nl]. This factorization is used in other normalized coprime factor computations such as model reduction (reducespec) and controller synthesis (ncfsyn).

example

[fact,Ml,Nl] = lncf(sys) also returns the coprime factors Ml and Nl.

example

Examples

collapse all

Open Live Script

Compute the left normalized coprime factorization of a SISO system.

sys = zpk([1 -1+2i -1-2i],[-1 2+1i 2-1i],1);
[fact,Ml,Nl] = lncf(sys);

Examine the original system and its factors.

sys
sys =

  (s-1) (s^2 + 2s + 5)
  --------------------
  (s+1) (s^2 - 4s + 5)

Continuous-time zero/pole/gain model.

zpk(Ml)
ans =

  0.70711 (s+1) (s^2 - 4s + 5)
  ----------------------------
    (s+1) (s^2 + 3.162s + 5)

Continuous-time zero/pole/gain model.

zpk(Nl)
ans =

  0.70711 (s-1) (s^2 + 2s + 5)
  ----------------------------
    (s+1) (s^2 + 3.162s + 5)

Continuous-time zero/pole/gain model.

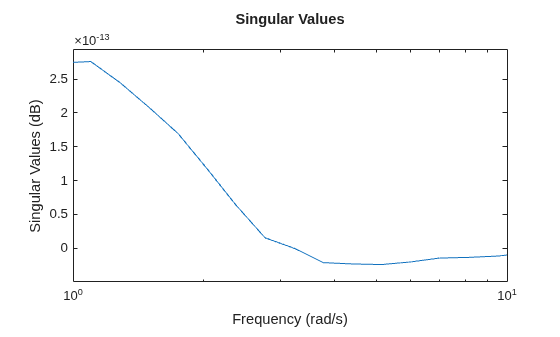

The numerators of the factors Ml and Nl are the denominator and numerator of sys, respectively. Thus, sys = Ml\Nl. lncf chooses the denominators of the factors such that the system [Ml(jω),Nl(jω)] is a unit vector at all frequencies. To confirm that property of the factorization, examine the singular values of fact, which is a stable minimal realization of [Ml(jω),Nl(jω)].

sigma(fact)

MATLAB figure

Within a small numerical error, the singular value of fact is 1 (0 dB) at all frequencies.

Open Live Script

Compute the left normalized coprime factorization of a state-space model that has two outputs, two inputs, and three states.

rng(0); % for reproducibility
sys = rss(3,2,2);
[fact,Ml,Nl] = lncf(sys);

fact is a stable minimal realization of the factorization given by [Ml,Nl].

isstable(fact)
ans = logical
   1

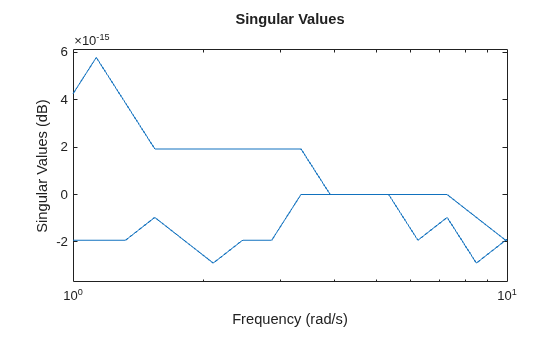

Another property of fact is that its frequency response F(jω) is an orthogonal matrix at all frequencies (F(jω)’F(jω) = I). Confirm this property by examining the singular values of fact. Within a small numerical error, the singular values are 1 (0 dB) at all frequencies.

sigma(fact)

MATLAB figure

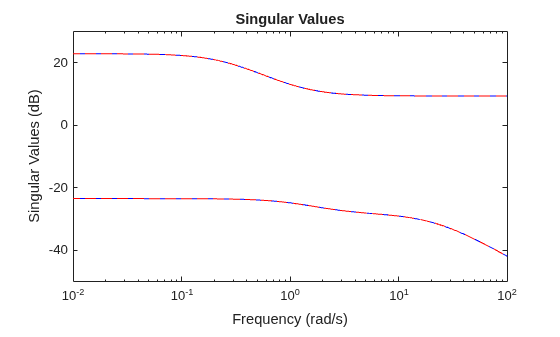

Confirm that the factors satisfy sys = Ml\Nl by examining the singular values of both.

sigma(sys,'b-',Ml\Nl,'r--')

MATLAB figure

Input Arguments

collapse all

Input system to factorize, specified as a dynamic system model such as a state-space (ss) model. If sys is a generalized state-space model with uncertain or tunable control design blocks, then the function uses the nominal or current value of those elements. sys cannot be an frd model or a model with time delays.

Output Arguments

collapse all

Minimal realization of [Ml,Nl], returned as a state-space model. fact is stable and its frequency response is an orthogonal matrix at all frequencies. If sys has p outputs and m inputs, then fact has p outputs and m+p inputs. fact has the same number of states as sys.

Left coprime factors of sys, returned as state-space models. If sys has p outputs and m inputs, then:

  • Ml has p outputs and p inputs.

  • Nl has p outputs and m inputs.

Both factors have the same number of states as sys and the same A and C matrices as fact.

Tips

  • fact is a minimal realization of [Ml,Nl]. If you need to use [Ml,Nl] or [Ml,Nl]' in a computation, it is better to use fact than to concatenate the factors yourself. Such manual concatenation results in extra (nonminimal) states, which can lead to decreased numerical accuracy.

Version History

Introduced in R2019a
