getLabeledSignal
Get labeled signals from labeled signal set
Description
Examples
Get Labeled Signal
Load a labeled signal set containing recordings of whale songs.
load whales
lss
lss = labeledSignalSet with properties: Source: {2x1 cell} NumMembers: 2 TimeInformation: "sampleRate" SampleRate: 4000 Labels: [2x3 table] Description: "Characterize wave song regions" Use labelDefinitionsHierarchy to see a list of labels and sublabels. Use setLabelValue to add data to the set.
Get a table with all the signals in lss
.
t = getLabeledSignal(lss)
t=2×4 table
Signal WhaleType MoanRegions TrillRegions
________________ _________ ___________ ____________
Member{1} {79572x1 double} blue {3x2 table} {1x3 table}
Member{2} {76579x1 double} blue {3x2 table} {1x3 table}
Identify the sublabels of the trill regions.
d = getLabelNames(lss,"TrillRegions")
d = "TrillPeaks"
Get the labeled signal corresponding to the second member of the set. Determine the sample rate.
idx = 2; [lbs,info] = getLabeledSignal(lss,idx)
lbs=1×4 table
Signal WhaleType MoanRegions TrillRegions
________________ _________ ___________ ____________
Member{2} {76579x1 double} blue {3x2 table} {1x3 table}
info = struct with fields:
TimeInformation: "sampleRate"
SampleRate: 4000
fs = info.SampleRate;

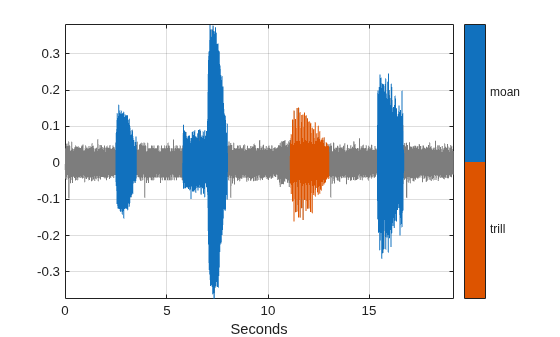

Identify the moan and trill regions of interest. Use a signalMask
object to plot the signal and highlight the moans and trills.
mvals = getLabelValues(lss,idx,"MoanRegions"); tvals = getLabelValues(lss,idx,"TrillRegions"); tb = [mvals;tvals]; tb.Value = categorical([repmat("moan",height(mvals),1); ... repmat("trill",height(tvals),1)],["moan" "trill"]); sm = signalMask(tb,"SampleRate",fs); plotsigroi(sm,getSignal(lss,idx))

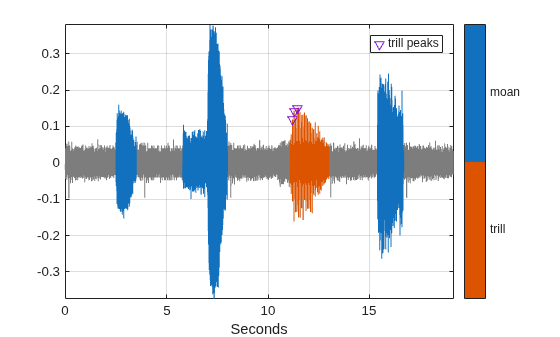

Identify three peaks of the trill region and plot them.
peaks = getLabelValues(lss,idx,["TrillRegions" "TrillPeaks"]); hold on pk = plot(peaks.Location,cell2mat(peaks.Value),"v"); hold off legend(pk,"trill peaks")
Input Arguments
lss
— Labeled signal set
labeledSignalSet
object
Labeled signal set, specified as a labeledSignalSet
object.
Example:
specifies a two-member set of random
signals containing the attribute labeledSignalSet
({randn(100,1)
randn(10,1)},signalLabelDefinition('female'))'female'
.
midx
— Member row number
positive integer
Member row number, specified as a positive integer. midx
specifies the member row number as it appears in the Labels table of a labeled signal
set.
Output Arguments
t
— Labeled signal
table
Labeled signal, specified as a table.
info
— Time information
structure
Time information, returned as a structure.
Version History
Introduced in R2018b
