plotsigroi

Plot signal regions based on signal mask

Since R2020b

Syntax

plotsigroi(msk,x)

plotsigroi(msk,x,patchflag)

h = plotsigroi(msk,x)

Description

plotsigroi(msk,x) plots signal x with color-coded regions based on the source and properties in msk. If x is complex-valued, the function plots its magnitude.

plotsigroi(msk,x,patchflag) plots regions of interest using rectangular patches if patchflag is true.

h = plotsigroi(msk,x) returns the figure handle of the color-coded plot. You can use the figure handle to query and modify figure properties.

Examples

Plot Regions of Interest from Binary Sequences Mask

Consider a mask of binary sequences for two categories, ran and dom. Use the sequences to generate a signalMask object. Discard regions with fewer than 3 samples.

rng default

sq = randi(2,200,2)-1;

m = signalMask(sq,"MinLength",3,"Categories",["ran" "dom"]);

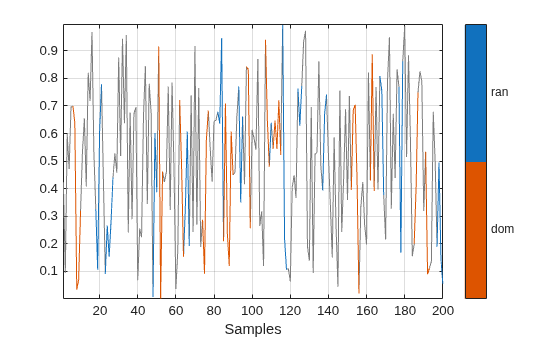

Generate a sequence of 200 random numbers. Plot the regions of interest.

x = rand(200,1);

plotsigroi(m,x)

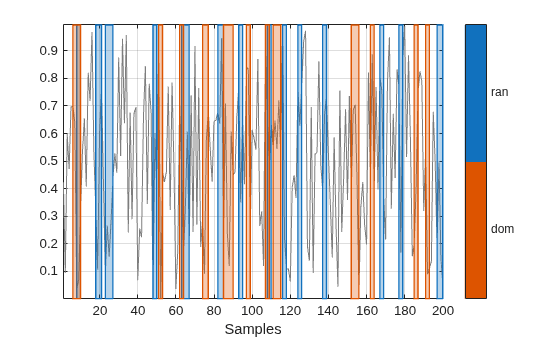

Plot the regions of interest using rectangular patches.

plotsigroi(m,x,true)

Input Arguments

msk — Signal mask

signalMask object

Signal mask, specified as a signalMask object.

Example: signalMask(table([2 4;6 7],["male" "female"]')) specifies a signal mask with a three-sample male region and a two-sample female region.

Example: signalMask(categorical(["" "male" "male" "male" "" "female" "female" ""]',["male" "female"])) specifies a signal mask with a three-sample male region and a two-sample female region.

Example: signalMask([0 1 1 1 0 0 0 0;0 0 0 0 0 1 1 0]','Categories',["male" "female"]) specifies a signal mask with a three-sample male region and a two-sample female region.

x — Input signal

vector

Input signal, specified as a vector.

Example: chirp(0:1/1e3:1,25,1,50) specifies a chirp sampled at 1 kHz.

Data Types: single | double
Complex Number Support: Yes

patchflag — Rectangular patch option

false (default) | true

Rectangular patch option, specified as a logical value. plotsigroi uses rectangular patches to plot regions of interest if patchflag is true.

Data Types: logical

Output Arguments

h — Figure handle

Axes object

Figure handle, returned as an Axes object.

For more information about the list of properties in Axes objects, see Axes Properties.

Version History

Introduced in R2020b
