uencode

Quantize and encode floating-point inputs to integer outputs

Syntax

``y = uencode(x,n)``
``y = uencode(x,n,v)``
``y = uencode(x,n,v,outputSign)``

Description

````y = uencode(x,n)` quantizes the entries in a multidimensional array of floating-point numbers `x` in the range [-1, 1], and encodes them as integers using 2n-level quantization. The elements of the output y are unsigned integers with magnitudes in the range [0, 2n – 1].```

example

````y = uencode(x,n,v)` allows the input `x` to have entries with floating-point values in the range `[-v,v]` before saturating them.```
````y = uencode(x,n,v,outputSign)` specifies the option `outputSign` to generate signed or unsigned integer outputs.```

Examples

collapse all

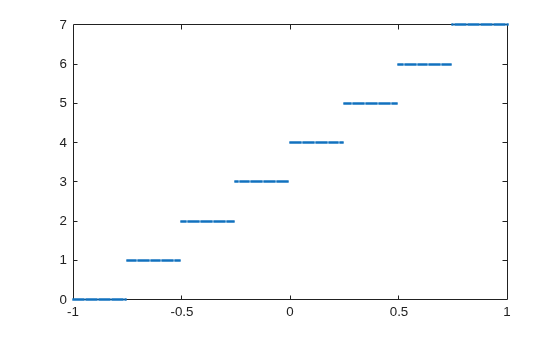

Map floating-point scalars in [-1, 1] to `uint8` (unsigned) integers. Produce a staircase plot. The horizontal axis ranges from -1 to 1 and the vertical axis from 0 to 7 (i.e., ${2}^{3}-1$).

```u = -1:0.01:1; y = uencode(u,3); plot(u,y,'.')```

Look at saturation effects when you underspecify the peak value for the input.

```u = -2:0.5:2; y = uencode(u,5,1)```
```y = 1x9 uint8 row vector 0 0 0 8 16 24 31 31 31 ```

Specify you want signed output.

```u = -2:0.5:2; y = uencode(u,5,2,'signed')```
```y = 1x9 int8 row vector -16 -12 -8 -4 0 4 8 12 15 ```

Input Arguments

collapse all

Floating-point inputs, specified as a vector, as a matrix, or as a multidimensional array. The `uencode` function treats elements from `x` outside of the range [`-v`, `v`] as overflows and saturates them as follows:

• For input elements that are less than `-v`, `uencode` returns an output value of `0` (unsigned output) or `-2^n/2` (signed output).

• For input elements that are greater than `v`, `uencode` returns an output value of `2^n-1` (unsigned output) or `2^n/2-1` (signed output).

The `uencode` function encodes the real and imaginary components of complex-valued inputs `x` independently.

Data Types: `single` | `double`
Complex Number Support: Yes

Measure of number of quantization levels, specified as a positive integer scalar. `n` must be an integer between 2 and 32 (inclusive). The value of 2n indicates the number of quantization levels established for the quantized array `y`, and defines a quantization range for `y`.

The quantization range depends on the value of `n` and the sign nature of `y`:

• Signed inputs — from -2n/2 to (2n/2)–1.

• Unsigned inputs — from 0 to (2n–1).

Unsaturation amplitude, specified as a positive scalar. The function treats elements of `x` outside of the range `[-v,v]` as saturation and encodes them as follows:

• For input elements that are less than `-v`, `uencode` returns an output value of `0` (unsigned output) or `-2^n/2` (signed output).

• For input elements that are greater than `v`, `uencode` returns an output value of `2^n-1` (unsigned output) or `2^n/2-1` (signed output).

Sign of output, specified as `"unsigned"` or `"signed"`. The integer type of the output depends on the number of quantization levels 2n and the value of `outputSign`, which can be one of these:

• `"signed"` — Outputs are signed integers with magnitudes in the range [–2n/2, (2n/2) – 1].

• `"unsigned"` — Outputs are unsigned integers with magnitudes in the range [0, 2n – 1].

Output Arguments

collapse all

Encoded integer outputs, returned as a vector, matrix, or multidimensional array. The output array `y` has the same dimension as `x`.

Algorithms

The `uencode` function maps the floating-point input value to an integer value determined by the requirement for 2n levels of quantization. This encoding adheres to the definition for uniform encoding specified in ITU-T Recommendation G.701. The input range `[-v,v]` is divided into 2n evenly spaced intervals. Input entries in the range `[-v,v]` are first quantized according to this subdivision of the input range, and then mapped to one of 2n integers. The range of the output depends on whether you specify that you want signed integers.

The function optimizes the output data types for the number of bits as shown in this table.

References

[1] International Telecommunication Union. General Aspects of Digital Transmission Systems: Vocabulary of Digital Transmission and Multiplexing, and Pulse Code Modulation (PCM) Terms. ITU-T Recommendation G.701. March, 1993.
