Model dependencies

Data and design files that potentially impact simulation results

Model Configuration Pane: Model Referencing

Description

The Model dependencies configuration parameter lets you specify data and design files that the software does not automatically identify as dependencies.

The software rebuilds the model reference targets only when:

• A dependency automatically identified by the software has changed, and the change affects the current model.

• A dependency manually specified by the Model dependencies configuration parameter has changed, and the change affects the current model.

When needed, the software determines whether the change affects the current model by checking whether the structural checksum has changed.

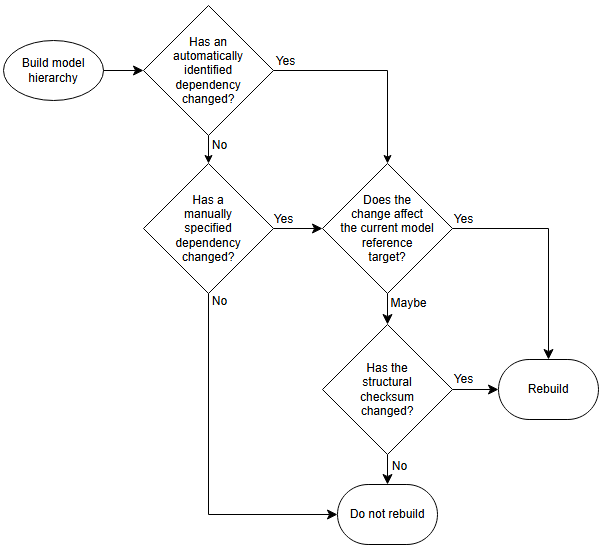

This flow chart visualizes how the software determines whether to rebuild model reference targets during model compilation, simulation, and code generation.

Determine Dependencies to Specify

To prevent invalid simulation and code generation results, specify files that contain code executed by callbacks.

You do not need to specify automatically identified dependencies and derived files, such as:

• Referenced subsystems and models.

• Model reference simulation targets.

• Model reference coder targets.

• Simulink^® cache files.

• Linked libraries.

• Global variables.

• Model workspace, when its data source is a MAT file or MATLAB^® script or function.

• Data dictionaries.

• Enumerated type definitions.

• Custom S-functions and their TLC files.

• External files used by Stateflow^® charts, MATLAB Function blocks, MATLAB System blocks, C Caller blocks, C Function blocks, and similar.

• Dataflow subsystems — Analysis of dataflow subsystems requires that the simulation target rebuilds to profile and rebuilds again to partition the subsystem. In addition, the simulation target must rebuild if the machine running the simulation has fewer cores than the subsystem is partitioned to use, for example, if the simulation target was last built on a machine with a greater number of cores. For more information, see Simulation of Dataflow Domains (DSP System Toolbox).

To help identify model dependencies, use the Dependency Analyzer. For more information, see Analyze Model Dependencies.

If the software cannot find a manually specified dependency when you update or simulate a model that references this model, the software displays a warning.

Set Configuration Parameter for Referenced Models

In a model reference hierarchy, whether you edit the parameter in the top model or the current referenced model depends on how you access the Configuration Parameters dialog box.

• Top model in the current model hierarchy — In the Simulink Toolstrip, on the Modeling tab, click Model Settings.

• Current referenced model — In the Simulink Toolstrip, on the Modeling tab, click the Model Settings button arrow. Then, in the Referenced Model section, select Model Settings.

Alternatively, open the referenced model as a top model. Then, in the Simulink Toolstrip, on the Modeling tab, click Model Settings.

Dependencies

To enable this parameter, set Total number of instances allowed per top model to One or Multiple.

Settings

'' (default) | character vector | cell array of character vectors

Specify dependencies as a character vector or cell array of character vectors, where each cell array entry is one of these values:

• Filename — The software looks on the MATLAB path for a file with the given name. If the file is not on the MATLAB path, specify the path to the dependent file. The filename must include a file extension, such as .m.

• Path to the dependent file — The path can be relative or absolute and must include the filename.

• Folder — The software treats every file in that folder as a dependent file. Files of subfolders of the folder you specify are not included.

Cell array entries can include:

• Spaces

• The token $MDL as a prefix to a dependency to indicate that the path to the dependency is relative to the location of this model file

• An asterisk (*) as a wild card

• A percent sign (%) to comment out a line

• An ellipsis (...) to continue a line

This example shows valid cell array entries.

{'D:\Work\parameters.m', '$MDL\mdlvars.m', ...
'D:\Work\masks\*.m'}

Examples

Conditionally Rebuild Model Reference Targets

Suppose you have a model hierarchy that simulates referenced models in accelerator mode. You also have model reference simulation targets for the referenced models. When you compile, simulate, or generate code for the model hierarchy, the software identifies and checks dependencies that can make the model reference targets out of date.

Suppose you change the value of a variable in a MAT file that provides data to the model workspace of a referenced model. Then, you simulate the model hierarchy.

1. The software automatically identifies the change to the model workspace.

2. The software determines that this type of change affects the model reference simulation target.

3. The software rebuilds the model reference simulation target.

Next, suppose you change a file that contains code that executes as part of a callback script. Then, you simulate the model hierarchy.

1. The software does not automatically identify the change to the code.

2. The software checks the Model dependencies configuration parameter and finds a manually specified dependency on the file.

3. The software checks the structural checksum of the referenced model. The structural checksum has changed, and the software rebuilds the model reference simulation target.

Unlike the MAT file case, in the callback-script case, you must specify the file as a model dependency with the Model dependencies configuration parameter. Otherwise, the software does not check the structural checksum or rebuild the model reference simulation target, and the model reference target remains out of date.

Recommended Settings

Application	Setting
Debugging	No impact
Traceability	No impact
Efficiency	No impact
Safety precaution	No recommendation

Programmatic Use

Parameter: ModelDependencies

Type: character vector

Value: any valid value

Default: ''

More About

Structural Checksum

A structural checksum is a computation used to detect changes in the model that can affect simulation results. To compute the structural checksum, the software loads and compiles the model. To compile the model, the software must execute callbacks and access all variables that the model uses. The structural checksum detects changes in dependencies, regardless of whether the Model dependencies configuration parameter specifies the dependencies that the software cannot automatically identify.

For information about the kinds of changes that affect the structural checksum, see Simulink.BlockDiagram.getChecksum.

Version History

Introduced before R2006a
