Références de modèle

Réutiliser des modèles en tant que blocs dans d'autres modèles

Une référence de modèle est une référence à un autre modèle via un bloc Model. Ces références créent une hiérarchie de modèle. Chaque modèle référencé possède une interface définie qui spécifie les propriétés de ses entrées et sorties. Grâce à cette interface définie, le comportement du modèle référencé est indépendant de son contexte dans la hiérarchie de modèle. Les références de modèle sont idéales pour la réutilisation du code, les tests unitaires, les compilations en parallèle et les composants volumineux. Elles peuvent également minimiser les conflits d'accès et les problèmes de fusion de fichiers.

Pour déterminer si les modèles référencés répondent à vos exigences de modélisation, consultez la rubrique Component-Based Modeling Guidelines.

Pour en savoir plus sur la génération de code pour les hiérarchies de modèles de référence, consultez la rubrique Referenced Models (Simulink Coder).

Pour créer un modèle protégé, consultez la rubrique Model Protection (Simulink Coder).

Pour effectuer des tests en mode SIL/PIL avec une hiérarchie de de références de modèle, consultez la rubrique SIL and PIL Simulations (Embedded Coder).

Blocs

Model	Reference another model to create model hierarchy
Variant Model	Template subsystem containing Subsystem blocks as variant choices

Fonctions

développer tout

Modèles référencés

`depview`	Analyze and visualize model referencing dependencies with or without library dependencies
`find_mdlrefs`	Find referenced models and Model blocks in model hierarchy
`pathsToReferencedModel`	Model hierarchy path composed of referenced models and Model blocks (depuis R2023b)
`Simulink.BlockDiagram.refreshBlocks`	Update variants, linked blocks, and model references to reflect changes (depuis R2023a)
`Simulink.BlockPath`	Fully specified Simulink block path
`Simulink.fileGenControl`	Specify root folders for files generated by diagram updates and model builds
`Simulink.ModelReference.refresh`	Force update to Model block to reflect changes to referenced model (depuis R2020a)
`Simulink.SubSystem.convertToModelReference`	Convert subsystems to models
`slbuild`	Build standalone executable file or model reference target for model
`slxcinfo`	Query contents of Simulink cache files (depuis R2020b)
`slxcunpack`	Unpack simulation and code generation targets from Simulink cache file (depuis R2020b)

Modèles protégés

`Simulink.ProtectedModel.createHarness`	Create harness model that provides isolated environment for testing protected model (depuis R2020b)
`Simulink.ProtectedModel.getPublisher`	Return information about publisher that signed the protected model (depuis R2020a)
`Simulink.ProtectedModel.verifySignature`	Verify digital signature on protected model (depuis R2020a)
`Simulink.ProtectedModel.suppressSignatureVerification`	Suppress digital signature verification of protected models (depuis R2020b)

Paramètres du modèle

développer tout

Référencer des modèles

Rebuild	Option to conditionally, always, or never rebuild model reference targets
Never rebuild diagnostic	Diagnostic action to take when model reference target must be rebuilt
Enable parallel model reference builds	Option to build a model reference hierarchy in parallel whenever possible
MATLAB worker initialization for builds	Options for how to initialize MATLAB workers for parallel builds
Enable strict scheduling checks for referenced models	Option to check consistency of scheduling and sample time in referenced models
Total number of instances allowed per top model	Number of references to this model that can occur in another model
Propagate sizes of variable-size signals	Option to specify how variable-size signals propagate through referenced models
Minimize algebraic loop occurrences	Option to try to eliminate artificial algebraic loops related to referenced model
Propagate all signal labels out of the model	Option to pass propagated signal names out of referenced model
Use local solver when referencing model	Option to use local solver to solve referenced model as separate system of equations (depuis R2022a)
Model dependencies	User-created files and data that potentially impact simulation results
Perform consistency check on parallel pool	Option to perform checks on parallel pool before starting parallel build (depuis R2021a)
Include custom code for referenced models	Option to use custom code in model reference simulation target
Pass fixed-size scalar root inputs by value for code generation	Option to pass scalar input to model by reference or value

Diagnostics de référencement des modèles

Model block version mismatch	Diagnostic action to take when Model block does not represent current version of referenced model
Port and parameter mismatch	Diagnostic action to take when port or parameter does not match between Model block and referenced model
Unsupported data logging	Diagnostic action to take when data logging is unsupported
No explicit final value for model arguments	Diagnostic action to take for model argument with default value at top-level model reference (depuis R2020b)
Insufficient maximum identifier length	Diagnostic action to take when maximum identifier length is too short to ensure unique global identifiers

Outils

Model Reference Conversion Advisor	Convert subsystems to referenced models
Referenced Files Pane	View, save, and close referenced subsystems and models (depuis R2020b)

Rubriques

Déterminer quand référencer des modèles

Component-Based Modeling Guidelines
Consider componentization for large models and multiuser development teams.
Model Reference Basics
Decide whether to reference one model in another model.
Model Reference Requirements and Limitations
Model references have requirements and limitations relating to features such as reusability, simulation modes, masking, and debugging.

Créer des références de modèle

Reference Existing Models
Include a model in another model.
Reference Protected Models from Third Parties
Use a protected model that you received from a third party.
Convert Subsystems to Referenced Models
Prepare a subsystem for conversion, convert the subsystem to a model, and compare simulation results before and after conversion.
Define Model Reference Interfaces
Ports in the referenced model correspond with ports at the model reference. Signals that cross the model boundary must meet certain requirements.
Inspect Model Hierarchies
Examine the contents, structure, model versions, and logged signals in a model hierarchy.

Configurer des références de modèle

Set Configuration Parameters for Model Hierarchies
Configuration parameter values can be different in top models and referenced models. Some configuration parameter values have special requirements or behavior with model referencing.
Conditionally Execute Referenced Models
Execute referenced models conditionally, similar to conditionally executed subsystems.
Referenced Model Sample Times
A referenced model can inherit sample times from the model that references it.
Configure Instance-Specific Values for Block Parameters in a Referenced Model
When you model a reusable component as a referenced model, to configure each instance of the component to use different values for block parameters, create model arguments.
Parameterize a Referenced Model Programmatically
This example shows how to programmatically configure multiple instances of a referenced model to use different values for the same block parameter.
Group Multiple Model Arguments into a Single Structure
This example shows how to programmatically configure multiple instances of a referenced model to use different values for the same block parameter by using structures.
Configure Instance-Specific Data for Lookup Tables Programmatically
When you use Simulink.LookupTable objects to store and configure lookup table data for ASAP2 or AUTOSAR code generation (for example, STD_AXIS or CURVE), you can configure the objects as model arguments.

Simuler des hiérarchies de modèles

Choose Simulation Modes for Model Hierarchies
Select the simulation mode for models in a model hierarchy.
Manage Simulation Targets for Referenced Models
A simulation target, or SIM target, is a MEX-file that implements a referenced model that executes in accelerator mode.
Share Simulink Cache Files for Faster Simulation
Use Simulink cache files to share build artifacts that let you avoid the cost of a first-time build.
Override Model Reference Simulation Modes
When a top model simulates in normal mode, you can override the simulation mode used for model references without dirtying their parent models.
Reduce Update Time for Referenced Models by Using Parallel Builds
Reduce diagram update time for large model reference hierarchies by using parallel builds.
Simulate Conditionally Executed Referenced Models
Run a standalone simulation of a conditionally executed referenced model.
Simulate Multiple Referenced Model Instances in Normal Mode
Simulate a model that contains multiple instances of a referenced model.

Informations connexes

Modélisation basée sur les composants
Modélisation collaborative
Systèmes variants
Referenced Models (Simulink Coder)
Model Protection (Simulink Coder)

Exemples présentés

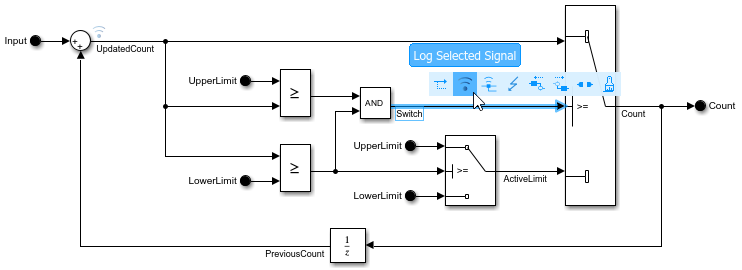

Component-Based Modeling with Model Reference

Walks you through simulation and code generation of a model that references another model multiple times.

Ouvrir le live script

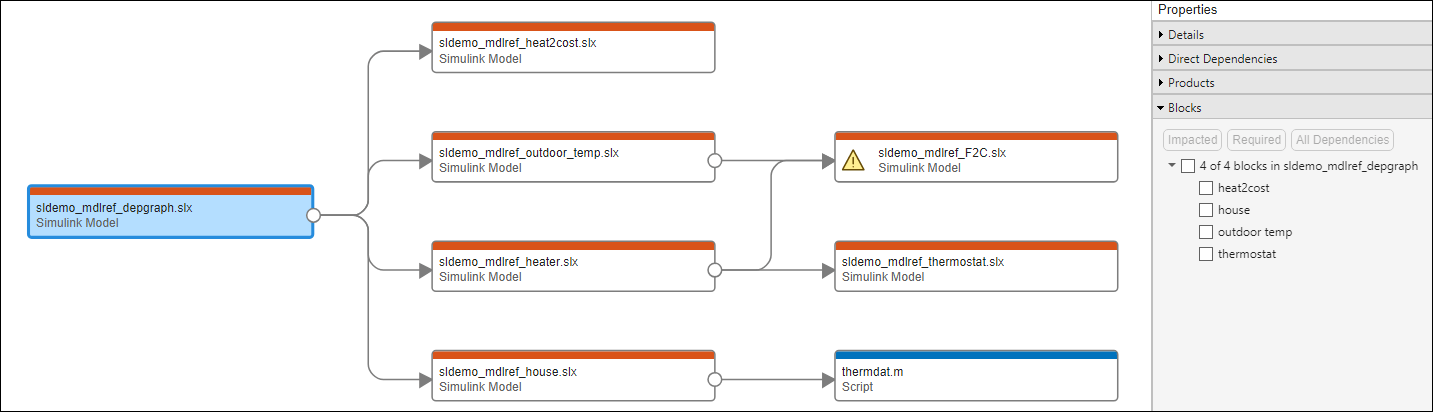

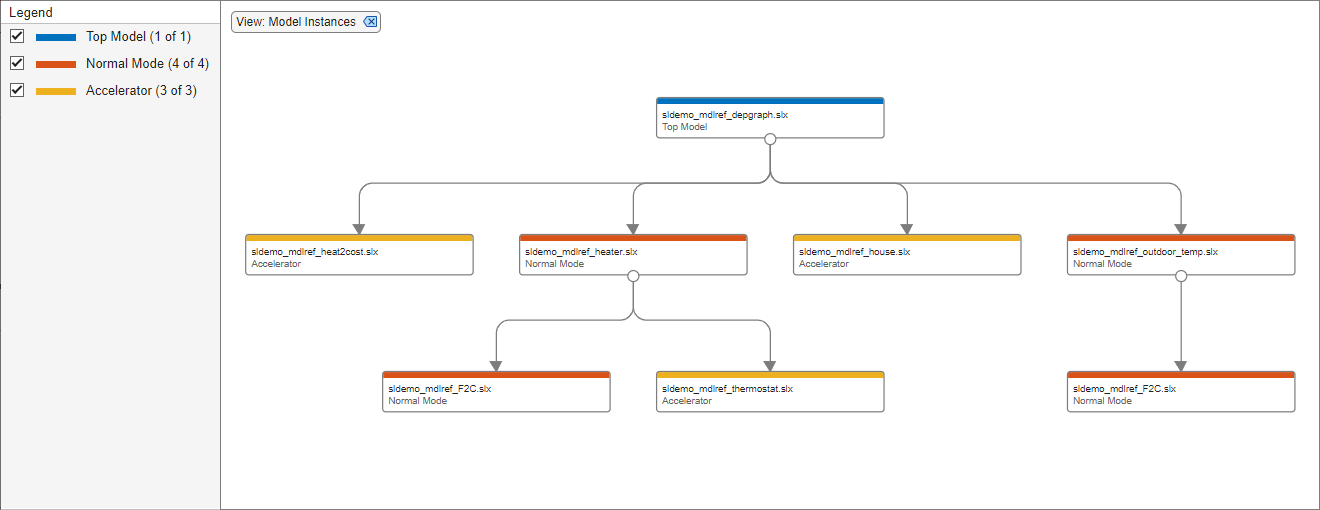

Visualize Model Reference Hierarchies

View, explore, and analyze model dependencies using the Dependency Analyzer.

Ouvrir l'exemple

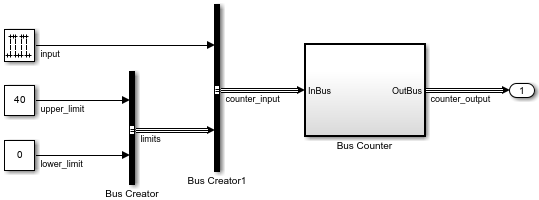

Convert Subsystem to Referenced Model

Convert a subsystem to a referenced model by using the Model Reference Conversion Advisor or the Simulink.SubSystem.convertToModelReference function.
