DateTime to Formatted String

R2026b

Convert DateTime signal data type to formatted string

Since R2026b

•

DateTime to Formatted String block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Simulink / DateTime

Description

The DateTime to Formatted String block converts a DateTime signal data type to a formatted string.

Examples

DateTime to Formatted String Block

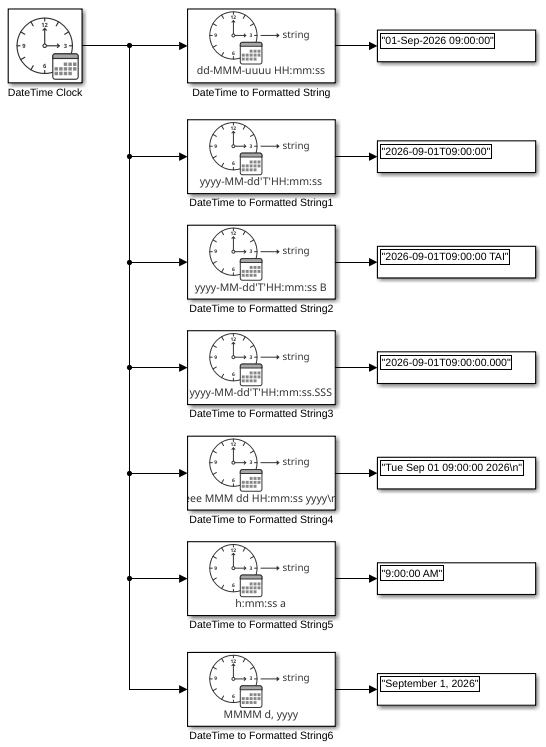

This example shows the result of each default format for the DateTime to Formatted String block being applied to a DateTime signal. The input for all DateTime to Formatted String blocks in the model is a DateTime signal that represents 9:00 AM TAI on September 1, 2026. The output is a string signal.

model='ex_datetime_to_formatted_string_block';
load_system(model)
sim(model);
open_system(model)

Ports

Input

Port_1 — DateTime signal

scalar

DateTime signal, specified as a scalar.

Dependencies

To enable this parameter, set the Input mode parameter to DateTime.

y — Calendar year

real numeric scalar | integer

Calendar year, specified as a real numeric scalar whose value is an integer.

Dependencies

To enable this port, set the Input mode parameter to Calendar time.

Data Types: single | double | int8 | uint8 | int16 | uint16 | int32 | uint32

M — Calendar month

real numeric scalar 1 to 12 | integer

Calendar month, specified as a real numeric scalar whose value is an integer between 1 and 12, inclusive.

Dependencies

To enable this port, set the Input mode parameter to Calendar time.

Data Types: single | double | int8 | uint8 | int16 | uint16 | int32 | uint32

d — Calendar day of month

real numeric scalar 1 to 31 | integer

Calendar day of month, specified as a real numeric scalar whose value is an integer between 1 and 31, inclusive.

Dependencies

To enable this port, set the Input mode parameter to Calendar time.

Data Types: single | double | int8 | uint8 | int16 | uint16 | int32 | uint32

H — Hour

real numeric scalar 0 to 23 | integer

Hour, specified as a real numeric scalar whose value is an integer between 0 and 23, inclusive.

Dependencies

To enable this port, set the Input mode parameter to Calendar time.

Data Types: single | double | int8 | uint8 | int16 | uint16 | int32 | uint32

m — Minute

real numeric scalar 0 to 59 | integer

Minute, specified as a real numeric scalar whose value is an integer between 0 and 59, inclusive.

Dependencies

To enable this port, set the Input mode parameter to Calendar time.

Data Types: single | double | int8 | uint8 | int16 | uint16 | int32 | uint32

s — Seconds

real numeric scalar 0 to less than 61.0

Seconds, specified as a real numeric scalar 0 to less than 61.0.

Dependencies

To enable this port, set the Input mode parameter to Calendar time.

Data Types: single | double | int8 | uint8 | int16 | uint16 | int32 | uint32

Output

string — Converted DateTime signal

scalar string

Converted DateTime signal, returned as a scalar string.

Data Types: string

Parameters

Format — Output string format

dd-MMM-uuuu HH:mm:ss (default) | yyyy-MM-dd'T'HH:mm:ss | yyyy-MM-dd'T'HH:mm:ss t | yyyy-MM-dd'T'HH:mm:ss.SSS | eee MMM dd HH:mm:ss yyyy\n | h:mm:ss a | MMMM d, yyyy | <enter custom format>

Specify the output string format:

• dd-MMM-uuuu HH:mm:ss

• yyyy-MM-dd'T'HH:mm:ss

• yyyy-MM-dd'T'HH:mm:ss t

• yyyy-MM-dd'T'HH:mm:ss.SSS

• eee MMM dd HH:mm:ss yyyy\n

• h:mm:ss a

• MMMM d, yyyy

• <enter custom format>

For more information on date formats, see Format. For <enter custom format>, use the supported identifiers to create a custom output string. Of the date and time format identifiers, Simulink^® DateTime supports:

• B

• G

• y

• u

• M

• d

• D

• e

• a

• h

• H

• m

• s

• S

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	Format
Values:	dd-MMM-uuuu HH:mm:ss (default) | yyyy-MM-dd'T'HH:mm:ss | yyyy-MM-dd'T'HH:mm:ss t | yyyy-MM-dd'T'HH:mm:ss.SSS | eee MMM dd HH:mm:ss yyyy\n | h:mm:ss a | MMMM d, yyyy | <enter custom format>

Input mode — Input mode

DateTime (default) | Calendar time

Specify the input mode:

• DateTime — DateTime data type input from DateTime Clock block.

• Calendar time — Calendar format of year, month, day, hour, minute, and second.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	InputMode
Values:	DateTime (default) | Calendar Time

Block Characteristics

Data Types	Boolean | bus | datetime | double | integer | single | string
Direct Feedthrough	yes
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2026b
