Simulink.SimulationData.forEachTimeseries

Apply function to data contained in set of timeseries objects

Syntax

res = Simulink.SimulationData.forEachTimeseries(func,tsData)

Description

res = Simulink.SimulationData.forEachTimeseries(func,tsData) applies the function func to each timeseries object in tsData. You can use this function to postprocess data logged from a bus or array of buses.

Examples

Find Minimum Values for Signals in Bus

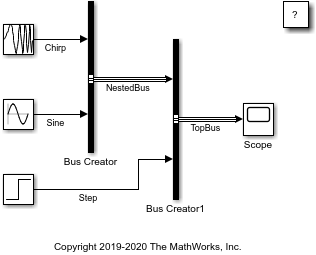

Open the model named BusHierarchy. The model groups the output signals from a Chirp block and a Sine block into a bus that is nested in another bus. The top-level bus also contains the output signal from a Step block. To update the bus line styles, on the Modeling tab of the Simulink Toolstrip, click Update Model or Run.

Mark the bus named TopBus for logging.

Simulink.sdi.markSignalForStreaming("BusHierarchy/Bus Creator1",1,true);

Simulate the model.

out = sim("BusHierarchy");

The Simulink.SimulationOutput object contains simulation metadata and all simulation data logged to the workspace.

out

out =
  Simulink.SimulationOutput:
                logsout: [1x1 Simulink.SimulationData.Dataset]
                   tout: [53x1 double]

     SimulationMetadata: [1x1 Simulink.SimulationMetadata]
           ErrorMessage: [0x0 char]

The variable named logsout contains the data logged for the bus.

logsout = out.logsout

logsout =
Simulink.SimulationData.Dataset 'logsout' with 1 element

                         Name    BlockPath
                         ______  _________________________
    1  [1x1 Signal]      TopBus  BusHierarchy/Bus Creator1

  - Use braces { } to access, modify, or add elements using index.

Access the signal that contains the data logged for the bus named TopBus. The signal values are stored in the Values property for the Simulink.SimulationData.Signal object.

topBusSig = getElement(logsout,1)

topBusSig =
  Simulink.SimulationData.Signal
  Package: Simulink.SimulationData

  Properties:
              Name: 'TopBus'
    PropagatedName: ''
         BlockPath: [1x1 Simulink.SimulationData.BlockPath]
          PortType: 'outport'
         PortIndex: 1
            Values: [1x1 struct]

Access the structure that contains the values for the signals in the bus. The structure hierarchy and field names match the hierarchy and signal names for the bus. The data for each signal in the bus is stored as a timeseries object.

topBusData = topBusSig.Values

topBusData = struct with fields:
    NestedBus: [1x1 struct]
         Step: [1x1 timeseries]

Use the Simulink.SimulationData.forEachTimeseries function to find the minimum value for each signal in the bus. The minimum values are returned as a structure with the same fields and hierarchy as the input data.

topBusSigMins = Simulink.SimulationData.forEachTimeseries(@min,topBusData)

topBusSigMins = struct with fields:
    NestedBus: [1x1 struct]
         Step: 0

Check the minimum value for the output signal from the Chirp block.

chirpMin = topBusSigMins.NestedBus.Chirp

chirpMin =
-0.9972

Input Arguments

func — Function to apply to data

function handle

Function to apply to data, specified as a function handle. For more information, see Create Function Handle.

The function that you specify must take at least one input argument and return a scalar. You can specify a handle for a built-in function, a function you create, or an anonymous function.

For example, you can use the built-in min function to compute the minimum value in each timeseries object.

res = Simulink.SimulationData.forEachTimeseries(@min,tsData);

When the function takes more than one input argument, only the argument for the timeseries object can change for each computation. The rest of the arguments must use the same values for each timeseries object.

For example, to apply the resample function to each timeseries object, specify the function as an anonymous function. Here, the variable tsData represents the timeseries objects. The other arguments for the resample function are passed as parameter values. The Simulink.SimulationData.forEachTimeseries function passes the timeseres data you specify in the second input argument to the anonymous function as the value for tsData.

res = Simulink.SimulationData.forEachTimeseries(...
                             @(tsData) resample(tsData,[2.5 3]),tsData);

Data Types: function_handle

tsData — Data to process

scalar timeseries object | array of timeseries | structure of timeseries objects | array of structures of timeseries objects

Data to process, specified as one of these values:

• Scalar timeseries object

• Array of timeseries objects

• Structure of timeseries objects

• Array of structures of timeseries objects

Output Arguments

res — Results of processing data

scalar timeseries object | array of timeseries | structure of timeseries objects | array of structures of timeseries objects

Results of processing data, returned as one of these values:

• Scalar timeseries object

• Array of timeseries objects

• Structure of timeseries objects

• Array of structures of timeseries objects

Results are returned in the same form as the input data.

Version History

Introduced in R2016b
