Address Model Check Results
After you run the Model Advisor checks to find warnings or failures in your model, you can use the Model Advisor to fix check warnings or failures manually or by using the Model Advisor.
Fix a Model Advisor Check Warning or Failure
The Model Advisor check results identify model elements that are being flagged by the Model Advisor check. You can either manually fix the issues or use the Model Advisor to automatically apply a fix.
For more information on why a specific check does not pass, see the documentation for that check.

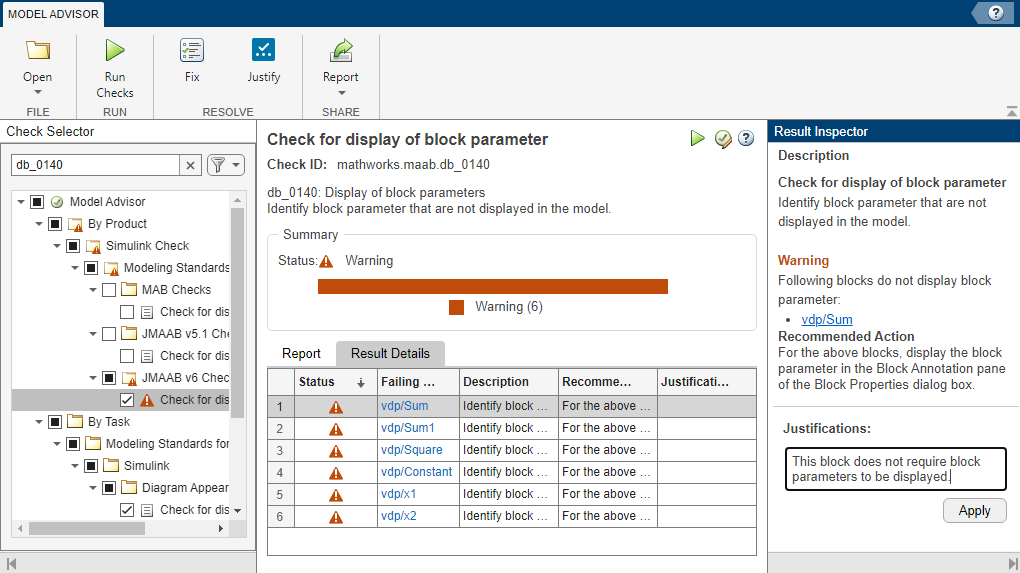

In the Model Advisor results, review the results of the analysis.
Fix the warning of failure by using one of these methods:
To manually fix an issue, use the hyperlinks from the Result Details > Failing Element to open model elements that are being flagged by the Model Advisor check. You can also apply batch changes to model parameters from the command line.
To use the Model Advisor to automatically fix an issue, from the toolstrip, click Fix. The Action Report box displays a table of changes.
To verify that the check passes, rerun the check.
After you finish addressing all warnings or failures, it is important that you rerun all checks to verify that there are no additional issues.
