showTunable

Show value of parameterizations of tunable blocks of slTuner interface

Syntax

showTunable(st)

Description

showTunable(st) displays the values of the parametric models associated with each tunable block in the slTuner interface, st.

Examples

Display Tunable Block Values

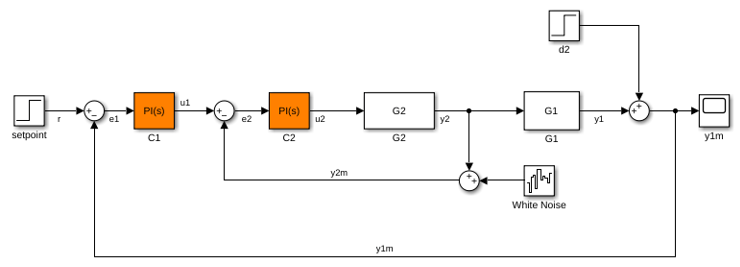

Open the Simulink model.

mdl = 'scdcascade';
open_system(mdl)

Create an slTuner interface for the model, and add C1 and C2 as tuned blocks of the interface.

st = slTuner(mdl,{'C1','C2'});

Display the default values of the tuned blocks.

showTunable(st);

Block 1: scdcascade/C1 =

             1
  Kp + Ki * ---
             s

  with Kp = 0.158, Ki = 0.042

Name: C1
Continuous-time PI controller in parallel form.

-----------------------------------

Block 2: scdcascade/C2 =

             1
  Kp + Ki * ---
             s

  with Kp = 1.48, Ki = 4.76

Name: C2
Continuous-time PI controller in parallel form.

Input Arguments

st — Interface for tuning control systems modeled in Simulink^®

slTuner interface

Interface for tuning control systems modeled in Simulink, specified as an slTuner interface.

More About

Tuned Blocks

Tuned blocks, used by the slTuner interface, identify blocks in a Simulink model whose parameters are to be tuned to satisfy tuning goals. You can tune most Simulink blocks that represent linear elements such as gains, transfer functions, or state-space models. (For the complete list of blocks that support tuning, see How Tuned Simulink Blocks Are Parameterized). You can also tune more complex blocks such as SubSystem or S-Function blocks by specifying an equivalent tunable linear model.

Use tuning commands such as systune to tune the parameters of tuned blocks.

You must specify tuned blocks (for example, C1 and C2) when you create an slTuner interface.

st = slTuner('scdcascade',{'C1','C2'})

You can modify the list of tuned blocks using addBlock and removeBlock.

To interact with the tuned blocks use:

• getBlockParam, getBlockValue, and getTunedValue to access the tuned block parameterizations and their current values.

• setBlockParam, setBlockValue, and setTunedValue to modify the tuned block parameterizations and their values.

• writeBlockValue to update the blocks in a Simulink model with the current values of the tuned block parameterizations.

Version History

Introduced in R2014a
