Reuse Custom Code in Stateflow Charts
You can integrate custom code written in C or C++ with Stateflow® charts in Simulink® models. By sharing data and functions between your custom code and your Stateflow chart, you can augment the capabilities of Stateflow and take advantage of your preexisting code.
Integrate Custom C Code in Stateflow Charts
This example shows how to use custom C code to define constants, variables, and functions that you can access in the charts in your model. For more information about integrating custom C++ code in your charts, see Access Custom C++ Code in Stateflow Charts.

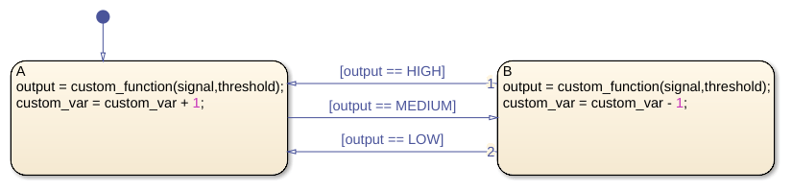

In this example, a Stateflow chart calls a custom code function named
custom_function. This function reads the chart input
signal and the local data
threshold, compares their values, and returns one of three custom global constants named
LOW. The chart uses the value of the function to determine whether to transition to a new state after it increments or decrements the value of a custom variable named

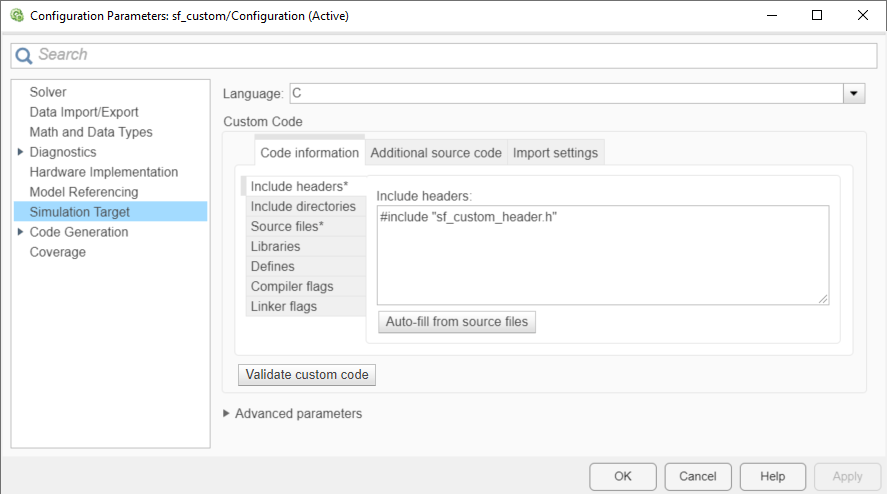

To see the custom code that this chart accesses, open the Configuration Parameters dialog box and, in the Simulation Target pane, select the Code Information tab.
The Include headers parameter contains an
#includestatement that specifies the header file
sf_custom_header.h. This file contains the definitions of three static global constants and the declarations for the variable
custom_varand the function
The Source files parameter specifies the source file
sf_custom_source.c. This file sets the initial value of
custom_varto zero and defines the function
Both of these files are located in the same folder that contains the model. To access custom code files in a different folder, use relative path names. For more information, see Specify Relative Paths to Your Custom Code.

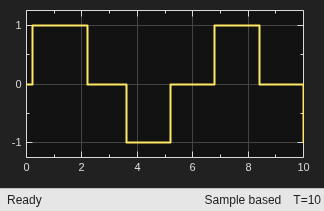

When you simulate the model, Stateflow compiles the source file and the chart into a single S-function MEX file. Because the custom definitions appear at the top of the generated machine header file
sf_custom_sfun.h, every chart in the model can access the custom code during simulation.
Configure Custom Code for Your Model
Specify Custom Code Settings for Simulation
To configure your model to access custom code during simulation, use the Simulation Target pane of the Configuration Parameters dialog box.
Open the Configuration Parameters dialog box.
In the Simulation Target pane, in the Code Information tab, specify these parameters:
Include headers — Enter the code to include at the top of the generated
header file, which declares custom functions and data in the generated code. The code appears at the top of all generated source code files and is visible to all generated code. For example, use this parameter to enter
#definestatements. When you include a custom header file, you must enclose the file name in double quotes. For more information, see Include headers (Simulink).
Charts that use MATLAB® as the action language do not support
#definestatements in custom code. To share constants between your chart and your custom code, use static global constants instead of macros.
The code you specify in this parameter can include
externdeclarations of variables or functions, such as
extern int xor
extern void myfun(void). However, global variable or function definitions such as
void myfun(void)cause linking errors because they appear multiple times in the source files of the generated code.
Include directories — Enter a space-separated list of the folder paths that contain custom header files that you include either directly in the Header file parameter or indirectly in the compiled target. For more information, see Include directories (Simulink).
Source files — Enter a list of source files to compile and link into the target. You can separate source files with a comma, space, or new line. For more information, see Source files (Simulink).
Libraries — Enter a space-separated list of static libraries that contain custom object code to link into the target. For more information, see Libraries (Simulink).
Defines — Enter a space-separated list of preprocessor macro definitions to add to the generated code. For more information, see Defines (Simulink).
Compiler flags — Enter additional compiler flags to be added to the compiler command line when your custom code is compiled. For more information, see Compiler flags (Simulink).
Linker flags — Enter additional linker flags to be added to the linker command line when your custom code is linked. For more information, see Linker flags (Simulink).
Under Advanced parameters, select Import custom code (Simulink).
If your model contains library charts, configure the custom code settings for each library model that contributes a chart to your model. For more information, see Configure Custom Code in Library Models.
For information on setting simulation options by using the command-line API, see Set Configuration Parameters Programmatically.
Specify Custom Code Settings for Code Generation
To configure your model to access custom code for code generation, use the Code Generation > Custom Code pane of the Configuration Parameters dialog box. When generating code, your model can use the same custom code settings that it uses for simulation or use unique custom code settings.
To use the same custom code settings used for simulation, select Use the same custom code settings as Simulation Target. Specify the custom code settings in the Simulation Target pane as described in Specify Custom Code Settings for Simulation.
To use unique custom code settings, clear Use the same custom code settings as Simulation Target. In the Code Information tab, specify custom code settings for code generation. For descriptions of the parameters in this tab, see Specify Custom Code Settings for Simulation.
For more information, see Use the same custom code settings as Simulation Target (Simulink Coder) and Integrate External Code by Using Model Configuration Parameters (Simulink Coder).
Call Custom Code Functions in States and Transitions
You can call custom code functions from the actions of any state or transition or from other functions.
To call a custom code function, use the signature specified by the function declaration in your header file. Include an actual argument value for each formal argument in the function signature:
return_val = function_name(arg1,arg2,...)
Do not share fixed-point data between your custom code and your Stateflow chart.
Specify Relative Paths to Your Custom Code
When you update your model or start the simulation, the model searches for the custom code files in these folders:
The current folder
The model folder (if this folder is different from the current folder)
The custom list of folders that you specify
All the folders on the MATLAB search path, excluding the toolbox folders
You can specify the location of your custom code by using paths relative to one of
these folders. For instance, suppose that, in the previous example, you store the
source and header files for your custom code in the subfolders
CustomCode/HeaderFiles of the model folder. To access these
files, use the Include directories parameter to specify the
relative paths of the subfolders.
Alternatively, you can use relative path names to specify the header and source files individually:
Under Include headers, enter:
Under Source files, enter:
Guidelines for Relative Path Syntax
When you construct relative paths for custom code, follow these syntax guidelines:
Use a single period (
.) to indicate the starting point for the relative path.
Use forward slashes (
/) or backward slashes (
\) as file separators, regardless of the current platform you are using.
Enclose paths in double quotes (
"...") if they contain nonstandard path characters such as spaces or hyphens (
Enclose expressions with dollar signs (
$...$) to evaluate them in the MATLAB workspace. For example, suppose that
CustomCodeFolderis a variable that you define in the MATLAB workspace as
"module1". If you specify your custom code files using the path name
.\work\source\$CustomCodeFolder$, then the model searches for the custom code files in the folder
