predict

Predict labels using classification tree

Syntax

``label = predict(Mdl,X)``
``label = predict(Mdl,X,"Subtrees",subtrees)``
``````[label,score,node,cnum] = predict(___)``````

Description

example

````label = predict(Mdl,X)` returns a vector of predicted class labels for the predictor data in the table or matrix `X`, based on the trained, full or compact classification tree `Mdl`.```

example

````label = predict(Mdl,X,"Subtrees",subtrees)` prunes `Mdl` to a particular level before predicting labels.```

example

``````[label,score,node,cnum] = predict(___)``` uses any of the input argument combinations in the previous syntaxes and additionally returns: A matrix of classification scores (`score`) indicating the likelihood that a label comes from a particular class. For classification trees, scores are posterior probabilities. For each observation in `X`, the predicted class label corresponds to the minimum expected misclassification cost among all classes.A vector of predicted node numbers for the classification (`node`).A vector of predicted class number for the classification (`cnum`). ```

Examples

collapse all

Examine predictions for a few rows in a data set left out of training.

`load fisheriris`

Partition the data into training (50%) and validation (50%) sets.

```n = size(meas,1); rng(1) % For reproducibility idxTrn = false(n,1); idxTrn(randsample(n,round(0.5*n))) = true; idxVal = idxTrn == false; ```

Grow a classification tree using the training set.

`Mdl = fitctree(meas(idxTrn,:),species(idxTrn));`

Predict labels for the validation data, and display several predicted labels. Count the number of misclassified observations.

```label = predict(Mdl,meas(idxVal,:)); label(randsample(numel(label),5))```
```ans = 5x1 cell {'setosa' } {'setosa' } {'setosa' } {'virginica' } {'versicolor'} ```
`numMisclass = sum(~strcmp(label,species(idxVal)))`
```numMisclass = 3 ```

The software misclassifies three out-of-sample observations.

`load fisheriris`

Partition the data into training (50%) and validation (50%) sets.

```n = size(meas,1); rng(1) % For reproducibility idxTrn = false(n,1); idxTrn(randsample(n,round(0.5*n))) = true; idxVal = idxTrn == false;```

Grow a classification tree using the training set, and then view it.

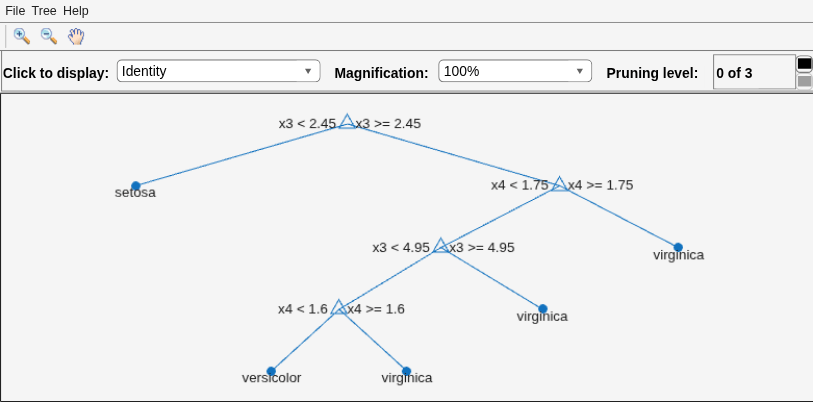

```Mdl = fitctree(meas(idxTrn,:),species(idxTrn)); view(Mdl,"Mode","graph")```

The resulting tree has four levels.

Estimate posterior probabilities for the test set using subtrees pruned to levels 1 and 3. Display several posterior probabilities.

```[~,Posterior] = predict(Mdl,meas(idxVal,:), ... "Subtrees",[1 3]); Mdl.ClassNames```
```ans = 3x1 cell {'setosa' } {'versicolor'} {'virginica' } ```
`Posterior(randsample(size(Posterior,1),5),:,:)`
```ans = ans(:,:,1) = 1.0000 0 0 1.0000 0 0 1.0000 0 0 0 0 1.0000 0 0.8571 0.1429 ans(:,:,2) = 0.3733 0.3200 0.3067 0.3733 0.3200 0.3067 0.3733 0.3200 0.3067 0.3733 0.3200 0.3067 0.3733 0.3200 0.3067 ```

The elements of `Posterior` are class posterior probabilities:

• Rows correspond to observations in the validation set.

• Columns correspond to the classes as listed in `Mdl.ClassNames`.

• Pages correspond to the subtrees.

The subtree pruned to level 1 is more sure of its predictions than the subtree pruned to level 3 (that is, the root node).

Input Arguments

collapse all

Trained classification tree, specified as a `ClassificationTree` or `CompactClassificationTree` model object. That is, `Mdl` is a trained classification model returned by `fitctree` or `compact`.

Predictor data to be classified, specified as a numeric matrix or table.

Each row of `X` corresponds to one observation, and each column corresponds to one variable.

• For a numeric matrix:

• The variables making up the columns of `X` must have the same order as the predictor variables that trained `Mdl`.

• If you trained `Mdl` using a table (for example, `Tbl`), then `X` can be a numeric matrix if `Tbl` contains all numeric predictor variables. To treat numeric predictors in `Tbl` as categorical during training, identify categorical predictors using the `CategoricalPredictors` name-value argument of `fitctree`. If `Tbl` contains heterogeneous predictor variables (for example, numeric and categorical data types) and `X` is a numeric matrix, then `predict` throws an error.

• For a table:

• `predict` does not support multicolumn variables or cell arrays other than cell arrays of character vectors.

• If you trained `Mdl` using a table (for example, `Tbl`), then all predictor variables in `X` must have the same variable names and data types as those that trained `Mdl` (stored in `Mdl.PredictorNames`). However, the column order of `X` does not need to correspond to the column order of `Tbl`. `Tbl` and `X` can contain additional variables (response variables, observation weights, etc.), but `predict` ignores them.

• If you trained `Mdl` using a numeric matrix, then the predictor names in `Mdl.PredictorNames` and corresponding predictor variable names in `X` must be the same. To specify predictor names during training, see the `PredictorNames` name-value argument of `fitctree`. All predictor variables in `X` must be numeric vectors. `X` can contain additional variables (response variables, observation weights, etc.), but `predict` ignores them.

Data Types: `table` | `double` | `single`

Pruning level, specified as a vector of nonnegative integers in ascending order or `"all"`.

If you specify a vector, then all elements must be at least `0` and at most `max(Mdl.PruneList)`. `0` indicates the full, unpruned tree and `max(Mdl.PruneList)` indicates the completely pruned tree (that is, just the root node).

If you specify `"all"`, then `predict` operates on all subtrees (that is, the entire pruning sequence). This specification is equivalent to using `0:max(Mdl.PruneList)`.

`predict` prunes `Mdl` to each level indicated in `subtrees`, and then estimates the corresponding output arguments. The size of `subtrees` determines the size of some output arguments.

To invoke `subtrees`, the properties `PruneList` and `PruneAlpha` of `Mdl` must be nonempty. In other words, grow `Mdl` by setting `"Prune","on"`, or by pruning `Mdl` using `prune`.

Example: `"Subtrees","all"`

Data Types: `single` | `double` | `char` | `string`

Output Arguments

collapse all

Predicted class labels, returned as a vector or array. Each entry of `label` corresponds to the class with minimal expected cost for the corresponding row of `X`.

Suppose `subtrees` is a numeric vector containing `T` elements (for `"all"`, see `subtrees`), and `X` has `N` rows.

• If the response data type is `char` and:

• `T` = 1, then `label` is a character matrix containing `N` rows. Each row contains the predicted label produced by subtree `subtrees`.

• `T` > 1, then `label` is an `N`-by-`T` cell array.

• Otherwise, `label` is an `N`-by-`T` array having the same data type as the response. (The software treats string arrays as cell arrays of character vectors.)

In the latter two cases, column `j` of `label` contains the vector of predicted labels produced by subtree `subtrees(j)`.

Posterior probabilities, returned as a numeric matrix of size `N`-by-`K`, where `N` is the number of observations (rows) in `X`, and `K` is the number of classes (in `Mdl.ClassNames`). `score(i,j)` is the posterior probability that row `i` of `X` is of class `j`.

If `subtrees` has `T` elements, and `X` has `N` rows, then `score` is an `N`-by-`K`-by-`T` array, and `node` and `cnum` are `N`-by-`T` matrices.

Node numbers for the predicted classes, returned as a numeric vector. Each entry corresponds to the predicted node in `Mdl` for the corresponding row of `X`.

Class numbers corresponding to the predicted `labels`, returned as a numeric vector. Each entry of `cnum` corresponds to a predicted class number for the corresponding row of `X`.

collapse all

Predicted Class Label

`predict` classifies by minimizing the expected misclassification cost:

`$\stackrel{^}{y}=\underset{y=1,...,K}{\mathrm{arg}\mathrm{min}}\sum _{j=1}^{K}\stackrel{^}{P}\left(j|x\right)C\left(y|j\right),$`

where:

• $\stackrel{^}{y}$ is the predicted classification.

• K is the number of classes.

• $\stackrel{^}{P}\left(j|x\right)$ is the posterior probability of class j for observation x.

• $C\left(y|j\right)$ is the cost of classifying an observation as y when its true class is j.

Score (tree)

For trees, the score of a classification of a leaf node is the posterior probability of the classification at that node. The posterior probability of the classification at a node is the number of training sequences that lead to that node with the classification, divided by the number of training sequences that lead to that node.

For an example, see Posterior Probability Definition for Classification Tree.

True Misclassification Cost

The true misclassification cost is the cost of classifying an observation into an incorrect class.

You can set the true misclassification cost per class by using the `Cost` name-value argument when you create the classifier. `Cost(i,j)` is the cost of classifying an observation into class `j` when its true class is `i`. By default, `Cost(i,j)=1` if `i~=j`, and `Cost(i,j)=0` if `i=j`. In other words, the cost is `0` for correct classification and `1` for incorrect classification.

Expected Cost

The expected misclassification cost per observation is an averaged cost of classifying the observation into each class.

Suppose you have `Nobs` observations that you want to classify with a trained classifier, and you have `K` classes. You place the observations into a matrix `X` with one observation per row.

The expected cost matrix `CE` has size `Nobs`-by-`K`. Each row of `CE` contains the expected (average) cost of classifying the observation into each of the `K` classes. `CE(n,k)` is

`$\sum _{i=1}^{K}\stackrel{^}{P}\left(i|X\left(n\right)\right)C\left(k|i\right),$`

where:

• K is the number of classes.

• $\stackrel{^}{P}\left(i|X\left(n\right)\right)$ is the posterior probability of class i for observation X(n).

• $C\left(k|i\right)$ is the true misclassification cost of classifying an observation as k when its true class is i.

Predictive Measure of Association

The predictive measure of association is a value that indicates the similarity between decision rules that split observations. Among all possible decision splits that are compared to the optimal split (found by growing the tree), the best surrogate decision split yields the maximum predictive measure of association. The second-best surrogate split has the second-largest predictive measure of association.

Suppose xj and xk are predictor variables j and k, respectively, and jk. At node t, the predictive measure of association between the optimal split xj < u and a surrogate split xk < v is

`${\lambda }_{jk}=\frac{\text{min}\left({P}_{L},{P}_{R}\right)-\left(1-{P}_{{L}_{j}{L}_{k}}-{P}_{{R}_{j}{R}_{k}}\right)}{\text{min}\left({P}_{L},{P}_{R}\right)}.$`
• PL is the proportion of observations in node t, such that xj < u. The subscript L stands for the left child of node t.

• PR is the proportion of observations in node t, such that xju. The subscript R stands for the right child of node t.

• ${P}_{{L}_{j}{L}_{k}}$ is the proportion of observations at node t, such that xj < u and xk < v.

• ${P}_{{R}_{j}{R}_{k}}$ is the proportion of observations at node t, such that xju and xkv.

• Observations with missing values for xj or xk do not contribute to the proportion calculations.

λjk is a value in (–∞,1]. If λjk > 0, then xk < v is a worthwhile surrogate split for xj < u.

Algorithms

`predict` generates predictions by following the branches of `Mdl` until it reaches a leaf node or a missing value. If `predict` reaches a leaf node, it returns the classification of that node.

If `predict` reaches a node with a missing value for a predictor, its behavior depends on the setting of the `Surrogate` name-value argument when `fitctree` constructs `Mdl`.

• `Surrogate` = `"off"` (default) — `predict` returns the label with the largest number of training samples that reach the node.

• `Surrogate` = `"on"``predict` uses the best surrogate split at the node. If all surrogate split variables with positive predictive measure of association are missing, `predict` returns the label with the largest number of training samples that reach the node. For a definition, see Predictive Measure of Association.

Alternative Functionality

To integrate the prediction of a classification tree model into Simulink®, you can use the ClassificationTree Predict block in the Statistics and Machine Learning Toolbox™ library or a MATLAB® Function block with the `predict` function. For examples, see Predict Class Labels Using ClassificationTree Predict Block and Predict Class Labels Using MATLAB Function Block.

When deciding which approach to use, consider the following:

• If you use the Statistics and Machine Learning Toolbox library block, you can use the Fixed-Point Tool (Fixed-Point Designer) to convert a floating-point model to fixed point.

• Support for variable-size arrays must be enabled for a MATLAB Function block with the `predict` function.

• If you use a MATLAB Function block, you can use MATLAB functions for preprocessing or post-processing before or after predictions in the same MATLAB Function block.

Version History

Introduced in R2011a
