plotSlice

Plot of slices through fitted generalized linear regression surface

Syntax

``plotSlice(mdl)``
``plotSlice(mdl,Xnew)``
``plotSlice(fig,___)``

Description

example

````plotSlice(mdl)` creates a figure containing one or more plots, each representing a slice through the regression surface predicted by `mdl`. Each plot shows the fitted response values as a function of a single predictor variable, with the other predictor variables held constant.`plotSlice` also displays the 95% confidence bounds for the response values. You can specify the type of confidence bounds, and select which predictors to use for each slice plot. For more information, see Tips.```

example

````plotSlice(mdl,Xnew)` uses the predictor data in `Xnew` to create the figure.```
````plotSlice(fig,___)` plots into the figure `fig` instead of the current figure (`gcf`) using any of the input argument combinations in the previous syntaxes. (since R2024a)```

Examples

collapse all

Load the `carsmall` sample data set.

`load carsmall.mat`

The variables `Cylinders`, `MPG`, and `Weight` contain data for the number of engine cylinders, miles per gallon, and weight for each car.

Create a table from the data in `Cylinders`, `MPG`, and `Weight` by using the `categorical` and `table` functions. Fit a generalized linear regression model using `Cylinders` and `MPG` as predictors and `Weight` as the response.

```Cylinders = categorical(Cylinders); tbl = table(Cylinders,MPG,Weight,VariableNames=["Cylinders" "MPG" "Weight"]); mdl = fitglm(tbl,"Weight ~ MPG + Cylinders");```

`mdl` is a `GeneralizedLinearModel` object that contains the result of fitting a linear regression model to the data.

Create a slice plot for `mdl`.

`plotSlice(mdl)`

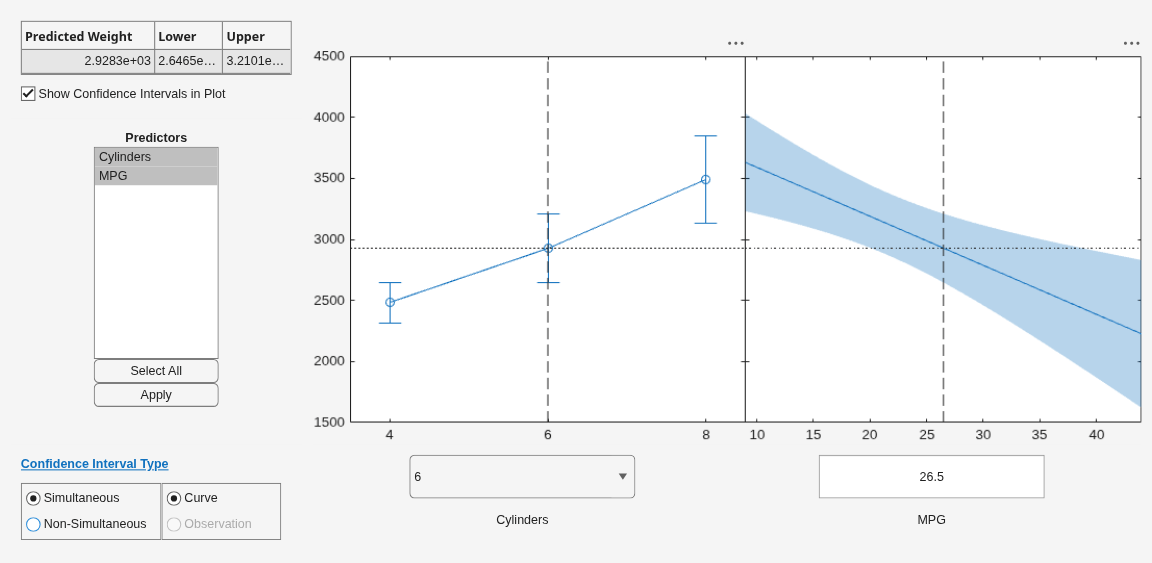

Each plot shows `Weight` as a function of a single predictor variable, `Cylinders` in the plot on the left and `MPG` in the plot on the right. The predictor is fixed at the value shown in the x-axis of each plot. The 95% confidence intervals for the categorical predictor `Cylinders` are represented by error bars. The 95% confidence intervals for the continuous predictor `MPG` are represented by a blue shaded region. The dashed lines indicate a selected point, and the table to the left of the plots shows the response value and confidence bounds for the selected point. You can select a different point by changing the predictor values in the x-axis labels or by dragging the dashed lines to a different location.

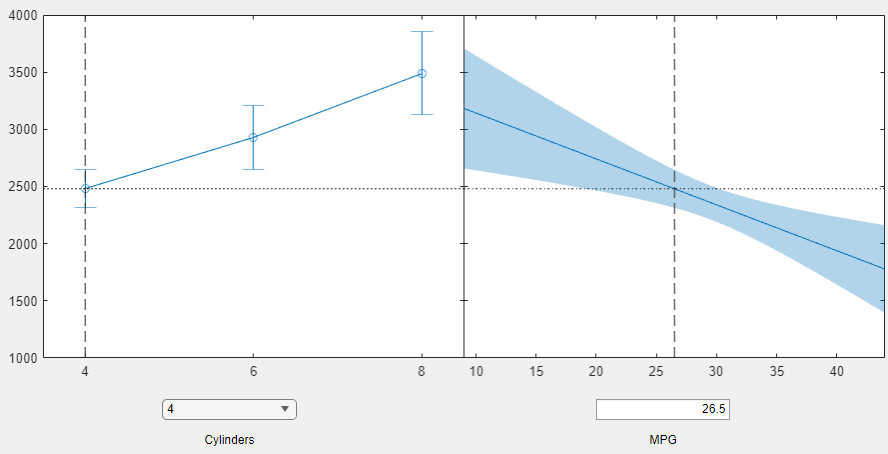

Change the value of `Cylinders` to `4`.

The right plot shows that cars with four cylinders have smaller values for `Weight`, relative to cars with six cylinders, across all values of `MPG`.

Load the `patients` sample data set.

`load patients.mat`

The variables `Age`, `Weight`, and `Smoker` contain data for the age, weight, and smoking status of each patient.

Create a table from the data in `Age`, `Weight`, and `Smoker` by using the `table` function. Fit a generalized linear regression model to the data using `Age` and `Weight` as predictors and `Smoker` as the response.

```tbl = table(Age,Weight,Smoker,VariableNames=["Age" "Weight" "Smoker"]); mdl = fitglm(tbl,"Smoker ~ Age*Weight");```

`mdl` is a `GeneralizedLinearModel` object that contains the results of fitting a linear regression model to the data.

Generate new predictor data for patient age and weight.

```Age_New = 25:35; Weight_New = 100:10:200; Xnew = [Age_New; Weight_New]';```

Create a slice plot for `mdl` using the new predictor data.

`plotSlice(mdl,Xnew)`

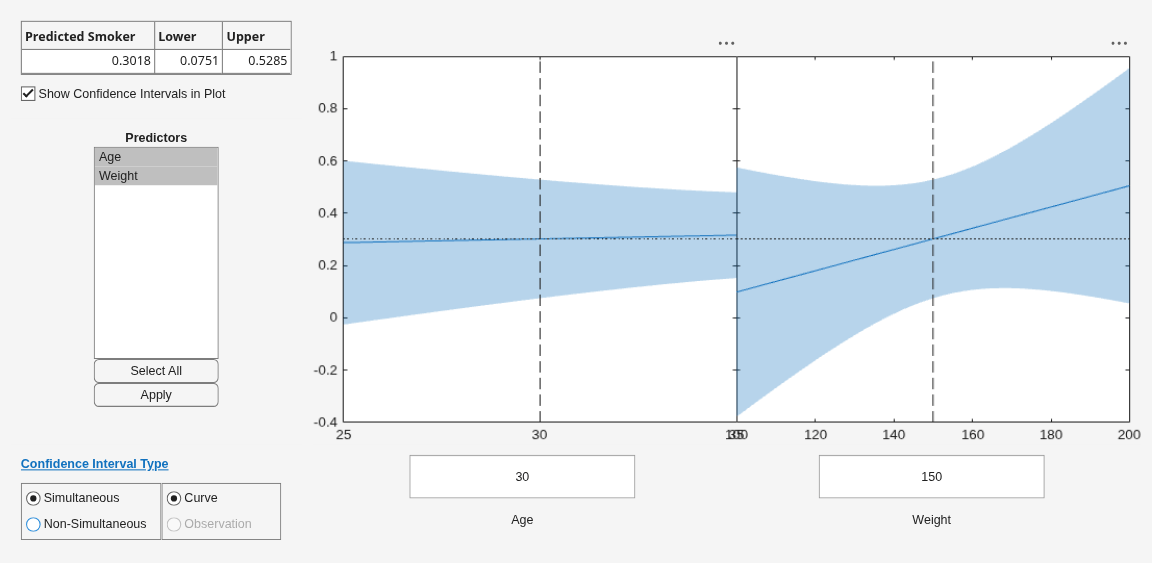

The left plot shows `Smoker` as a function of `Age` with `Weight` fixed at `150`. The right plot shows `Smoker` as a function of `Weight` with `Age` fixed at `30`.

Load the `census` sample data set.

`load census`

The variables `pop` and `cdate` contain data for the population size and the year the census was taken, respectively.

Fit a generalized linear regression model using `cdate` as the predictor and `pop` as the response.

`mdl = fitglm(cdate,pop);`

`mdl` is a `GeneralizedLinearModel` object that contains the fitted linear regression model.

Create a slice plot for `mdl`.

`plotSlice(mdl)`

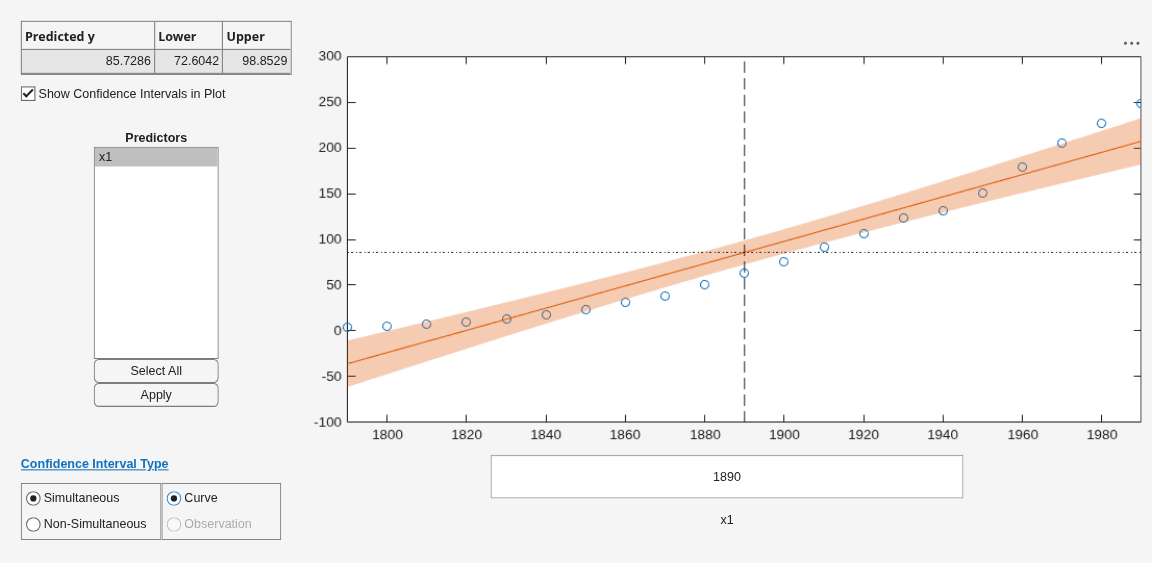

Because `mdl` has only one predictor, the slice plot displays a single set of axes containing a scatter plot of the training data. The regression line for `mdl` is shown in red together with a shaded region representing the 95% confidence intervals.

Input Arguments

collapse all

Generalized linear regression model, specified as a `GeneralizedLinearModel` object created using `fitglm` or `stepwiseglm`, or a `CompactGeneralizedLinearModel` object created using `compact`.

New predictor input values, specified as a table or numeric matrix. If `Xnew` is a table, its columns must have the same names as the predictors in `mdl.VariableNames`. If `Xnew` is a matrix, its columns must correspond to the predictors in `mdl.VariableNames`. `Xnew` cannot contain categorical predictor values not used during training.

Data Types: `single` | `double` | `table`

Since R2024a

Target figure, specified as a `Figure` object. You must create `fig` using the `uifigure` function. If you do not specify `fig`, then `plotSlice` creates a new figure.

Tips

• The Confidence Interval Type options in the figure window allow you to select simultaneous or non-simultaneous confidence bounds.

• Simultaneous (default) — `plotSlice` computes confidence bounds for the curve of the response values using Scheffe's method. The range between the upper and lower confidence bounds contains the curve consisting of true response values with 95% confidence.

• Non-Simultaneous`plotSlice` computes confidence bounds for the response value at each observation. The confidence interval for a response value at a specific predictor value contains the true response value with 95% confidence.

Simultaneous bounds are wider than separate bounds, because requiring the entire curve of response values to be within the bounds is stricter than requiring the response value at a single predictor value to be within the bounds.

If you do not want the plot to display confidence bounds, you can uncheck the Show Confidence Intervals in Plot box.

• The Predictors list in the figure window lets you select which predictors to use for each slice plot. If the regression model `mdl` includes more than eight predictors, `plotSlice` creates plots for the first five predictors by default.

Alternative Functionality

• Use `predict` to return the predicted response values and confidence bounds. You can also specify the confidence level for confidence bounds by using the `'Alpha'` name-value pair argument of the `predict` function. Note that `predict` finds nonsimultaneous bounds by default, whereas `plotSlice` finds simultaneous bounds by default.

• A `GeneralizedLinearModel` object provides multiple plotting functions.

Version History

Introduced in R2012a
