Time Series Forecasting Using Ensemble of Boosted Regression Trees

Perform single-step and multiple-step time series forecasting with an ensemble of boosted regression trees. Use different validation schemes, such as holdout, expanding window, and sliding window, to estimate the performance of the forecasting models.

At time t, you can train a direct forecasting model (predMdl) that predicts the value of a data point at a future time step t+h (yˆt+h) by using the latest observations (yt,yt-1,...,yt-maxLag) and other observed variables at the current time (Xt). That is,

yˆt+h=predMdl(yt,yt-1,...,yt-maxLag,Xt).

h is the look-ahead horizon used to train the model, and maxLag is the number of past observations used for forecasting. To forecast a data point at time t+h+1, train another model that uses h+1 as the look-ahead horizon.

This example shows how to:

  • Create a single model that forecasts a fixed number of steps (24 hours) into the horizon. Use holdout validation and expanding window cross-validation to assess the performance of the model.

  • Create multiple models for different look-ahead horizons (1-24 hours) as described in [2]. Each of the 24 models forecasts a different hour into the horizon. Use holdout validation and sliding window cross-validation to assess the performance of the models.

  • Create multiple models to forecast into the next 24 hours beyond the available data.

Load and Visualize Data

In this example, use electricity consumption data to create forecasting models. Load the data in electricityclient.mat, which is a subset of the ElectricityLoadDiagrams20112014 data set available in the UCI Machine Learning Repository [1]. The original data set contains the electricity consumption (in kWh) of 321 clients, logged every 15 minutes from 2012 to 2014, as described in [3]. The smaller usagedata timetable contains the hourly electricity consumption of the sixth client only.

load electricityclient.mat

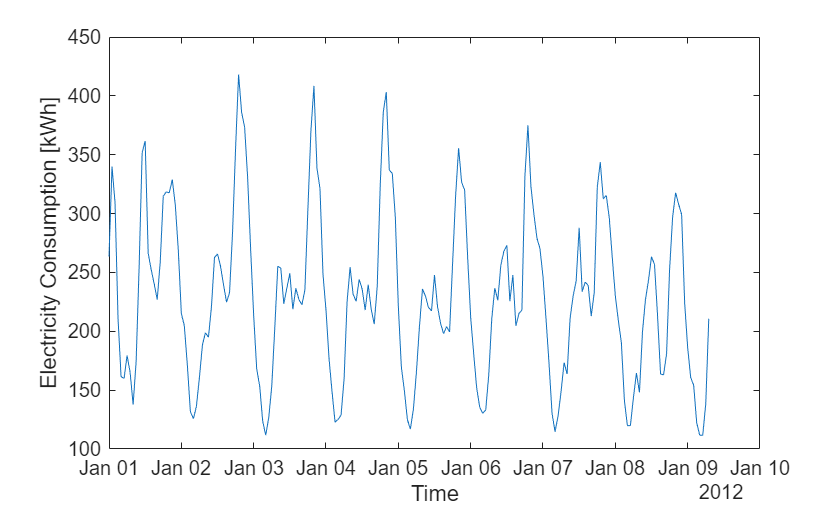

Plot the electricity consumption of the sixth client during the first 200 hours. Overall, the electricity consumption of this client shows a periodicity of 24 hours.

hrs = 1:200;
plot(usagedata.Time(hrs),usagedata.Electricity(hrs))
xlabel("Time")
ylabel("Electricity Consumption [kWh]")

Figure contains an axes object. The axes object contains an object of type line.

Confirm that the values in usagedata are regular with respect to time by using the isregular function. For you to use past values of the data as features or predictors, your data must be regularly sampled.

isregular(usagedata)
ans = logical
   1

Confirm that no values are missing in the time series by using the ismissing function.

sum(ismissing(usagedata))
ans = 0

If your data is not regularly sampled or contains missing values, you can use the retime function or fill the missing values. For more information, see Clean Timetable with Missing, Duplicate, or Nonuniform Times.

Prepare Data for Forecasting

Before forecasting, reorganize the data. In particular, create separate time-related variables, lag features, and a response variable for each look-ahead horizon.

Use the date and time information in the usagedata timetable to create separate variables. Specifically, create Month, Day, Hour, WeekDay, DayOfYear, and WeekOfYear variables, and add them to the usagedata timetable. Let numVar indicate the number of variables in usagedata.

usagedata.Month = month(usagedata.Time);
usagedata.Day = day(usagedata.Time);
usagedata.Hour = hour(usagedata.Time);
usagedata.WeekDay = weekday(usagedata.Time);
usagedata.DayOfYear = day(usagedata.Time,"dayofyear");
usagedata.WeekOfYear = week(usagedata.Time,"weekofyear");
numVar = size(usagedata,2);

Normalize the time variables that contain more than 30 categories, so that their values are in the range –0.5 to 0.5. Specify the remaining time variables as categorical predictors.

usagedata(:,["Day","DayOfYear","WeekOfYear"]) = normalize( ...
    usagedata(:,["Day","DayOfYear","WeekOfYear"]),range=[-0.5 0.5]);
catPredictors = ["Month","Hour","WeekDay"];

Create lag features to use as predictors by using the lag function. That is, create 23 new variables, ElectricityLag1 through ElectricityLag23, where the lag number indicates the number of steps the Electricity data is shifted backward in time. Use the synchronize function to append the new variables to the usagedata timetable and create the dataWithLags timetable.

dataWithLags = usagedata;
maxLag = 23;
for i = 1:maxLag
    negLag = lag(usagedata(:,"Electricity"),i);
    negLag.Properties.VariableNames = negLag.Properties.VariableNames + ...
        "Lag" + i;
    dataWithLags = synchronize(dataWithLags,negLag,"first");
end

View the first few rows of the first three lag features in dataWithLags. Include the Electricity column for reference.

head(dataWithLags(:,["Electricity","ElectricityLag1","ElectricityLag2", ...
    "ElectricityLag3"]))
            Time            Electricity    ElectricityLag1    ElectricityLag2    ElectricityLag3
    ____________________    ___________    _______________    _______________    _______________

    01-Jan-2012 00:00:00       1056              NaN                NaN                NaN
    01-Jan-2012 01:00:00       1363             1056                NaN                NaN
    01-Jan-2012 02:00:00       1240             1363               1056                NaN
    01-Jan-2012 03:00:00        845             1240               1363               1056
    01-Jan-2012 04:00:00        647              845               1240               1363
    01-Jan-2012 05:00:00        641              647                845               1240
    01-Jan-2012 06:00:00        719              641                647                845
    01-Jan-2012 07:00:00        662              719                641                647

Prepare the response variables for the look-ahead horizons 1 through 24. That is, create 24 new variables, HorizonStep1 through HorizonStep24, where the horizon step number indicates the number of steps the Electricity data is shifted forward in time. Append the new variables to the dataWithLags timetable and create the fullData timetable.

fullData = dataWithLags;
maxHorizon = 24;
for i = 1:maxHorizon
    posLag = lag(usagedata(:,"Electricity"),-i);
    posLag.Properties.VariableNames = posLag.Properties.VariableNames + ...
        "HorizonStep" + i;
    fullData = synchronize(fullData,posLag,"first");
end

View the first few rows of the first two response variables in fullData. Include the Electricity column for reference.

head(fullData(:,["Electricity","ElectricityHorizonStep1", ...
    "ElectricityHorizonStep2"]))
            Time            Electricity    ElectricityHorizonStep1    ElectricityHorizonStep2
    ____________________    ___________    _______________________    _______________________

    01-Jan-2012 00:00:00       1056                 1363                       1240
    01-Jan-2012 01:00:00       1363                 1240                        845
    01-Jan-2012 02:00:00       1240                  845                        647
    01-Jan-2012 03:00:00        845                  647                        641
    01-Jan-2012 04:00:00        647                  641                        719
    01-Jan-2012 05:00:00        641                  719                        662
    01-Jan-2012 06:00:00        719                  662                        552
    01-Jan-2012 07:00:00        662                  552                        698

Remove the observations that contain NaN values after the preparation of the lag features and response variables. Note that the number of rows to remove depends on the maxLag and maxHorizon values.

startIdx = maxLag + 1;
endIdx = size(fullData,1) - maxHorizon;
fullDataNoNaN = fullData(startIdx:endIdx,:);

To be able to train ensemble models on the data, convert the predictor data to a table rather than a timetable. Keep the response variables in a separate timetable so that the Time information is available for each observation.

numPredictors = numVar + maxLag
numPredictors = 30
X = timetable2table(fullDataNoNaN(:,1:numPredictors), ...
    ConvertRowTimes=false);
Y = fullDataNoNaN(:,numPredictors+1:end);

Perform Single-Step Forecasting

Use holdout validation and expanding window cross-validation to assess the performance of a model that forecasts a fixed number of steps into the horizon.

Specify the look-ahead horizon as 24 hours, and use ElectricityHorizonStep24 as the response variable.

h = 24;
y = Y(:,h);

Holdout Validation

Create a time series partition object using the tspartition function. Reserve 20% of the observations for testing and use the remaining observations for training. When you use holdout validation for time series data, the latest observations are in the test set and the oldest observations are in the training set.

holdoutPartition = tspartition(size(y,1),"Holdout",0.2)
holdoutPartition =
  tspartition

               Type: 'holdout'
    NumObservations: 26257
        NumTestSets: 1
          TrainSize: 21006
           TestSize: 5251


  Properties, Methods

trainIdx = holdoutPartition.training;
testIdx = holdoutPartition.test;

trainIdx and testIdx contain the indices for the observations in the training and test sets, respectively.

Create a boosted ensemble of regression trees by using the fitrensemble function. Train the ensemble using least-squares boosting with a learning rate of 0.2 for shrinkage, and use 150 trees in the ensemble. Specify the maximal number of decision splits (or branch nodes) per tree and the minimum number of observations per leaf by using the templateTree function. Specify the previously identified categorical predictors.

rng("default") % For reproducibility
tree = templateTree(MaxNumSplits=255,MinLeafSize=1);
singleHoldoutModel = fitrensemble(X(trainIdx,:),y{trainIdx,:}, ...
    Method="LSBoost",LearnRate=0.2,NumLearningCycles=150, ...
    Learners=tree,CategoricalPredictors=catPredictors);

Use the trained model singleHoldoutModel to predict response values for the observations in the test data set.

predHoldoutTest = predict(singleHoldoutModel,X(testIdx,:));
trueHoldoutTest = y(testIdx,:);

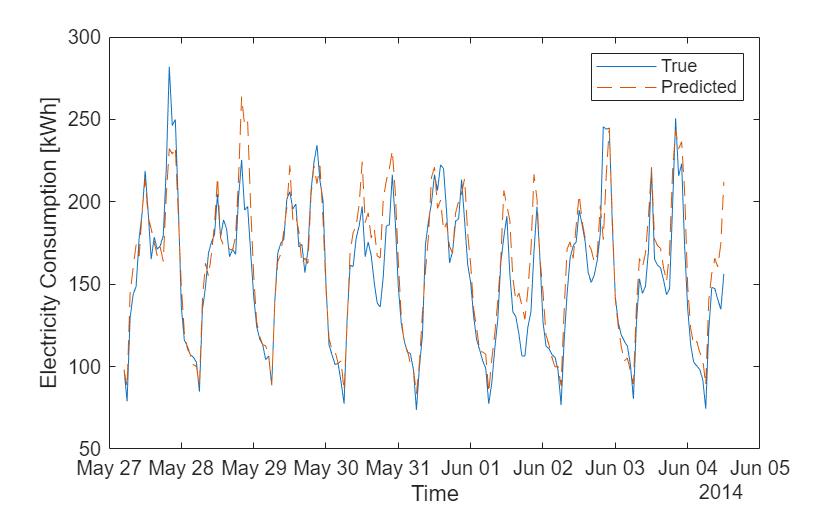

Compare the true electricity consumption to the predicted electricity consumption for the first 200 observations in the test set. Plot the values using the time information in the trueHoldoutTest variable, shifted ahead by 24 hours.

hrs = 1:200;
plot(trueHoldoutTest.Time(hrs) + hours(24), ...
    trueHoldoutTest.ElectricityHorizonStep24(hrs))
hold on
plot(trueHoldoutTest.Time(hrs) + hours(24), ...
    predHoldoutTest(hrs),"--")
hold off
legend("True","Predicted")
xlabel("Time")
ylabel("Electricity Consumption [kWh]")

Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent True, Predicted.

Use the helper function computeRRSE (shown at the end of this example) to compute the root relative squared error (RRSE) on the test data. The RRSE indicates how well a model performs relative to the simple model, which always predicts the average of the true values. In particular, when the RRSE is lower than one, the model performs better than the simple model. For more information, see Compute Root Relative Squared Error (RRSE).

singleHoldoutRRSE = computeRRSE(trueHoldoutTest{:,:},predHoldoutTest)
singleHoldoutRRSE = 0.3243

The singleHoldoutRRSE value indicates that the singleHoldoutModel performs well on the test data.

Expanding Window Cross-Validation

Create an object that partitions the time series observations using expanding windows. Split the data set into 5 windows with expanding training sets and fixed-size test sets by using tspartition. For each window, use at least one year of observations for training. By default, tspartition ensures that the latest observations are included in the last (fifth) window.

expandingWindowCV = tspartition(size(y,1),"ExpandingWindow",5, ...
    MinTrainSize=366*24)
expandingWindowCV =
  tspartition

               Type: 'expanding-window'
    NumObservations: 26257
        NumTestSets: 5
          TrainSize: [8787 12281 15775 19269 22763]
           TestSize: [3494 3494 3494 3494 3494]
           StepSize: 3494


  Properties, Methods

The training observations in the first window are included in the second window, the training observations in the second window are included in the third window, and so on. For each window, the test observations follow the training observations in time.

For each window, use the training observations to fit a boosted ensemble of regression trees. Specify the same model parameters used to create the model singleHoldoutModel. After training the ensemble, predict response values for the test observations, and compute the RRSE value on the test data.

singleCVModels = cell(expandingWindowCV.NumTestSets,1);
expandingWindowRRSE = NaN(expandingWindowCV.NumTestSets,1);

rng("default") % For reproducibility
for i = 1:expandingWindowCV.NumTestSets
    % Get indices
    trainIdx = expandingWindowCV.training(i);
    testIdx = expandingWindowCV.test(i);
    % Train
    singleCVModels{i} = fitrensemble(X(trainIdx,:),y{trainIdx,:}, ...
        Method="LSBoost",LearnRate=0.2,NumLearningCycles=150, ...
        Learners=tree,CategoricalPredictors=catPredictors);
    % Predict
    predTest = predict(singleCVModels{i},X(testIdx,:));
    trueTest = y{testIdx,:};
    expandingWindowRRSE(i) = computeRRSE(trueTest,predTest);
end

Display the test RRSE value for each window. Average the RRSE values across all the windows.

expandingWindowRRSE
expandingWindowRRSE = 5×1

    0.3407
    0.3733
    0.3518
    0.3814
    0.3069

singleCVRRSE = mean(expandingWindowRRSE)
singleCVRRSE = 0.3508

The average RRSE value returned by expanding window cross-validation (singleCVRRSE) is relatively low and is similar to the RRSE value returned by holdout validation (singleHoldoutRRSE). These results indicate that the ensemble model generally performs well.

Perform Multiple-Step Forecasting

Use holdout validation and sliding window cross-validation to assess the performance of multiple models that forecast different times into the horizon.

Recall that the maximum horizon is 24 hours. For each validation scheme, create models that forecast 1 through 24 hours ahead.

maxHorizon
maxHorizon = 24

Holdout Validation

Reuse the time series partition object holdoutPartition for holdout validation. Recall that the object reserves 20% of the observations for testing and uses the remaining observations for training.

holdoutPartition
holdoutPartition =
  tspartition

               Type: 'holdout'
    NumObservations: 26257
        NumTestSets: 1
          TrainSize: 21006
           TestSize: 5251


  Properties, Methods

trainIdx = holdoutPartition.training;
testIdx = holdoutPartition.test;

For each look-ahead horizon, use the training observations to fit a boosted ensemble of regression trees. Specify the same model parameters used to create the model singleHoldoutModel. However, to speed up training, use fewer (50) trees in the ensemble, and bin the numeric predictors into at most 256 equiprobable bins. After training the ensemble, predict response values for the test observations, and compute the RRSE value on the test data.

Notice that the predictor data is the same for all models. However, each model uses a different response variable, corresponding to the specified horizon.

multiHoldoutRRSE = NaN(1,maxHorizon);

rng("default") % For reproducibility
for h = 1:maxHorizon
    % Train
    multiHoldoutModel = fitrensemble(X(trainIdx,:),Y{trainIdx,h}, ...
        Method="LSBoost",LearnRate=0.2,NumLearningCycles=50, ...
        Learners=tree,NumBins=256,CategoricalPredictors=catPredictors);
    % Predict
    predTest = predict(multiHoldoutModel,X(testIdx,:));
    trueTest = Y{testIdx,h};
    multiHoldoutRRSE(h) = computeRRSE(trueTest,predTest);
end

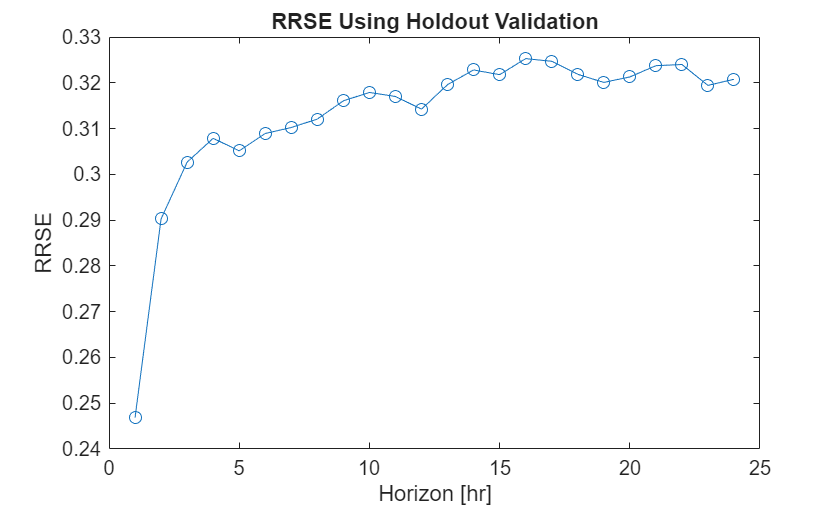

Plot the test RRSE values with respect to the horizon.

plot(1:maxHorizon,multiHoldoutRRSE,"o-")
xlabel("Horizon [hr]")
ylabel("RRSE")
title("RRSE Using Holdout Validation")

Figure contains an axes object. The axes object with title RRSE Using Holdout Validation contains an object of type line.

As the horizon increases, the RRSE values stabilize to a relatively low value. This result indicates that an ensemble model predicts well for any time horizon between 1 and 24 hours.

Sliding Window Cross-Validation

Create an object that partitions the time series observations using sliding windows. Split the data set into 5 windows with fixed-size training and test sets by using tspartition. For each window, use at least one year of observations for training. By default, tspartition ensures that the latest observations are included in the last (fifth) window. Therefore, some older observations might be omitted from the cross-validation.

slidingWindowCV = tspartition(size(Y,1),"SlidingWindow",5, ...
    TrainSize=366*24)
slidingWindowCV =
  tspartition

               Type: 'sliding-window'
    NumObservations: 26257
        NumTestSets: 5
          TrainSize: [8784 8784 8784 8784 8784]
           TestSize: [3494 3494 3494 3494 3494]
           StepSize: 3494


  Properties, Methods

For each window, the test observations follow the training observations in time.

For each window and look-ahead horizon, use the training observations to fit a boosted ensemble of regression trees. Specify the same model parameters used to create the model singleHoldoutModel. However, to speed up training, use fewer (50) trees in the ensemble, and bin the numeric predictors. After training the ensemble, predict values for the test observations, and compute the RRSE value on the test data.

To further speed up the training and prediction process, use parfor (Parallel Computing Toolbox) to run computations in parallel. Using the parfor function requires Parallel Computing Toolbox™. If you do not have Parallel Computing Toolbox, you can use the for command instead.

slidingWindowRRSE = NaN(slidingWindowCV.NumTestSets, ...
    maxHorizon);

rng("default") % For reproducibility
for i = 1:slidingWindowCV.NumTestSets
    % Split the data
    trainIdx = training(slidingWindowCV,i);
    testIdx = test(slidingWindowCV,i);
    Xtrain = X(trainIdx,:);
    Xtest = X(testIdx,:);
    Ytest = Y{testIdx,:};
    Ytrain = Y{trainIdx,:};
    parfor h = 1:maxHorizon
        % Train
        multiCVModel = fitrensemble(Xtrain,Ytrain(:,h), ...
            Method="LSBoost",LearnRate=0.2,NumLearningCycles=50, ...
            Learners=tree,NumBins=256,CategoricalPredictors=catPredictors);
        % Predict
        predTest = predict(multiCVModel,Xtest);
        trueTest = Ytest(:,h);
        slidingWindowRRSE(i,h) = computeRRSE(trueTest,predTest);
    end
end
Starting parallel pool (parpool) using the 'Processes' profile ...
Connected to the parallel pool (number of workers: 6).

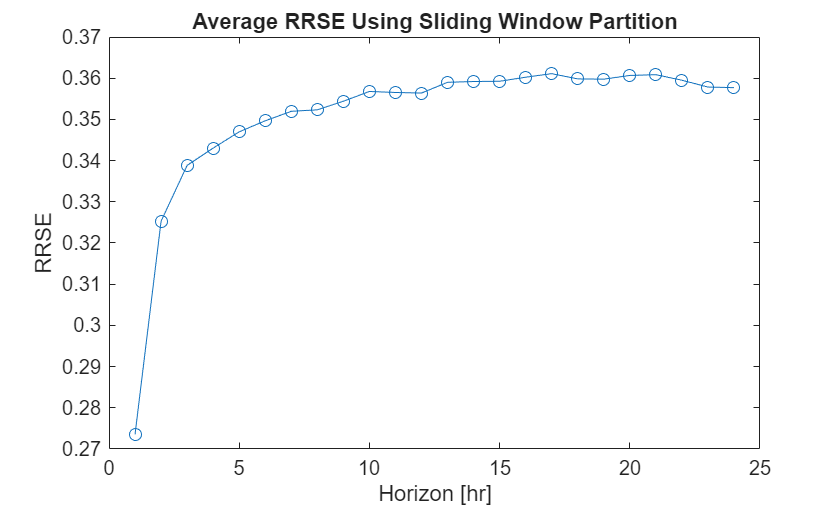

Plot the average test RRSE values with respect to the horizon.

multiCVRRSE = mean(slidingWindowRRSE);

plot(1:maxHorizon,multiCVRRSE,"o-")
xlabel("Horizon [hr]")
ylabel("RRSE")
title("Average RRSE Using Sliding Window Partition")

Figure contains an axes object. The axes object with title Average RRSE Using Sliding Window Partition contains an object of type line.

As the horizon increases, the RRSE values stabilize to a relatively low value. The multiCVRRSE values are slightly higher than the multiHoldoutRRSE values; this discrepancy might be due to the difference in the number of training observations used in the sliding window and holdout validation schemes.

slidingWindowCV.TrainSize
ans = 1×5

        8784        8784        8784        8784        8784

holdoutPartition.TrainSize
ans = 21006

For each horizon, the models in the sliding window cross-validation scheme use significantly fewer training observations than the corresponding model in the holdout validation scheme.

Forecast Beyond Available Data

Create multiple models to predict electricity consumption for the next 24 hours beyond the available data.

For each model, forecast by using the predictor data for the latest observation in fullData. Recall that fullData includes some later observations not included in X.

forecastX = timetable2table(fullData(end,1:numPredictors), ...
    "ConvertRowTimes",false)
forecastX=1×30 table
    Electricity    Month    Day    Hour    WeekDay    DayOfYear    WeekOfYear    ElectricityLag1    ElectricityLag2    ElectricityLag3    ElectricityLag4    ElectricityLag5    ElectricityLag6    ElectricityLag7    ElectricityLag8    ElectricityLag9    ElectricityLag10    ElectricityLag11    ElectricityLag12    ElectricityLag13    ElectricityLag14    ElectricityLag15    ElectricityLag16    ElectricityLag17    ElectricityLag18    ElectricityLag19    ElectricityLag20    ElectricityLag21    ElectricityLag22    ElectricityLag23
    ___________    _____    ___    ____    _______    _________    __________    _______________    _______________    _______________    _______________    _______________    _______________    _______________    _______________    _______________    ________________    ________________    ________________    ________________    ________________    ________________    ________________    ________________    ________________    ________________    ________________    ________________    ________________    ________________

       1234         12      0.5     23        4        0.49726        0.5             1261               1282               1366               1590               1499               1085               1001               1058               1183                967                 1060                893                 812                 800                 662                 656                 638                 560                 626                 677                 788                 863                 993

Create a datetime array of the 24 hours after the occurrence of the latest observation forecastX.

lastT = fullData.Time(end);
maxHorizon
maxHorizon = 24
forecastT = lastT + hours(1):hours(1):lastT + hours(maxHorizon);

For each look-ahead horizon, use the observations in X to train a boosted ensemble of regression trees. Specify the same model parameters used to create the model singleHoldoutModel. However, to speed up training, use fewer (50) trees in the ensemble, and bin the numeric predictors. After training the ensemble, predict the electricity consumption by using the latest observation forecastX.

To further speed up the training and prediction process, use parfor to run computations in parallel.

multiModels = cell(1,maxHorizon);
forecastY = NaN(1,maxHorizon);

rng("default") % For reproducibility
parfor h = 1:maxHorizon
    % Train
    multiModels{h} = fitrensemble(X,Y{:,h},Method="LSBoost", ...
        LearnRate=0.2,NumLearningCycles=50,Learners=tree, ...
        NumBins=256,CategoricalPredictors=catPredictors);
    % Predict
    forecastY(h) = predict(multiModels{h},forecastX);
end

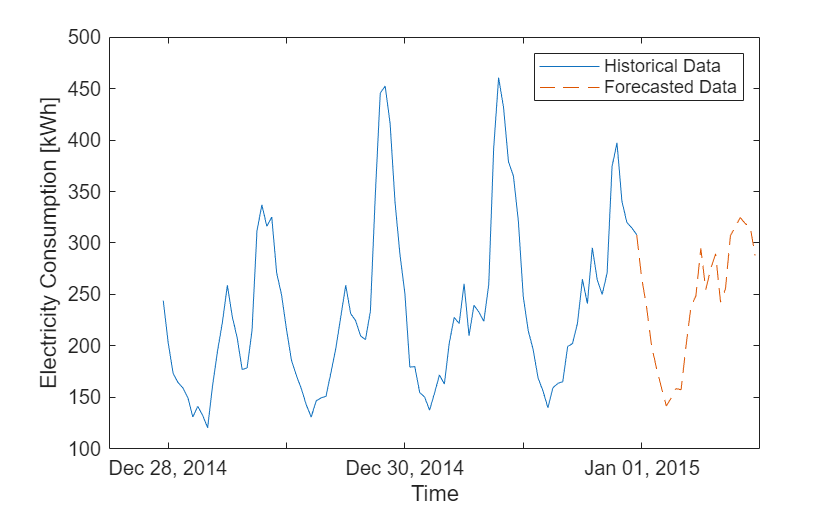

Plot the observed electricity consumption for the last four days before lastT and the predicted electricity consumption for one day after lastT.

numPastDays = 4;
plot(usagedata.Time(end-(numPastDays*24):end), ...
    usagedata.Electricity(end-(numPastDays*24):end));
hold on
plot([usagedata.Time(end),forecastT], ...
    [usagedata.Electricity(end),forecastY],"--")
hold off
legend("Historical Data","Forecasted Data")
xlabel("Time")
ylabel("Electricity Consumption [kWh]")

Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent Historical Data, Forecasted Data.

Compute Root Relative Squared Error (RRSE)

The root relative squared error (RRSE) is defined as the ratio

RRSE=i=1m(yi-yiˆ)2i=1m(yi-y)2,

where yi is the true response for observation i, yiˆ is the predicted value for observation i, y is the mean of the true responses, and m is the number of observations.

Helper Function

The helper function computeRRSE computes the RRSE given the true response variable trueY and the predicted values predY. This code creates the computeRRSE helper function.

function rrse = computeRRSE(trueY,predY)
    error = trueY(:) - predY(:);
    meanY = mean(trueY(:),"omitnan");
    rrse = sqrt(sum(error.^2,"omitnan")/sum((trueY(:) - meanY).^2,"omitnan"));
end

References

[1] Dua, D. and Graff, C. (2019). UCI Machine Learning Repository [http://archive.ics.uci.edu/ml]. Irvine, CA: University of California, School of Information and Computer Science.

[2] Elsayed, S., D. Thyssens, A. Rashed, H. S. Jomaa, and L. Schmidt-Thieme. "Do We Really Need Deep Learning Models for Time Series Forecasting?" https://www.arxiv-vanity.com/papers/2101.02118/

[3] Lai, G., W. C. Chang, Y. Yang, and H. Liu. "Modeling long- and short-term temporal patterns with deep neural networks." In 41st International ACM SIGIR Conference on Research & Development in Information Retrieval, 2018, pp. 95-104.

See Also

| | | | | | (Parallel Computing Toolbox)

Related Topics
