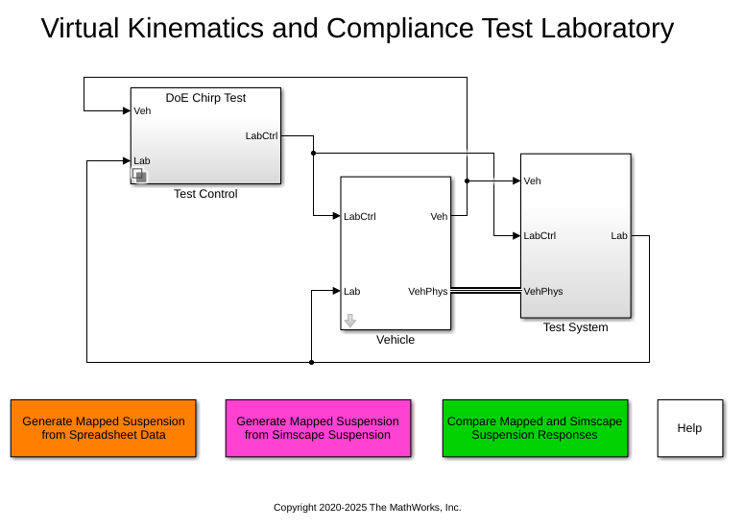

Kinematics and Compliance Virtual Test Laboratory Reference Application

Generate optimized suspension parameters for the vehicle dynamics mapped suspension blocks.

Generate Mapped Suspension from Spreadsheet Data uses Model-Based Calibration Toolbox™ to generate calibrated suspension parameters from measured vertical force and suspension geometry data.

Generate Mapped Suspension from Simscape Suspension uses a Simscape™ Multibody™ suspension system to generate calibrated suspension parameters for the mapped suspension blocks.

Compare Mapped and Simscape Suspension Responses compares the mapped suspension with the Simscape Multibody suspension results.

For more information about the reference application, see Kinematics and Compliance Virtual Test Laboratory.
