Interface OpenCV pour Simulink

Importer du code OpenCV dans Simulink^®

Computer Vision Toolbox™ Interface for OpenCV in Simulink permet d’importer du code OpenCV dans Simulink. Ce support package nécessite Computer Vision Toolbox et Simulink Coder™.

Il est également possible de générer du code C++ à partir du modèle Simulink et de le déployer sur le hardware cible.

Vous pouvez importer du code OpenCV dans un modèle Simulink avec l’application OpenCV Importer. Pour plus d’informations, veuillez consulter Install and Use Computer Vision Toolbox Interface for OpenCV in Simulink.

Blocs

FromOpenCV	Converts OpenCV data types to Simulink data types (depuis R2020a)
ToOpenCV	Converts Simulink data types to OpenCV data types (depuis R2020a)
Image To Matrix	Converts Simulink image data to matrix data (depuis R2021b)
Matrix To Image	Converts matrix data to Simulink image data (depuis R2021b)

Rubriques

Install and Use Computer Vision Toolbox Interface for OpenCV in Simulink
Import OpenCV code into Simulink.
Convert Between Simulink Image Type and Matrices
Integrate Simulink.ImageType data in model with blocks that operate on matrix only.

Exemples présentés

Smile Detection by Using OpenCV Code in Simulink

Build a smile detector by using the OpenCV Importer app. The detector estimates the intensity of the smile on a face image or a video. Based on the estimated intensity, the detector identifies an appropriate emoji from its database, and then places the emoji on the smiling face.

Ouvrir le script

Convert RGB Image to Grayscale Image by Using OpenCV Importer

Convert an RGB image to a grayscale image by using the OpenCV Importer app. The converter converts an RGB image to a grayscale image by eliminating the hue and saturation information while retaining the luminance.

Ouvrir le script

Draw Different Shapes by Using OpenCV Code in Simulink

Draw different shapes on images by using OpenCV Importer.

Ouvrir le script

Shadow Detection by Using OpenCV Code in Simulink

Detect shadows in a recorded video by using the OpenCV Importer app.

Ouvrir le script

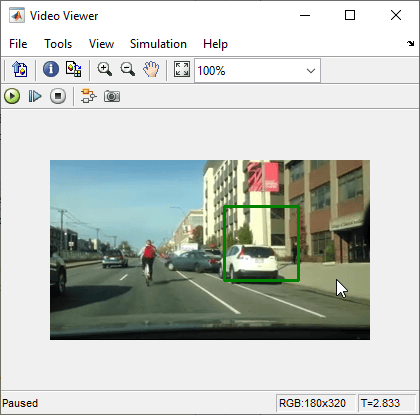

Vehicle and Pedestrian Detector by Using OpenCV Importer

Build a Vehicle and Pedestrian Detector by using the OpenCV Importer app. The model places green and red outline on the vehicle and pedestrians when detected in a recorded video.

Ouvrir le script

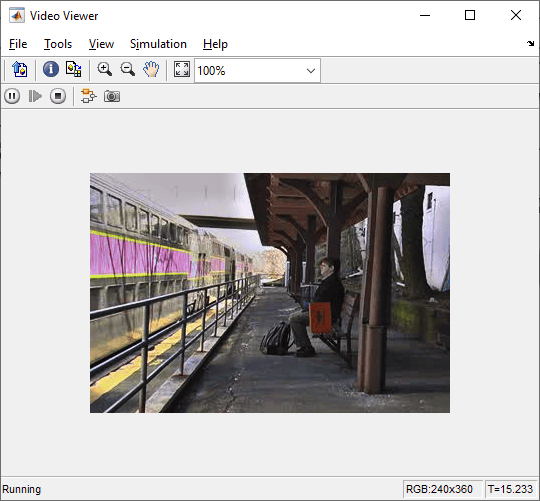

Video Cartoonizer by Using OpenCV Code in Simulink

Use video cartoonizer to enhance colors of the recorded video by using the OpenCV Importer app. The cartoonizer varies the colors in the video using parameters such as maskRadius, threshold, and ramp.

Ouvrir le script
