detectORBFeatures

Detect and store ORB keypoints

Description

example

points = detectORBFeatures(I) returns an ORBPoints object that contains information about ORB keypoints. The ORB keypoints are detected from the input image by using the Oriented FAST and rotated BRIEF (ORB) feature detection method.

example

points = detectORBFeatures(I,Name,Value) specifies options using one or more name-value pair arguments.

Examples

collapse all

Read an image into the workspace.

I = imread('businessCard.png');

Convert the image into a grayscale image.

I = rgb2gray(I);

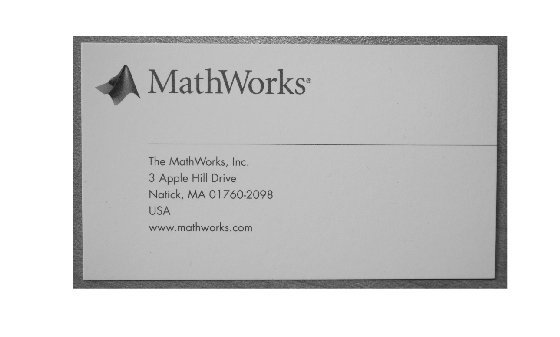

Display the grayscale image.

figure
imshow(I)

Detect and store ORB keypoints.

points = detectORBFeatures(I);

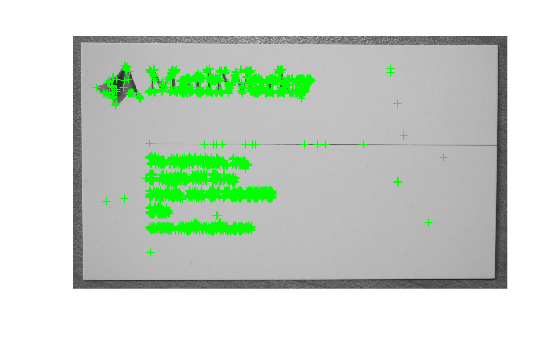

Display the grayscale image and plot the detected ORB keypoints. Suppress the display of circles around the detected keypoints. The ORB keypoints are detected in regions with high intensity variance.

figure
imshow(I)
hold on
plot(points,'ShowScale',false)
hold off

Read a binary image into the workspace.

I = imread('star.png');

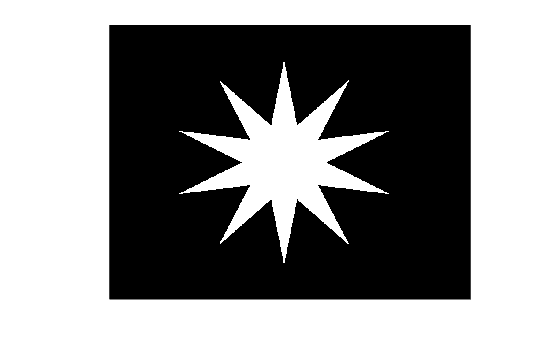

Display the image.

figure
imshow(I)

Detect and store ORB keypoints. Specify the scale factor for image decomposition as 1.01 and the number of decomposition levels as 3.

points = detectORBFeatures(I,'ScaleFactor',1.01,'NumLevels',3);

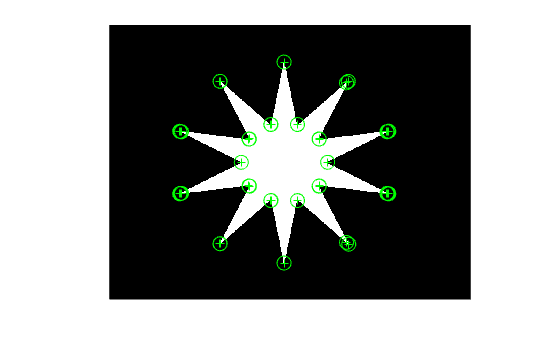

Display the image and plot the detected ORB keypoints. The inflection points in the binary shape image are detected as the ORB keypoints.

figure
imshow(I)
hold on
plot(points)
hold off

Input Arguments

collapse all

Input image, specified as an M-by-N grayscale image. The input image must be real and nonsparse.

Data Types: single | double | int16 | uint8 | uint16 | logical

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: detectORBFeatures(I,'NumLevels',4)

Scale factor for image decomposition, specified as the comma-separated pair consisting of 'ScaleFactor' and a scalar greater than 1. The scale value at each level of decomposition is ScaleFactor(level-1), where level is any value in the range [0, Numlevels-1]. Given the input image of size M-by-N, the image size at each level of decomposition is .

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint64 | uint32

Number of decomposition levels, specified as the comma-separated pair consisting of 'NumLevels' and a scalar greater than or equal to 1. Increase this value to extract keypoints from the image at more levels of decomposition.

The number of decomposition levels for extracting keypoints is limited by the image size at that level. The image size at a level of decomposition must be at least 63-by-63 for detecting keypoints. The maximum level of decomposition is calculated as

If either the default value or the specified value of 'NumLevels' is greater than levelmax, the function modifies NumLevels to levelmax and returns a warning.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint64 | uint32

Region of interest for keypoint detection, specified as the comma-separated pair consisting of 'ROI' and a vector of the format [x y width height]. The first two elements represent the location of the upper left corner of the region of interest. The last two elements represent the width and the height of the region of interest. The width and height of the region of interest must each be a value greater than or equal to 63.

Output Arguments

collapse all

ORB keypoints, returned as an ORBPoints object. The object contains information about keypoints detected in the input image.

Algorithms

The function detects keypoints from the input image by using the ORB feature detection method in [1].

References

[1] Rublee, E., V. Rabaud, K. Konolige, and G. Bradski. "ORB: An Efficient Alternative to SIFT or SURF." In Proceedings of the 2011 International Conference on Computer Vision, 2564–2571. Barcelona, Spain: IEEE, 2011.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Introduced in R2019a
