Reconstruct Detailed Surface Structure Using Shape from Shading
R2026bThis example shows how to add high-frequency surface detail to stereo depth maps using Shape from Shading (SfS). SfS recovers fine geometry from image shading cues, complementing stereo methods that capture overall shape but miss small-scale features. This technique applies wherever a coarse depth estimate obtained from stereo matching, LiDAR, structured light, or depth sensors needs refinement using shading cues under known or estimated directional lighting. Starting from pre-computed camera poses created using Structure from Motion (SfM) and dense stereo depth of the asteroid Bennu, you estimate the sun direction and then solve a Poisson equation that corrects depth gradients to match observed shading. The refined depth reveals fine-scale craters and ridges that stereo matching alone cannot resolve with high accuracy.
Load Pre-Computed Data
Load depth maps, images, camera poses, and camera intrinsics for 4 views of asteroid Bennu [4]. These were pre-computed using the sfm object for Structure from Motion, followed by dense stereo matching using opticalFlowRAFT. See the Dense 3-D Reconstruction of Asteroid Surface from Image Sequence example for more information.
The data includes:
depthMaps— Per-pixel distance (in world units) from the camera center to the surface along each ray.images— Grayscale double-precision images (intensity in [0, 1]).poses— 3-D camera-to-world poses obtained from Structure from Motion (SfM).intrinsics—cameraIntrinsicsobject encoding internal parameters of the camera such as the focal length and principal point.
load("bennuSfSData.mat","depthMaps","images","poses","intrinsics") images = cellfun(@im2double, images, UniformOutput=false); numViews = numel(depthMaps);
Display the four input views as a montage. Each image is a 1024-by-1024 grayscale frame captured during the OSIRIS-REx preliminary survey of asteroid Bennu [4].
figure
montage(images)
title("Input Views of Asteroid")
Visualize Input Data for Single View

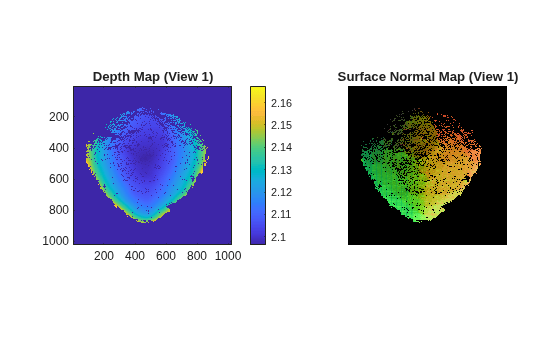

Display the stereo depth map and the surface normal map side-by-side.
The helperNormalsFromDepth supporting function computes surface normals from the depth map using central differences on back-projected 3-D points. At each pixel, the function back-projects to a 3-D point, computes tangent vectors via finite differences, and takes their cross product to obtain the surface normal. The RGB channels of the normal map encode the (X, Y, Z) components of the unit normal in camera coordinates. For implementation details, see helperNormalsFromDepth.
viewIdx = 1;
normals = helperNormalsFromDepth(depthMaps{viewIdx},intrinsics);
figure
tiledlayout(1,2)
nexttile
imagesc(depthMaps{viewIdx})
axis image
colorbar
title("Depth Map (View 1)")
nexttile
% Map unit normals in [-1,1] to [0,1] for display
imshow( (normals + 1)/2 )
title("Surface Normal Map (View 1)")
Observe that the depth map shows smooth, low-frequency surface shape recovered by stereo, but lacks the fine detail visible in the intensity images. The normal map highlights subtle orientation changes that SfS exploits to recover high-frequency geometry.
Estimate Direction of Illumination
Under a Lambertian reflectance model [1], observed image intensity at a surface point satisfies: , where
is the surface albedo (fraction of incident light reflected by the surface).
is the outward unit surface normal direction.
is the unit vector pointing toward the light source, the Sun.
is the cosine of the angle between the surface normal and the light direction.
This model assumes that the Sun is infinitely far away, resulting in parallel rays illuminating the asteroid surface. It also assumes a diffuse surface, reflecting incident light equally in all directions. Both assumptions hold here: the Sun-Bennu distance is significantly larger than the asteroid diameter, and Bennu's rough surface exhibits approximately diffuse reflectance.
To estimate the light direction, stack surface normals () and intensities () from all views and solve the resulting linear system: where . The least-squares solution to this system gives the scaled light direction . Normalizing yields , which is the unit vector in the estimated light direction.
allNormals = cell(numViews,1); allIntensities = cell(numViews,1); for i = 1:numViews normalsCam = helperNormalsFromDepth(depthMaps{i},intrinsics); % Rotate normals from camera frame to world frame using the camera % orientation from SfM. This aligns all views so they share a common % light direction vector. R = poses{i}.R; [H,W,~] = size(normalsCam); n = reshape(normalsCam,[],3) * R'; normalsWorld = reshape(n,H,W,3); % Select pixels with valid depth, moderate intensity (avoiding % saturated highlights and deep shadows), and valid normals. valid = ~isnan(depthMaps{i}) & images{i} > 0.1 & images{i} < 0.9 ... & ~isnan(normalsWorld(:,:,1)); idx = find(valid); nx = normalsWorld(:,:,1); ny = normalsWorld(:,:,2); nz = normalsWorld(:,:,3); N = [nx(idx) ny(idx) nz(idx)]; I = images{i}(idx); allNormals{i} = N; allIntensities{i} = I; end % Concatenate into numeric arrays for the least-squares solver allNormals = vertcat(allNormals{:}); allIntensities = vertcat(allIntensities{:});
Solve the linear system using the backslash operator, which provides the least-squares solution to the system.
s = allNormals \ allIntensities; lightDir = s'/norm(s)
lightDir = 1×3
-0.0205 0.8435 -0.5368
The estimated light direction is a 3-D unit vector in world coordinates. It is consistent across all views because we transformed normals into the common world frame before solving.
Estimate Depth Gradients from Lambertian Shading Model
Compute shading-derived depth gradients for one view.
Estimate Surface Normal Using Reflectance Model
Invert the Lambertian reflectance equation to determine the orientation of each surface normal with respect to the light source that produces the observed intensity at that pixel [1]. A bright pixel faces the Sun nearly head-on, while a dark pixel more likely belongs to a surface oriented away from the direction of illumination.
viewIdx = 1;
Z = depthMaps{viewIdx};
I = images{viewIdx};
fx = intrinsics.FocalLength(1);
fy = intrinsics.FocalLength(2);
% Light direction in camera frame
lightDirCam = lightDir * poses{viewIdx}.R;
L = reshape(lightDirCam, 1, 1, 3); % reshaped to 1x1x3 for array operations
% Normals from coarse stereo depth
normals = helperNormalsFromDepth(Z, intrinsics);
nDotLStereo = sum(normals .* L, 3);
validMask = ~isnan(Z) & I > 0.02;
% Estimate albedo
rho = mean(I(validMask) ./ max(nDotLStereo(validMask), 0.05), "omitnan");
% Expected n·l from observed intensity by inverting Lambertian model
nDotLShading = min(I / max(rho,eps), 1);
% Adjust existing stereo-derived normals along the light direction to match the observed shading.
normalsRefined = nDotLShading .* L + (normals - nDotLStereo .* L);
% Clip low-magnitude vectors and normalize to unit length.
mag = vecnorm(normalsRefined, 2, 3);
mag(mag < eps) = 1;
normalsRefined = normalsRefined ./ mag;Estimate Depth Gradients Using Normals and Camera Geometry
Convert each normal to local depth map gradients using pinhole camera geometry and known values of camera intrinsics parameters [2,6]. For a pinhole camera, the relationship between surface normal and depth slopes is: , .
% Clamp z-component of normals (nz) away from zero since it is in the denominator nz = normalsRefined(:,:,3); nz(abs(nz) < 0.1) = sign(nz(abs(nz) < 0.1) + eps) * 0.1; % Derived depth slopes using known camera intrinsics p = -Z .* normalsRefined(:,:,1) ./ (fx * nz); q = -Z .* normalsRefined(:,:,2) ./ (fy * nz);

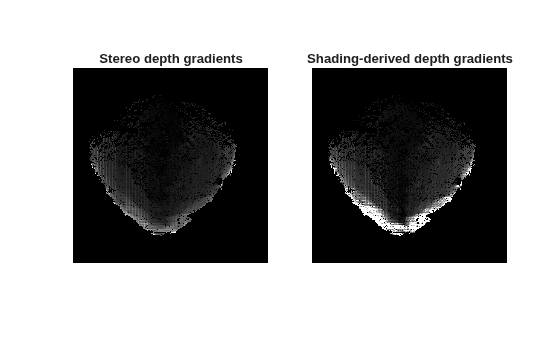

Visualize the depth gradient field derived from shading. Compare it with the depth gradients of the original coarse depth map from stereo. The shading-derived depth gradient field has higher magnitude and reveals finer details compared to the stereo depth map gradients. The next section uses this gradient field to refine the stereo depth.
dZdx = (Z(:,[2:end end]) - Z(:,[1 1:end-1])) / 2; dZdy = (Z([2:end end],:) - Z([1 1:end-1],:)) / 2; magStereo = sqrt(dZdx.^2 + dZdy.^2); magShading = sqrt(p.^2 + q.^2); figure tiledlayout(1,2,TileSpacing="compact") cRange = [0 max(magShading(:),[],"omitnan")*0.8]; nexttile imagesc(magStereo, cRange); axis image off; title("Stereo depth gradients") nexttile imagesc(magShading, cRange); axis image off; title("Shading-derived depth gradients") colormap(gray)

Refine Depth Maps with Shape from Shading
For each view, transform the estimated Sun direction from world coordinates into the camera frame, then solve a screened Poisson equation to refine the depth. The screened Poisson equation [5] is a partial differential equation of the form: .
is the original stereo depth which serves as a coarse initialization point for the optimization.
is the refined depth that is iteratively estimated and refined.
is the discrete Laplacian of the depth map , which captures the local curvature of the surface defined by the depth map.
is the shading-derived gradient field of the depth map described in the previous section.
This formulation was introduced by Nehab et al. [3] to fuse position and normal information for surface reconstruction, balancing two objectives:
Shading fidelity: depth gradients should produce normals whose dot product with the light direction matches observed intensity.
Stereo prior: the refined depth should not drift far from the original stereo estimate (controlled by the parameter ).
depthMapsRefined = cell(numViews,1); for i = 1:numViews % Transform the estimated sun direction from the world coordinate % frame into the camera coordinate frame for the i-th view lightDirCam = lightDir * poses{i}.R; fprintf("Processing view %d/%d\n",i,numViews) depthMapsRefined{i} = helperRefineDepthSfS( ... depthMaps{i},images{i},intrinsics,lightDirCam); end
Processing view 1/4 Processing view 2/4 Processing view 3/4 Processing view 4/4
Reconstruct 3-D Point Clouds
Back-project both the original stereo and the SfS-refined depth maps into world coordinates to build colored point clouds. Subsample pixels with a stride of 2 and apply a border offset of 50 pixels to avoid edge artifacts. Transform each local camera-frame point cloud into the world frame using the corresponding camera pose.
offset = 50; depthRange = [0 5]; depthScaleFactor = 1; [X,Y] = meshgrid(offset:2:intrinsics.ImageSize(2)-offset, ... offset:2:intrinsics.ImageSize(1)-offset); pts = [X(:) Y(:)]; [H,W] = size(images{1}); linearIdx = sub2ind([H W], Y(:), X(:)); ptCloudsStereo = cell(numViews,1); ptCloudsSfS = cell(numViews,1); for i = 1:numViews fprintf("Processing view %d/%d\n",i,numViews) % Convert grayscale to RGB for natural 3-channel color indexing imgRGB = repmat(images{i}, 1, 1, 3); imgFlat = reshape(imgRGB, [], 3); colors = imgFlat(linearIdx,:); % Stereo point cloud pc = pcfromdepth(depthMaps{i},depthScaleFactor,intrinsics,... ImagePoints=pts,DepthRange=depthRange); validIdx = find(~isnan(pc.Location(:,1))); xyz = transformPointsForward(poses{i},pc.Location(validIdx,:)); ptCloudsStereo{i} = pointCloud(xyz,Color=colors(validIdx,:)); % Shape-from-Shading-refined point cloud pc = pcfromdepth(depthMapsRefined{i},depthScaleFactor,intrinsics,... ImagePoints=pts,DepthRange=depthRange); validIdx = find(~isnan(pc.Location(:,1))); xyz = transformPointsForward(poses{i},pc.Location(validIdx,:)); ptCloudsSfS{i} = pointCloud(xyz,Color=colors(validIdx,:)); end
Processing view 1/4 Processing view 2/4 Processing view 3/4 Processing view 4/4
pcStereo = pccat(cat(1,ptCloudsStereo{:}));
pcSfS = pccat(cat(1,ptCloudsSfS{:}));Use pcdenoise to remove outliers from the reconstructed point clouds.
pcStereo = pcdenoise(pcStereo); pcSfS = pcdenoise(pcSfS);
Visualize 3-D Stereo Reconstruction and Lighting Direction
Display the stereo point cloud with the reconstructed camera positions and the estimated Sun direction vector. The yellow arrow indicates the direction sunlight arrives from.
figure % Downsample point cloud for faster interactive visualization pcStereoVis = pcdownsample(pcStereo, "gridAverage", 0.005); pcshow(pcStereoVis,MarkerSize=5); % Display the cameras hold on camPoses = arrayfun(@(i) poses{i},1:numViews); plotCamera(camPoses,Color="green",Size=0.05,Opacity=0.1) % Display the Sun direction as an arrow pointing from the light source center = mean(pcStereo.Location,1); sunStart = center + 0.5*lightDir; quiver3(sunStart(1),sunStart(2),sunStart(3), ... -lightDir(1),-lightDir(2),-lightDir(3),0.4, ... Color=[1 0.8 0],LineWidth=3,MaxHeadSize=1.0) % Axis conventions and viewing direction set(gca,"ZDir","reverse") view(-30, 20) hold off axis equal xlabel("X") ylabel("Y") zlabel("Z") title("Stereo Reconstruction with Camera Poses and Sun Direction")

Reconstruct 3-D Surface Geometry from Point Cloud
Downsample the point clouds to reduce the runtime for Poisson surface reconstruction. Set the grid size to 0.3% of the point cloud's spatial extent, balancing meshing speed against preserving fine surface detail.
gridSizePct = 0.3; extents = [diff(pcStereo.XLimits), diff(pcStereo.YLimits), diff(pcStereo.ZLimits)]; gridSize = norm(extents) * gridSizePct / 100; pcStereoDS = pcdownsample(pcStereo,"gridAverage",gridSize); pcSfSDS = pcdownsample(pcSfS,"gridAverage",gridSize);
Reconstruct surface meshes from the point clouds of stereo and shading using Poisson surface reconstruction. This is a computationally intensive step and can take 30-60 seconds on a typical desktop computer.
meshStereo = pc2surfacemesh(pcStereoDS,"poisson"); meshSfS = pc2surfacemesh(pcSfSDS,"poisson");
Compare Reconstructed 3-D Surface Geometry

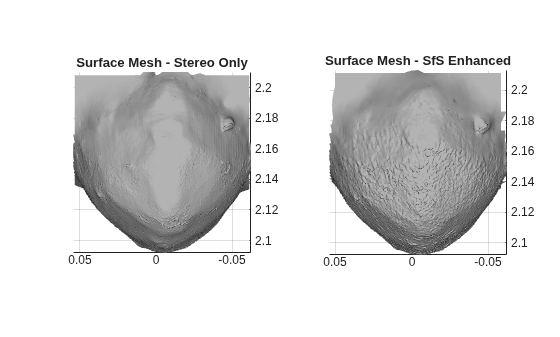

Render the two surfaces side-by-side for visual comparison. The lighting and material texture settings in the visualization highlight fine-grained differences in the reconstructed surfaces. The SfS-enhanced mesh reveals craters, ridges, and boulder features that are absent from the stereo-only reconstruction.
figure tiledlayout(1,2) nexttile trisurf(meshStereo.Faces, ... meshStereo.Vertices(:,1),meshStereo.Vertices(:,2),meshStereo.Vertices(:,3), ... FaceColor=[0.7 0.7 0.7],EdgeColor="none") axis equal view(180,0) lighting gouraud camlight headlight material dull title("Surface Mesh - Stereo Only") nexttile trisurf(meshSfS.Faces, ... meshSfS.Vertices(:,1),meshSfS.Vertices(:,2),meshSfS.Vertices(:,3), ... FaceColor=[0.7 0.7 0.7],EdgeColor="none") axis equal view(180,0) lighting gouraud camlight headlight material dull title("Surface Mesh - SfS Enhanced")
