Reconstruct signal using inverse multiscale local 1-D polynomial transform
an approximation to the inverse multiscale 1-D polynomial transform
y = mlptrecon(
Detect and Localize High-Frequency Content
Create a low-frequency signal with high-frequency blips.
t = (0:0.01:10)'; x = sin(2*pi.*t) + 0.5*sin(pi.*t+0.1); bliptime = (0:0.01:0.5)'; n = numel(bliptime); z0 = 2*(1:(n+1)/2)/(n+1); trng = [z0 z0((n-1)/2:-1:1)]'; blip = sin(50*pi.*bliptime).*trng; for i = [200,700,900] x(i:i+numel(bliptime)-1) = x(i:i+numel(bliptime)-1)+blip; end
Perform a multilevel polynomial transform. Perform the inverse multilevel polynomial transform using the detail coefficients.
[w,t,nj,scalingmoments] = mlpt(x,t); yDetails = mlptrecon('d',w,t,nj,scalingmoments,1);

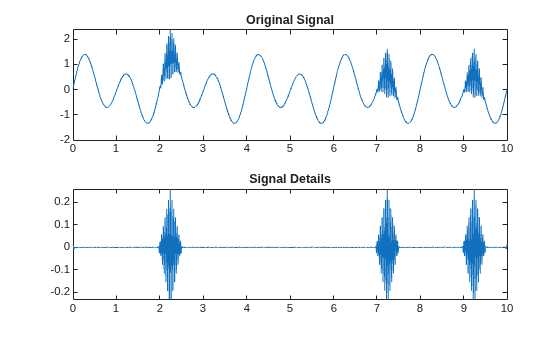

Plot the original signal and the processed signal.
subplot(2,1,1) plot(t,x) title('Original Signal') subplot(2,1,2) plot(t,yDetails) title('Signal Details')
Approximate Data by Choosing Reconstruction Coefficients
Approximate data using multiscale local polynomial transform (MLPT) reconstruction. Use
mlptrecon to approximate a corrupted and sparsely sampled pitch contour.

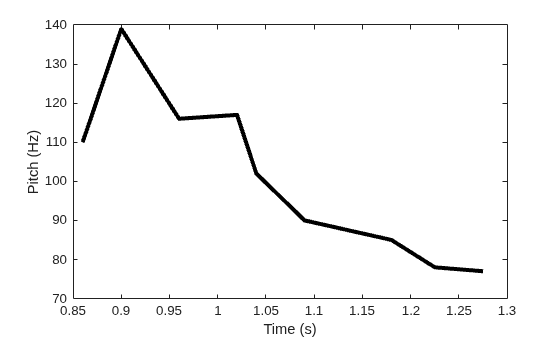

Load input data and visualize it.
load CorruptedPitchData.mat plot(time,pitchContour,'k',linewidth=3) hold on xlabel('Time (s)') ylabel('Pitch (Hz)')
Compute the MLPT of the pitch contour.
[w,t,nj,scalingMoments] = mlpt(pitchContour,time, ... DualMoments=3, ... PrimalMoments=4, ... PreFilter='none');
mlptrecon to reconstruct the signal using the approximation coefficients at different levels.
y = zeros(numel(t),3); for level = 1:3 y(:,level) = mlptrecon('a',w,t,nj,scalingMoments,level,DualMoments=3); end

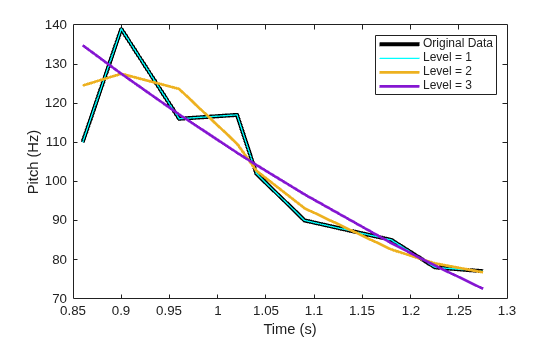

Plot the reconstructed signals. Level two obtains the best smoothed estimate.
plot(t,y(:,1),'c',linewidth=1) plot(t,y(:,2),linewidth=2) plot(t,y(:,3),linewidth=2) legend('Original Data','Level = 1','Level = 2','Level = 3') hold off
type — Type of coefficients
Type of coefficients used to reconstruct the signal, specified
'a'— Approximation coefficients
'd'— Detail coefficients
Approximation coefficients are a lowpass representation of the input. At each level, the approximation coefficients are divided into coarser approximation and detail coefficients.
coefs — MLPT coefficients
vector | matrix
MLPT coefficients, specified as a vector or matrix of MLPT coefficients
returned by the
coefsPerLevel — Coefficients per resolution level
Coefficients per resolution level, specified as a vector containing
the number of coefficients at each resolution level in
an output argument of the
The elements of
coefsPerLevel are organized
coefsPerLevel(1)— Number of approximation coefficients at the coarsest resolution level.
coefsPerLevel(i)— Number of detail coefficients at resolution level
i = numLevel – i + 2for
i = 2,..., numLevel + 1.
numLevelis the number of resolution levels used to calculate the MLPT.
numLevelis inferred from
numLevel = length(coefsPerLevel-1).
The smaller the index
i, the lower the resolution.
The MLPT is two times redundant in the number of detail coefficients,
but not in t the number of approximation coefficients.
scalingMoments — Scaling function moments
Scaling function moments, specified as a
P is the number of primal moments specified
by the MLPT.
reconstructionLevel — Resolution level used for reconstruction
Resolution level used for reconstruction, specified as a positive
integer less than or equal to
the number of resolution levels used to calculate the MLPT. Increasing
the value of
to reconstructing your signal with coarser resolution approximations.
dm — Dual vanishing moments
2 (default) |
Number of dual vanishing moments in the lifting scheme. The number of dual
moments must match the number used by
y — Reconstructed approximation or details of signal
vector | matrix
Reconstructed approximation or details of signal, returned as
a vector or matrix, depending on the inputs to the
Maarten Jansen developed the theoretical foundation of the multiscale
local polynomial transform (MLPT) and algorithms for its efficient
computation . The MLPT uses a lifting scheme, wherein a kernel
function smooths fine-scale coefficients with a given bandwidth to
obtain the coarser resolution coefficients. The
mlpt function uses only local polynomial
interpolation, but the technique developed by Jansen is more general
and admits many other kernel types with adjustable bandwidths .
 Jansen, Maarten. “Multiscale Local Polynomial Smoothing in a Lifted Pyramid for Non-Equispaced Data.” IEEE Transactions on Signal Processing 61, no. 3 (February 2013): 545–55. https://doi.org/10.1109/TSP.2012.2225059.
 Jansen, Maarten, and Mohamed Amghar. “Multiscale Local Polynomial Decompositions Using Bandwidths as Scales.” Statistics and Computing 27, no. 5 (September 2017): 1383–99. https://doi.org/10.1007/s11222-016-9692-8.
 Jansen, Maarten, and Patrick Oonincx. Second Generation Wavelets and Applications. London ; New York: Springer, 2005.
Introduced in R2017a
