# Frequency- and Time-Localized Reconstruction from the Continuous Wavelet Transform

Reconstruct a frequency-localized approximation of the Kobe earthquake data. The data is sampled at 1 Hz. Extract information from the CWT for frequencies in the range of [0.030, 0.070] Hz.

```load kobe Fs = 1;```

Obtain the CWT of the data.

`[wt,f] = cwt(kobe,Fs);`

Reconstruct the earthquake data, adding the signal mean back into the transformed data.

`xrec = icwt(wt,[],f,[0.030 0.070],SignalMean=mean(kobe));`

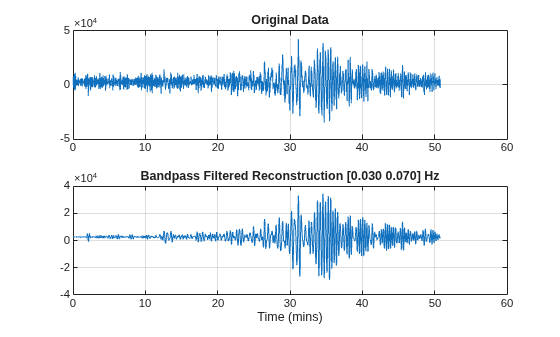

Plot and compare the original data and the data for frequencies in the range of [0.030, 0.070] Hz.

```t = (0:numel(kobe)-1)/60; tiledlayout(2,1) nexttile plot(t,kobe) grid on title("Original Data") nexttile plot(t,xrec) grid on xlabel("Time (mins)") title("Bandpass Filtered Reconstruction [0.030 0.070] Hz")```

You can also use time periods, instead of frequency, with the CWT. Load the El Nino data, which is sampled monthly. Obtain its CWT, specifying the time period in years.

```load ninoairdata [cfs,period] = cwt(nino,years(1/12));```

Obtain the inverse CWT for years 2 through 8.

`xrec = icwt(cfs,[],period,[years(2) years(8)]);`

Plot the CWT of the reconstructed data. Note the absence of energy outside the band of periods from 2 to 8 years.

```figure cwt(xrec,years(1/12))```

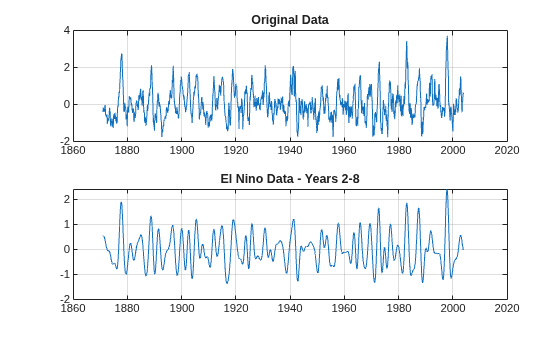

Compare the original data with the reconstructed data for years 2 through 8.

```figure tiledlayout(2,1) nexttile plot(datayear,nino) grid on title("Original Data") nexttile plot(datayear,xrec) grid on title("El Nino Data - Years 2-8")```
