birdcage

Creates birdcage (MRI coil)

Description

The default birdcage object creates a birdcage MRI coil operating at 64 MHz or 128 MHz. This coil is most commonly used in clinical MRI. Its structure consists of two circular coils connected by conductive elements called rungs. The number of rungs depends on the size of the coil and is generally an even number.

The birdcage can be loaded/excited to model a highpass or lowpass coil.

Creation

Syntax

bc = birdcage

bc = birdcage(PropertyName=Value)

Description

bc = birdcage creates a birdcage to model an MRI coil with default property values. The default dimensions are chosen for an operating frequency of around 64 MHz or 128 MHz.

bc = birdcage(PropertyName=Value) sets properties using one or more name-value arguments. PropertyName is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as PropertyName1=Value1,...,PropertyNameN=ValueN. Properties that you do not specify, retain their default values.

For example, bc = birdcage(NumRungs=8) creates a birdcage with eight rungs.

Properties

NumRungs — Number of rungs

16 (default) | scalar integer

Number of rungs, specified as a scalar.

Example: 20

Data Types: int8

CoilRadius — Coil radius

0.4000 (default) | scalar

Coil radius, specified as a scalar in meters.

Example: 0.2

Data Types:

CoilHeight — Coil height

0.0400 (default) | scalar

Coil height, specified as a scalar in meters.

Example: 0.089

Data Types: double

RungHeight — Height of rungs

0.4600 (default) | scalar

Height of rungs, specified as a scalar in meters. Distance is measured from the middle of the upper coil to the middle of the lower coil.

Example: 0.56

Data Types: double

ShieldRadius — Shield radius

0 (default) | scalar

Shield radius, specified as a scalar in meters. A value of zero indicates that the shield is absent.

Example: 0.2

Data Types: double

ShieldHeight — Shield height

0 (default) | scalar

Shield height, specified as a scalar in meters. A value of zero indicates that the shield is absent.

Example: 0.089

Data Types: double

Phantom — Dielectric mesh to load birdcage

structure

Dielectric mesh to load birdcage, specified as a structure having the following fields:

Points — Points in custom dielectric mesh

N-by-3 matrix

Points in custom dielectric mesh, specified as an N-by-3 matrix in meters. N is the number of points.

You can use the phantom property to insert a dielectric mesh in the shape of a human head into the bird cage antenna. This dielectric cylinder has a permeability of 80. You can upload this mesh in the form of a mat file.

Data Types: double

Tetrahedra — Tetrahedra in custom dielectric mesh

M-by-4 integer matrix

Tetrahedra in custom dielectric mesh, specified as an M-by-4 integer matrix. M is the number of tetrahedra.

Data Types: double

EpsilonR — Relative permittivity of dielectric material

scalar

Relative permittivity of dielectric material, specified as a scalar.

Data Types: double

LossTangent — Loss in dielectric material

scalar

Loss in dielectric material, specified as a scalar.

Data Types: double

Data Types: struct

FeedLocations — Location of feeds in Cartesian coordinates

0 (default) | N-by-3 matrix

Location of feeds in Cartesian coordinates, specified as an N-by-3 matrix. You can also use the getLowPassLocs and getHighPassLocs functions to determine the feed locations in low-pass or high-pass mode.

Example: FeedLocations=[0.3981 0.0392 -0.2300;0.3528 0.1886 -0.2300]

Example: FeedLocations=getLowPassLocs(b)

Data Types: double

FeedVoltage — Magnitude of voltage

1 (default) | scalar | 1-by-N vector

Magnitude of voltage applied to each feed, specified as a scalar or 1-by-N vector with each element unit in volts.

Example: 2

Data Types: double

FeedPhase — Phase shift to the voltage

0 (default) | scalar | 1-by-M vector

Phase shift to the excitation voltage at each feed, specified as a scalar or 1-by-M vector with each element unit in degrees.

Example: 45

Data Types: double

Conductor — Type of metal material

metal("PEC") (default) | metal object

Type of the metal used as a conductor, specified as a metal object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Load — Lumped elements

[1x1 lumpedElement] (default) | lumpedElement object

Lumped elements added to the antenna feed, specified as a lumpedElement object. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed.

Example: lumpedElement(Impedance=75)

Tilt — Tilt angle of antenna

0 (default) | scalar | vector

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

TiltAxis — Tilt axis of antenna

[1 0 0] (default) | three-element vector | 2-by-3 matrix | "X" | "Y" | "Z"

Tilt axis of the antenna, specified as one of these values:

• Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

• Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

• "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

axialRatio	Calculate and plot axial ratio of antenna or array
bandwidth	Calculate and plot absolute bandwidth of antenna or array
beamwidth	Beamwidth of antenna
charge	Charge distribution on antenna or array surface
current	Current distribution on antenna or array surface
efficiency	Calculate and plot radiation efficiency of antenna or array
EHfields	Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
feedCurrent	Calculate current at feed for antenna or array
getHighPassLocs	Feeding location to operate birdcage as highpass coil
getLowPassLocs	Feeding location to operate birdcage as lowpass coil
impedance	Calculate and plot input impedance of antenna or scan impedance of array
info	Display information about antenna, array, or platform
memoryEstimate	Estimate memory required to solve antenna or array mesh
mesh	Generate and view mesh for antennas, arrays, and custom shapes
meshconfig	Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry
msiwrite	Write antenna or array analysis data to MSI planet file
optimize	Optimize antenna and array catalog elements using SADEA or TR-SADEA algorithm
pattern	Plot radiation pattern of antenna, array, or embedded element of array
patternAzimuth	Azimuth plane radiation pattern of antenna or array
patternElevation	Elevation plane radiation pattern of antenna or array
peakRadiation	Calculate and mark maximum radiation points of antenna or array on radiation pattern
rcs	Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
resonantFrequency	Calculate and plot resonant frequency of antenna
returnLoss	Calculate and plot return loss of antenna or scan return loss of array
show	Display antenna, array structures, shapes, or platform
sparameters	Calculate S-parameters for antenna or array
stlwrite	Write mesh information to STL file
vswr	Calculate and plot voltage standing wave ratio (VSWR) of antenna or array element

Examples

Default Birdcage Coil and Magnetic Field Vector

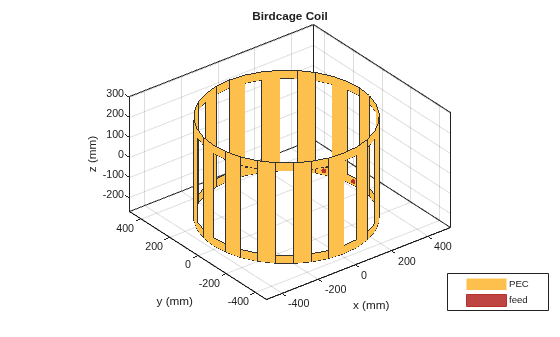

Create and view a default birdcage coil.

bc = birdcage

bc =
  birdcage with properties:

         NumRungs: 16
       CoilRadius: 0.4000
       CoilHeight: 0.0400
       RungHeight: 0.4600
     ShieldRadius: 0
     ShieldHeight: 0
          Phantom: []
    FeedLocations: [2×3 double]
      FeedVoltage: 1
        FeedPhase: 0
        Conductor: [1×1 metal]
             Tilt: 0
         TiltAxis: [1 0 0]
             Load: [1×1 lumpedElement]

figure
show(bc)
title("Birdcage Coil")

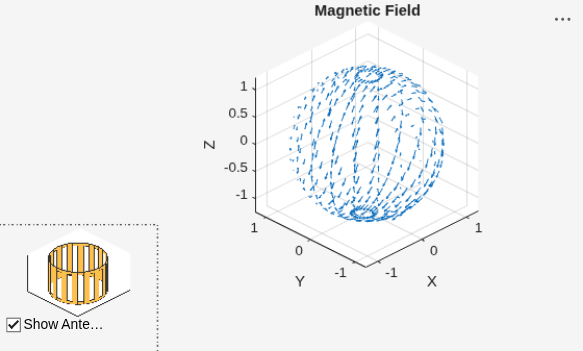

Calculate and plot its magnetic field at 128 MHz.

[h] = EHfields(bc,128e6,ViewField="H")

h = 3×441 complex

   0.1282 + 0.1102i   0.1324 + 0.1088i   0.1266 + 0.1066i   0.1105 + 0.1044i   0.0854 + 0.1026i   0.0538 + 0.1014i   0.0193 + 0.1011i  -0.0139 + 0.1018i  -0.0417 + 0.1032i  -0.0610 + 0.1047i  -0.0699 + 0.1056i  -0.0674 + 0.1051i  -0.0539 + 0.1031i  -0.0308 + 0.0998i  -0.0011 + 0.0954i   0.0314 + 0.0902i   0.0626 + 0.0843i   0.0886 + 0.0780i   0.1068 + 0.0718i   0.1159 + 0.0661i   0.1154 + 0.0611i   0.1282 + 0.1102i   0.1314 + 0.1024i   0.1317 + 0.0940i   0.1294 + 0.0857i   0.1254 + 0.0780i   0.1203 + 0.0716i   0.1151 + 0.0668i   0.1101 + 0.0637i   0.1059 + 0.0622i   0.1025 + 0.0615i   0.1002 + 0.0613i   0.0988 + 0.0612i   0.0985 + 0.0610i   0.0993 + 0.0609i   0.1012 + 0.0611i   0.1040 + 0.0616i   0.1072 + 0.0623i   0.1103 + 0.0629i   0.1130 + 0.0629i   0.1148 + 0.0623i   0.1154 + 0.0611i   0.1282 + 0.1102i   0.1294 + 0.0967i   0.1334 + 0.0828i   0.1412 + 0.0690i   0.1532 + 0.0563i   0.1686 + 0.0453i   0.1860 + 0.0366i   0.2030 + 0.0304i
  -0.4232 - 0.3643i  -0.4324 - 0.3391i  -0.4306 - 0.3120i  -0.4192 - 0.2849i  -0.4006 - 0.2600i  -0.3777 - 0.2391i  -0.3535 - 0.2236i  -0.3307 - 0.2137i  -0.3112 - 0.2088i  -0.2963 - 0.2071i  -0.2868 - 0.2067i  -0.2830 - 0.2063i  -0.2850 - 0.2055i  -0.2927 - 0.2049i  -0.3053 - 0.2049i  -0.3213 - 0.2058i  -0.3387 - 0.2071i  -0.3553 - 0.2079i  -0.3689 - 0.2075i  -0.3779 - 0.2053i  -0.3812 - 0.2016i  -0.4232 - 0.3643i  -0.4342 - 0.3401i  -0.4338 - 0.3138i  -0.4235 - 0.2876i  -0.4055 - 0.2635i  -0.3830 - 0.2433i  -0.3590 - 0.2283i  -0.3362 - 0.2190i  -0.3167 - 0.2145i  -0.3018 - 0.2130i  -0.2923 - 0.2127i  -0.2886 - 0.2123i  -0.2906 - 0.2114i  -0.2983 - 0.2104i  -0.3107 - 0.2101i  -0.3264 - 0.2104i  -0.3434 - 0.2111i  -0.3592 - 0.2111i  -0.3717 - 0.2097i  -0.3793 - 0.2065i  -0.3812 - 0.2016i  -0.4232 - 0.3643i  -0.4328 - 0.3431i  -0.4271 - 0.3198i  -0.4071 - 0.2965i  -0.3753 - 0.2752i  -0.3358 - 0.2574i  -0.2934 - 0.2446i  -0.2530 - 0.2370i
  -0.0002 - 0.0003i  -0.0293 - 0.0074i  -0.0593 - 0.0117i  -0.0866 - 0.0138i  -0.1077 - 0.0141i  -0.1193 - 0.0133i  -0.1197 - 0.0117i  -0.1082 - 0.0100i  -0.0863 - 0.0089i  -0.0564 - 0.0090i  -0.0218 - 0.0101i   0.0137 - 0.0119i   0.0464 - 0.0138i   0.0727 - 0.0151i   0.0895 - 0.0158i   0.0953 - 0.0156i   0.0899 - 0.0144i   0.0749 - 0.0120i   0.0528 - 0.0084i   0.0267 - 0.0042i  -0.0003 + 0.0000i  -0.0002 - 0.0003i   0.0018 + 0.0004i   0.0039 + 0.0009i   0.0058 + 0.0011i   0.0074 + 0.0013i   0.0083 + 0.0013i   0.0084 + 0.0012i   0.0077 + 0.0011i   0.0062 + 0.0010i   0.0041 + 0.0009i   0.0017 + 0.0010i  -0.0007 + 0.0011i  -0.0031 + 0.0013i  -0.0049 + 0.0014i  -0.0062 + 0.0015i  -0.0067 + 0.0015i  -0.0063 + 0.0014i  -0.0054 + 0.0011i  -0.0039 + 0.0008i  -0.0021 + 0.0004i  -0.0003 + 0.0000i  -0.0002 - 0.0003i   0.0326 + 0.0081i   0.0665 + 0.0135i   0.0975 + 0.0162i   0.1213 + 0.0169i   0.1347 + 0.0161i   0.1352 + 0.0144i   0.1225 + 0.0125i

figure
EHfields(bc,128e6,ViewField="H")

Human Head Model Inside BirdCage

Antenna Toolbox™ provides two .mat files to load a phantom human head model into a birdcage antenna. The humanheadcoarse.mat contains a coarse dielectric mesh of the human head model and the humanheadfine.mat provides the user with a finer dielectric mesh. Load the coarse human head model.

Load human head model file. Extract the values of Points and Tetrahedra. Add a relative permittivity (EpsilonR) of 10 and a dielectric loss (LossTangent) of 0.002. Scale the dielectric mesh to fit in the birdcage antenna. In this case, the mesh points are multiplied by 0.003.

load humanheadcoarse.mat
humanhead = struct(Points=0.003*P,Tetrahedra=T,EpsilonR=10,...
    LossTangent=0.002)

humanhead = struct with fields:
         Points: [584×3 double]
     Tetrahedra: [2818×4 double]
       EpsilonR: 10
    LossTangent: 0.0020

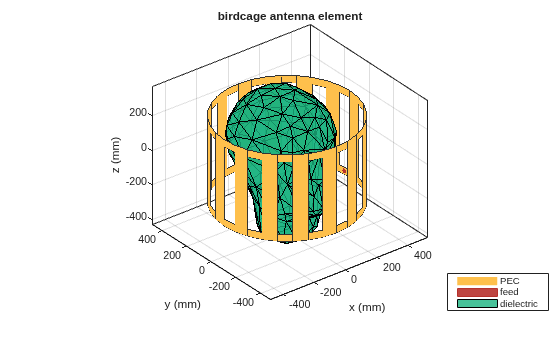

Add and view the human head mesh inside the birdcage.

b = birdcage(Phantom=humanhead)

b =
  birdcage with properties:

         NumRungs: 16
       CoilRadius: 0.4000
       CoilHeight: 0.0400
       RungHeight: 0.4600
     ShieldRadius: 0
     ShieldHeight: 0
          Phantom: [1×1 struct]
    FeedLocations: [2×3 double]
      FeedVoltage: 1
        FeedPhase: 0
        Conductor: [1×1 metal]
             Tilt: 0
         TiltAxis: [1 0 0]
             Load: [1×1 lumpedElement]

show(b)

Birdcage In High-Pass Operation

Create a birdcage antenna.

b = birdcage;
show(b)

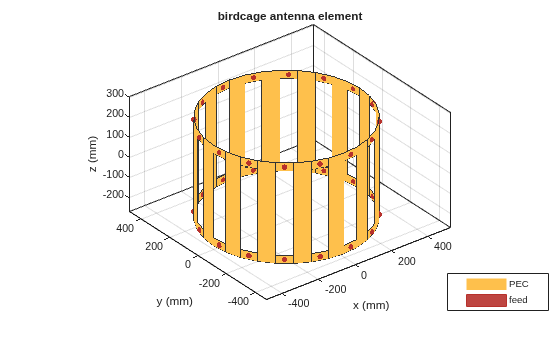

Use the birdcage as a high-pass coil.

b.FeedLocations = getHighPassLocs(b)

b =
  birdcage with properties:

         NumRungs: 16
       CoilRadius: 0.4000
       CoilHeight: 0.0400
       RungHeight: 0.4600
     ShieldRadius: 0
     ShieldHeight: 0
          Phantom: []
    FeedLocations: [32×3 double]
      FeedVoltage: 1
        FeedPhase: 0
        Conductor: [1×1 metal]
             Tilt: 0
         TiltAxis: [1 0 0]
             Load: [1×1 lumpedElement]

show(b)

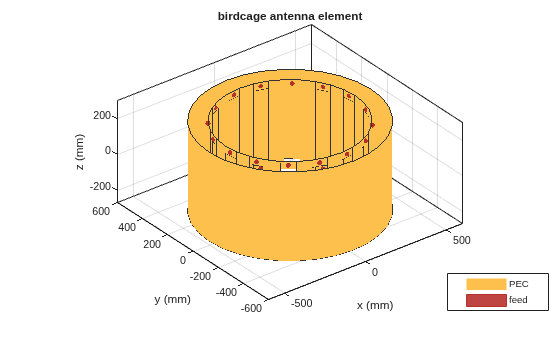

Shield the antenna to ensure that radiation does not leak out.

b.ShieldRadius = 0.5;
b.ShieldHeight = 0.5;
show(b)

Version History

Introduced in R2017b
