Create plane wave excitation environment for antenna or array
planeWaveExcitation object creates an environment in
which a plane wave excites an antenna or array. Plane wave excitation is a scattering
solution that solves the receiver antenna problem.
an environment in which a plane wave excites an antenna or array. The
default receiver antenna is a dipole that is excited by a plane wave
travelling along the positive x-axis with a
h = planeWaveExcitation
sets properties using one or more name-value arguments.
h = planeWaveExcitation(Name=Value)
Name is the property name and
Value is the corresponding value. You can specify
several name-value arguments in any order as
NameN=ValueN. Properties you do not specify retain
their default values.
Element — Antenna or array element
dipole (default) | antenna object | array object
Antenna or array element, specified as an antenna or array object from the catalog.
Direction — Incidence direction of plane wave
[1 0 0] (default) | three-element real vector
Incidence direction of the plane wave, specified as a three-element real vector containing the Cartesian coordinates of a point in space. The object creates the direction vector by joining a line from origin to this point.
Direction=[0 0 1]
Polarization — Polarization of incident electric field
[0 0 1] (default) | three-element complex vector
Polarization of the incident electric field, specified as a three-element complex vector containing the Cartesian components of the electric field in V/m. The polarization gives the orientation and magnitude of the electric field.
Polarization=[0 1 0]
Complex Number Support: Yes
SolverType — Solver for antenna analysis
'MoM' (default) |
Solver for the antenna analysis, specified as one of these values:
'MoM' --- Use the method of moments.
'FMM' --- Use the fast multipole method.

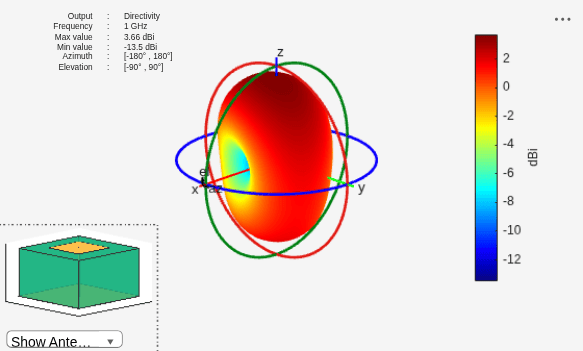

|Axial ratio of antenna|
|Beamwidth of antenna|
|Charge distribution on antenna or array surface|
|Current distribution on antenna or array surface|
|Direction of arrival of signal|
|Design prototype antenna or arrays for resonance around specified frequency|
|Electric and magnetic fields of antennas; Embedded electric and magnetic fields of antenna element in arrays|
|Mesh properties of metal, dielectric antenna, or array structure|
|Change mesh mode of antenna structure|
|Radiation pattern and phase of antenna or array; Embedded pattern of antenna element in array|
|Azimuth pattern of antenna or array|
|Elevation pattern of antenna or array|
|Display antenna, array structures or shapes|
Default Plane Wave Excitation
Excite a dipole antenna using a plane wave and view it.
h = planeWaveExcitation; show(h)

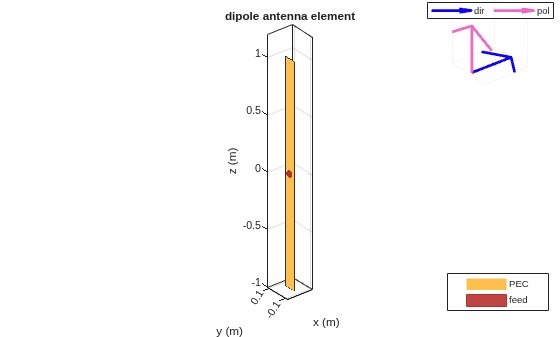

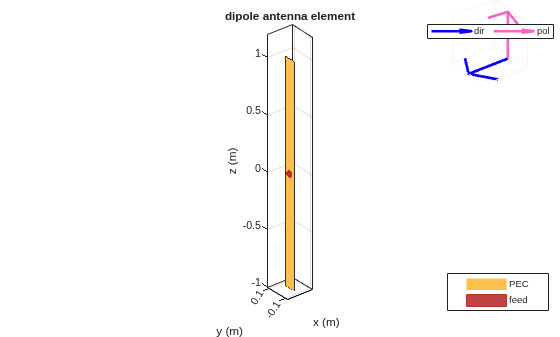

The blue arrow shows the direction of propagation of the plane wave. The default direction is along the x-axis. The pink arrow shows polarization of the plane wave. The default polarization is perpendicular to the direction of propagation. In this case, the polarization is along the z-axis.
Feed Current of Antenna Excited by Plane Wave
Excite a dipole antenna using plane wave. Calculate the feed current at 70 MHz.
h = planeWaveExcitation
h = planeWaveExcitation with properties: Element: [1×1 dipole] Direction: [1 0 0] Polarization: [0 0 1] SolverType: 'MoM'
cur = feedCurrent(h,70e6)
cur = 0.0182 - 0.0032i
Current Distribution on Antenna

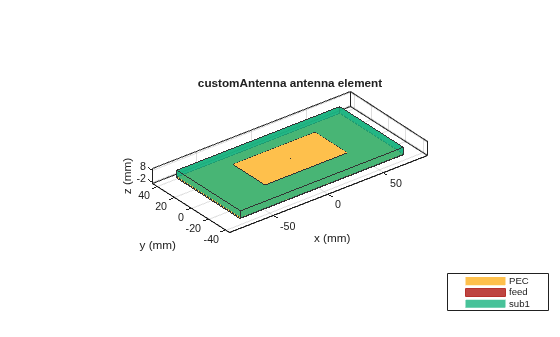

Excite a dipole antenna using a plane wave. The polarization of the wave is along the z-axis and the direction of propagation is along the negative x-axis. View the antenna.
p = planeWaveExcitation(Element=dipole,Direction=[-1 0 0],Polarization=[0 0 1]); show(p)

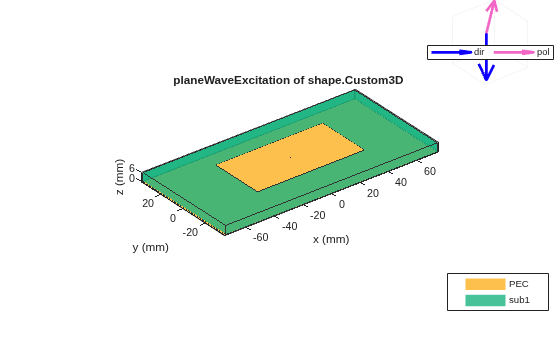

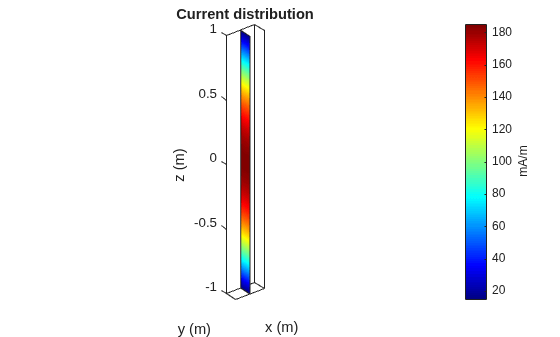

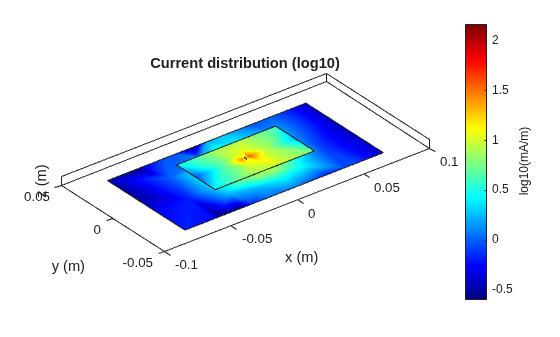

Plot the current distribution on the dipole antenna at 70 MHz.
Antenna Excited by Plane Wave in Arbitrary Direction
Consider a dipole excited by a plane wave.

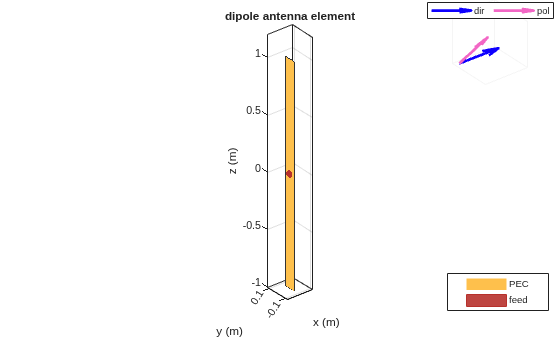

p = planeWaveExcitation; p.Direction = [0 1 1]; show(p)
For this antenna, the polarization and direction are not orthogonal to each other and thus any analysis errors out.
Use the cross-product function to find the appropriate polarization direction of such wave.

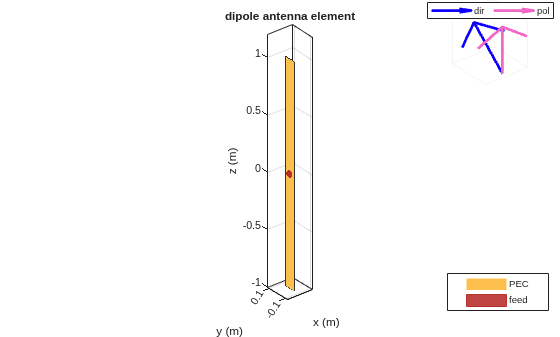

p = planeWaveExcitation; p.Polarization = cross(p.Direction,[0 1 1]); show(p)
Calculate the current distribution of the antenna.
Plane Wave Excitation of Infinite Array

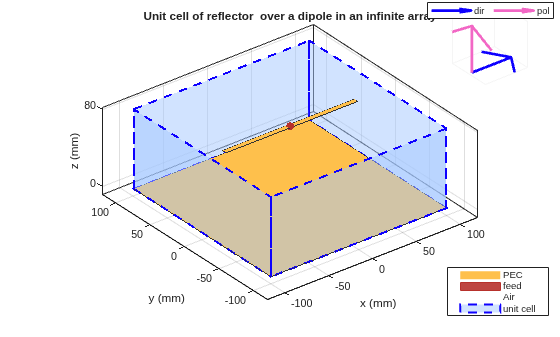

Excite an infinite array using a plane wave.
p = planeWaveExcitation(Element=infiniteArray)
p = planeWaveExcitation with properties: Element: [1x1 infiniteArray] Direction: [1 0 0] Polarization: [0 0 1] SolverType: 'MoM'
 Balanis, C. A. Antenna Theory. Analysis and Design. 3rd Ed. Hoboken, NJ: John Wiley & Sons, 2005.
Introduced in R2017a
