# augment

Augment audio data

## Syntax

``data = augment(aug,audioIn)``
``data = augment(aug,audioIn,fs)``

## Description

example

````data = augment(aug,audioIn)` returns a table containing augmented audio data and information about the augmentation applied.```

example

````data = augment(aug,audioIn,fs)` specifies the sample rate of the audio input.```

## Examples

collapse all

Read in an audio signal and listen to it.

```[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav"); sound(audioIn,fs)```

Create an `audioDataAugmenter` object that applies time stretching, volume control, and time shifting in cascade. Apply each of the augmentations with 80% probability. Set `NumAugmentations` to `5` to output five independently augmented signals. To skip pitch shifting and noise addition for each augmentation, set the respective probabilities to `0`. Define parameter ranges for each relevant augmentation algorithm.

```augmenter = audioDataAugmenter( ... "AugmentationMode","sequential", ... "NumAugmentations",5, ... ... "TimeStretchProbability",0.8, ... "SpeedupFactorRange", [1.3,1.4], ... ... "PitchShiftProbability",0, ... ... "VolumeControlProbability",0.8, ... "VolumeGainRange",[-5,5], ... ... "AddNoiseProbability",0, ... ... "TimeShiftProbability",0.8, ... "TimeShiftRange", [-500e-3,500e-3])```
```augmenter = audioDataAugmenter with properties: AugmentationMode: "sequential" AugmentationParameterSource: 'random' NumAugmentations: 5 TimeStretchProbability: 0.8000 SpeedupFactorRange: [1.3000 1.4000] PitchShiftProbability: 0 VolumeControlProbability: 0.8000 VolumeGainRange: [-5 5] AddNoiseProbability: 0 TimeShiftProbability: 0.8000 TimeShiftRange: [-0.5000 0.5000] ```

Call `augment` on the audio to create 5 augmentations. The augmented audio is returned in a table with variables `Audio` and `AugmentationInfo`. The number of rows in the table is defined by `NumAugmentations`.

`data = augment(augmenter,audioIn,fs)`
```data=5×2 table Audio AugmentationInfo _________________ ________________ {685056x1 double} 1x1 struct {685056x1 double} 1x1 struct {505183x1 double} 1x1 struct {685056x1 double} 1x1 struct {490728x1 double} 1x1 struct ```

In the current augmentation pipeline, augmentation parameters are assigned randomly from within the specified ranges. To determine the exact parameters used for an augmentation, inspect `AugmentationInfo`.

```augmentationToInspect = 4; data.AugmentationInfo(augmentationToInspect)```
```ans = struct with fields: SpeedupFactor: 1 VolumeGain: 4.3399 TimeShift: 0.4502 ```

Listen to the augmentation you are inspecting. Plot time representation of the original and augmented signals.

```augmentation = data.Audio{augmentationToInspect}; sound(augmentation,fs) t = (0:(numel(audioIn)-1))/fs; taug = (0:(numel(augmentation)-1))/fs; plot(t,audioIn,taug,augmentation) legend("Original Audio","Augmented Audio") ylabel("Amplitude") xlabel("Time (s)")```

Read in an audio signal and listen to it.

```[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav"); sound(audioIn,fs)```

Create an `audioDataAugmenter` object that applies time stretching, pitch shifting, and noise corruption in cascade. Specify the time stretch speedup factors as `0.9`, `1.1`, and `1.2`. Specify the pitch shifting in semitones as `-2`, `-1`, `1`, and `2`. Specify the noise corruption SNR as `10` dB and `15` dB.

```augmenter = audioDataAugmenter( ... "AugmentationMode","sequential", ... "AugmentationParameterSource","specify", ... "SpeedupFactor",[0.9,1.1,1.2], ... "ApplyTimeStretch",true, ... "ApplyPitchShift",true, ... "SemitoneShift",[-2,-1,1,2], ... "SNR",[10,15], ... "ApplyVolumeControl",false, ... "ApplyTimeShift",false)```
```augmenter = audioDataAugmenter with properties: AugmentationMode: "sequential" AugmentationParameterSource: "specify" ApplyTimeStretch: 1 SpeedupFactor: [0.9000 1.1000 1.2000] ApplyPitchShift: 1 SemitoneShift: [-2 -1 1 2] ApplyVolumeControl: 0 ApplyAddNoise: 1 SNR: [10 15] ApplyTimeShift: 0 ```

Call `augment` on the audio to create 24 augmentations. The augmentations represent every combination of the specified augmentation parameters ($3×4×2=24$).

`data = augment(augmenter,audioIn,fs)`
```data=24×2 table Audio AugmentationInfo _________________ ________________ {761243x1 double} 1x1 struct {622888x1 double} 1x1 struct {571263x1 double} 1x1 struct {761243x1 double} 1x1 struct {622888x1 double} 1x1 struct {571263x1 double} 1x1 struct {761243x1 double} 1x1 struct {622888x1 double} 1x1 struct {571263x1 double} 1x1 struct {761243x1 double} 1x1 struct {622888x1 double} 1x1 struct {571263x1 double} 1x1 struct {761243x1 double} 1x1 struct {622888x1 double} 1x1 struct {571263x1 double} 1x1 struct {761243x1 double} 1x1 struct ⋮ ```

You can check the parameter configuration of each augmentation using the `AugmentationInfo` table variable.

```augmentationToInspect = 1; data.AugmentationInfo(augmentationToInspect)```
```ans = struct with fields: SpeedupFactor: 0.9000 SemitoneShift: -2 SNR: 10 ```

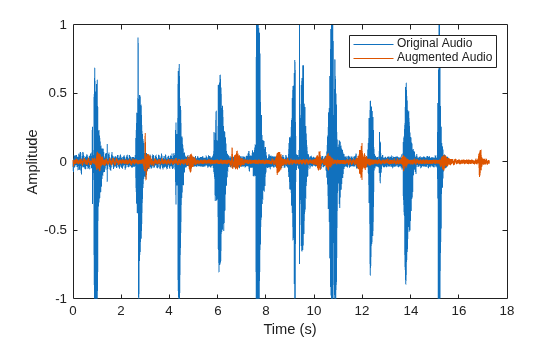

Listen to the augmentation you are inspecting. Plot the time-domain representation of the original and augmented signals.

```augmentation = data.Audio{augmentationToInspect}; sound(augmentation,fs) t = (0:(numel(audioIn)-1))/fs; taug = (0:(numel(augmentation)-1))/fs; plot(t,audioIn,taug,augmentation) legend("Original Audio","Augmented Audio") ylabel("Amplitude") xlabel("Time (s)")```

Read in an audio signal and listen to it.

`[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav");`

Create an `audioDataAugmenter` object that applies noise corruption, and time shifting in parallel branches. For the noise corruption branch, randomly apply noise with an SNR in the range `0` dB to `20` dB. For the time shifting branch, randomly apply time shifting in the range -`300` ms to `300` ms. Apply augmentation 2 times for each branch, for 4 total augmentations.

```augmenter = audioDataAugmenter( ... "AugmentationMode","independent", ... "AugmentationParameterSource","random", ... "NumAugmentations",2, ... "ApplyTimeStretch",false, ... "ApplyPitchShift",false, ... "ApplyVolumeControl",false, ... "SNRRange",[0,20], ... "TimeShiftRange",[-300e-3,300e-3])```
```augmenter = audioDataAugmenter with properties: AugmentationMode: "independent" AugmentationParameterSource: "random" NumAugmentations: 2 ApplyTimeStretch: 0 ApplyPitchShift: 0 ApplyVolumeControl: 0 ApplyAddNoise: 1 SNRRange: [0 20] ApplyTimeShift: 1 TimeShiftRange: [-0.3000 0.3000] ```

Call `augment` on the audio to create 3 augmentations.

```data = augment(augmenter,audioIn,fs); ```

You can check the parameter configuration of each augmentation using the `AugmentatioInfo` table variable.

```augmentationToInspect = 4; data.AugmentationInfo{augmentationToInspect}```
```ans = struct with fields: TimeShift: 0.0016 ```

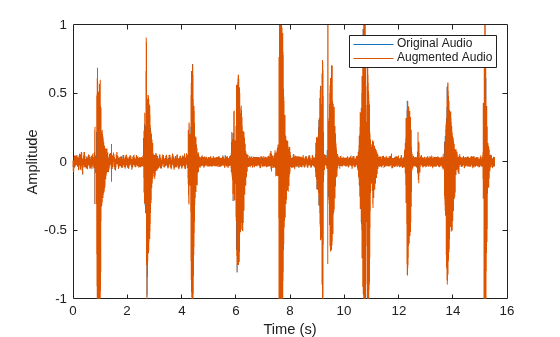

Listen to the audio you are inspecting. Plot the time-domain representation of the original and augmented signals.

```augmentation = data.Audio{augmentationToInspect}; sound(augmentation,fs) t = (0:(numel(audioIn)-1))/fs; taug = (0:(numel(augmentation)-1))/fs; plot(t,audioIn,taug,augmentation) legend("Original Audio","Augmented Audio") ylabel("Amplitude") xlabel("Time (s)")```

Read in an audio signal and listen to it.

`[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav");`

Create an `audioDataAugmenter` object that applies volume control, noise corruption, and time shifting in parallel branches.

```augmenter = audioDataAugmenter( ... "AugmentationMode","independent", ... "AugmentationParameterSource","specify", ... "ApplyTimeStretch",false, ... "ApplyPitchShift",false, ... "VolumeGain",2, ... "SNR",0, ... "TimeShift",2)```
```augmenter = audioDataAugmenter with properties: AugmentationMode: "independent" AugmentationParameterSource: "specify" ApplyTimeStretch: 0 ApplyPitchShift: 0 ApplyVolumeControl: 1 VolumeGain: 2 ApplyAddNoise: 1 SNR: 0 ApplyTimeShift: 1 TimeShift: 2 ```

Call `augment` on the audio to create 3 augmentations.

`data = augment(augmenter,audioIn,fs)`
```data=3×2 table Audio AugmentationInfo _________________ ________________ {685056x1 double} {1x1 struct} {685056x1 double} {1x1 struct} {685056x1 double} {1x1 struct} ```

You can check the parameter configuration of each augmentation using the `AugmentatioInfo` table variable.

```augmentationToInspect = 3; data.AugmentationInfo{augmentationToInspect}```
```ans = struct with fields: TimeShift: 2 ```

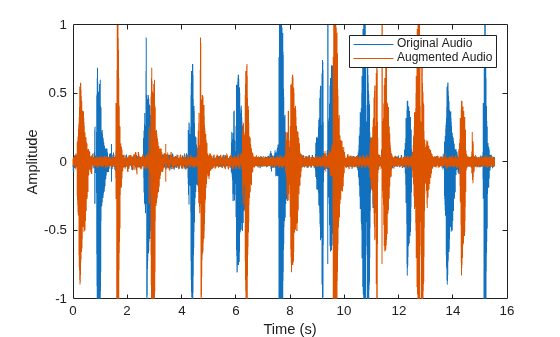

Listen to the audio you are inspecting. Plot the time-domain representations of the original and augmented signals.

```augmentation = data.Audio{augmentationToInspect}; sound(augmentation,fs) t = (0:(numel(audioIn)-1))/fs; taug = (0:(numel(augmentation)-1))/fs; plot(t,audioIn,taug,augmentation) legend("Original Audio","Augmented Audio") ylabel("Amplitude") xlabel("Time (s)")```

The `audioDataAugmenter` supports multiple workflows for augmenting your datastore, including:

• Offline augmentation

• Augmentation using tall arrays

• Augmentation using transform datastores

In each workflow, begin by creating an audio datastore to point to your audio data. In this example, you create an audio datastore that points to audio samples included with Audio Toolbox™. Count the number of files in the dataset.

```folder = fullfile(matlabroot,"toolbox","audio","samples"); ADS = audioDatastore(folder)```
```ADS = audioDatastore with properties: Files: { ' ...\matlab\toolbox\audio\samples\Ambiance-16-44p1-mono-12secs.wav'; ' ...\matlab\toolbox\audio\samples\AudioArray-16-16-4channels-20secs.wav'; ' ...\toolbox\audio\samples\ChurchImpulseResponse-16-44p1-mono-5secs.wav' ... and 26 more } AlternateFileSystemRoots: {} OutputDataType: 'double' Labels: {} ```
`numFilesInDataset = numel(ADS.Files)`
```numFilesInDataset = 29 ```

Create an `audioDataAugmenter` that applies random sequential augmentations. Set `NumAugmentations` to `2`.

`aug = audioDataAugmenter('NumAugmentations',2)`
```aug = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 2 TimeStretchProbability: 0.5000 SpeedupFactorRange: [0.8000 1.2000] PitchShiftProbability: 0.5000 SemitoneShiftRange: [-2 2] VolumeControlProbability: 0.5000 VolumeGainRange: [-3 3] AddNoiseProbability: 0.5000 SNRRange: [0 10] TimeShiftProbability: 0.5000 TimeShiftRange: [-0.0050 0.0050] ```

Offline Augmentation

To augment the audio dataset, create two augmentations of each file and then write the augmentations as WAV files.

```while hasdata(ADS) [audioIn,info] = read(ADS); data = augment(aug,audioIn,info.SampleRate); [~,fn] = fileparts(info.FileName); for i = 1:size(data,1) augmentedAudio = data.Audio{i}; % If augmentation caused an audio signal to have values outside of -1 and 1, % normalize the audio signal to avoid clipping when writing. if max(abs(augmentedAudio),[],'all')>1 augmentedAudio = augmentedAudio/max(abs(augmentedAudio),[],'all'); end audiowrite(sprintf('%s_aug%d.wav',fn,i),augmentedAudio,info.SampleRate) end end```

Create an `audioDatastore` that points to the augmented dataset and confirm that the number of files in the dataset is double the original number of files.

`augmentedADS = audioDatastore(pwd)`
```augmentedADS = audioDatastore with properties: Files: { ' ...\Examples\audio-ex28074079\Ambiance-16-44p1-mono-12secs_aug1.wav'; ' ...\Examples\audio-ex28074079\Ambiance-16-44p1-mono-12secs_aug2.wav'; ' ...\Examples\audio-ex28074079\AudioArray-16-16-4channels-20secs_aug1.wav' ... and 55 more } AlternateFileSystemRoots: {} OutputDataType: 'double' Labels: {} ```
`numFilesInAugmentedDataset = numel(augmentedADS.Files)`
```numFilesInAugmentedDataset = 58 ```

Augment Using Tall Arrays

When augmenting a dataset using tall arrays, the input data to the augmenter should be sampled at a consistent rate. Subset the original audio dataset to only include files with a sample rate of 44.1 kHz. Most datasets are already cleaned to have a consistent sample rate.

```keepFile = cellfun(@(x)contains(x,'44p1'),ADS.Files); ads44p1 = subset(ADS,keepFile); fs = 44.1e3;```

Convert the audio datastore to a tall array. `tall` arrays are evaluated only when you request them explicitly using `gather`. MATLAB® automatically optimizes the queued calculations by minimizing the number of passes through the data. If you have the Parallel Computing Toolbox™, you can spread the calculations across multiple machines. The audio data is represented as an M-by-1 tall cell array, where M is the number of files in the audio datastore.

`adsTall = tall(ads44p1)`
```Starting parallel pool (parpool) using the 'local' profile ... Connected to the parallel pool (number of workers: 6). adsTall = M×1 tall cell array { 539648×1 double} { 227497×1 double} { 8000×1 double} { 685056×1 double} { 882688×2 double} {1115760×2 double} { 505200×2 double} {3195904×2 double} : : : : ```

Define a `cellfun` function so that augmentation is applied to each cell of the tall array. Call `gather` to evaluate the tall array.

```augTall = cellfun(@(x)augment(aug,x,fs),adsTall,"UniformOutput",false); augmentedDataset = gather(augTall)```
```Evaluating tall expression using the Parallel Pool 'local': - Pass 1 of 1: Completed in 1 min 34 sec Evaluation completed in 1 min 34 sec ```
```augmentedDataset=12×1 cell array {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} {2×2 table} ```

The augmented dataset is returned as a numFiles-by-1 cell array, where numFiles is the number of files in the datastore. Each element of the cell array is a numAugmentationsPerFile-by-2 table, where numAugmentationsPerFile is the number of augmentations returned per file.

`numFiles = numel(augmentedDataset)`
```numFiles = 12 ```
`numAugmentationsPerFile = size(augmentedDataset{1},1)`
```numAugmentationsPerFile = 2 ```

Augment Using Transform Datastore

You can perform online data augmentation while you train your machine learning application using a transform datastore. Call `transform` to create a new datastore that applies data augmentation while reading.

`transformADS = transform(ADS,@(x,info)augment(aug,x,info),'IncludeInfo',true)`
```transformADS = TransformedDatastore with properties: UnderlyingDatastore: [1×1 audioDatastore] Transforms: {@(x,info)augment(aug,x,info)} IncludeInfo: 1 ```

Call `read` to return the augmented first file from the transform datastore.

`augmentedRead = read(transformADS)`
```augmentedRead=2×2 table Audio AugmentationInfo _________________ ________________ {539648×1 double} [1×1 struct] {586683×1 double} [1×1 struct] ```

## Input Arguments

collapse all

Audio input, specified as a column vector or matrix of independent channels (columns).

Data Types: `single` | `double`

Sample rate in Hz, specified as a positive scalar. The allowable range of `fs` depends on the properties of the `audioDataAugmenter` object.

Data Types: `single` | `double`

## Output Arguments

collapse all

Augmented audio and augmentation information, returned as a two-column `table`. The first column holds the augmented audio signal. The second column holds information about the applied augmentation methods. The number of rows in `data` corresponds to the number of output augmented signals. The number of output augmented signals depends on the property values of the object.
