ivectorSystem

Create i-vector system

Since R2021a

    Description

    i-vectors are compact statistical representations of identity extracted from audio signals. ivectorSystem creates a trainable i-vector system to extract i-vectors and perform classification tasks such as speaker recognition, speaker diarization, and sound classification. You can also determine thresholds for open set tasks and enroll labels into the system for both open and closed set classification.

    Creation

    Description

    ivs = ivectorSystem creates a default i-vector system. You can train the i-vector system to extract i-vectors and perform classification tasks.

    example

    ivs = ivectorSystem(Name=Value) specifies nondefault properties for ivs using one or more name-value arguments.

    example

    Properties

    expand all

    Input type, specified as "audio" or "features".

    • "audio" –– The i-vector system accepts mono audio signals as input. The audio data is processed to extract 20 mel frequency cepstral coefficients (MFCCs), delta MFCCs, and delta-delta MFCCs for 60 coefficients per frame.

      If InputType is set to "audio" when the i-vector system is created, the training data can be:

      • A cell array of single-channel audio signals, each specified as a column vector with underlying type single or double.

      • An audioDatastore object or a signalDatastore object that points to a data set of mono audio signals.

      • A TransformedDatastore with an underlying audioDatastore or signalDatastore that points to a data set of mono audio signals. The output from calls to read from the transform datastore must be mono audio signals with underlying data type single or double.

    • "features" –– The i-vector accepts pre-extracted audio features as input.

      If InputType is set to "features" when the i-vector system is created, the training data can be:

      The feature matrices must consist of audio features with underlying type single or double where the number of features (columns) is locked the first time trainExtractor is called and the number of hops (rows) is variable-sized. The number of features input in any subsequent calls to any of the object functions must be equal to the number of features used when calling trainExtractor.

    Example: ivs = ivectorSystem(InputType="audio")

    Data Types: char | string

    Sample rate of the audio input in Hz, specified as a positive scalar.

    Note

    The "SampleRate" property applies only when InputType is set to "audio".

    Example: ivs = ivectorSystem(InputType="audio",SampleRate=48000)

    Data Types: single | double

    Apply speech detection, specified as true or false. With DetectSpeech set to true, the i-vector system extracts features only from regions where speech is detected.

    Note

    The DetectSpeech property applies only when InputType is set to "audio".

    ivectorSystem uses the detectSpeech function to detect regions of speech.

    Example: ivs = ivectorSystem(InputType="audio",DetectSpeech=true)

    Data Types: logical | single | double

    Display training progress, specified as true or false. With Verbose set to true, the i-vector system displays the training progress in the command window or the Live Editor.

    Tip

    To toggle between verbose and non-verbose behavior, use dot notation to set the Verbose property between object function calls.

    Example: ivs = ivectorSystem(InputType="audio",Verbose=false)

    Data Types: logical | single | double

    This property is read-only.

    Table containing enrolled labels, specified as a table. Table row names correspond to labels and column names correspond to the template i-vector and the number of individual i-vectors used to generate the template i-vector. The number of i-vectors used to generate the template i-vector may be viewed as a measure of confidence in the template.

    • Use enroll to enroll new labels or update existing labels.

    • Use unenroll to remove labels from the system.

    Data Types: table

    Object Functions

    trainExtractorTrain i-vector extractor
    trainClassifierTrain i-vector classifier
    calibrateTrain i-vector system calibrator
    enrollEnroll labels
    unenrollUnenroll labels
    detectionErrorTradeoffEvaluate binary classification system
    verifyVerify label
    identifyIdentify label
    ivectorExtract i-vector
    infoReturn training configuration and data info
    addInfoHeaderAdd custom information about i-vector system
    releaseAllow property values and input characteristics to change

    Examples

    collapse all

    Use the Pitch Tracking Database from Graz University of Technology (PTDB-TUG) [1]. The data set consists of 20 English native speakers reading 2342 phonetically rich sentences from the TIMIT corpus. Download and extract the data set.

    downloadFolder = matlab.internal.examples.downloadSupportFile("audio","ptdb-tug.zip");
    dataFolder = tempdir;
    unzip(downloadFolder,dataFolder)
    dataset = fullfile(dataFolder,"ptdb-tug");

    Create an audioDatastore object that points to the data set. The data set was originally intended for use in pitch-tracking training and evaluation and includes laryngograph readings and baseline pitch decisions. Use only the original audio recordings.

    ads = audioDatastore([fullfile(dataset,"SPEECH DATA","FEMALE","MIC"),fullfile(dataset,"SPEECH DATA","MALE","MIC")], ...
                         IncludeSubfolders=true, ...
                         FileExtensions=".wav");

    The file names contain the speaker IDs. Decode the file names to set the labels in the audioDatastore object.

    ads.Labels = extractBetween(ads.Files,"mic_","_");
    countEachLabel(ads)
    ans=20×2 table
        Label    Count
        _____    _____

         F01      236
         F02      236
         F03      236
         F04      236
         F05      236
         F06      236
         F07      236
         F08      234
         F09      236
         F10      236
         M01      236
         M02      236
         M03      236
         M04      236
         M05      236
         M06      236
          ⋮



    Read an audio file from the data set, listen to it, and plot it.

    [audioIn,audioInfo] = read(ads);
    fs = audioInfo.SampleRate;

    t = (0:size(audioIn,1)-1)/fs;
    sound(audioIn,fs)
    plot(t,audioIn)
    xlabel("Time (s)")
    ylabel("Amplitude")
    axis([0 t(end) -1 1])
    title("Sample Utterance from Data Set")

    Separate the audioDatastore object into four: one for training, one for enrollment, one to evaluate the detection-error tradeoff, and one for testing. The training set contains 16 speakers. The enrollment, detection-error tradeoff, and test sets contain the other four speakers.

    speakersToTest = categorical(["M01","M05","F01","F05"]);

    adsTrain = subset(ads,~ismember(ads.Labels,speakersToTest));

    ads = subset(ads,ismember(ads.Labels,speakersToTest));
    [adsEnroll,adsTest,adsDET] = splitEachLabel(ads,3,1);

    Display the label distributions of the audioDatastore objects.

    countEachLabel(adsTrain)
    ans=16×2 table
        Label    Count
        _____    _____

         F02      236
         F03      236
         F04      236
         F06      236
         F07      236
         F08      234
         F09      236
         F10      236
         M02      236
         M03      236
         M04      236
         M06      236
         M07      236
         M08      236
         M09      236
         M10      236


    countEachLabel(adsEnroll)
    ans=4×2 table
        Label    Count
        _____    _____

         F01       3
         F05       3
         M01       3
         M05       3


    countEachLabel(adsTest)
    ans=4×2 table
        Label    Count
        _____    _____

         F01       1
         F05       1
         M01       1
         M05       1


    countEachLabel(adsDET)
    ans=4×2 table
        Label    Count
        _____    _____

         F01      232
         F05      232
         M01      232
         M05      232



    Create an i-vector system. By default, the i-vector system assumes the input to the system is mono audio signals.

    speakerVerification = ivectorSystem(SampleRate=fs)
    speakerVerification =
      ivectorSystem with properties:

             InputType: 'audio'
            SampleRate: 48000
          DetectSpeech: 1
               Verbose: 1
        EnrolledLabels: [0×2 table]



    To train the extractor of the i-vector system, call trainExtractor. Specify the number of universal background model (UBM) components as 128 and the number of expectation maximization iterations as 5. Specify the total variability space (TVS) rank as 64 and the number of iterations as 3.

    trainExtractor(speakerVerification,adsTrain, ...
        UBMNumComponents=128,UBMNumIterations=5, ...
        TVSRank=64,TVSNumIterations=3)
    Calculating standardization factors ....done.
    Training universal background model ........done.
    Training total variability space ......done.
    i-vector extractor training complete.


    To train the classifier of the i-vector system, use trainClassifier. To reduce dimensionality of the i-vectors, specify the number of eigenvectors in the projection matrix as 16. Specify the number of dimensions in the probabilistic linear discriminant analysis (PLDA) model as 16, and the number of iterations as 3.

    trainClassifier(speakerVerification,adsTrain,adsTrain.Labels, ...
        NumEigenvectors=16, ...
        PLDANumDimensions=16,PLDANumIterations=3)
    Extracting i-vectors ...done.
    Training projection matrix .....done.
    Training PLDA model ......done.
    i-vector classifier training complete.


    To calibrate the system so that scores can be interpreted as a measure of confidence in a positive decision, use calibrate.

    calibrate(speakerVerification,adsTrain,adsTrain.Labels)
    Extracting i-vectors ...done.
    Calibrating CSS scorer ...done.
    Calibrating PLDA scorer ...done.
    Calibration complete.


    To inspect parameters used previously to train the i-vector system, use info.

    info(speakerVerification)
    i-vector system input
      Input feature vector length: 60
      Input data type: double

    trainExtractor
      Train signals: 3774
      UBMNumComponents: 128
      UBMNumIterations: 5
      TVSRank: 64
      TVSNumIterations: 3

    trainClassifier
      Train signals: 3774
      Train labels: F02 (236), F03 (236) ... and 14 more
      NumEigenvectors: 16
      PLDANumDimensions: 16
      PLDANumIterations: 3

    calibrate
      Calibration signals: 3774
      Calibration labels: F02 (236), F03 (236) ... and 14 more


    Split the enrollment set.

    [adsEnrollPart1,adsEnrollPart2] = splitEachLabel(adsEnroll,1,2);

    To enroll speakers in the i-vector system, call enroll.

    enroll(speakerVerification,adsEnrollPart1,adsEnrollPart1.Labels)
    Extracting i-vectors ...done.
    Enrolling i-vectors .......done.
    Enrollment complete.


    When you enroll speakers, the read-only EnrolledLabels property is updated with the enrolled labels and corresponding template i-vectors. The table also keeps track of the number of signals used to create the template i-vector. Generally, using more signals results in a better template.

    speakerVerification.EnrolledLabels
    ans=4×2 table
                  ivector       NumSamples
               _____________    __________

        F01    {16×1 double}        1
        F05    {16×1 double}        1
        M01    {16×1 double}        1
        M05    {16×1 double}        1



    Enroll the second part of the enrollment set and then view the enrolled labels table again. The i-vector templates and the number of samples are updated.

    enroll(speakerVerification,adsEnrollPart2,adsEnrollPart2.Labels)
    Extracting i-vectors ...done.
    Enrolling i-vectors .......done.
    Enrollment complete.

    speakerVerification.EnrolledLabels
    ans=4×2 table
                  ivector       NumSamples
               _____________    __________

        F01    {16×1 double}        3
        F05    {16×1 double}        3
        M01    {16×1 double}        3
        M05    {16×1 double}        3



    To evaluate the i-vector system and determine a decision threshold for speaker verification, call detectionErrorTradeoff.

    [results, eerThreshold] = detectionErrorTradeoff(speakerVerification,adsDET,adsDET.Labels);
    Extracting i-vectors ...done.
    Scoring i-vector pairs ...done.
    Detection error tradeoff evaluation complete.


    The first output from detectionErrorTradeoff is a structure with two fields: CSS and PLDA. Each field contains a table. Each row of the table contains a possible decision threshold for speaker verification tasks, and the corresponding false acceptance rate (FAR) and false rejection rate (FRR). The FAR and FRR are determined using the enrolled speaker labels and the data input to the detectionErrorTradeoff function.

    results
    results = struct with fields:
        PLDA: [1000×3 table]
         CSS: [1000×3 table]


    results.CSS
    ans=1000×3 table
        Threshold       FAR      FRR
        __________    _______    ___

        2.3259e-10          1     0
        2.3965e-10    0.99964     0
        2.4693e-10    0.99928     0
        2.5442e-10    0.99928     0
        2.6215e-10    0.99928     0
         2.701e-10    0.99928     0
         2.783e-10    0.99928     0
        2.8675e-10    0.99928     0
        2.9545e-10    0.99928     0
        3.0442e-10    0.99928     0
        3.1366e-10    0.99928     0
        3.2318e-10    0.99928     0
        3.3299e-10    0.99928     0
         3.431e-10    0.99928     0
        3.5352e-10    0.99928     0
        3.6425e-10    0.99892     0
          ⋮


    results.PLDA
    ans=1000×3 table
        Threshold       FAR      FRR
        __________    _______    ___

        3.2661e-40          1     0
        3.6177e-40    0.99964     0
        4.0072e-40    0.99964     0
        4.4387e-40    0.99964     0
        4.9166e-40    0.99964     0
        5.4459e-40    0.99964     0
        6.0322e-40    0.99964     0
        6.6817e-40    0.99964     0
        7.4011e-40    0.99964     0
         8.198e-40    0.99964     0
        9.0806e-40    0.99964     0
        1.0058e-39    0.99964     0
        1.1141e-39    0.99964     0
        1.2341e-39    0.99964     0
        1.3669e-39    0.99964     0
        1.5141e-39    0.99964     0
          ⋮



    The second output from detectionErrorTradeoff is a structure with two fields: CSS and PLDA. The corresponding value is the decision threshold that results in the equal error rate (when FAR and FRR are equal).

    eerThreshold
    eerThreshold = struct with fields:
        PLDA: 0.0398
         CSS: 0.9369



    The first time you call detectionErrorTradeoff, you must provide data and corresponding labels to evaluate. Subsequently, you can get the same information, or a different analysis using the same underlying data, by calling detectionErrorTradeoff without data and labels.

    Call detectionErrorTradeoff a second time with no data arguments or output arguments to visualize the detection-error tradeoff.

    detectionErrorTradeoff(speakerVerification)

    Call detectionErrorTradeoff again. This time, visualize only the detection-error tradeoff for the PLDA scorer.

    detectionErrorTradeoff(speakerVerification,Scorer="plda")

    Depending on your application, you may want to use a threshold that weights the error cost of a false acceptance higher or lower than the error cost of a false rejection. You may also be using data that is not representative of the prior probability of the speaker being present. You can use the minDCF parameter to specify custom costs and prior probability. Call detectionErrorTradeoff again, this time specify the cost of a false rejection as 1, the cost of a false acceptance as 2, and the prior probability that a speaker is present as 0.1.

    costFR = 1;
    costFA = 2;
    priorProb = 0.1;
    detectionErrorTradeoff(speakerVerification,Scorer="plda",minDCF=[costFR,costFA,priorProb])

    Call detectionErrorTradeoff again. This time, get the minDCF threshold for the PLDA scorer and the parameters of the detection cost function.

    [~,minDCFThreshold] = detectionErrorTradeoff(speakerVerification,Scorer="plda",minDCF=[costFR,costFA,priorProb])
    minDCFThreshold = 0.4709


    Test Speaker Verification System

    Read a signal from the test set.

    adsTest = shuffle(adsTest);
    [audioIn,audioInfo] = read(adsTest);
    knownSpeakerID = audioInfo.Label
    knownSpeakerID = 1×1 cell array
        {'F01'}



    To perform speaker verification, call verify with the audio signal and specify the speaker ID, a scorer, and a threshold for the scorer. The verify function returns a logical value indicating whether a speaker identity is accepted or rejected, and a score indicating the similarity of the input audio and the template i-vector corresponding to the enrolled label.

    [tf,score] = verify(speakerVerification,audioIn,knownSpeakerID,"plda",eerThreshold.PLDA);
    if tf
        fprintf('Success!\nSpeaker accepted.\nSimilarity score = %0.2f\n\n',score)
    else
        fprinf('Failure!\nSpeaker rejected.\nSimilarity score = %0.2f\n\n',score)
    end
    Success!
    Speaker accepted.
    Similarity score = 1.00


    Call speaker verification again. This time, specify an incorrect speaker ID.

    possibleSpeakers = speakerVerification.EnrolledLabels.Properties.RowNames;
    imposterIdx = find(~ismember(possibleSpeakers,knownSpeakerID));
    imposter = possibleSpeakers(imposterIdx(randperm(numel(imposterIdx),1)))
    imposter = 1×1 cell array
        {'M05'}


    [tf,score] = verify(speakerVerification,audioIn,imposter,"plda",eerThreshold.PLDA);
    if tf
        fprintf('Failure!\nSpeaker accepted.\nSimilarity score = %0.2f\n\n',score)
    else
        fprintf('Success!\nSpeaker rejected.\nSimilarity score = %0.2f\n\n',score)
    end
    Success!
    Speaker rejected.
    Similarity score = 0.00


    References

    [1] Signal Processing and Speech Communication Laboratory. https://www.spsc.tugraz.at/databases-and-tools/ptdb-tug-pitch-tracking-database-from-graz-university-of-technology.html. Accessed 12 Dec. 2019.

    This example uses a 1.36 GB subset of the Common Voice data set from Mozilla [1]. The data set contains 48 kHz recordings of subjects speaking short sentences.

    Download the data set if it doesn't already exist and unzip it into tempdir.

    downloadFolder = matlab.internal.examples.downloadSupportFile("audio","commonvoice.zip");
    dataFolder = tempdir;
    unzip(downloadFolder,dataFolder);

    Ingest the train set using audioDatastore and, to speed up this example, keep only 20% of each of the speaker files.

    trainTable = readtable(dataFolder + fullfile("commonvoice","train","train.tsv"),FileType="text",Delimiter="tab");
    adsTrain = audioDatastore(append(fullfile(dataFolder,"commonvoice","train","clips",filesep),trainTable.path,".wav"));
    idx = splitlabels(trainTable.client_id,0.2);
    adsTrain = subset(adsTrain,idx{1});
    trainLabels = trainTable.client_id(idx{1});

    Ingest the validation set using audioDatastore.

    valTable = readtable(dataFolder + fullfile("commonvoice","validation","validation.tsv"),FileType="text",Delimiter="tab");
    valLabels = valTable.client_id;
    adsVal = audioDatastore(append(fullfile(dataFolder,"commonvoice","validation","clips",filesep),valTable.path,".wav"));

    Split the validation data set into enroll and test sets. Use two utterances for enrollment and the remaining for the test set. Also, exclude any speakers with less than 5 utterances. Generally, the more utterances you use for enrollment, the better the performance of the system. However, most practical applications are limited to a small set of enrollment utterances.

    labelCounts = countlabels(valLabels);

    labelsToExclude = labelCounts.Label(labelCounts.Count<5);
    idxs = splitlabels(valLabels,2,Exclude=labelsToExclude);

    adsEnroll = subset(adsVal,idxs{1});
    enrollLabels = valLabels(idxs{1});

    adsTest = subset(adsVal,idxs{2});
    testLabels = valLabels(idxs{2});

    Create an i-vector system that accepts feature input.

    fs = 48e3;
    iv = ivectorSystem(SampleRate=fs,InputType="features");

    Create an audioFeatureExtractor object to extract the gammatone cepstral coefficients (GTCC), the delta GTCC, the delta-delta GTCC, and the pitch from 50 ms periodic Hann windows with 45 ms overlap.

    afe = audioFeatureExtractor(...
        SampleRate=fs, ...
        Window=hann(round(0.05*fs),"periodic"), ...
        OverlapLength=round(0.045*fs), ...
        gtcc=true,gtccDelta=true,gtccDeltaDelta=true,pitch=true);

    Extract features from the train and enroll datastores.

    xTrain = extract(afe,adsTrain);
    xEnroll = extract(afe,adsEnroll);

    Train both the extractor and classifier using the training set.

    trainExtractor(iv,xTrain, ...
        UBMNumComponents=64, ...
        UBMNumIterations=5, ...
        TVSRank=32, ...
        TVSNumIterations=3);
    Calculating standardization factors .....done.
    Training universal background model ........done.
    Training total variability space ......done.
    i-vector extractor training complete.

    trainClassifier(iv,xTrain,trainLabels, ...
        NumEigenvectors=16, ...
        ...
        PLDANumDimensions=16, ...
        PLDANumIterations=5);
    Extracting i-vectors ...done.
    Training projection matrix .....done.
    Training PLDA model ........done.
    i-vector classifier training complete.


    To calibrate the system so that scores can be interpreted as a measure of confidence in a positive decision, use calibrate.

    calibrate(iv,xTrain,trainLabels)
    Extracting i-vectors ...done.
    Calibrating CSS scorer ...done.
    Calibrating PLDA scorer ...done.
    Calibration complete.


    Enroll the speakers from the enrollment set.

    enroll(iv,xEnroll,enrollLabels)
    Extracting i-vectors ...done.
    Enrolling i-vectors ...................done.
    Enrollment complete.


    Evaluate the file-level prediction accuracy on the test set.

    numCorrect = 0;
    reset(adsTest)
    for index = 1:numel(adsTest.Files)
        features = extract(afe,read(adsTest));

        results = identify(iv,features);

        trueLabel = testLabels(index);
        predictedLabel = results.Label(1);
        isPredictionCorrect = trueLabel==predictedLabel;

        numCorrect = numCorrect + isPredictionCorrect;
    end
    display("File Accuracy: " + round(100*numCorrect/numel(adsTest.Files),2) + " (%)")
        "File Accuracy: 97.92 (%)"


    References

    [1] Mozilla Common Voice

    Download and unzip the environment sound classification data set. This data set consists of recordings labeled as one of 10 different audio sound classes (ESC-10).

    loc = matlab.internal.examples.downloadSupportFile("audio","ESC-10.zip");
    unzip(loc,pwd)

    Create an audioDatastore object to manage the data and split it into training and validation sets. Call countEachLabel to display the distribution of sound classes and the number of unique labels.

    ads = audioDatastore(pwd,IncludeSubfolders=true,LabelSource="foldernames");
    countEachLabel(ads)
    ans=10×2 table
            Label         Count
        ______________    _____

        chainsaw           40
        clock_tick         40
        crackling_fire     40
        crying_baby        40
        dog                40
        helicopter         40
        rain               40
        rooster            38
        sea_waves          40
        sneezing           40



    Listen to one of the files.

    [audioIn,audioInfo] = read(ads);
    fs = audioInfo.SampleRate;
    sound(audioIn,fs)
    audioInfo.Label
    ans = categorical
         chainsaw



    Split the datastore into training and test sets.

    [adsTrain,adsTest] = splitEachLabel(ads,0.8);

    Create an audioFeatureExtractor to extract all possible features from the audio.

    afe = audioFeatureExtractor(SampleRate=fs, ...
        Window=hamming(round(0.03*fs),"periodic"), ...
        OverlapLength=round(0.02*fs));
    params = info(afe,"all");
    params = structfun(@(x)true,params,UniformOutput=false);
    set(afe,params);
    afe
    afe =
      audioFeatureExtractor with properties:

       Properties
                         Window: [1323×1 double]
                  OverlapLength: 882
                     SampleRate: 44100
                      FFTLength: []
        SpectralDescriptorInput: 'linearSpectrum'
            FeatureVectorLength: 862

       Enabled Features
         linearSpectrum, melSpectrum, barkSpectrum, erbSpectrum, mfcc, mfccDelta
         mfccDeltaDelta, gtcc, gtccDelta, gtccDeltaDelta, spectralCentroid, spectralCrest
         spectralDecrease, spectralEntropy, spectralFlatness, spectralFlux, spectralKurtosis, spectralRolloffPoint
         spectralSkewness, spectralSlope, spectralSpread, pitch, harmonicRatio, zerocrossrate
         shortTimeEnergy

       Disabled Features
         none


       To extract a feature, set the corresponding property to true.
       For example, obj.mfcc = true, adds mfcc to the list of enabled features.



    Create two directories in your current folder: train and test. Extract features from the training and the test data sets and write the features as MAT files to the respective directories. Pre-extracting features can save time when you want to evaluate different feature combinations or training configurations.

    if ~isdir("train")
        mkdir("train")
        mkdir("test")

        outputType = ".mat";
        writeall(adsTrain,"train",WriteFcn=@(x,y,z)writeFeatures(x,y,z,afe))
        writeall(adsTest,"test",WriteFcn=@(x,y,z)writeFeatures(x,y,z,afe))
    end

    Create signal datastores to point to the audio features.

    sdsTrain = signalDatastore("train",IncludeSubfolders=true);
    sdsTest = signalDatastore("test",IncludeSubfolders=true);

    Create label arrays that are in the same order as the signalDatastore files.

    labelsTrain = categorical(extractBetween(sdsTrain.Files,"ESC-10"+filesep,filesep));
    labelsTest = categorical(extractBetween(sdsTest.Files,"ESC-10"+filesep,filesep));

    Create a transform datastore from the signal datastores to isolate and use only the desired features. You can use the output from info on the audioFeatureExtractor to map your chosen features to the index in the features matrix. You can experiment with the example by choosing different features.

    featureIndices = info(afe)
    featureIndices = struct with fields:
              linearSpectrum: [1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 … ]
                 melSpectrum: [663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694]
                barkSpectrum: [695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726]
                 erbSpectrum: [727 728 729 730 731 732 733 734 735 736 737 738 739 740 741 742 743 744 745 746 747 748 749 750 751 752 753 754 755 756 757 758 759 760 761 762 763 764 765 766 767 768 769]
                        mfcc: [770 771 772 773 774 775 776 777 778 779 780 781 782]
                   mfccDelta: [783 784 785 786 787 788 789 790 791 792 793 794 795]
              mfccDeltaDelta: [796 797 798 799 800 801 802 803 804 805 806 807 808]
                        gtcc: [809 810 811 812 813 814 815 816 817 818 819 820 821]
                   gtccDelta: [822 823 824 825 826 827 828 829 830 831 832 833 834]
              gtccDeltaDelta: [835 836 837 838 839 840 841 842 843 844 845 846 847]
            spectralCentroid: 848
               spectralCrest: 849
            spectralDecrease: 850
             spectralEntropy: 851
            spectralFlatness: 852
                spectralFlux: 853
            spectralKurtosis: 854
        spectralRolloffPoint: 855
            spectralSkewness: 856
               spectralSlope: 857
              spectralSpread: 858
                       pitch: 859
               harmonicRatio: 860
               zerocrossrate: 861
             shortTimeEnergy: 862


    idxToUse = [...
        featureIndices.harmonicRatio ...
        ,featureIndices.spectralRolloffPoint ...
        ,featureIndices.spectralFlux ...
        ,featureIndices.spectralSlope ...
        ];
    tdsTrain = transform(sdsTrain,@(x)x(:,idxToUse));
    tdsTest = transform(sdsTest,@(x)x(:,idxToUse));

    Create an i-vector system that accepts feature input.

    soundClassifier = ivectorSystem(InputType="features");

    Train the extractor and classifier using the training set.

    trainExtractor(soundClassifier,tdsTrain,UBMNumComponents=128,TVSRank=64);
    Calculating standardization factors ....done.
    Training universal background model .....done.
    Training total variability space ......done.
    i-vector extractor training complete.

    trainClassifier(soundClassifier,tdsTrain,labelsTrain,NumEigenvectors=32,PLDANumIterations=0)
    Extracting i-vectors ...done.
    Training projection matrix .....done.
    i-vector classifier training complete.


    Enroll the labels from the training set to create i-vector templates for each of the environmental sounds.

    enroll(soundClassifier,tdsTrain,labelsTrain)
    Extracting i-vectors ...done.
    Enrolling i-vectors .............done.
    Enrollment complete.


    Calibrate the i-vector system.

    calibrate(soundClassifier,tdsTrain,labelsTrain)
    Extracting i-vectors ...done.
    Calibrating CSS scorer ...done.
    Calibration complete.


    Use the identify function on the test set to return the system's inferred label.

    inferredLabels = labelsTest;
    inferredLabels(:) = inferredLabels(1);
    for ii = 1:numel(labelsTest)
        features = read(tdsTest);
        tableOut = identify(soundClassifier,features,"css",NumCandidates=1);
        inferredLabels(ii) = tableOut.Label(1);
    end

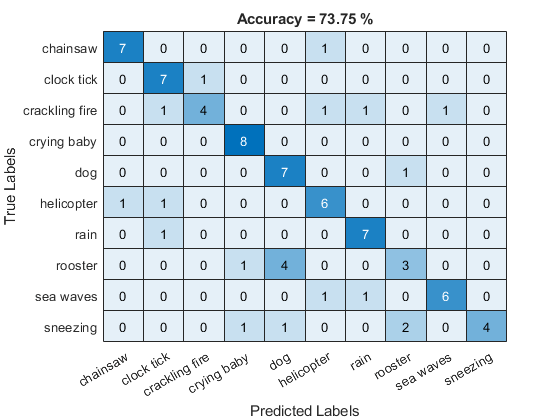

    Create a confusion matrix to visualize performance on the test set.

    uniqueLabels = unique(labelsTest);
    cm = zeros(numel(uniqueLabels),numel(uniqueLabels));
    for ii = 1:numel(uniqueLabels)
        for jj = 1:numel(uniqueLabels)
            cm(ii,jj) = sum((labelsTest==uniqueLabels(ii)) & (inferredLabels==uniqueLabels(jj)));
        end
    end
    labelStrings = replace(string(uniqueLabels),"_"," ");
    heatmap(labelStrings,labelStrings,cm)
    colorbar off
    ylabel("True Labels")
    xlabel("Predicted Labels")
    accuracy = mean(inferredLabels==labelsTest);
    title(sprintf("Accuracy = %0.2f %%",accuracy*100))

    Release the i-vector system.

    release(soundClassifier)

    Supporting Functions

    function writeFeatures(audioIn,info,~,afe)
        % Convert to single-precision
        audioIn = single(audioIn);

        % Extract features
        features = extract(afe,audioIn);

        % Replace the file extension of the suggested output name with MAT.
        filename = strrep(info.SuggestedOutputName,".wav",".mat");

        % Save the MFCC coefficients to the MAT file.
        save(filename,"features")
    end

    Download and unzip the air compressor data set [1]. This data set consists of recordings from air compressors in a healthy state or one of seven faulty states.

    loc = matlab.internal.examples.downloadSupportFile("audio", ...
        "AirCompressorDataset/AirCompressorDataset.zip");
    unzip(loc,pwd)

    Create an audioDatastore object to manage the data and split it into training and validation sets.

    ads = audioDatastore(pwd,IncludeSubfolders=true,LabelSource="foldernames");

    [adsTrain,adsTest] = splitEachLabel(ads,0.8,0.2);

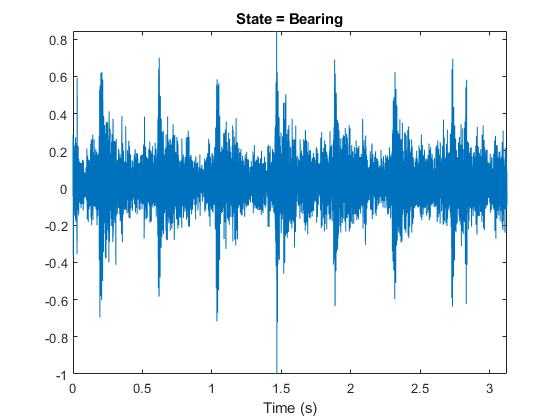

    Read an audio file from the datastore and save the sample rate. Listen to the audio signal and plot the signal in the time domain.

    [x,fileInfo] = read(adsTrain);
    fs = fileInfo.SampleRate;

    sound(x,fs)

    t = (0:size(x,1)-1)/fs;
    plot(t,x)
    xlabel("Time (s)")
    title("State = " + string(fileInfo.Label))
    axis tight

    Create an i-vector system with DetectSpeech set to false. Turn off the verbose behavior.

    faultRecognizer = ivectorSystem(SampleRate=fs,DetectSpeech=false, ...
        Verbose=false)
    faultRecognizer =
      ivectorSystem with properties:

             InputType: 'audio'
            SampleRate: 16000
          DetectSpeech: 0
               Verbose: 0
        EnrolledLabels: [0×2 table]



    Train the i-vector extractor and the i-vector classifier using the training datastore.

    trainExtractor(faultRecognizer,adsTrain, ...
        UBMNumComponents=80, ...
        UBMNumIterations=3, ...
        ...
        TVSRank=40, ...
        TVSNumIterations=3)

    trainClassifier(faultRecognizer,adsTrain,adsTrain.Labels, ...
        NumEigenvectors=7, ...
        ...
        PLDANumDimensions=32, ...
        PLDANumIterations=5)

    Calibrate the scores output by faultRecognizer so they can be interpreted as a measure of confidence in a positive decision. Turn the verbose behavior back on. Enroll all of the labels from the training set.

    calibrate(faultRecognizer,adsTrain,adsTrain.Labels)

    faultRecognizer.Verbose = true;

    enroll(faultRecognizer,adsTrain,adsTrain.Labels)
    Extracting i-vectors ...done.
    Enrolling i-vectors ...........done.
    Enrollment complete.


    Use the read-only property EnrolledLabels to view the enrolled labels and the corresponding i-vector templates.

    faultRecognizer.EnrolledLabels
    ans=8×2 table
                       ivector       NumSamples
                     ____________    __________

        Bearing      {7×1 double}       180
        Flywheel     {7×1 double}       180
        Healthy      {7×1 double}       180
        LIV          {7×1 double}       180
        LOV          {7×1 double}       180
        NRV          {7×1 double}       180
        Piston       {7×1 double}       180
        Riderbelt    {7×1 double}       180



    Use the identify function with the PLDA scorer to predict the condition of machines in the test set. The identify function returns a table of possible labels sorted in descending order of confidence.

    [audioIn,audioInfo] = read(adsTest);
    trueLabel = audioInfo.Label
    trueLabel = categorical
         Bearing


    predictedLabels = identify(faultRecognizer,audioIn,"plda")
    predictedLabels=8×2 table
          Label        Score
        _________    __________

        Bearing         0.99997
        Flywheel      2.265e-05
        Piston       8.6076e-08
        LIV          1.4237e-15
        NRV          4.5529e-16
        Riderbelt    3.7359e-16
        LOV          6.3025e-19
        Healthy      4.2094e-30



    By default, the identify function returns all possible candidate labels and their corresponding scores. Use NumCandidates to reduce the number of candidates returned.

    results = identify(faultRecognizer,audioIn,"plda",NumCandidates=3)
    results=3×2 table
         Label        Score
        ________    __________

        Bearing        0.99997
        Flywheel     2.265e-05
        Piston      8.6076e-08



    References

    [1] Verma, Nishchal K., et al. “Intelligent Condition Based Monitoring Using Acoustic Signals for Air Compressors.” IEEE Transactions on Reliability, vol. 65, no. 1, Mar. 2016, pp. 291–309. DOI.org (Crossref), doi:10.1109/TR.2015.2459684.

    Download the Berlin Database of Emotional Speech [1]. The database contains 535 utterances spoken by 10 actors intended to convey one of the following emotions: anger, boredom, disgust, anxiety/fear, happiness, sadness, or neutral. The emotions are text independent.

    url = "http://emodb.bilderbar.info/download/download.zip";
    downloadFolder = tempdir;
    datasetFolder = fullfile(downloadFolder,"Emo-DB");

    if ~exist(datasetFolder,"dir")
        disp("Downloading Emo-DB (40.5 MB) ...")
        unzip(url,datasetFolder)
    end

    Create an audioDatastore that points to the audio files.

    ads = audioDatastore(fullfile(datasetFolder,"wav"));

    The file names are codes indicating the speaker id, text spoken, emotion, and version. The website contains a key for interpreting the code and additional information about the speakers such as gender and age. Create a table with the variables Speaker and Emotion. Decode the file names into the table.

    filepaths = ads.Files;
    emotionCodes = cellfun(@(x)x(end-5),filepaths,"UniformOutput",false);
    emotions = replace(emotionCodes,{'W','L','E','A','F','T','N'}, ...
        {'Anger','Boredom','Disgust','Anxiety','Happiness','Sadness','Neutral'});

    speakerCodes = cellfun(@(x)x(end-10:end-9),filepaths,"UniformOutput",false);
    labelTable = table(categorical(speakerCodes),categorical(emotions),VariableNames=["Speaker","Emotion"]);
    summary(labelTable)
    Variables:

        Speaker: 535×1 categorical

            Values:

                03       49
                08       58
                09       43
                10       38
                11       55
                12       35
                13       61
                14       69
                15       56
                16       71

        Emotion: 535×1 categorical

            Values:

                Anger          127
                Anxiety         69
                Boredom         81
                Disgust         46
                Happiness       71
                Neutral         79
                Sadness         62


    labelTable is in the same order as the files in audioDatastore. Set the Labels property of the audioDatastore to labelTable.

    ads.Labels = labelTable;

    Read a signal from the datastore and listen to it. Display the speaker ID and emotion of the audio signal.

    [audioIn,audioInfo] = read(ads);
    fs = audioInfo.SampleRate;
    sound(audioIn,fs)
    audioInfo.Label
    ans=1×2 table
        Speaker     Emotion
        _______    _________

          03       Happiness



    Split the datastore into a training set and a test set. Assign two speakers to the test set and the remaining to the training set.

    testSpeakerIdx = ads.Labels.Speaker=="12" | ads.Labels.Speaker=="13";
    adsTrain = subset(ads,~testSpeakerIdx);
    adsTest = subset(ads,testSpeakerIdx);

    Read all the training and testing audio data into cell arrays. If your data can fit in memory, training is usually faster to input cell arrays to an i-vector system rather than datastores.

    trainSet = readall(adsTrain);
    trainLabels = adsTrain.Labels.Emotion;
    testSet = readall(adsTest);
    testLabels = adsTest.Labels.Emotion;

    Create an i-vector system that does not apply speech detection. When DetectSpeech is set to true (the default), only regions of detected speech are used to train the i-vector system. When DetectSpeech is set to false, the entire input audio is used to train the i-vector system. The usefulness of applying speech detection depends on the data input to the system.

    emotionRecognizer = ivectorSystem(SampleRate=fs,DetectSpeech=false)
    emotionRecognizer =
      ivectorSystem with properties:

             InputType: 'audio'
            SampleRate: 16000
          DetectSpeech: 0
               Verbose: 1
        EnrolledLabels: [0×2 table]



    Call trainExtractor using the training set.

    rng default
    trainExtractor(emotionRecognizer,trainSet, ...
        UBMNumComponents =256, ...
        UBMNumIterations =5, ...
        ...
        TVSRank = 128, ...
        TVSNumIterations =5);
    Calculating standardization factors .....done.
    Training universal background model ........done.
    Training total variability space ........done.
    i-vector extractor training complete.


    Copy the emotion recognition system for use later in the example.

    sentimentRecognizer = copy(emotionRecognizer);

    Call trainClassifier using the training set.

    rng default
    trainClassifier(emotionRecognizer,trainSet,trainLabels, ...
        NumEigenvectors =32, ...
        ...
        PLDANumDimensions =16, ...
        PLDANumIterations =10);
    Extracting i-vectors ...done.
    Training projection matrix .....done.
    Training PLDA model .............done.
    i-vector classifier training complete.


    Call calibrate using the training set. In practice, the calibration set should be different than the training set.

    calibrate(emotionRecognizer,trainSet,trainLabels)
    Extracting i-vectors ...done.
    Calibrating CSS scorer ...done.
    Calibrating PLDA scorer ...done.
    Calibration complete.


    Enroll the training labels into the i-vector system.

    enroll(emotionRecognizer,trainSet,trainLabels)
    Extracting i-vectors ...done.
    Enrolling i-vectors ..........done.
    Enrollment complete.


    You can use detectionErrorTradeoff as a quick sanity check on the performance of a multilabel closed-set classification system. However, detectionErrorTradeoff provides information more suitable to open-set binary classification problems, for example, speaker verification tasks.

    detectionErrorTradeoff(emotionRecognizer,testSet,testLabels)
    Extracting i-vectors ...done.
    Scoring i-vector pairs ...done.
    Detection error tradeoff evaluation complete.


    For a more detailed view of the i-vector system's performance in a multilabel closed set application, you can use the identify function and create a confusion matrix. The confusion matrix enables you to identify which emotions are misidentified and what they are misidentified as. Use the supporting function plotConfusion to display the results.

    trueLabels = testLabels;
    predictedLabels = trueLabels;
    scorer = "plda";
    for ii = 1:numel(testSet)
        tableOut = identify(emotionRecognizer,testSet{ii},scorer);
        predictedLabels(ii) = tableOut.Label(1);
    end

    plotConfusion(trueLabels,predictedLabels)

    Call info to inspect how emotionRecognizer was trained and evaluated.

    info(emotionRecognizer)
    i-vector system input
      Input feature vector length: 60
      Input data type: double

    trainExtractor
      Train signals: 439
      UBMNumComponents: 256
      UBMNumIterations: 5
      TVSRank: 128
      TVSNumIterations: 5

    trainClassifier
      Train signals: 439
      Train labels: Anger (103), Anxiety (56) ... and 5 more
      NumEigenvectors: 32
      PLDANumDimensions: 16
      PLDANumIterations: 10

    calibrate
      Calibration signals: 439
      Calibration labels: Anger (103), Anxiety (56) ... and 5 more

    detectionErrorTradeoff
      Evaluation signals: 96
      Evaluation labels: Anger (24), Anxiety (13) ... and 5 more


    Next, modify the i-vector system to recognize emotions as positive, neutral, or negative. Update the labels to only include the categories negative, positive, and categorical.

    trainLabelsSentiment = trainLabels;
    trainLabelsSentiment(ismember(trainLabels,categorical(["Anger","Anxiety","Boredom","Sadness","Disgust"]))) = categorical("Negative");
    trainLabelsSentiment(ismember(trainLabels,categorical("Happiness"))) = categorical("Positive");
    trainLabelsSentiment = removecats(trainLabelsSentiment);

    testLabelsSentiment = testLabels;
    testLabelsSentiment(ismember(testLabels,categorical(["Anger","Anxiety","Boredom","Sadness","Disgust"]))) = categorical("Negative");
    testLabelsSentiment(ismember(testLabels,categorical("Happiness"))) = categorical("Positive");
    testLabelsSentiment = removecats(testLabelsSentiment);

    Train the i-vector system classifier using the updated labels. You do not need to retrain the extractor. Recalibrate the system.

    rng default
    trainClassifier(sentimentRecognizer,trainSet,trainLabelsSentiment, ...
        NumEigenvectors =64, ...
        ...
        PLDANumDimensions =32, ...
        PLDANumIterations =10);
    Extracting i-vectors ...done.
    Training projection matrix .....done.
    Training PLDA model .............done.
    i-vector classifier training complete.

    calibrate(sentimentRecognizer,trainSet,trainLabels)
    Extracting i-vectors ...done.
    Calibrating CSS scorer ...done.
    Calibrating PLDA scorer ...done.
    Calibration complete.


    Enroll the training labels into the system and then plot the confusion matrix for the test set.

    enroll(sentimentRecognizer,trainSet,trainLabelsSentiment)
    Extracting i-vectors ...done.
    Enrolling i-vectors ......done.
    Enrollment complete.

    trueLabels = testLabelsSentiment;
    predictedLabels = trueLabels;
    scorer = "plda";
    for ii = 1:numel(testSet)
        tableOut = identify(sentimentRecognizer,testSet{ii},scorer);
        predictedLabels(ii) = tableOut.Label(1);
    end

    plotConfusion(trueLabels,predictedLabels)

    An i-vector system does not require the labels used to train the classifier to be equal to the enrolled labels.

    Unenroll the sentiment labels from the system and then enroll the original emotion categories in the system. Analyze the system's classification performance.

    unenroll(sentimentRecognizer)
    enroll(sentimentRecognizer,trainSet,trainLabels)
    Extracting i-vectors ...done.
    Enrolling i-vectors ..........done.
    Enrollment complete.

    trueLabels = testLabels;
    predictedLabels = trueLabels;
    scorer = "plda";
    for ii = 1:numel(testSet)
        tableOut = identify(sentimentRecognizer,testSet{ii},scorer);
        predictedLabels(ii) = tableOut.Label(1);
    end

    plotConfusion(trueLabels,predictedLabels)

    Supporting Functions

    function plotConfusion(trueLabels,predictedLabels)
    uniqueLabels = unique(trueLabels);
    cm = zeros(numel(uniqueLabels),numel(uniqueLabels));
    for ii = 1:numel(uniqueLabels)
        for jj = 1:numel(uniqueLabels)
            cm(ii,jj) = sum((trueLabels==uniqueLabels(ii)) & (predictedLabels==uniqueLabels(jj)));
        end
    end

    heatmap(uniqueLabels,uniqueLabels,cm)
    colorbar off
    ylabel('True Labels')
    xlabel('Predicted Labels')
    accuracy = mean(trueLabels==predictedLabels);
    title(sprintf("Accuracy = %0.2f %%",accuracy*100))
    end

    References

    [1] Burkhardt, F., A. Paeschke, M. Rolfes, W.F. Sendlmeier, and B. Weiss, "A Database of German Emotional Speech." In Proceedings Interspeech 2005. Lisbon, Portugal: International Speech Communication Association, 2005.

    An i-vector system consists of a trainable front end that learns how to extract i-vectors based on unlabeled data, and a trainable backend that learns how to classify i-vectors based on labeled data. In this example, you apply an i-vector system to the task of word recognition. First, evaluate the accuracy of the i-vector system using the classifiers included in a traditional i-vector system: probabilistic linear discriminant analysis (PLDA) and cosine similarity scoring (CSS). Next, evaluate the accuracy of the system if you replace the classifier with bidirectional long short-term memory (BiLSTM) network or a K-nearest neighbors classifier.

    Create Training and Validation Sets

    Download the Free Spoken Digit Dataset (FSDD) [1]. FSDD consists of short audio files with spoken digits (0-9).

    loc = matlab.internal.examples.downloadSupportFile("audio","FSDD.zip");
    unzip(loc,pwd)

    Create an audioDatastore to point to the recordings. Get the sample rate of the data set.

    ads = audioDatastore(pwd,IncludeSubfolders=true);
    [~,adsInfo] = read(ads);
    fs = adsInfo.SampleRate;

    The first element of the file names is the digit spoken in the file. Get the first element of the file names, convert them to categorical, and then set the Labels property of the audioDatastore.

    [~,filenames] = cellfun(@(x)fileparts(x),ads.Files,UniformOutput=false);
    ads.Labels = categorical(string(cellfun(@(x)x(1),filenames)));

    To split the datastore into a development set and a validation set, use splitEachLabel. Allocate 80% of the data for development and the remaining 20% for validation.

    [adsTrain,adsValidation] = splitEachLabel(ads,0.8);

    Evaluate Traditional i-vector Backend Performance

    Create an i-vector system that expects audio input at a sample rate of 8 kHz and does not perform speech detection.

    wordRecognizer = ivectorSystem(DetectSpeech=false,SampleRate=fs)
    wordRecognizer =
      ivectorSystem with properties:

             InputType: 'audio'
            SampleRate: 8000
          DetectSpeech: 0
               Verbose: 1
        EnrolledLabels: [0×2 table]



    Train the i-vector extractor using the data in the training set.

    trainExtractor(wordRecognizer,adsTrain, ...
        UBMNumComponents=64, ...
        UBMNumIterations=5, ...
        ...
        TVSRank=32, ...
        TVSNumIterations=5);
    Calculating standardization factors ....done.
    Training universal background model ........done.
    Training total variability space ........done.
    i-vector extractor training complete.


    Train the i-vector classifier using the data in the training data set and the corresponding labels.

    trainClassifier(wordRecognizer,adsTrain,adsTrain.Labels, ...
        NumEigenvectors=10, ...
        ...
        PLDANumDimensions=10, ...
        PLDANumIterations=5);
    Extracting i-vectors ...done.
    Training projection matrix .....done.
    Training PLDA model ........done.
    i-vector classifier training complete.


    Calibrate the scores output by wordRecognizer so they can be interpreted as a measure of confidence in a positive decision. Enroll labels into the system using the entire training set.

    calibrate(wordRecognizer,adsTrain,adsTrain.Labels)
    Extracting i-vectors ...done.
    Calibrating CSS scorer ...done.
    Calibrating PLDA scorer ...done.
    Calibration complete.

    enroll(wordRecognizer,adsTrain,adsTrain.Labels)
    Extracting i-vectors ...done.
    Enrolling i-vectors .............done.
    Enrollment complete.


    In a loop, read audio from the validation datastore, identify the most-likely word present according to the specified scorer, and save the prediction for analysis.

    trueLabels = adsValidation.Labels;
    predictedLabels = trueLabels;

    reset(adsValidation)

    scorer = "plda";
    for ii = 1:numel(trueLabels)

        audioIn = read(adsValidation);

        to = identify(wordRecognizer,audioIn,scorer);

        predictedLabels(ii) = to.Label(1);

    end

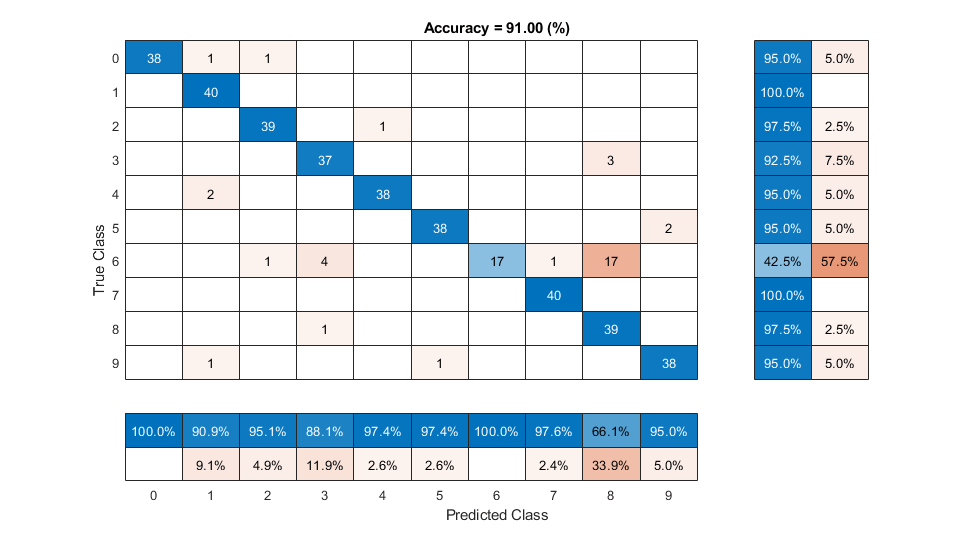

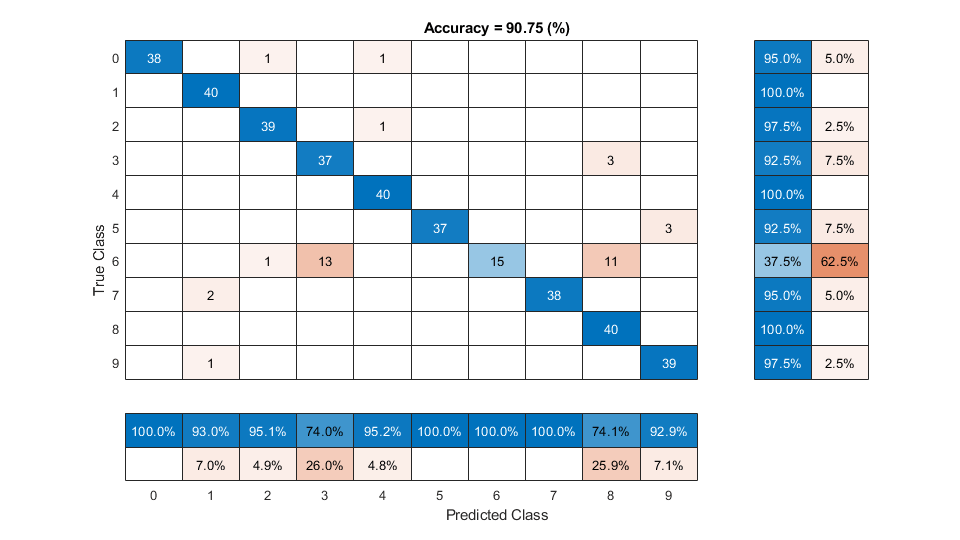

    Display a confusion chart of the i-vector system's performance on the validation set.

    figure(Units="normalized",Position=[0.2 0.2 0.5 0.5])
    confusionchart(trueLabels,predictedLabels, ...
        ColumnSummary="column-normalized", ...
        RowSummary="row-normalized", ...
        Title=sprintf('Accuracy = %0.2f (%%)',100*mean(predictedLabels==trueLabels)))

    Evaluate Deep Learning Backend Performance

    Next, train a fully-connected network using i-vectors as input.

    ivectorsTrain = (ivector(wordRecognizer,adsTrain))';
    ivectorsValidation = (ivector(wordRecognizer,adsValidation))';

    Define a fully connected network.

    layers = [ ...
        featureInputLayer(size(ivectorsTrain,2),Normalization="none")
        fullyConnectedLayer(128)
        dropoutLayer(0.4)
        fullyConnectedLayer(256)
        dropoutLayer(0.4)
        fullyConnectedLayer(256)
        dropoutLayer(0.4)
        fullyConnectedLayer(128)
        dropoutLayer(0.4)
        fullyConnectedLayer(numel(unique(adsTrain.Labels)))
        softmaxLayer
        classificationLayer];

    Define training parameters.

    miniBatchSize = 256;
    validationFrequency = floor(numel(adsTrain.Labels)/miniBatchSize);
    options = trainingOptions("adam", ...
        MaxEpochs=10, ...
        MiniBatchSize=miniBatchSize, ...
        Plots="training-progress", ...
        Verbose=false, ...
        Shuffle="every-epoch", ...
        ValidationData={ivectorsValidation,adsValidation.Labels}, ...
        ValidationFrequency=validationFrequency);

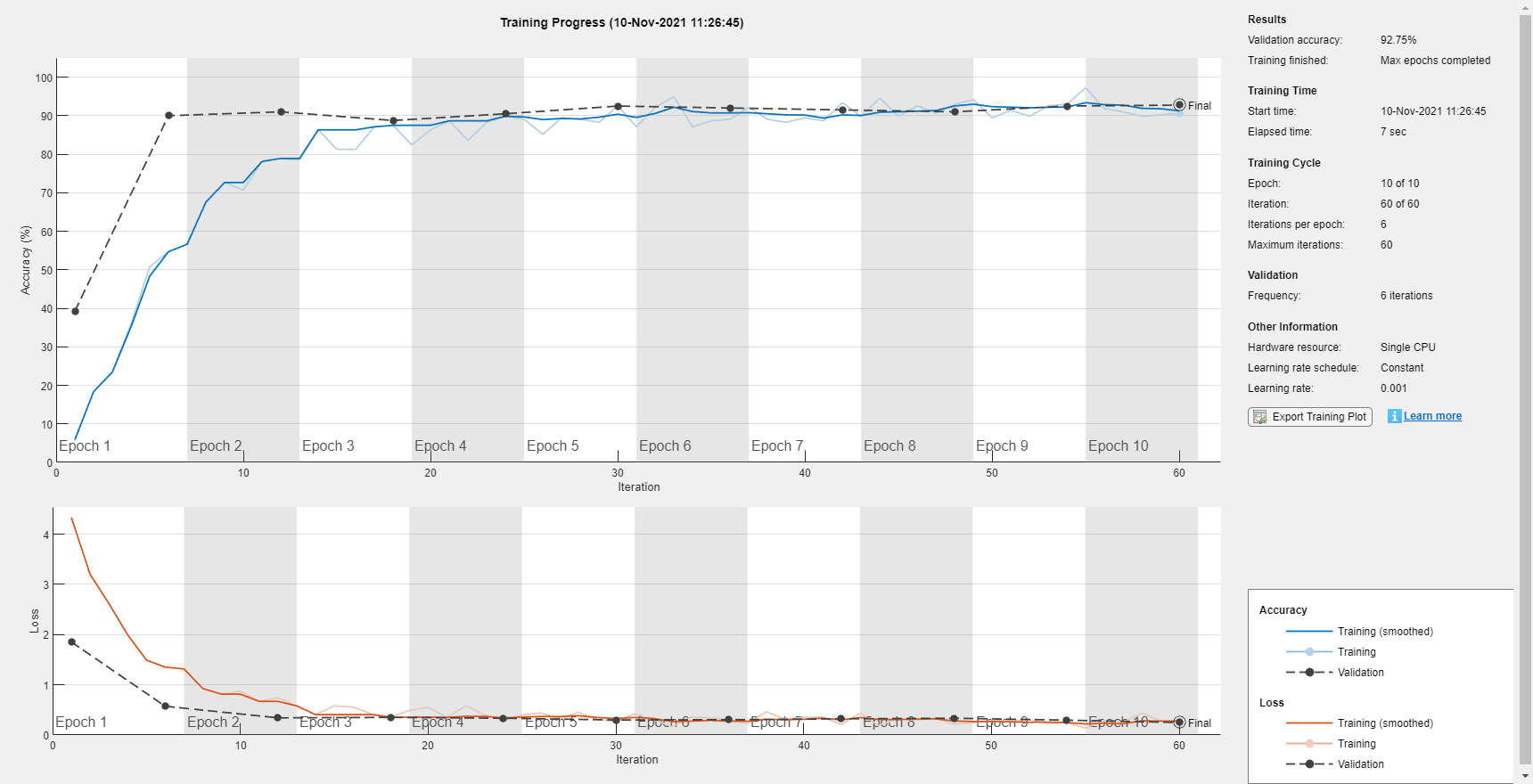

    Train the network.

    net = trainNetwork(ivectorsTrain,adsTrain.Labels,layers,options);

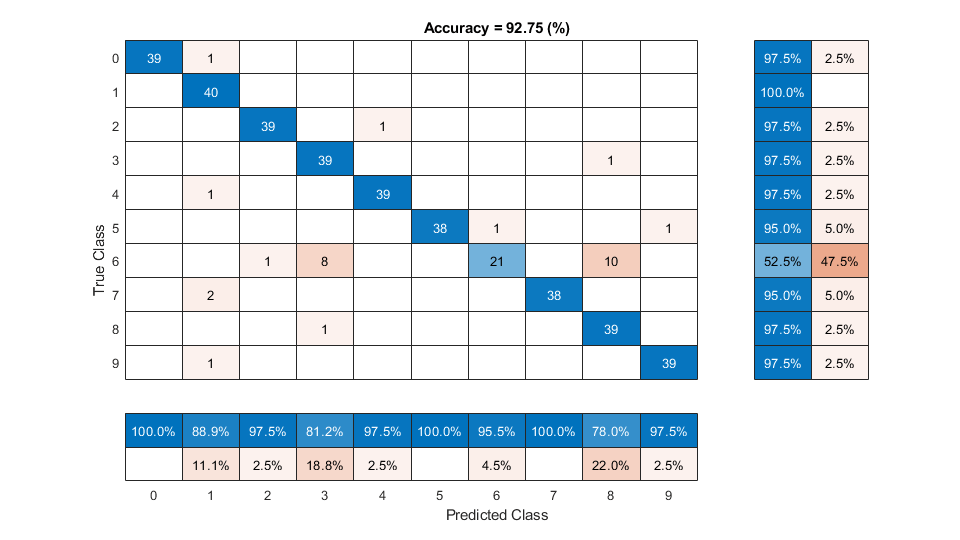

    Evaluate the performance of the deep learning backend using a confusion chart.

    predictedLabels = classify(net,ivectorsValidation);
    trueLabels = adsValidation.Labels;

    figure(Units="normalized",Position=[0.2 0.2 0.5 0.5])
    confusionchart(trueLabels,predictedLabels, ...
        ColumnSummary="column-normalized", ...
        RowSummary="row-normalized", ...
        Title=sprintf('Accuracy = %0.2f (%%)',100*mean(predictedLabels==trueLabels)))

    Evaluate KNN Backend Performance

    Train and evaluate i-vectors with a k-nearest neighbor (KNN) backend.

    Use fitcknn to train a KNN model.

    classificationKNN = fitcknn(...
        ivectorsTrain, ...
        adsTrain.Labels, ...
        Distance="Euclidean", ...
        Exponent=[], ...
        NumNeighbors=10, ...
        DistanceWeight="SquaredInverse", ...
        Standardize=true, ...
        ClassNames=unique(adsTrain.Labels));

    Evaluate the KNN backend.

    predictedLabels = predict(classificationKNN,ivectorsValidation);
    trueLabels = adsValidation.Labels;

    figure(Units="normalized",Position=[0.2 0.2 0.5 0.5])
    confusionchart(trueLabels,predictedLabels, ...
        ColumnSummary="column-normalized", ...
        RowSummary="row-normalized", ...
        Title=sprintf('Accuracy = %0.2f (%%)',100*mean(predictedLabels==trueLabels)))

    References

    [1] Jakobovski. "Jakobovski/Free-Spoken-Digit-Dataset." GitHub, May 30, 2019. https://github.com/Jakobovski/free-spoken-digit-dataset.

    References

    [1] Reynolds, Douglas A., et al. “Speaker Verification Using Adapted Gaussian Mixture Models.” Digital Signal Processing, vol. 10, no. 1–3, Jan. 2000, pp. 19–41. DOI.org (Crossref), doi:10.1006/dspr.1999.0361.

    [2] Kenny, Patrick, et al. “Joint Factor Analysis Versus Eigenchannels in Speaker Recognition.” IEEE Transactions on Audio, Speech and Language Processing, vol. 15, no. 4, May 2007, pp. 1435–47. DOI.org (Crossref), doi:10.1109/TASL.2006.881693.

    [3] Kenny, P., et al. “A Study of Interspeaker Variability in Speaker Verification.” IEEE Transactions on Audio, Speech, and Language Processing, vol. 16, no. 5, July 2008, pp. 980–88. DOI.org (Crossref), doi:10.1109/TASL.2008.925147.

    [4] Dehak, Najim, et al. “Front-End Factor Analysis for Speaker Verification.” IEEE Transactions on Audio, Speech, and Language Processing, vol. 19, no. 4, May 2011, pp. 788–98. DOI.org (Crossref), doi:10.1109/TASL.2010.2064307.

    [5] Matejka, Pavel, Ondrej Glembek, Fabio Castaldo, M. J. Alam, Oldrich Plchot, Patrick Kenny, Lukas Burget, and Jan Cernocky. “Full-Covariance UBM and Heavy-Tailed PLDA in i-Vector Speaker Verification.” 2011 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), 2011. https://doi.org/10.1109/icassp.2011.5947436.

    [6] Snyder, David, et al. “X-Vectors: Robust DNN Embeddings for Speaker Recognition.” 2018 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2018, pp. 5329–33. DOI.org (Crossref), doi:10.1109/ICASSP.2018.8461375.

    [7] Signal Processing and Speech Communication Laboratory. Accessed December 12, 2019. https://www.spsc.tugraz.at/databases-and-tools/ptdb-tug-pitch-tracking-database-from-graz-university-of-technology.html.

    [8] Variani, Ehsan, et al. “Deep Neural Networks for Small Footprint Text-Dependent Speaker Verification.” 2014 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2014, pp. 4052–56. DOI.org (Crossref), doi:10.1109/ICASSP.2014.6854363.

    [9] Dehak, Najim, Réda Dehak, James R. Glass, Douglas A. Reynolds and Patrick Kenny. “Cosine Similarity Scoring without Score Normalization Techniques.” Odyssey (2010).

    [10] Verma, Pulkit, and Pradip K. Das. “I-Vectors in Speech Processing Applications: A Survey.” International Journal of Speech Technology, vol. 18, no. 4, Dec. 2015, pp. 529–46. DOI.org (Crossref), doi:10.1007/s10772-015-9295-3.

    [11] D. García-Romero and C. Espy-Wilson, “Analysis of I-vector Length Normalization in Speaker Recognition Systems.” Interspeech, 2011, pp. 249–252.

    [12] Kenny, Patrick. "Bayesian Speaker Verification with Heavy-Tailed Priors". Odyssey 2010 - The Speaker and Language Recognition Workshop, Brno, Czech Republic, 2010.

    [13] Sizov, Aleksandr, Kong Aik Lee, and Tomi Kinnunen. “Unifying Probabilistic Linear Discriminant Analysis Variants in Biometric Authentication.” Lecture Notes in Computer Science Structural, Syntactic, and Statistical Pattern Recognition, 2014, 464–75. https://doi.org/10.1007/978-3-662-44415-3_47.

    [14] Rajan, Padmanabhan, Anton Afanasyev, Ville Hautamäki, and Tomi Kinnunen. “From Single to Multiple Enrollment I-Vectors: Practical PLDA Scoring Variants for Speaker Verification.” Digital Signal Processing 31 (August), 2014, pp. 93–101. https://doi.org/10.1016/j.dsp.2014.05.001.

    Version History

    Introduced in R2021a
