Bluetooth BR/EDR Waveform Generation and Transmission Using SDR

Open Live Script

This example shows how to generate and transmit Bluetooth® BR/EDR waveforms using Bluetooth® Toolbox. You can either transmit the Bluetooth BR/EDR waveforms by using the ADALM-PLUTO radio or write to a baseband file (*.bb).

To receive the transmitted Bluetooth BR/EDR waveform, see Bluetooth BR/EDR Waveform Reception Using SDR and implement any one of these setups:

  • Two SDR platforms connected to the same host computer which runs two MATLAB sessions.

  • Two SDR platforms connected to two host computers which runs two separate MATLAB sessions.

To configure your host computer to work with the Support Package for ADALM-PLUTO Radio, refer Guided Host-Radio Hardware Setup.

Required Hardware

To transmit signals in real time, you need ADALM-PLUTO radio and the corresponding support package:

For a full list of Communications Toolbox supported SDR platforms, refer to Supported Hardware section of the Software Defined Radio (SDR) discovery page.

Bluetooth BR/EDR Radio Specifications

Bluetooth [ 1 ] is a short-range Wireless Personal Area Network (WPAN) technology, operating in the globally unlicensed industrial, scientific, and medical (ISM) band in the frequency range 2.4 GHz to 2.485 GHz. In Bluetooth technology, data is divided into packets. Each packet is transmitted on one of the 79 designated Bluetooth channels. Each channel has a bandwidth of 1 MHz. As there are different types of wireless networks operating in the same unlicensed frequency band, it is possible for two different networks to interfere with each other. To mitigate the interference, Bluetooth implements the frequency-hopping spread spectrum (FHSS) scheme to switch a carrier between multiple frequency channels by using a pseudorandom sequence known to both the transmitter and receiver.

The Bluetooth standard specifies these physical layer (PHY) modes:

Basic rate (BR) - Mandatory mode, uses Gaussian frequency shift keying (GFSK) modulation with a data rate of 1 Mbps.

Enhanced data rate (EDR) - Optional mode, uses phase shift keying (PSK) modulation with these two variants:

  • EDR2M: Uses pi/4-DQPSK with a data rate of 2 Mbps.

  • EDR3M: Uses 8-DPSK with a data rate of 3 Mbps.

Packet Formats

The air interface packet formats for PHY modes include these fields:

Access Code: Each packet starts with an access code. If a packet header follows, the access code is 72 bits long, otherwise the access code is 68 bits long. The access code consists of these fields:

  • Preamble: The preamble is a fixed zero-one pattern of four symbols.

  • Sync Word: The sync word is a 64-bit code word derived from 24-bit lower address part (LAP) of the Bluetooth device address.

  • Trailer: The trailer is a fixed zero-one pattern of four symbols.

Packet Header: The header includes link control information and consists of these fields:

  • LT_ADDR: 3-bit logical transport address.

  • TYPE: 4-bit type code, which specifies the packet type used for transmission. It can be one of {ID, NULL, POLL, FHS, HV1, HV2, HV3, DV, EV3, EV4, EV5, 2-EV3, 2-EV5, 3-EV3, 3-EV5, DM1, DH1, DM3, DH3, DM5, DH5, AUX1, 2-DH1, 2-DH3, 2-DH5, 3-DH1, 3-DH3, 3-DH5}.

  • FLOW: 1-bit flow control.

  • ARQN: 1-bit acknowledgement indication.

  • SEQN: 1-bit sequence number.

  • HEC: 8-bit header error check.

Payload: Payload includes an optional payload header, a payload body, and an optional CRC.

Guard: For EDR packets, guard time allows the Bluetooth radio to prepare for the change in modulation from GFSK to DPSK. The guard time must be between 4.75 to 5.25 microseconds.

Sync: For EDR packets, the synchronization sequence contains one reference symbol and ten DPSK symbols.

Trailer: For EDR packets, the trailer bits must be all zero pattern of two symbols, {00,00} for pi/4-DQPSK and {000,000} for 8DPSK.

This figure shows the packet format for BR mode

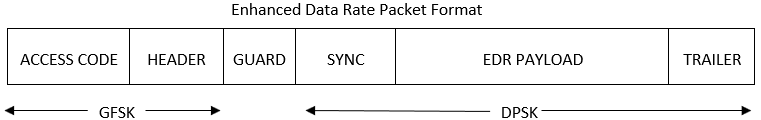

This figure shows the packet format for EDR mode

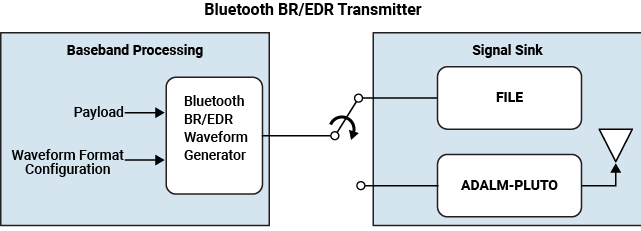

Bluetooth BR/EDR Waveform Generation and Transmission

This example shows how to generate Bluetooth BR/EDR waveforms according to the Bluetooth specification. The spectrum and spectrogram of the generated Bluetooth BR/EDR waveforms are visualized by using the spectrum analyzer. You can transmit the generated waveforms by using the ADALM-PLUTO radio or by writing them to a baseband file (*.bb).

Bluetooth BR/EDR Baseband Waveform Generation and Visualization

To configure the Bluetooth waveform generator for basic rate transmission, use the bluetoothWaveformConfig object.

cfg = bluetoothWaveformConfig;
cfg.Mode = 'BR'; % Mode of transmission as one of BR, EDR2M and EDR3M
cfg.PacketType = 'FHS';     % Packet type
cfg.SamplesPerSymbol = 60; % Samples per symbol
cfg.WhitenInitialization = [0;0;0;0;0;1;1]; % Whiten initialization

To generate the Bluetooth BR/EDR waveforms, use the bluetoothWaveformGenerator function. Use getPayloadLength to determine the required payload length for the given configuration. Then use the payload length to create a random payload for transmission.

payloadLength = getPayloadLength(cfg); % Payload length in bytes
octetLength = 8;
dataBits = randi([0 1],payloadLength*octetLength,1); % Generate random payload bits
txWaveform = bluetoothWaveformGenerator(dataBits,cfg); % Create Bluetooth waveform

Compute the Bluetooth packet duration corresponding to the generated Bluetooth symbols by using the bluetoothPacketDuration function.

packetDuration = bluetoothPacketDuration(cfg.Mode,cfg.PacketType,payloadLength);

The comm.PhaseFrequencyOffset System(TM) object is used to perform a frequency shift for Bluetooth BR/EDR waveforms based on the channel number. In this example, the waveform is visualized by using the dsp.SpectrumAnalyzer (DSP System Toolbox) System object that selects a random channel number from the range 0 to 60 as sample rate used in this example is 60 MHz.

symbolRate = 1e6; % Symbol rate
sampleRate = symbolRate * cfg.SamplesPerSymbol;
numChannels = 10; % Number of channels
filterSpan = 8*any(strcmp(cfg.Mode,{'EDR2M','EDR3M'})); % To meet the spectral mask requirements

% Create and configure frequency offset System object
pfo = comm.PhaseFrequencyOffset('SampleRate',sampleRate);

% Create and configure spectrum analyzer System object
scope = spectrumAnalyzer('ViewType','Spectrum and spectrogram',...
    'TimeResolutionSource','property', ...
    'TimeResolution',1e-5,...
    'SampleRate',sampleRate, ...
    'TimeSpanSource','Property',...
    'TimeSpan',2e-3, ...
    'AxesLayout','Horizontal', ...
    'YLimits',[-70 25], ...
    'AveragingMethod','running');

% Loop over the number of channels to visaulize the frequency shift
for packetIdx = 1:numChannels
    channelNum = randsrc(1,1,0:60); % Generate random channel number
    freqIndex = channelNum - 39; % To visualize as a two sided spectrum
    pfo.FrequencyOffset = freqIndex*symbolRate; % Frequency shift
    hoppedWaveform = pfo(txWaveform(1:(packetDuration+filterSpan)*cfg.SamplesPerSymbol));
    scope.Title = ['Spectrum of Bluetooth ',cfg.Mode,...
        ' Waveform for Channel Number = ', num2str(channelNum)];
    scope(hoppedWaveform);
end
% Release the System objects
release(scope);

release(pfo);

Transmitter Processing

Specify the signal sink as 'File' or 'ADALM-PLUTO'.

% Initialize the parameters required for signal sink
txCenterFrequency = 2445000000;  % In Hz, varies between 2.402e9 to 2.480e9 with 1e6 spacing
txFrameLength     = length(txWaveform);
txNumberOfFrames  = 1e4;
bbFileName        = 'bluetoothBRCaptures.bb';

% The default signal sink is 'File'
signalSink = 'File';

if strcmp(signalSink,'File')
    sigSink = comm.BasebandFileWriter('CenterFrequency',txCenterFrequency,...
        'Filename',bbFileName,...
        'SampleRate',sampleRate);
    sigSink(txWaveform); % Writing to a baseband file 'bluetoothBRCaptures.bb'
else % For 'ADALM-PLUTO'
    % Check if the ADALM-PLUTO Hardware Support Package (HSP) is installed
    if isempty(which('plutoradio.internal.getRootDir'))
        link = sprintf('<a href="https://www.mathworks.com/hardware-support/pluto.html">ADALM-PLUTO Radio Support From Communications Toolbox</a>');
        error('Unable to find Communications Toolbox Support Package for ADALM-PLUTO Radio. To install the support package, visit %s',link);
    end
    connectedRadios = findPlutoRadio; % Discover ADALM-PLUTO radio(s) connected to your computer
    radioID = connectedRadios(1).RadioID;
    sigSink = sdrtx('Pluto',...
        'RadioID',           radioID,...
        'CenterFrequency',   txCenterFrequency,...
        'Gain',              0,...
        'SamplesPerFrame',   txFrameLength,...
        'BasebandSampleRate',sampleRate);
    % The transfer of baseband data to the SDR hardware is enclosed in a
    % try/catch block. This implies that if an error occurs during the
    % transmission, the hardware resources used by the SDR System object
    % are released.
    currentFrame = 1;
    try
        while currentFrame <= txNumberOfFrames
            % Data transmission
            sigSink(txWaveform);
            % Update the counter
            currentFrame = currentFrame + 1;
        end
    catch ME
        release(sigSink);
        rethrow(ME);
    end
end

% Release the signal sink
release(sigSink);

In this example, you can generate and transmit Bluetooth BR/EDR waveforms by using ADALM-PLUTO or by writing the waveforms to a baseband file. The spectrum and spectrogram of the generated Bluetooth BR/EDR waveforms is visualized by using a spectrum analyzer.

Further Exploration

You can use this example to transmit EDR packets by changing the mode of transmission. To decode the Bluetooth BR/EDR waveforms generated in this example, see Bluetooth BR/EDR Waveform Reception Using SDR.

Troubleshooting

General tips for troubleshooting SDR hardware and the Communications Toolbox Support Package for ADALM-PLUTO Radio can be found in Common Problems and Fixes.

Selected Bibliography

  1. Bluetooth Special Interest Group (SIG). "Core System Package [BR/EDR Controller Volume]". Bluetooth Core Specification. Version 5.3, Volume 2. www.bluetooth.com
