## Mixed Integer `ga` Optimization

### Solving Mixed Integer Optimization Problems

`ga` can solve problems when certain variables are integer-valued. Give `IntCon`, a vector of the x components that are integers:

```[x,fval,exitflag] = ga(fitnessfcn,nvars,A,b,[],[],... lb,ub,nonlcon,IntCon,options)```

`IntCon` is a vector of positive integers that contains the x components that are integer-valued. For example, if you want to restrict `x(2)` and `x(10)` to be integers, set `IntCon` to `[2,10]`.

The `surrogateopt` solver also accepts integer constraints.

Note

Restrictions exist on the types of problems that `ga` can solve with integer variables. In particular, `ga` does not accept any equality constraints when there are integer variables. For details, see Characteristics of the Integer ga Solver.

Tip

`ga` solves integer problems best when you provide lower and upper bounds for every x component.

#### Mixed Integer Optimization of Rastrigin's Function

This example shows how to find the minimum of Rastrigin's function restricted so the first component of x is an integer. The components of x are further restricted to be in the region $5\pi \le x\left(1\right)\le 20\pi ,\phantom{\rule{0.5em}{0ex}}-20\pi \le x\left(2\right)\le -4\pi$ .

Set up the bounds for your problem

```lb = [5*pi,-20*pi]; ub = [20*pi,-4*pi];```

Set a plot function so you can view the progress of ga

`opts = optimoptions('ga','PlotFcn',@gaplotbestf);`

Call the ga solver where x(1) has integer values

```rng(1,'twister') % for reproducibility IntCon = 1; [x,fval,exitflag] = ga(@rastriginsfcn,2,[],[],[],[],... lb,ub,[],IntCon,opts)```

```Optimization terminated: average change in the penalty fitness value less than options.FunctionTolerance and constraint violation is less than options.ConstraintTolerance. ```
```x = 1×2 16.0000 -12.9325 ```
```fval = 424.1355 ```
```exitflag = 1 ```

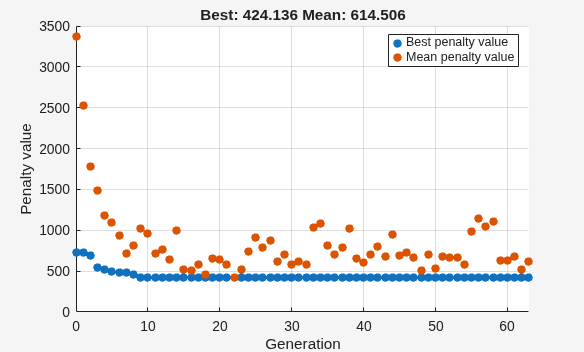

ga converges quickly to the solution.

### Characteristics of the Integer ga Solver

There are some restrictions on the types of problems that `ga` can solve when you include integer constraints:

• No linear equality constraints. You must have `Aeq = []` and `beq = []`. For a possible workaround, see No Equality Constraints.

• No nonlinear equality constraints. Any nonlinear constraint function must return `[]` for the nonlinear equality constraint. For a possible workaround, see Example: Integer Programming with a Nonlinear Equality Constraint.

• Only `doubleVector` population type.

• No custom creation function (`CreationFcn` option), crossover function (`CrossoverFcn` option), mutation function (`MutationFcn` option), or initial scores (`InitialScoreMatrix` option). If you supply any of these, `ga` overrides their settings.

• `ga` uses only the binary tournament selection function (`SelectionFcn` option), and overrides any other setting.

• No hybrid function. `ga` overrides any setting of the `HybridFcn` option.

• `ga` ignores the `ParetoFraction`, `DistanceMeasureFcn`, `InitialPenalty`, and `PenaltyFactor` options.

The listed restrictions are mainly natural, not arbitrary. For example:

• There are no hybrid functions that support integer constraints. So `ga` does not use hybrid functions when there are integer constraints.

• To obtain integer variables, `ga` uses special creation, crossover, and mutation functions.

#### No Equality Constraints

You cannot use equality constraints and integer constraints in the same problem. You can try to work around this restriction by including two inequality constraints for each linear equality constraint. For example, to try to include the constraint

3x1 – 2x2 = 5,

create two inequality constraints:

3x1 – 2x2 ≤ 5
3x1 – 2x2 ≥ 5.

To write these constraints in the form `A x` ≤ `b`, multiply the second inequality by `-1`:

–3x1 + 2x2 ≤ –5.

You can try to include the equality constraint using `A` = `[3,-2;-3,2]` and `b` = `[5;-5]`.

Be aware that this procedure can fail; `ga` has difficulty with simultaneous integer and equality constraints.

Example: Integer Programming with a Nonlinear Equality Constraint.  This example attempts to locate the minimum of the Ackley function (included with your software) in five dimensions with these constraints:

• `x(1)`, `x(3)`, and `x(5)` are integers.

• `norm(x) = 4`.

The Ackley function is difficult to minimize. Adding integer and equality constraints increases the difficulty.

To include the nonlinear equality constraint, give a small tolerance `tol` that allows the norm of `x` to be within `tol` of `4`. Without a tolerance, the nonlinear equality constraint is never satisfied, and the solver does not realize when it has a feasible solution.

1. Write the expression `norm(x) = 4` as two “less than zero” inequalities:

`norm(x) - 4` ≤` 0`
`-(norm(x) - 4)` ≤` 0`.

2. Allow a small tolerance in the inequalities:

`norm(x) - 4 - tol` ≤` 0`
`-(norm(x) - 4) - tol` ≤` 0`.

3. Write a nonlinear inequality constraint function that implements these inequalities:

```function [c, ceq] = eqCon(x) ceq = []; rad = 4; tol = 1e-3; confcnval = norm(x) - rad; c = [confcnval - tol;-confcnval - tol];```
4. Set options:

• `MaxStallGenerations = 50` — Allow the solver to try for a while.

• `FunctionTolerance = 1e-10` — Specify a stricter stopping criterion than usual.

• `MaxGenerations = 300` — Allow more generations than default.

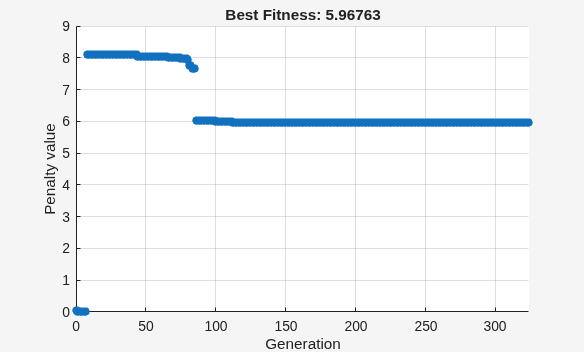

• `PlotFcn = @gaplotbestfun` — Observe the optimization.

```opts = optimoptions('ga','MaxStallGenerations',50,'FunctionTolerance',1e-10,... 'MaxGenerations',300,'PlotFcn',@gaplotbestfun);```
5. Set lower and upper bounds to help the solver:

```nVar = 5; lb = -5*ones(1,nVar); ub = 5*ones(1,nVar);```
6. Solve the problem:

```rng(0,'twister') % for reproducibility [x,fval,exitflag] = ga(@ackleyfcn,nVar,[],[],[],[], ... lb,ub,@eqCon,[1 3 5],opts);```
```Optimization terminated: average change in the penalty fitness value less than options.FunctionTolerance and constraint violation is less than options.ConstraintTolerance.```

7. Examine the solution:

```x,fval,exitflag,norm(x) x = 0 -1.7367 -3.0000 -0.0000 -2.0000 fval = 5.2303 exitflag = 1 ans = 4.0020```

The odd `x` components are integers, as specified. The norm of `x` is `4`, to within the given relative tolerance of `1e-3`.

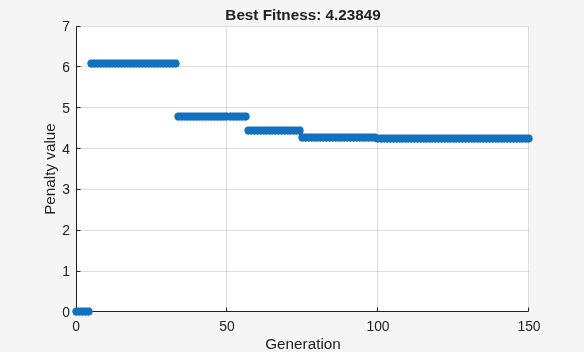

8. Despite the positive exit flag, the solution is not the global optimum. Run the problem again and examine the solution:

```opts = optimoptions('ga',opts,'Display','off'); [x2,fval2,exitflag2] = ga(@ackleyfcn,nVar,[],[],[],[], ... lb,ub,@eqCon,[1 3 5],opts);```

Examine the second solution:

```x2,fval2,exitflag2,norm(x2) ```
```x2 = -2.0000 2.8930 0 -1.9095 0 fval2 = 4.5520 exitflag2 = 0 ans = 4.0020```

The second run gives a better solution (lower fitness function value). Again, the odd `x` components are integers, and the norm of `x2` is `4`, to within the given relative tolerance of `1e-3`.

Be aware that this procedure can fail; `ga` has difficulty with simultaneous integer and equality constraints.

### Effective Integer `ga`

To use `ga` most effectively on integer problems, follow these guidelines.

• Bound each component as tightly as you can. This practice gives `ga` the smallest search space, enabling `ga` to search most effectively.

• If you cannot bound a component, then specify an appropriate initial range. By default, `ga` creates an initial population with range `[-1e4,1e4]` for each component. A smaller or larger initial range can give better results when the default value is inappropriate. To change the initial range, use the `InitialPopulationRange` option.

• If you have more than 10 variables, set a population size that is larger than default by using the `PopulationSize` option. The default value is 200 for six or more variables. For a large population size:

• `ga` can take a long time to converge. If you reach the maximum number of generations (exit flag `0`), increase the value of the `MaxGenerations` option.

• Decrease the mutation rate. To do so, increase the value of the `CrossoverFraction` option from its default of `0.8` to `0.9` or higher.

• Increase the value of the `EliteCount` option from its default of `0.05*PopulationSize` to `0.1*PopulationSize` or higher.

For information on options, see the `ga` `options` input argument.

### Integer `ga` Algorithm

Integer programming with `ga` involves several modifications of the basic algorithm (see How the Genetic Algorithm Works). For integer programming:

• Special creation, crossover, and mutation functions enforce variables to be integers. For details, see Deep et al. [2].

• The genetic algorithm attempts to minimize a penalty function, not the fitness function. The penalty function includes a term for infeasibility. This penalty function is combined with binary tournament selection to select individuals for subsequent generations. The penalty function value of a member of a population is:

• If the member is feasible, the penalty function is the fitness function.

• If the member is infeasible, the penalty function is the maximum fitness function among feasible members of the population, plus a sum of the constraint violations of the (infeasible) point.

For details of the penalty function, see Deb [1].

• `ga` does not enforce linear constraints when there are integer constraints. Instead, `ga` incorporates linear constraint violations into the penalty function.

## References

[1] Deb, Kalyanmoy. An efficient constraint handling method for genetic algorithms. Computer Methods in Applied Mechanics and Engineering, 186(2–4), pp. 311–338, 2000.

[2] Deep, Kusum, Krishna Pratap Singh, M.L. Kansal, and C. Mohan. A real coded genetic algorithm for solving integer and mixed integer optimization problems. Applied Mathematics and Computation, 212(2), pp. 505–518, 2009.
