Verify Generated HDL Code from Simulink Model

This example shows how to generate a HDL test bench and verify the generated code for a simple counter model. To generate HDL code for this model, see Generate HDL Code from Simulink Model. If you have not generated HDL code for this model, HDL Coder™ runs code generation before generating the testbench.

What is an HDL Test Bench?

To verify the functionality of the HDL code for the DUT, generate a HDL test bench. A test bench includes:

  • Stimulus data generated by signal sources connected to the entity under test.

  • Output data generated by the entity under test. During a test bench run, this data is compared to the outputs of the VHDL® model for verification.

  • Clock, reset, and clock enable inputs to drive the entity under test.

  • A component instantiation of the entity under test.

  • Code to drive the entity under test and compare its outputs to the expected data.

You can simulate the generated test bench and script files by using the Mentor Graphics® ModelSim® simulator.

Simple Counter Model

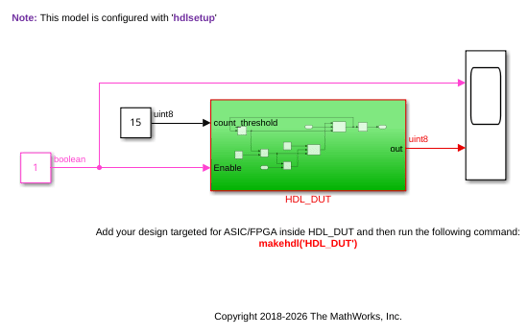

Open this model to see a simple counter. The model counts up from zero to a threshold value and then wraps back to zero. The threshold value is set to 15. To change the threshold value, change the value of the input to the count_threshold port. The Enable signal specifies whether the counter counts upward or holds the previous value. A value of 1 indicates that the counter counts upward continuously.

Verification Methods

If you have HDL Verifier™ installed, you can also verify the generated HDL code by using these methods.

Verification MethodFor More Information
HDL CosimulationCosimulation
SystemVerilog DPI Test BenchSystemVerilog DPI Test Bench
FPGA-in-the-LoopFPGA-in-the-Loop

Generate HDL Test Bench

Generate VHDL or Verilog test bench code as applicable. By default, the HDL code and the test bench code are written to the same target folder hdlsrc relative to the current folder.

For the counter model, the HDL_DUT subsystem is the DUT. To generate the testbench, select this subsystem.

  1. In the Apps tab, select HDL Coder.

  2. Select the DUT subsystem, HDL_DUT, and make sure this name appears in the Code for option on the HDL Code tab. To remember the selection, pin this option. Click Generate Testbench.

Generate Verilog Test Bench Code

To generate Verilog testbench code for the counter model:

  1. In the HDL Code tab, click Settings.

  2. In the HDL Code Generation pane, for Language, select Verilog.

  3. In the HDL Code Generation > Test Bench pane, click Generate Test Bench.

HDL Coder compiles the model and generates the test bench.

Test bench generation is completed and displays this message. The generated files appear in the hdlsrc folder.

### HDL TestBench Generation Complete.

View HDL Test Bench Files

For the counter model, the hdlsrc folder contains these test bench files.

  • HDL_DUT_tb.vhd: VHDL test bench code containing generated test and output data. If you generated Verilog test bench code, the generated file is HDL_DUT_tb.v.

  • HDL_DUT_tb_pkg.vhd: Package file for VHDL test bench code. This file is not generated if you specified Verilog as the target language.

  • HDL_DUT_tb_compile.do: Mentor Graphics ModelSim compilation script (vcom commands). This script compiles and loads the entity to be tested (HDL_DUT.vhd) and the test bench code (HDL_DUT_tb.vhd).

  • HDL_DUT_tb_sim.do: Mentor Graphics ModelSim script to initialize the simulator, set up wave window signal displays, and run a simulation.

To view the generated test bench code in the MATLAB® Editor, double-click the HDL_DUT_tb.vhd or HDL_DUT_tb.v file in the current folder.

Run Simulation and Verify Generated HDL Code

To verify the simulation results, you can use the Mentor Graphics ModelSim simulator. You must have already installed Mentor Graphics ModelSim.

To open the simulator, use the vsim (HDL Verifier) function. This command shows how to open the simulator by specifying the path to the executable:

vsim('vsimdir','C:\Program Files\ModelSim\questasim\10.6b\win64\vsim.exe')

To compile and run a simulation of the generated model and test bench code, use the HDL Coder generated scripts. For the counter model, run these commands to compile and simulate the generated test bench for the HDL_DUT Subsystem.

  1. Open the Mentor Graphics ModelSim software and navigate to the folder that has the generated code files and the scripts.

  2. Use the generated compilation script to compile and load the generated model and text bench code. For the HDL_DUT subsystem, run this command to compile the generated code.


    QuestaSim>do HDL_DUT_tb_compile.do


  3. Use the generated simulation script to execute the simulation. The following listing displays the command. You can ignore warning messages. For the HDL_DUT Subsystem, run this command to simulate the generated code.


    QuestaSim>do HDL_DUT_tb_sim.do



    The simulator optimizes your design and displays the results in a wave window. if you don't see the simulation results, open the wave window. The simulation script displays inputs and outputs in the model including the clock, reset, and clock enable signals in the wave window.

You can now view the signals and verify that the simulation results match the functionality of your original design. After verifying, close the Mentor Graphics ModelSim simulator, and then close the open files in the MATLAB Editor.

Deploy Generated HDL Code on Target Device

To deploy the generated code on a target FPGA device, use the Simulink® HDL Workflow Advisor. See HDL Code Generation and FPGA Synthesis from Simulink Model.
