# entropyfilt

Local entropy of grayscale image

## Description

example

J = entropyfilt(I) returns the array J, where each output pixel contains the entropy value of the 9-by-9 neighborhood around the corresponding pixel in the input image I.

For pixels on the borders of I, entropyfilt uses symmetric padding. In symmetric padding, the values of padding pixels are a mirror reflection of the border pixels in I.

J = entropyfilt(I,nhood) performs entropy filtering of the input image I using the neighborhood nhood.

## Examples

collapse all

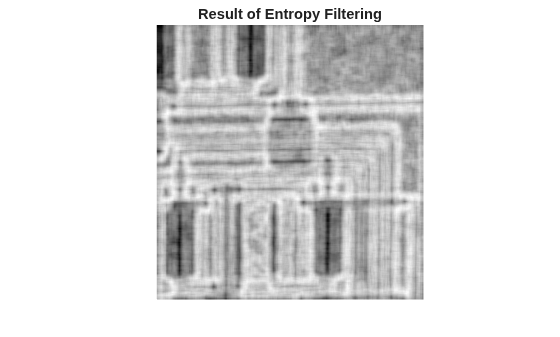

This example shows how to perform entropy filtering using entropyfilt. Brighter pixels in the filtered image correspond to neighborhoods in the original image with higher entropy.

Read an image into the workspace.

Perform entropy filtering using entropyfilt.

J = entropyfilt(I);

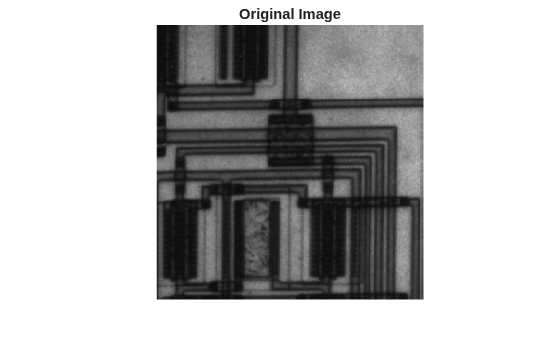

Show the original image and the processed image.

imshow(I)
title('Original Image')

figure
imshow(J,[])
title('Result of Entropy Filtering')

## Input Arguments

collapse all

Image to be filtered, specified as a numeric array of any dimension. If the input image has more than two dimensions (ndims(I) > 2), such as for an RGB image, then entropyfilt filters all 2-D planes along the higher dimensions. For data types double and single, the intensity values of I must be in the range [0, 1].

Data Types: double | uint8 | uint16 | uint32 | logical

Neighborhood, specified as a numeric or logical array containing 0s and 1s. The size of nhood must be odd in each dimension.

By default, entropyfilt uses the neighborhood true(9). The center element of the neighborhood is floor((size(nhood) + 1)/2).

To specify neighborhoods of other shapes, such as a disk, use the strel function to create a structuring element object of the desired shape. Then, extract the neighborhood from the structuring element object’s neighborhood property.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

## Output Arguments

collapse all

Filtered image, returned as a numeric array the same size as the input image I. The data type of J is double. If the input image I is a binary image (data type logical), then the values of J are in the range [0, 1]. For all other data types of I, the values of J are in the range [0, 8].

Data Types: double

collapse all

### Entropy

Entropy is a statistical measure of randomness that can be used to characterize the texture of the input image.

Entropy is defined as -sum(p.*log2(p)), where p contains the normalized histogram counts returned from imhist.

## Tips

• By default, entropyfilt uses two bins for logical arrays. entropyfilt converts any other class to uint8 for the histogram count calculation and uses 256 bins so that the pixel values are discrete and directly correspond to a bin value.

• If the input image I is a grayscale image, then the values of J can exceed the range [0, 1] that some Image Processing Toolbox™ functions expect for images of type double. To pass J as an input argument to these functions, use the rescale function to rescale the values of J to the range [0, 1].

## References

[1] Gonzalez, R. C., R. E. Woods, and S. L. Eddins. Digital Image Processing Using MATLAB. New Jersey, Prentice Hall, 2003, Chapter 11.

## Version History

Introduced before R2006a
