rgb2xyz

Convert RGB to CIE 1931 XYZ

Syntax

``XYZ = rgb2xyz(RGB)``
``XYZ = rgb2xyz(RGB,Name,Value)``

Description

````XYZ = rgb2xyz(RGB)` converts the red, green, and blue values of an sRGB image to CIE 1931 XYZ values (2° observer).```

example

````XYZ = rgb2xyz(RGB,Name,Value)` specifies additional conversion options, such as the color space of the RGB image, using one or more name-value arguments.```

Examples

collapse all

Convert images and color values from RGB to CIE 1931 XYZ color space.

Convert RGB Image to XYZ

Read an RGB image into the workspace.

`RGB = imread('peppers.png');`

Convert the image to XYZ color space.

`XYZ = rgb2xyz(RGB);`

Display the original image alongside the new image.

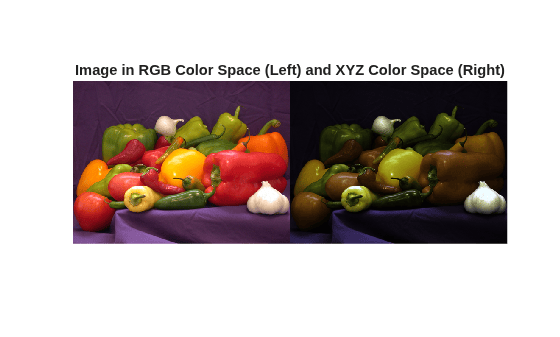

```figure imshowpair(RGB,XYZ,'montage'); title('Image in RGB Color Space (Left) and XYZ Color Space (Right)');```

Convert RGB Color Value to XYZ

Convert the value of white from RGB to XYZ color space. In RGB, white is represented by the vector [1 1 1].

`rgb2xyz([1 1 1])`
```ans = 1×3 0.9505 1.0000 1.0888 ```

Convert RGB Color to XYZ using D50 as Reference White

`XYZ_D50 = rgb2xyz(RGB,'WhitePoint','d50');`

Display the first output XYZ image alongside the XYZ image with D50 as reference white.

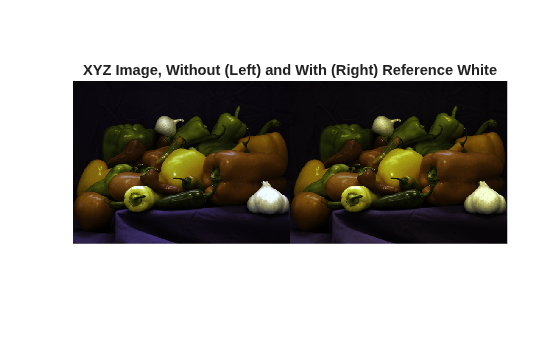

```figure imshowpair(XYZ,XYZ_D50,'montage'); title('XYZ Image, Without (Left) and With (Right) Reference White');```

Convert Adobe RGB (1998) Color to XYZ

`XYZ_Adobe = rgb2xyz(RGB,'ColorSpace','adobe-rgb-1998');`

Display the XYZ images generated from the default RGB and the Adobe RGB (1998) color spaces.

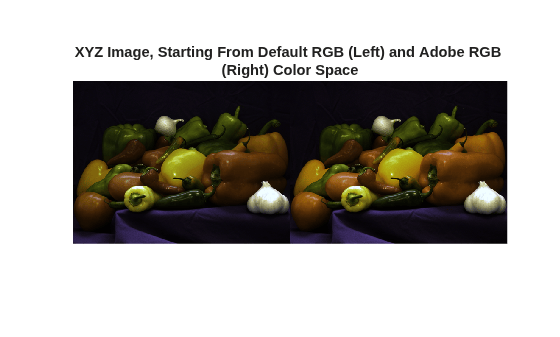

```figure imshowpair(XYZ,XYZ_Adobe,'montage'); title(['XYZ Image, Starting From Default RGB (Left) and Adobe RGB ',... '(Right) Color Space']);```

Input Arguments

collapse all

RGB color values to convert, specified as a numeric array in one of these formats.

• c-by-3 colormap. Each row specifies one RGB color value.

• m-by-n-by-3 image

• m-by-n-by-3-by-p stack of images

Data Types: `single` | `double` | `uint8` | `uint16`

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: ```xyz = rgb2xyz([.2 .3 .4],WhitePoint="d50")```

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `xyz = rgb2xyz([.2 .3 .4],"WhitePoint","d50")`

Color space of the input RGB values, specified as `"srgb"`, `"adobe-rgb-1998"`, `"prophoto-rgb"`, or `"linear-rgb"`. If you specify `"linear-rgb"`, then `rgb2xyz` assumes the input RGB values are linearized sRGB values.

Data Types: `string` | `char`

Reference white point, specified as a 1-by-3 vector or one of the CIE standard illuminants listed in the table.

ValueWhite Point
`"a"`

CIE standard illuminant A, `[1.0985, 1.0000, 0.3558]`. Simulates typical, domestic, tungsten-filament lighting with correlated color temperature of 2856 K.

`"c"`CIE standard illuminant C, `[0.9807, 1.0000, 1.1822]`. Simulates average or north sky daylight with correlated color temperature of 6774 K. Deprecated by CIE.
`"e"`Equal-energy radiator, `[1.000, 1.000, 1.000]`. Useful as a theoretical reference.
`"d50"`CIE standard illuminant D50, `[0.9642, 1.0000, 0.8251]`. Simulates warm daylight at sunrise or sunset with correlated color temperature of 5003 K. Also known as horizon light.

`"d55"`

CIE standard illuminant D55, `[0.9568, 1.0000, 0.9214]`. Simulates mid-morning or mid-afternoon daylight with correlated color temperature of 5500 K.

`"d65"`CIE standard illuminant D65, `[0.9504, 1.0000, 1.0888]`. Simulates noon daylight with correlated color temperature of 6504 K.
`"icc"`Profile Connection Space (PCS) illuminant used in ICC profiles. Approximation of `[0.9642, 1.000, 0.8249]` using fixed-point, signed, 32-bit numbers with 16 fractional bits. Actual value: ```[31595,32768, 27030]/32768```.

Data Types: `single` | `double` | `string` | `char`

Output Arguments

collapse all

Converted XYZ color values, returned as a numeric array of the same size as the input. The output type is class `double` unless the input type is `single`, in which case the output type is also `single`.

Tips

• If you specify the input RGB color space as `"linear-rgb"`, then `rgb2xyz` assumes the input values are linearized sRGB values. If instead you want the input color space to be linearized Adobe RGB (1998), then you can use the `lin2rgb` function.

For example, to convert linearized Adobe RGB (1998) image `RGBlinadobe` to CIE 1931 XYZ color space, perform the conversion in two steps:

```RGBadobe = lin2rgb(RGBlinadobe,"ColorSpace","adobe-rgb-1998"); XYZ = rgb2xyz(RGBadobe,"ColorSpace","adobe-rgb-1998"); ```
