sid

Measure spectral similarity using spectral information divergence

    Description

    example

    score = sid(inputData,refSpectra) measures the spectral similarity between the spectra of each pixel in the hyperspectral data inputData and the specified reference spectra refSpectra by using the spectral information divergence (SID) technique. Use this syntax to identify different regions or materials in a hyperspectral data cube.

    example

    score = sid(testSpectra,refSpectra) measures the spectral similarity between the specified test spectra testSpectra and reference spectra refSpectra by using the SID method. Use this syntax to compare the spectral signature of an unknown material against the reference spectra or to compute spectral variability between two spectral signatures.

    Note

    This function requires the Image Processing Toolbox™ Hyperspectral Imaging Library. You can install the Image Processing Toolbox Hyperspectral Imaging Library from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

    Examples

    collapse all

    Distinguish different regions in a hyperspectral data cube by computing the spectral information divergence (SID) between each pixel spectra and the endmember spectra of the data cube.

    Read hyperspectral data in to the workspace.

     hcube = hypercube('jasperRidge2_R198.hdr');

    Specify the number of spectrally distinct bands to identify in the data cube.

    numEndmembers = 7;

    Extract endmember spectral signatures from the data cube by using the NFINDR algorithm.

    endmembers = nfindr(hcube,numEndmembers);

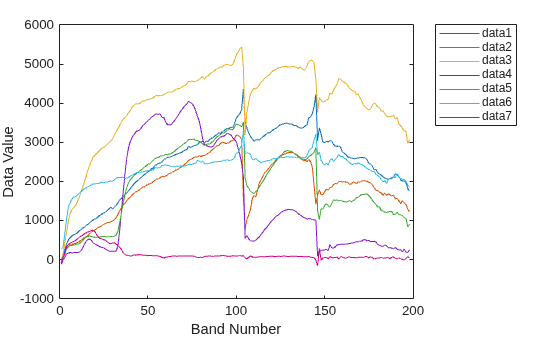

    Plot the spectral signatures of the endmembers.

    figure
    plot(endmembers)
    xlabel('Band Number')
    ylabel('Data Value')
    legend('Location','Bestoutside')

    Compute the spectral information divergence between each endmember and the spectra of each pixel in the data cube.

    score = zeros(size(hcube.DataCube,1),size(hcube.DataCube,2),numEndmembers);
    for i= 1:numEndmembers
        score(:,:,i) = sid(hcube,endmembers(:,i));
    end

    Compute the minimum score value from the distance scores obtained for each pixel spectra with respect to all the endmembers. The index of each minimum score identifies the endmember spectra to which a pixel spectra exhibits maximum similarity. An index value, n, at the spatial location (x, y) in the score matrix indicates that the spectral signature of the pixel at spatial location (x, y) in the data cube best matches the spectral signature of the nth endmember.

    [~,matchingIndx] = min(score,[],3);

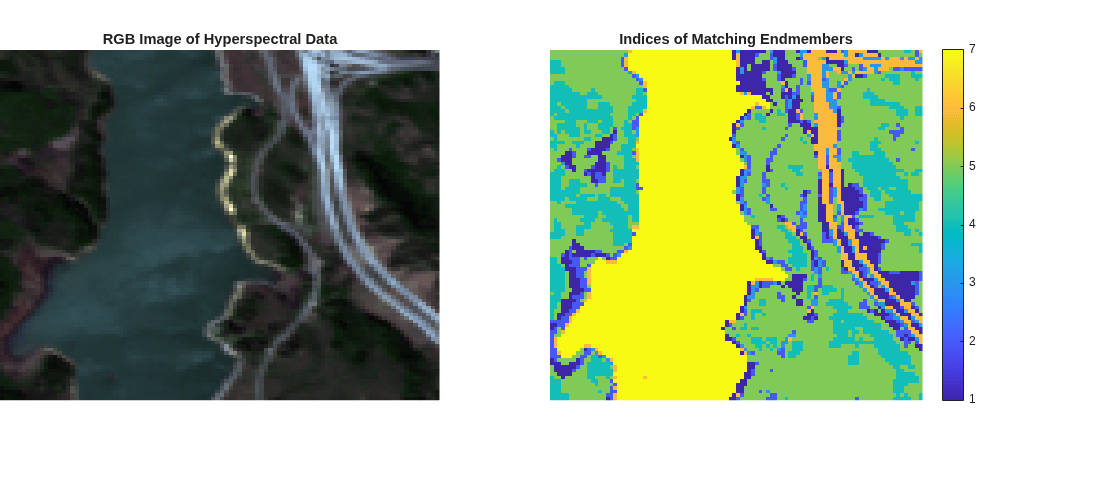

    Estimate an RGB image of the hyperspectral data cube by using the colorize function. Display both the RGB image and the matrix of matched index values.

    rgbImg = colorize(hcube,'Method','RGB');
    figure('Position',[0 0 1100 500])
    subplot('Position',[0 0.2 0.4 0.7])
    imagesc(rgbImg)
    axis off
    colormap default
    title('RGB Image of Hyperspectral Data')
    subplot('Position',[0.5 0.2 0.4 0.7])
    imagesc(matchingIndx);
    axis off
    title('Indices of Matching Endmembers')
    colorbar

    Read hyperspectral data into the workspace.

    hcube = hypercube('jasperRidge2_R198.hdr');

    Find 10 endmembers of the hyperspectral data cube by using the N-FINDR method.

    numEndmembers = 10;
    endmembers = nfindr(hcube,numEndmembers);

    Consider the first endmember as the reference spectra and the rest of the endmembers as the test spectra. Compute the SID score between the reference and test spectra.

    score = zeros(1,numEndmembers-1);
    refSpectra = endmembers(:,1);
    for i = 2:numEndmembers
        testSpectra = endmembers(:,i);
        score(i-1) = sid(testSpectra,refSpectra);
    end

    Find the test spectra that exhibit maximum similarity (minimum distance) to the reference spectra. Then find the test spectra that exhibit minimum similarity (maximum distance) to the reference spectra.

    [minval,minidx] = min(score);
    maxMatch = endmembers(:,minidx);
    [maxval,maxidx] = max(score);
    minMatch = endmembers(:,maxidx);

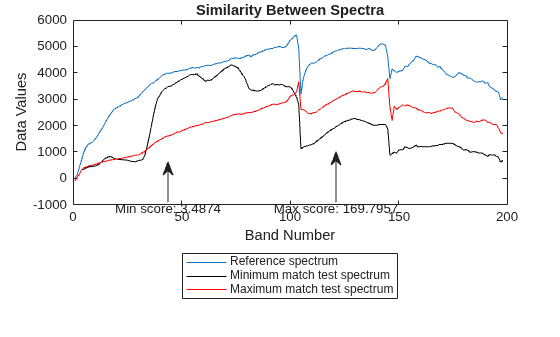

    Plot the reference spectra, maximum similarity test spectra, and the minimum similarity test spectra. The test spectra with the minimum score has the highest similarity to the reference endmember. On the other hand, the test spectra with maximum score has the highest spectral variability and characterises the spectral behaviour of two different materials.

    figure
    plot(refSpectra)
    hold on
    plot(maxMatch,'k')
    plot(minMatch,'r')
    legend('Reference spectra','Minimum match test spectra','Maximum match test spectra',...
           'Location','Southoutside');
    title('Similarity Between Spectra')
    annotation('textarrow',[0.3 0.3],[0.4 0.52],'String',['Min score: ' num2str(minval)])
    annotation('textarrow',[0.6 0.6],[0.4 0.55],'String',['Max score: ' num2str(maxval)])
    xlabel('Band Number')
    ylabel('Data Values')

    Input Arguments

    collapse all

    Input hyperspectral data, specified as a hypercube object or a 3-D numeric array containing the data cube. If the input is a hypercube object, the data is read from the DataCube property of the object.

    Test spectra, specified as a C-element vector. The test spectra is the spectral signature of an unknown region or material.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Reference spectra, specified as a C-element vector. The reference spectra is the spectral signature of a known region or material. The function matches the test spectra against these values.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Output Arguments

    collapse all

    SID score, returned as a scalar or matrix. The output is a

    • scalar — If you specify the testSpectra input argument. The function matches the test spectral signature against the reference spectral signature and returns a scalar value. Both the test and the reference spectra must be vectors of same length.

    • matrix — If you specify the inputData input argument. The function matches the spectral signature of each pixel in the data cube against the reference spectral signature and returns a matrix. If the data cube is of size M-by-N-by-C and the reference spectra is a vector of length C, the output matrix is of size M-by-N.

    A smaller SAM score indicates a strong match between the test signature and the reference signature.

    Data Types: single | double

    More About

    collapse all

    Spectral information divergence

    The spectral information divergence (SID) method computes spectral similarity based on the divergence between the probability distributions of the two spectra. Let r and t be the reference and test spectra respectively. Calculate the distribution values for the reference spectra as:

    qi=rii=1Cri.

    .

    Calculate the distribution values for the test spectra as:

    pi=tii=1Cti.

    .

    Then, compute the SID value by using the probability distributions of the reference and the test spectra:

    SID=i=1Cpilog(piqi)+i=1Cqilog(qipi).

    References

    [1] Chein-I Chang. “An Information-Theoretic Approach to Spectral Variability, Similarity, and Discrimination for Hyperspectral Image Analysis.” IEEE Transactions on Information Theory 46, no. 5 (August 2000): 1927–32. https://doi.org/10.1109/18.857802.

    Introduced in R2020a
